SKU: BTAS716-D

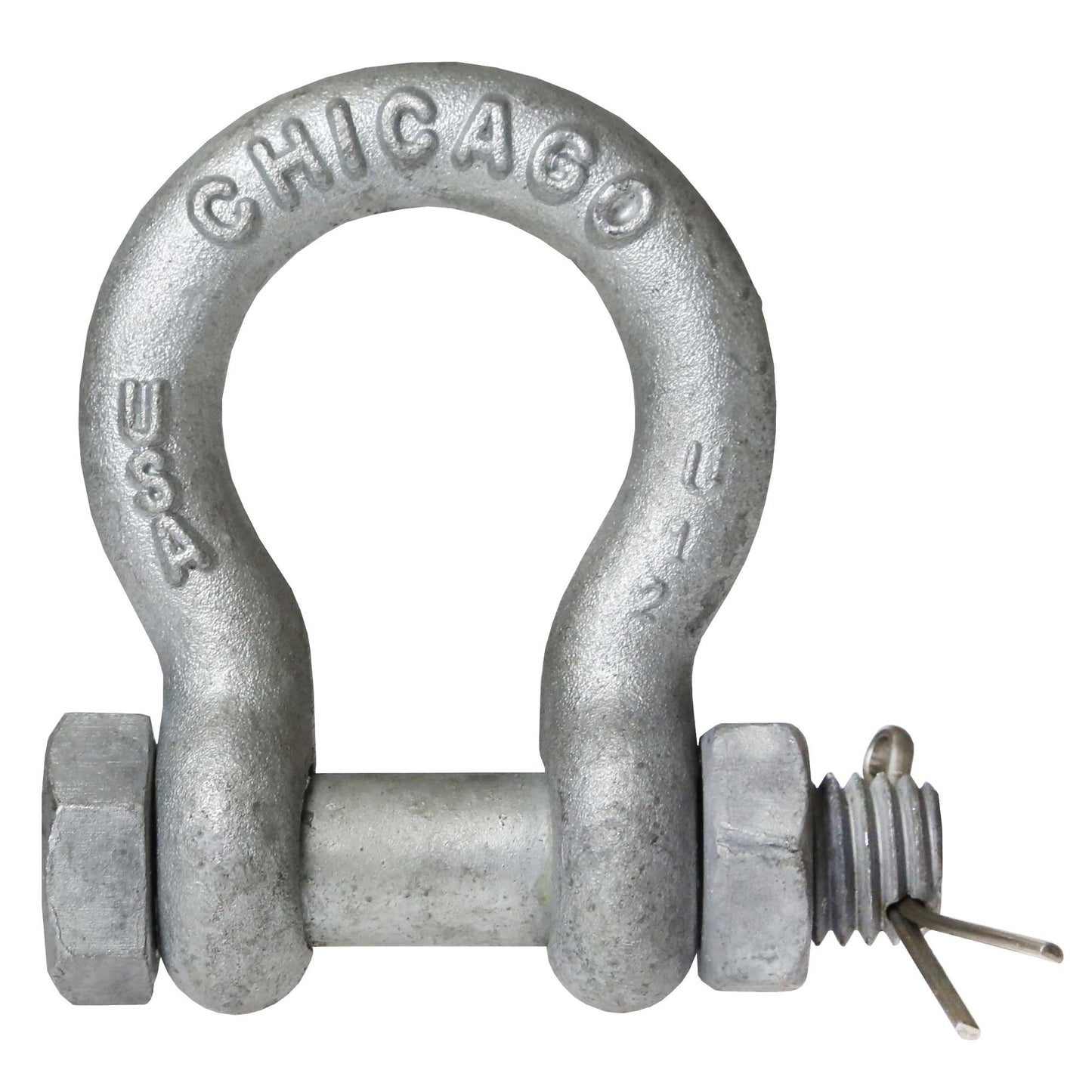

Bolt Type Anchor Shackle - Chicago Hardware - 7/16" Galvanized Steel - 1.5 Ton

Bolt Type Anchor Shackle - Chicago Hardware - 7/16" Galvanized Steel - 1.5 Ton!

Skip to product information


Continue Browsing

Chicago Hardware Shackles

SKU: BTAS716-D

Bolt Type Anchor Shackle - Chicago Hardware - 7/16" Galvanized Steel - 1.5 Ton

Bolt Type Anchor Shackle - Chicago Hardware - 7/16" Galvanized Steel - 1.5 Ton!

Call to Order
Regular price $18.99
Sale price $18.99 Regular price
0% off
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 1.5 ton
  • Inside width: 1.31"
  • Mouth width: 0.72"

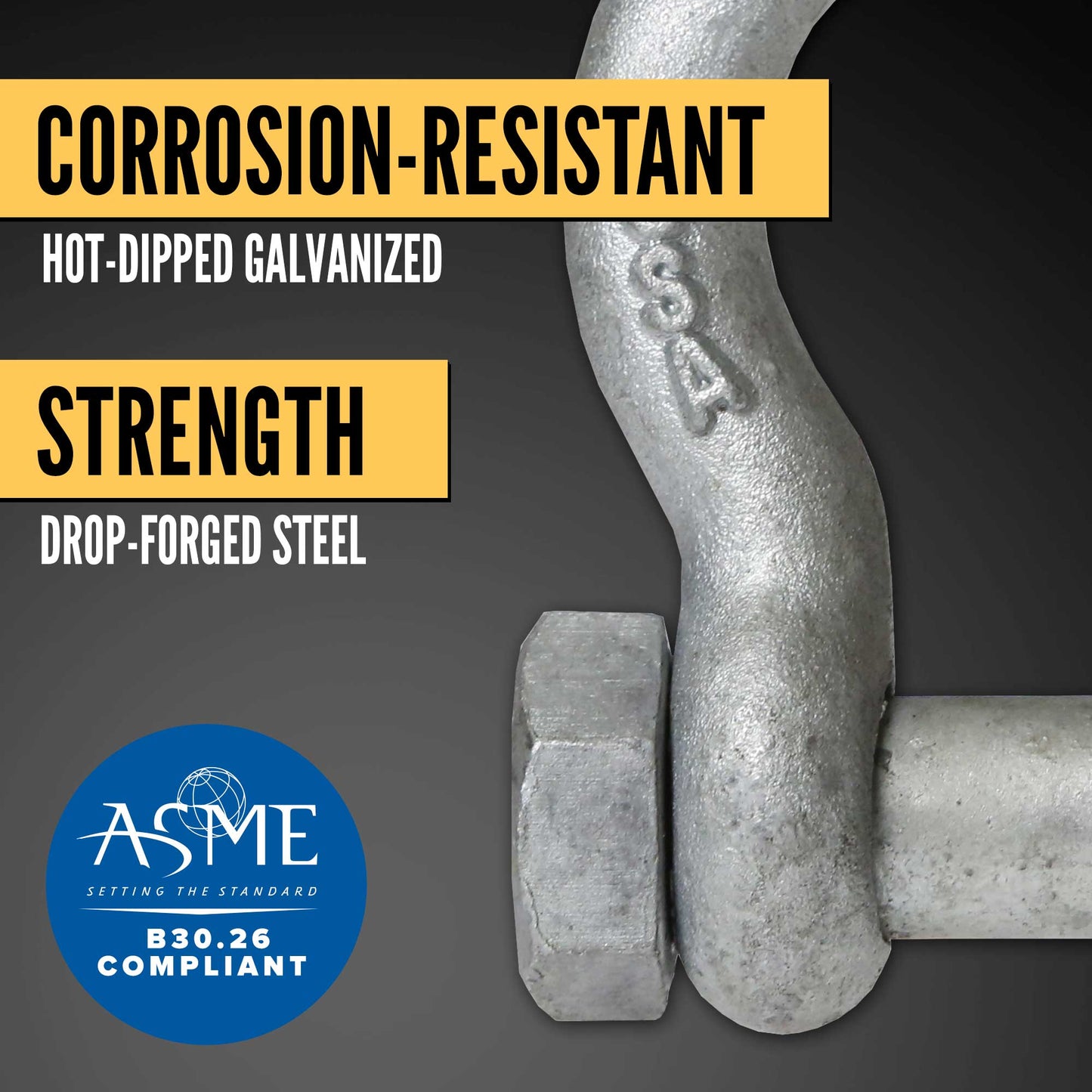

  • Finish: Galvanized
  • Safety factor: 6:1
  • Manufacturer name: Chicago Hardware
  • Brand part number: 20625 9
  • Inside height: 1.68"
  • Pin size: 1/2"
  • Shackle size: 7/16"
  • Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271
  • Type: Bolt Type Anchor
  • Material: Drop-Forged Steel
  • Product weight: .54 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

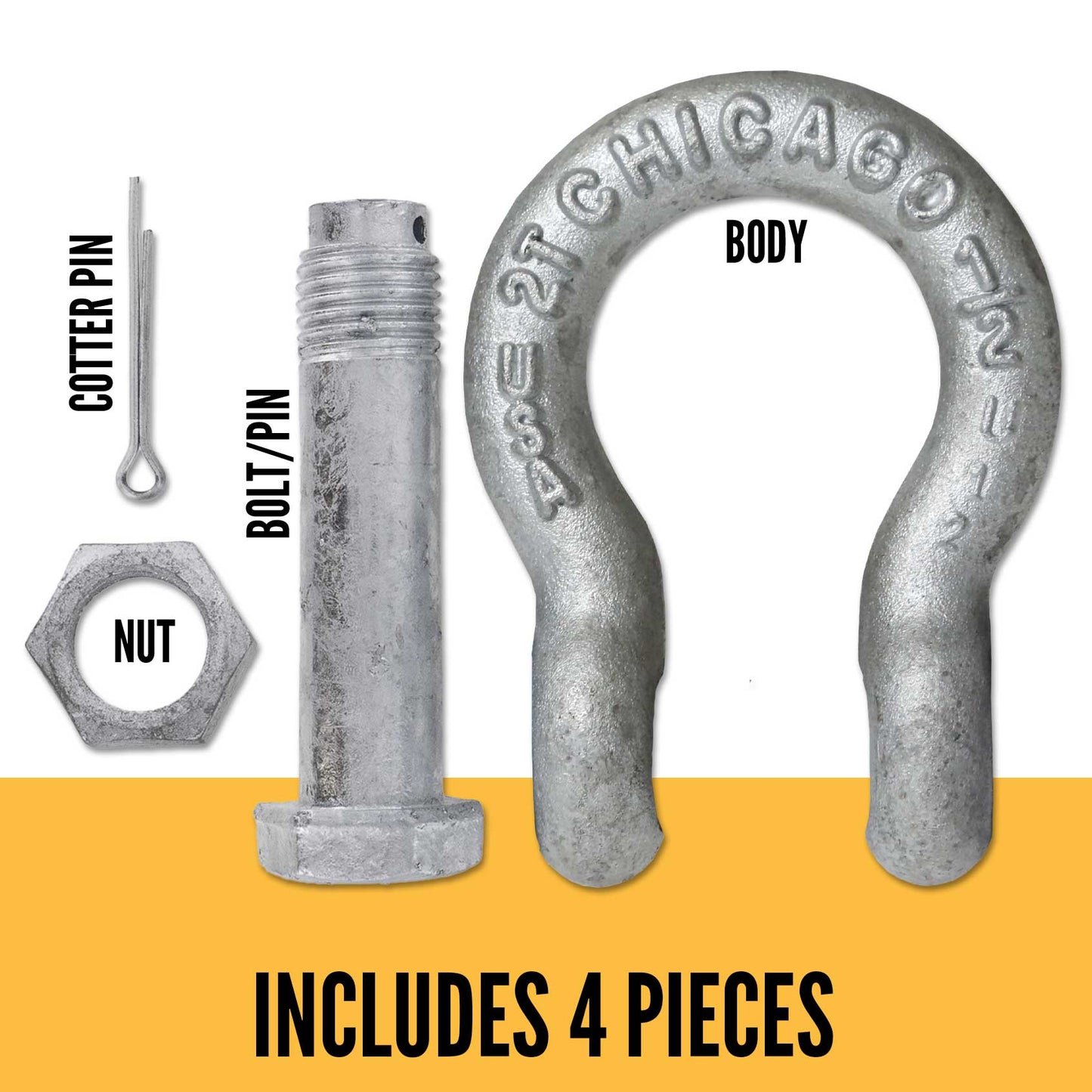

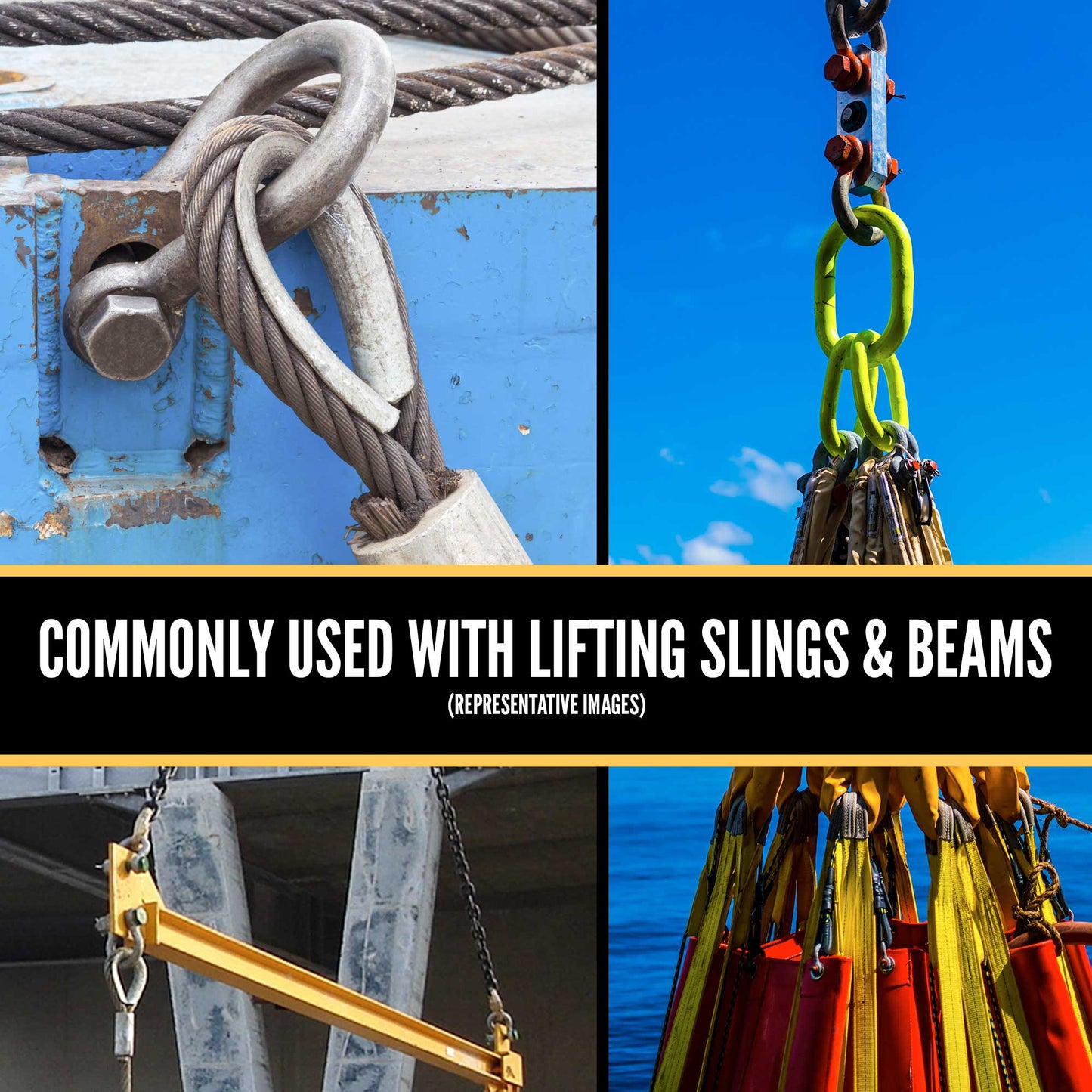

Excellent for use in applications where round pin or screw pin shackles are traditionally used, but a bolt type shackle is a better choice for permanent or long-term pulling or lifting, or if there's a risk of a load sliding on the shackle pin (which can cause it to rotate). This added safety feature from the use of the bolt/nut/cotter pin combination is the reason why this shackle type is also called a safety anchor shackle.


Made in the USA of galvanized steel.

View Product Safety Warnings

California Residents: WARNING

Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
