SKU: BTAS38-D

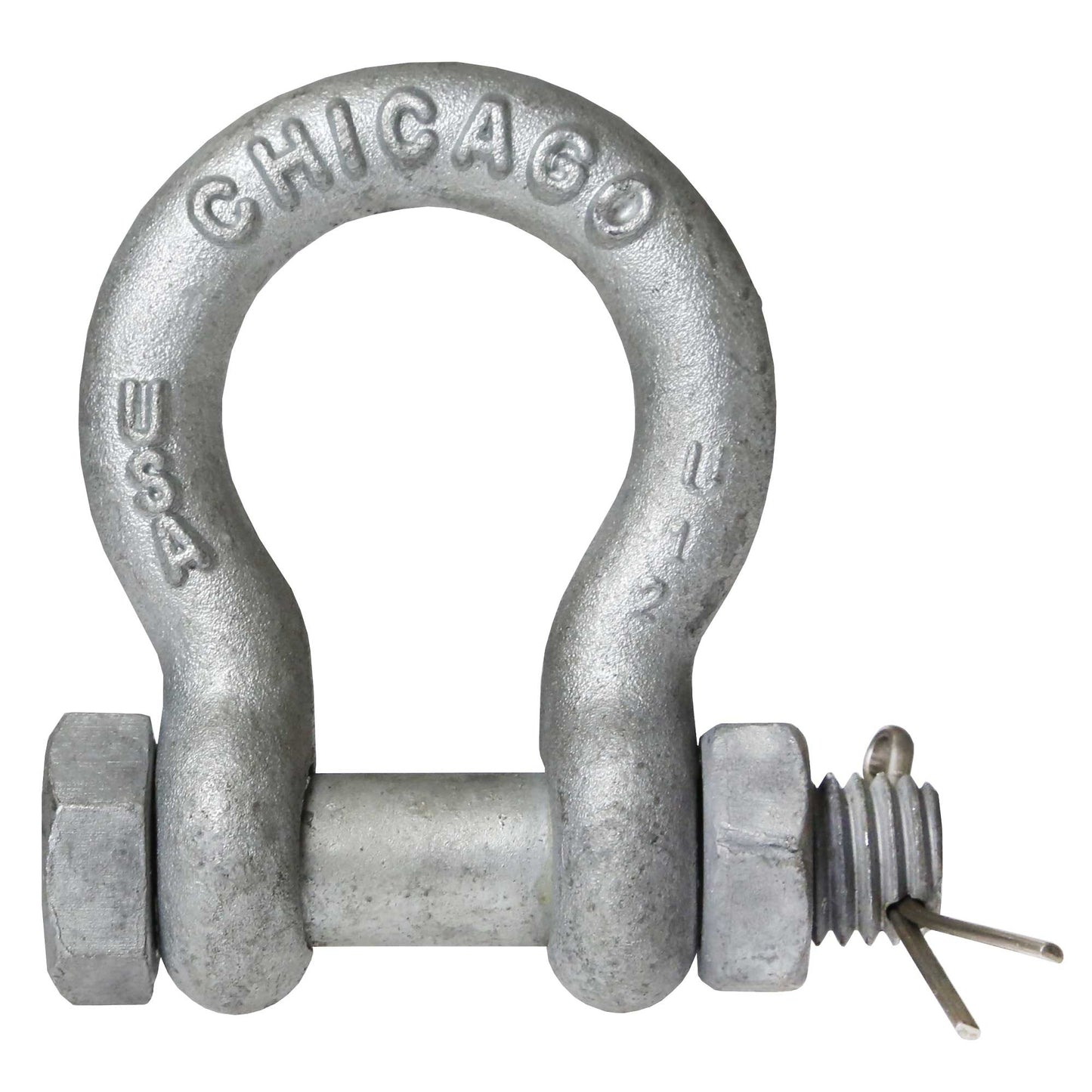

Bolt Type Anchor Shackle - Chicago Hardware - 3/8" Galvanized Steel - 1 Ton

Bolt Type Anchor Shackle - Chicago Hardware - 3/8" Galvanized Steel - 1 Ton!

Skip to product information
1 of 6
$15.09

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Working load limit: 1 ton
Brand part number: 20620 4
Finish: Galvanized
Inside height: 1.44"
Inside width: 1.12"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 0.66"
Pin size: 7/16"
Product weight: .33 lbs.
Safety factor: 6:1
Shackle size: 3/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Description

Excellent for use in applications where round pin or screw pin shackles are traditionally used, but a bolt type shackle is a better choice for permanent or long-term pulling or lifting, or if there's a risk of a load sliding on the shackle pin (which can cause it to rotate). This added safety feature from the use of the bolt/nut/cotter pin combination is the reason why this shackle type is also called a safety anchor shackle.


Made in the USA of galvanized steel.
