SKU: BTAS78-D

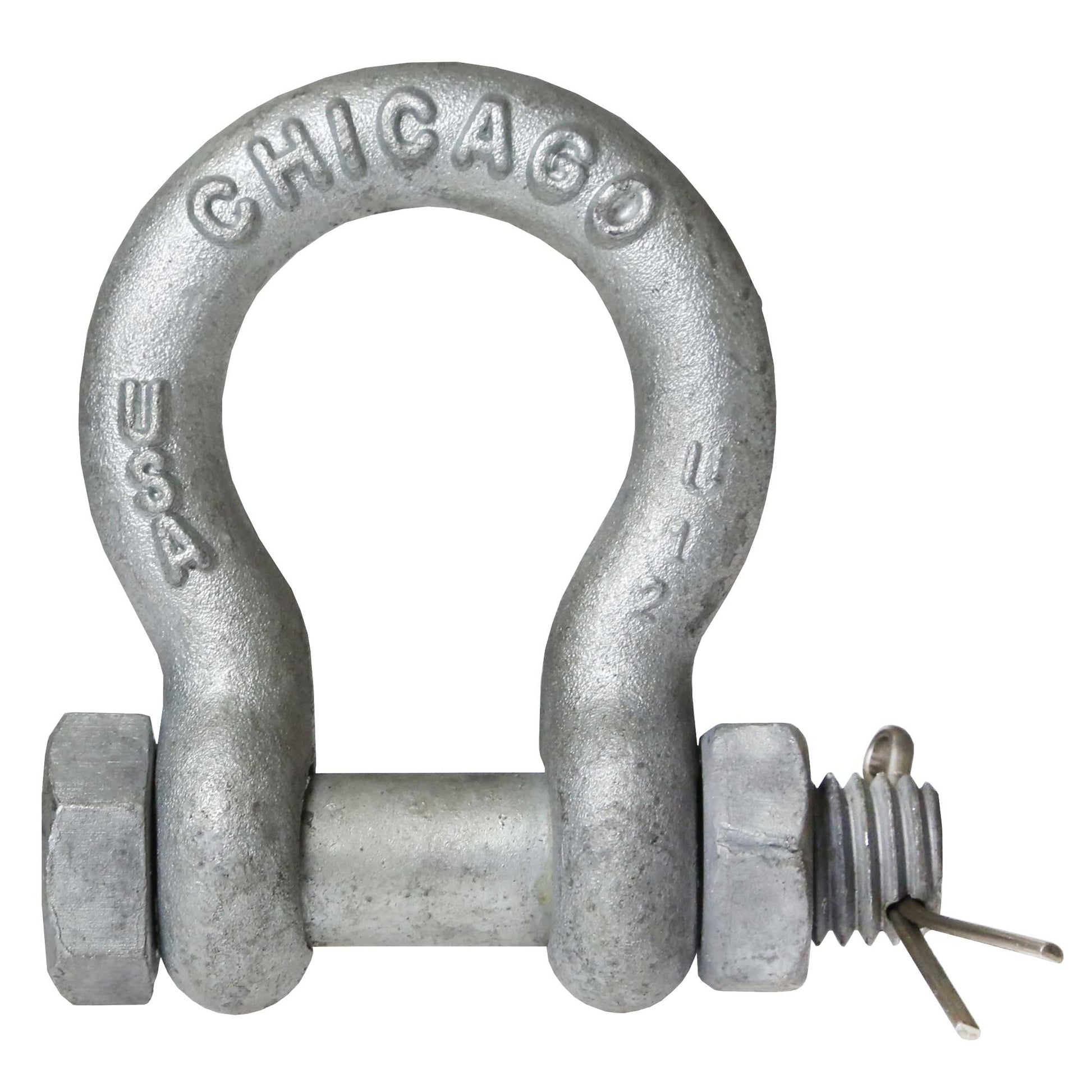

Bolt Type Anchor Shackle - Chicago Hardware - 7/8" Galvanized Steel - 6.5 Ton
Bolt Type Anchor Shackle - Chicago Hardware - 7/8" Galvanized Steel - 6.5 Ton!
$60.29
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 6.5 ton
Brand part number: 20645 7
Finish: Galvanized
Inside height: 3.25"
Inside width: 2.63"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 1.44"
Pin size: 1"
Product weight: 3.75 lbs.
Safety factor: 6:1
Shackle size: 7/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Description

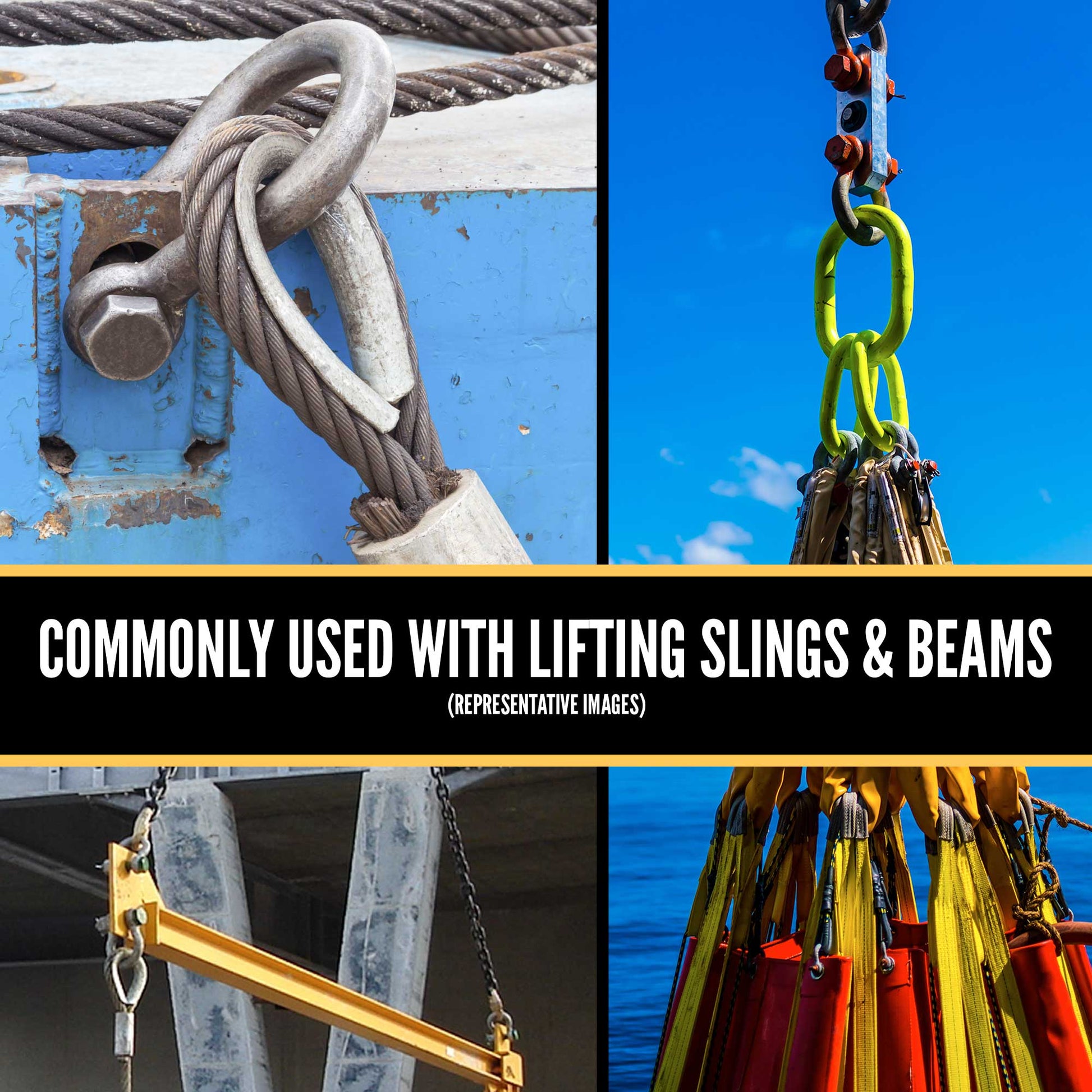

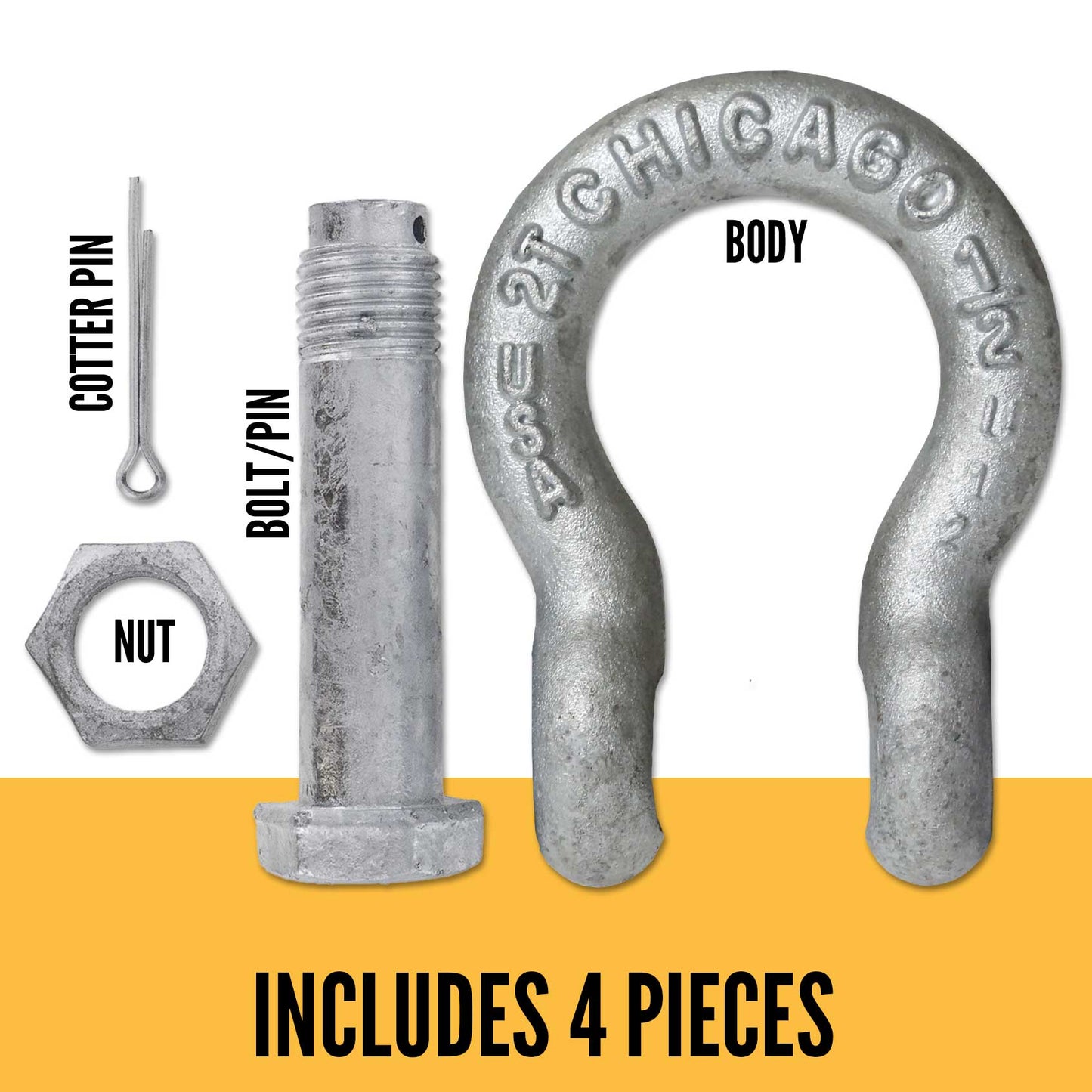

Bolt type shackles can be used in applications where round pin or screw pin shackles are used, however, a bolt type shackle is a better choice in permanent or long-term applications, or if there's a risk of a load sliding on the shackle pin, causing it to rotate. The added safety element from the use of the bolt/nut/cotter pin is the reason why this type of shackle is also known as a safety anchor shackle.
Made in the USA of galvanized steel.
