SKU: BTAS14-D

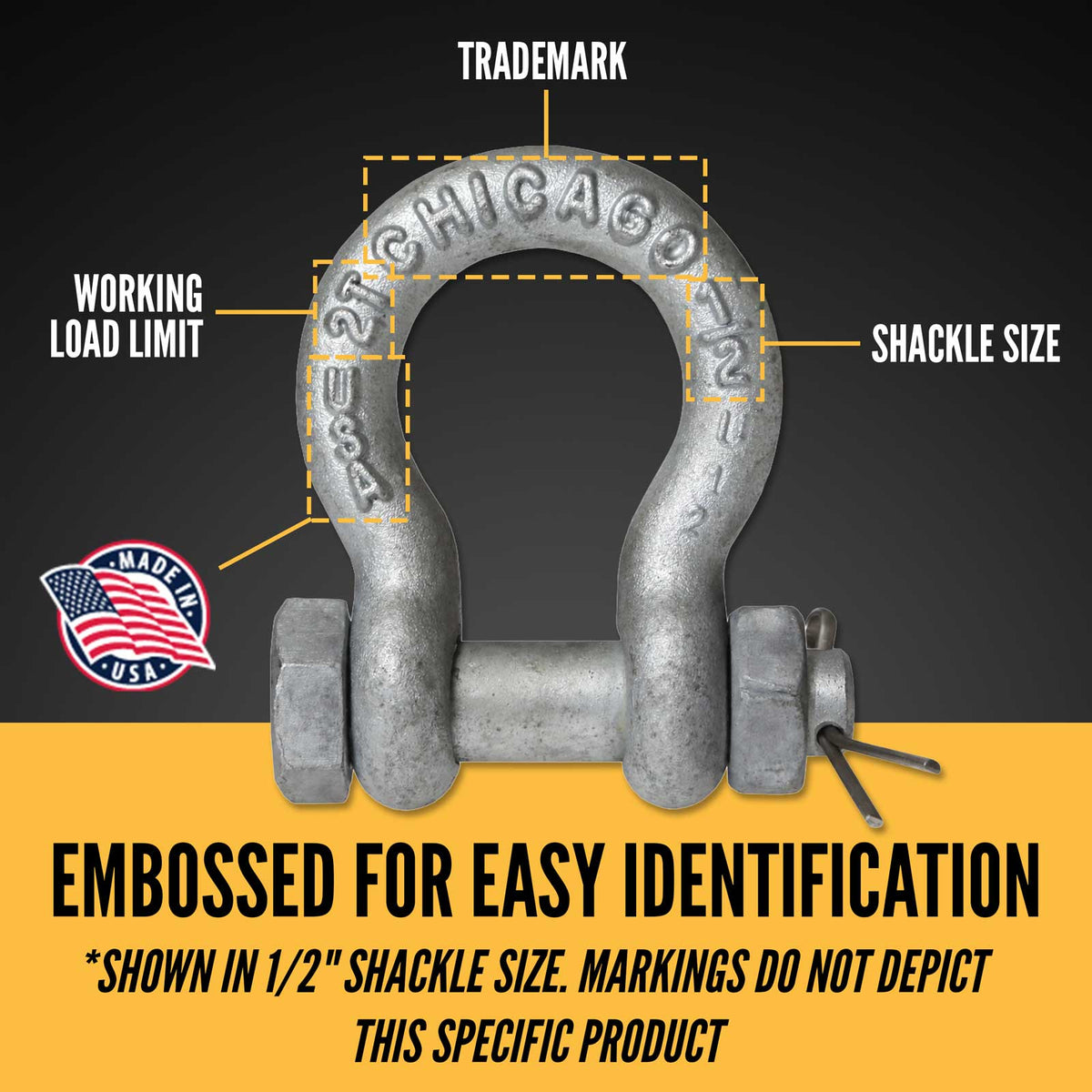

Bolt Type Anchor Shackle - Chicago Hardware - 1/4" Galvanized Steel - .5 Ton
Bolt Type Anchor Shackle - Chicago Hardware - 1/4" Galvanized Steel - .5 Ton!
$13.19
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 0.5 ton
Brand part number: 20610 5
Finish: Galvanized
Inside height: 1.12"
Inside width: 0.75"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 0.47"
Pin size: 5/16"
Product weight: .13 lbs.
Safety factor: 6:1
Shackle size: 1/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Description
Excellent for use in applications where round pin or screw pin shackles are traditionally used, but a bolt type shackle is a better choice for permanent or long-term pulling or lifting, or if there's a risk of a load sliding on the shackle pin (which can cause it to rotate). This added safety feature from the use of the bolt/nut/cotter pin combination is the reason why this shackle type is also called a safety anchor shackle.
Made in the USA of galvanized steel.
