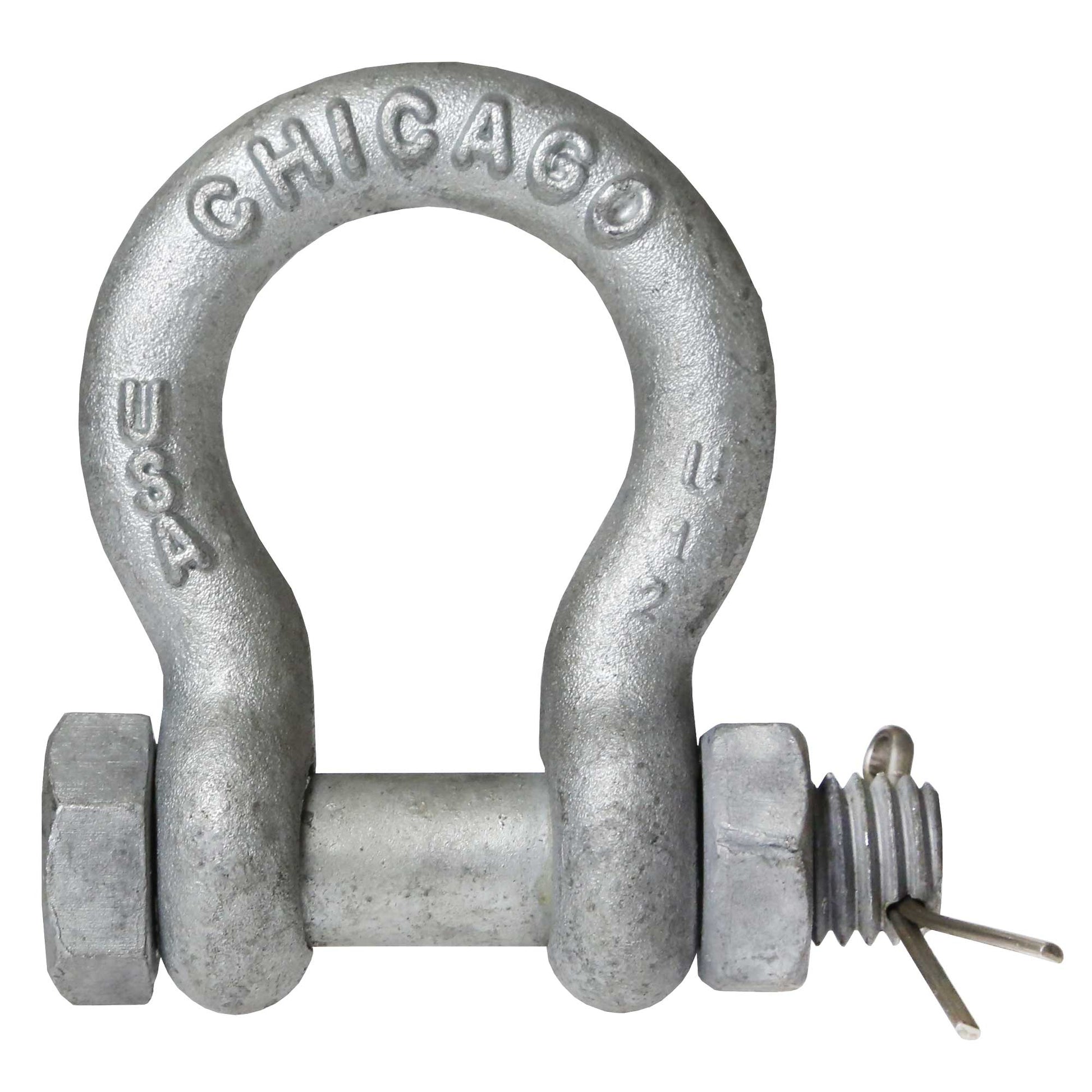

Bolt Type Anchor Shackle - Chicago Hardware - 5/8" Galvanized Steel - 3.25 Ton

Bolt Type Anchor Shackle - Chicago Hardware - 5/8" Galvanized Steel - 3.25 Ton!

Skip to product information
1 of 6

SKU: BTAS58-D

Bolt Type Anchor Shackle - Chicago Hardware - 5/8" Galvanized Steel - 3.25 Ton

Bolt Type Anchor Shackle - Chicago Hardware - 5/8" Galvanized Steel - 3.25 Ton!

Call to Order
Regular price $39.49
Sale price $39.49 Regular price
0% off
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 3.25 ton
  • Inside width: 1.88"
  • Mouth width: 1.06"
  • Finish: Galvanized
  • Safety factor: 6:1
  • Manufacturer name: Chicago Hardware
  • Brand part number: 20635 8
  • Inside height: 2.5"
  • Pin size: 3/4"
  • Shackle size: 5/8"
  • Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271
  • Type: Bolt Type Anchor

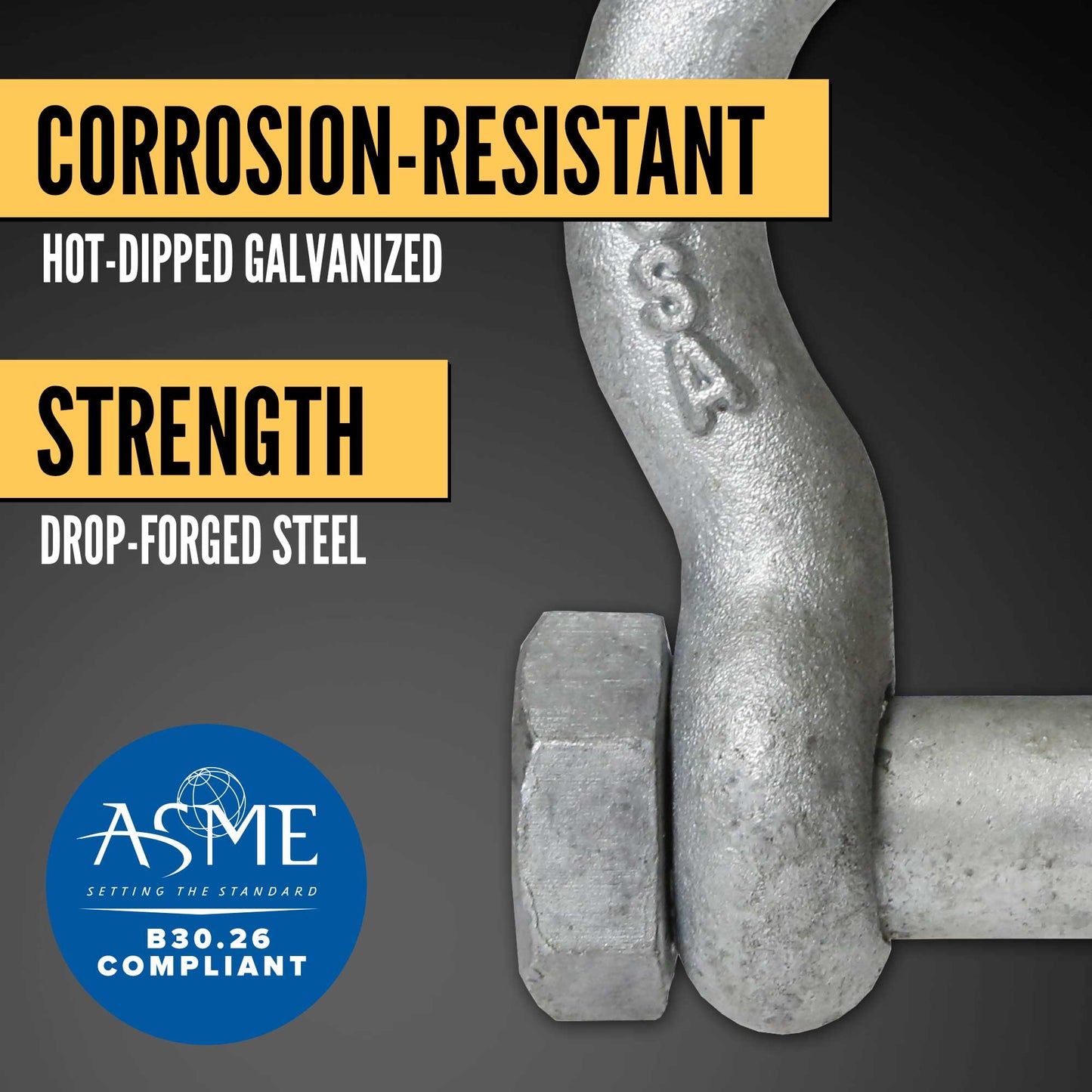

  • Material: Drop-Forged Steel
  • Product weight: 1.5 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

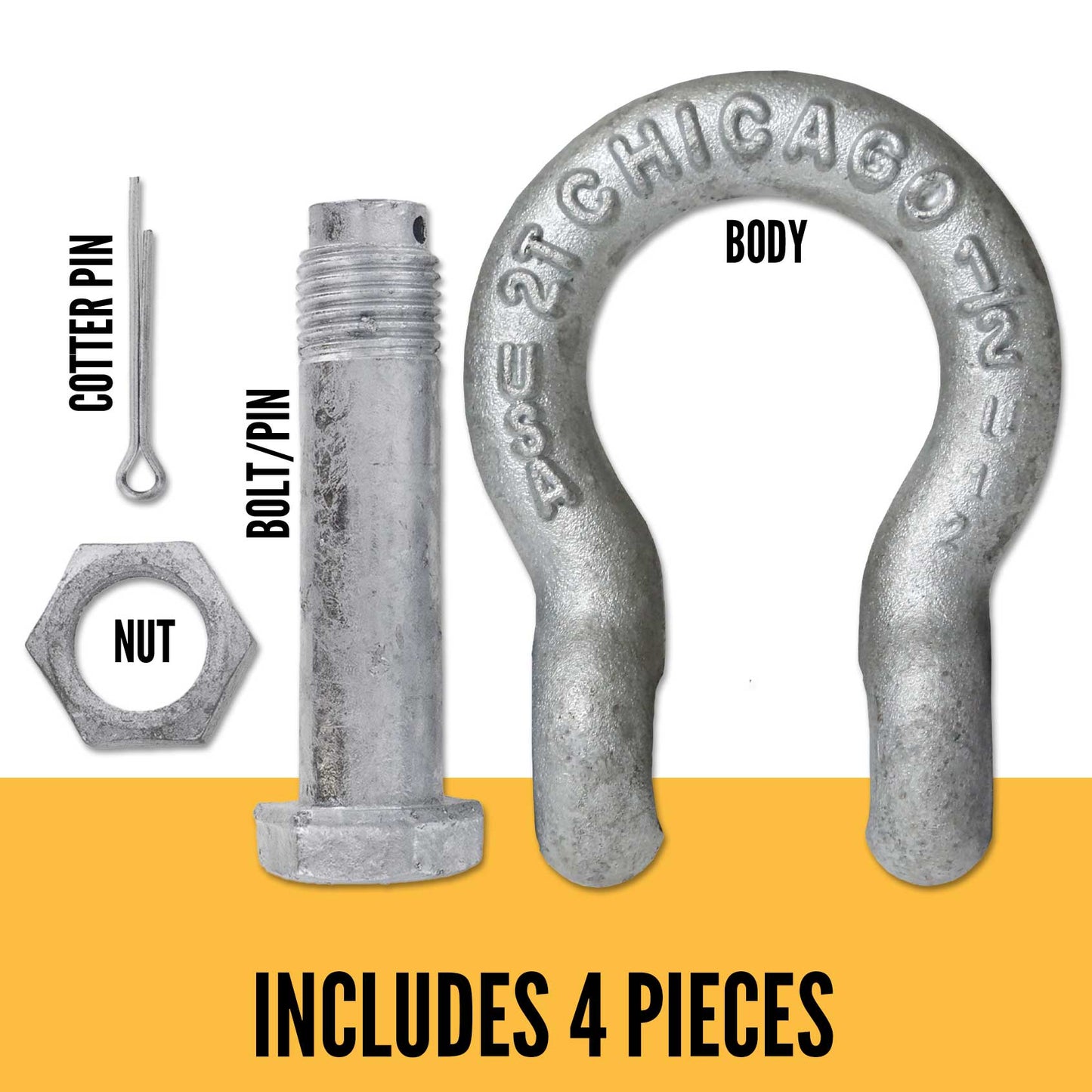

Excellent for use in applications where round pin or screw pin shackles are traditionally used, but a bolt type shackle is a better choice for permanent or long-term pulling or lifting, or if there's a risk of a load sliding on the shackle pin (which can cause it to rotate). This added safety feature from the use of the bolt/nut/cotter pin combination is the reason why this shackle type is also called a safety anchor shackle.


Made in the USA of galvanized steel.
