Custom Recovery Strap Quote Request Form
Get a recovery strap that's perfectly suited to your application by requesting a custom strap quote below.
Recovery Strap Construction
Our straps are made from heavy-duty nylon webbing with reinforced eyes to extend their working life. The fabric on the eyes is extremely tough, providing extra wear and tear resistance.
Ply and Width Considerations
When requesting your custom strap, make sure you are choosing the right ply and width.
Both width and plies will affect the working load limit, but they also affect the usability of the strap. The more plies you have, the stiffer the sling will be. So if you need flexibility, a wider strap is the way to go.
Below is a table with some of the most common width/ply combinations, so you can see how there can be multiple options to choose from, depending on what WLL you need.
WLL (lbs.) | 2" | 3" | 4" | 6" | 8" | 10" | 12" |
1 ply | 8,000 | 12,000 | 16,000 | 24,000 | 32,000 | 40,000 | 48,000 |
2 ply | 16,000 | 24,000 | 32,000 | 40,000 | 51,000 | 60,000 | 67,250 |
3 ply | 20,500 | 30,750 | 38,250 | 57,240 | 76,500 | 90,000 | 100,000 |
4 ply | 27,500 | 41,250 | 51,000 | 76,500 | 102,500 | 120,000 | 134,250 |
Working Loading Limit: Minimum Capacity Required
To ensure your strap is strong enough for your application, you will need to calculate the minimum capacity required.

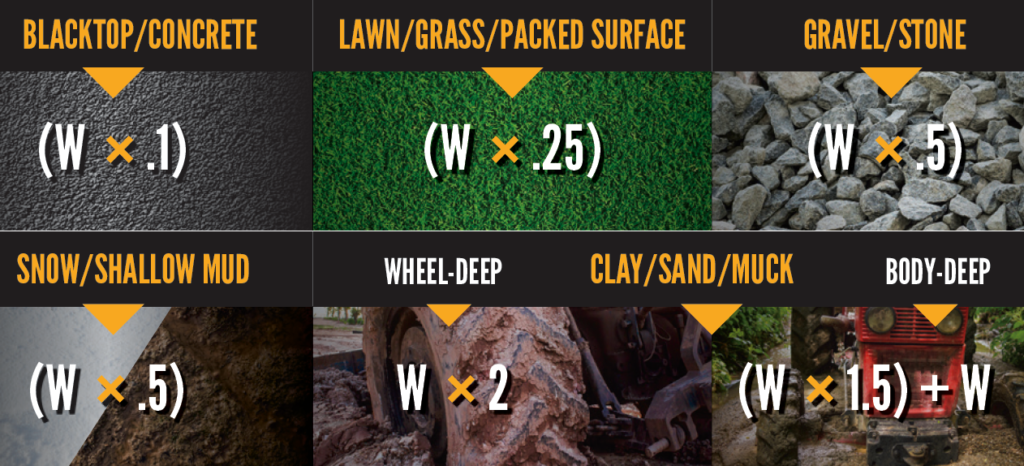

The formula is Weight + Additional Rolling Resistance + Gradient Resistance.
We breakdown this formula on our How to Extract a Stuck Vehicle page.
Requesting a Quote
Fill out the form below or call our recovery strap specialists today to receive your quote!
