SKU: BTAS1-18-D

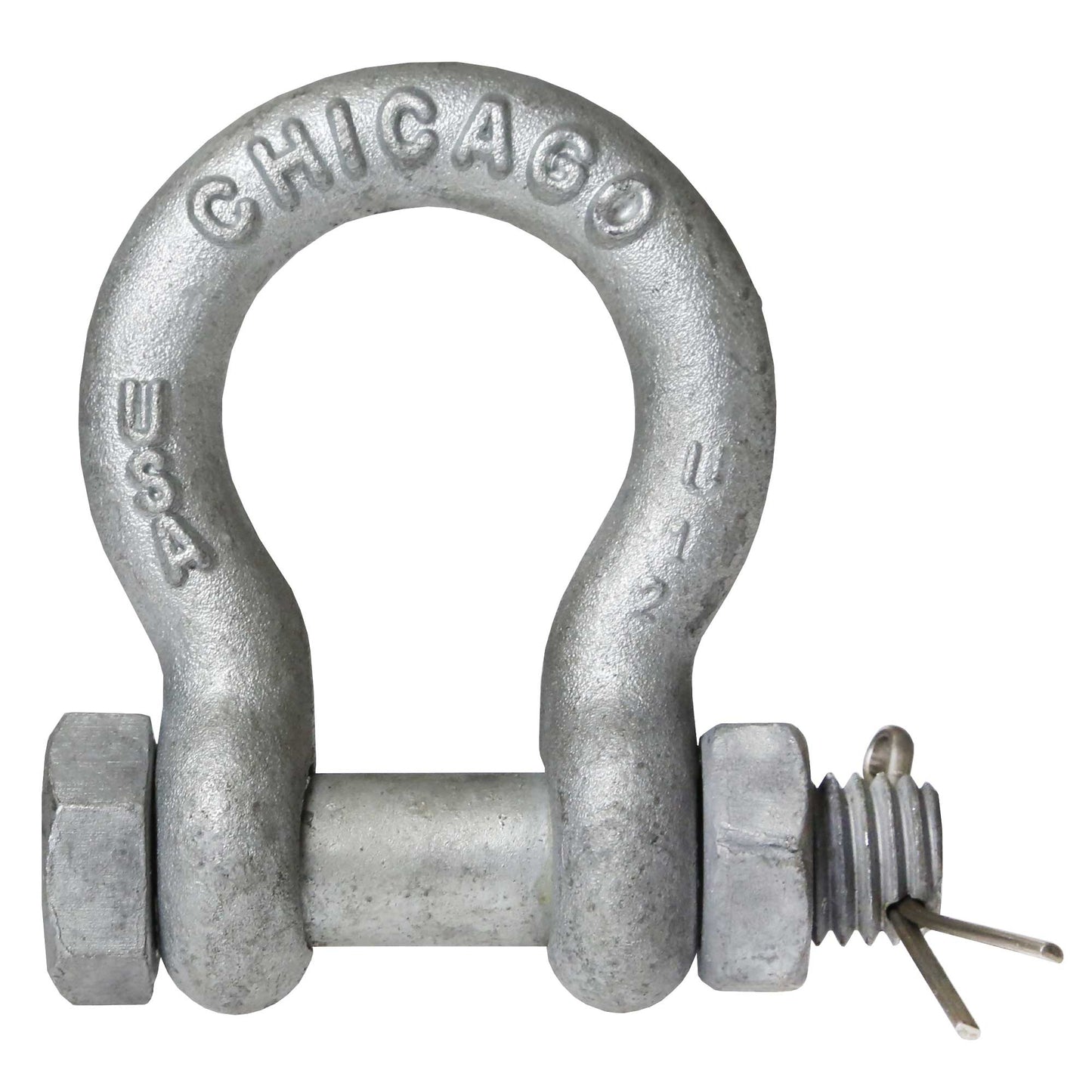

Bolt Type Anchor Shackle - Chicago Hardware - 1-1/8" Galvanized Steel - 9.5 Ton
Bolt Type Anchor Shackle - Chicago Hardware - 1-1/8" Galvanized Steel - 9.5 Ton!
$110.99
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 9.5 ton
Brand part number: 20655 6

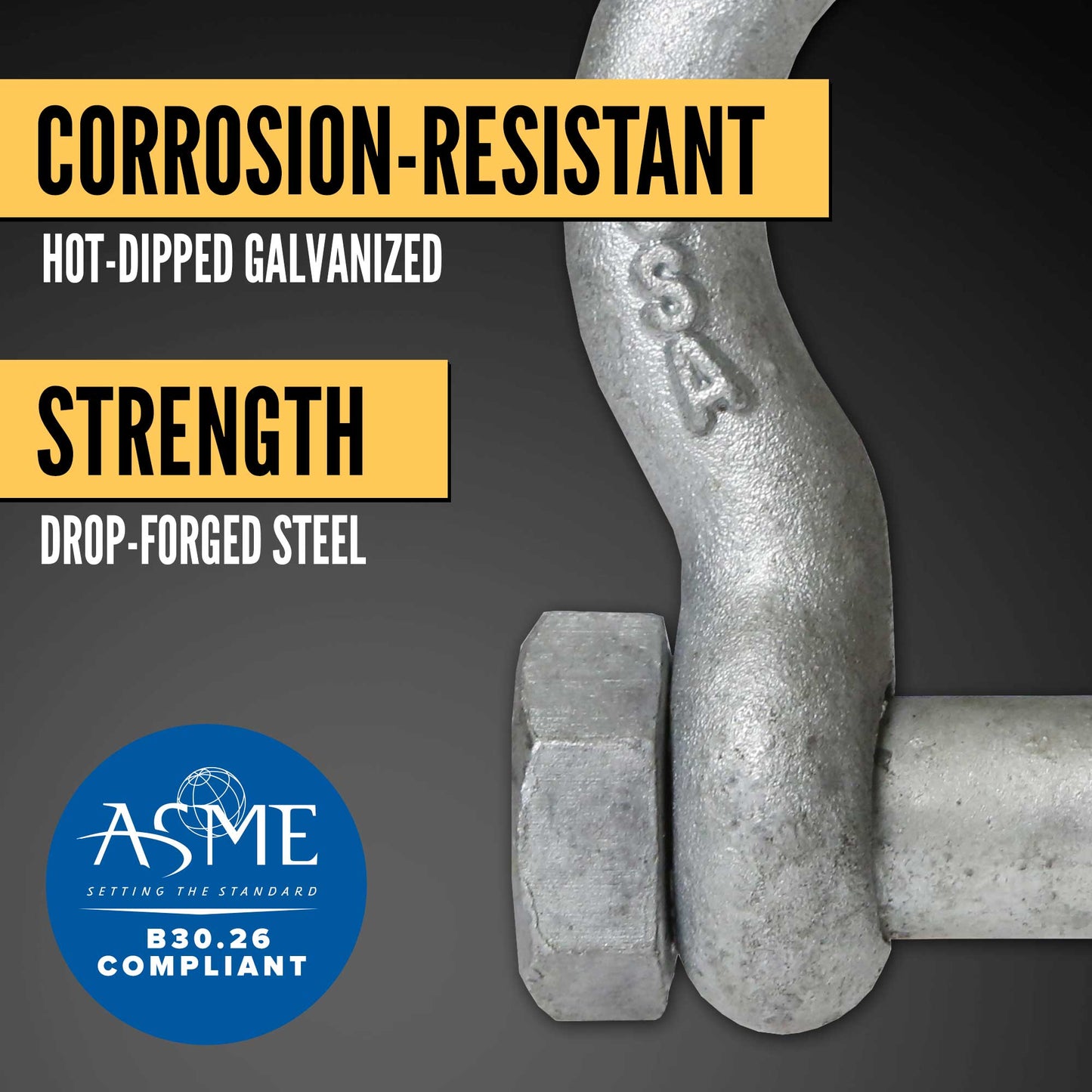

Finish: Galvanized
Inside height: 4.25"
Inside width: 2.94"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 1.19"
Pin size: 1-1/4"
Product weight: 7.65 lbs.
Safety factor: 6:1
Shackle size: 1-1/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Description

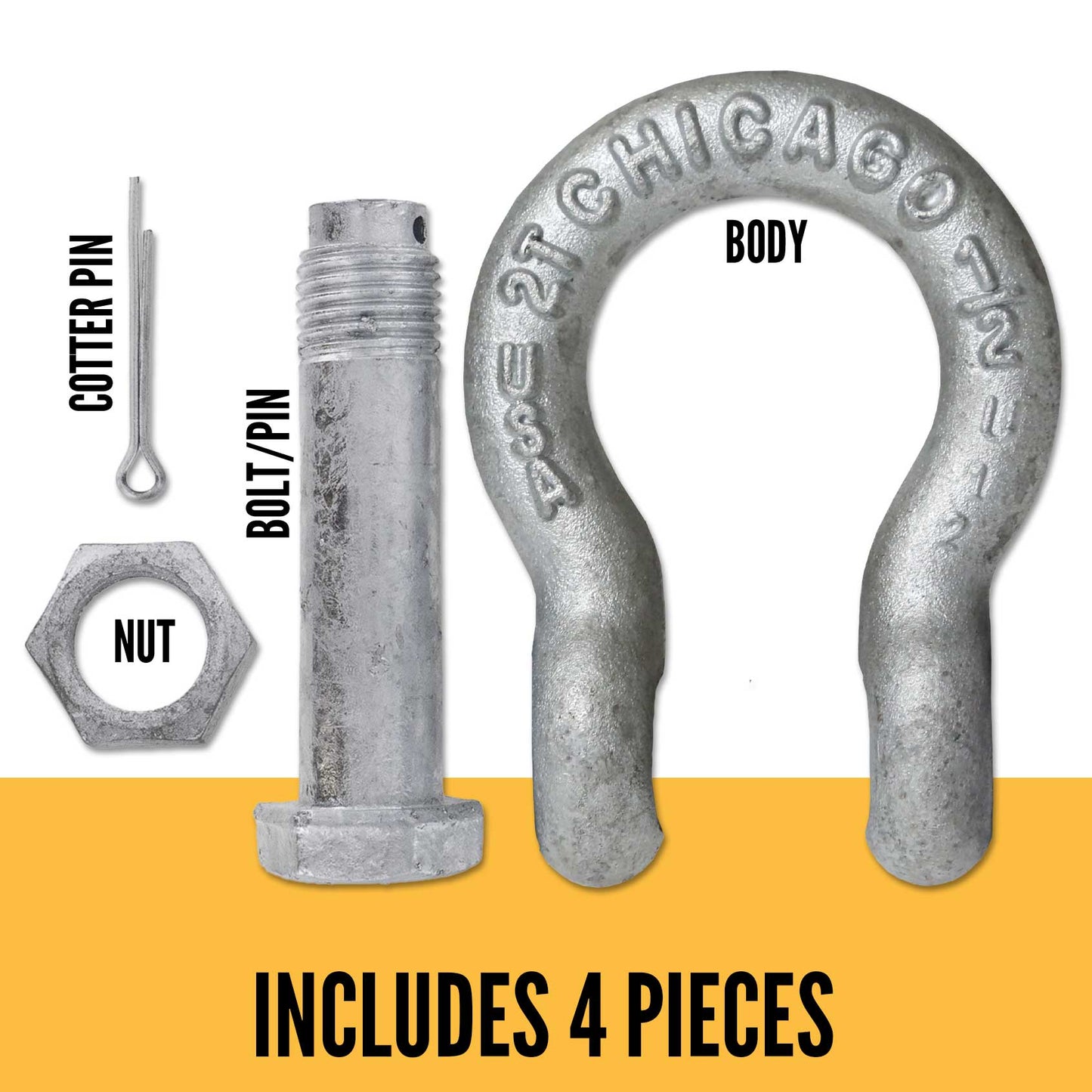

Bolt type shackles can be used in applications where round pin or screw pin shackles are used, however, a bolt type shackle is a better choice in permanent or long-term applications, or if there's a risk of a load sliding on the shackle pin, causing it to rotate. The added safety element from the use of the bolt/nut/cotter pin is the reason why this type of shackle is also known as a safety anchor shackle.
Made in the USA of galvanized steel.
