SKU: SPCS14-D

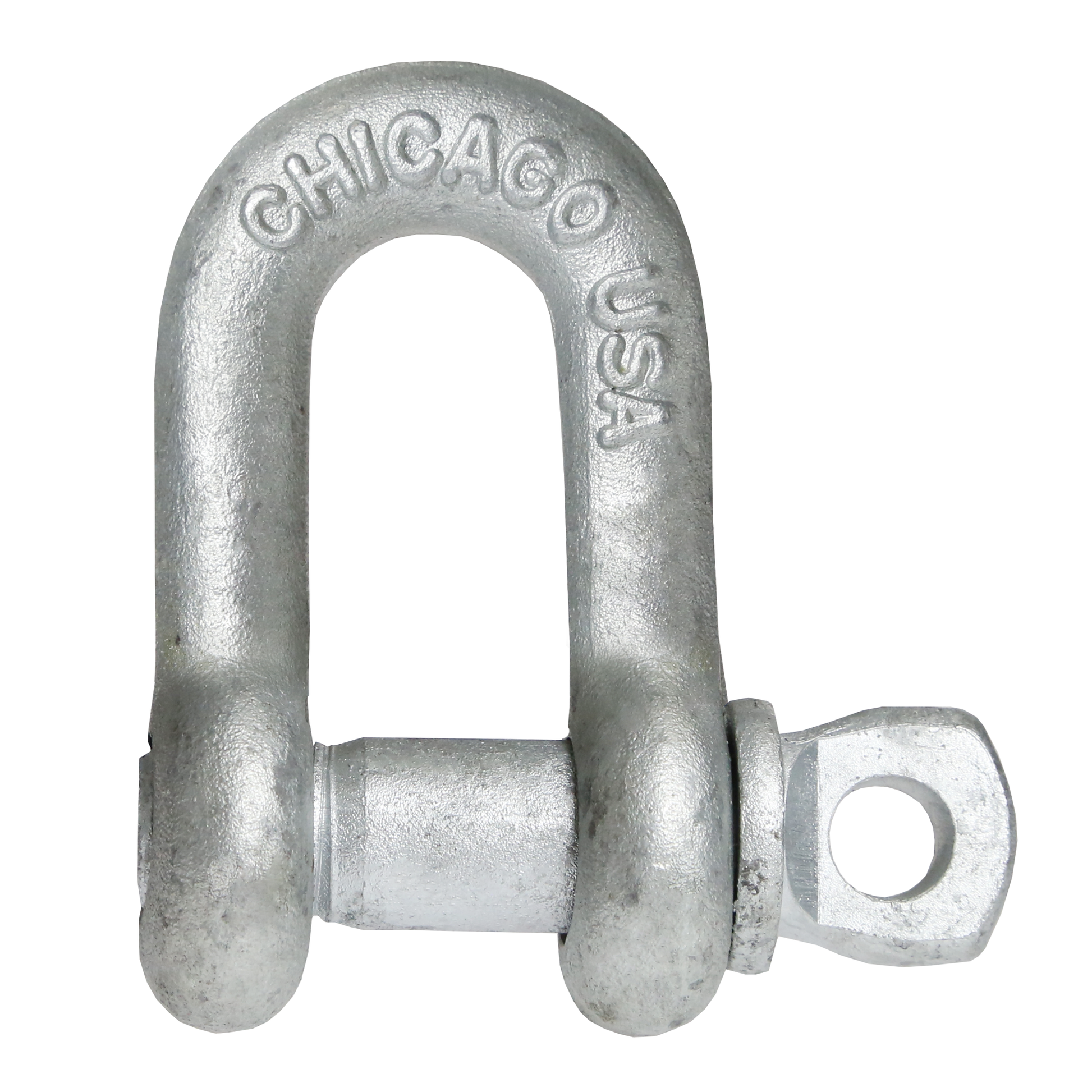

Screw Pin Chain Shackle - Chicago Hardware - 1/4" Galvanized Steel - .5 Ton
Screw Pin Chain Shackle - Chicago Hardware - 1/4" Galvanized Steel - .5 Ton!
$5.59
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 0.5 ton
Brand part number: 20310 4
Finish: Galvanized
Inside height: 0.88"
Inside width: 0.47"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 0.47"
Pin size: 5/16"
Product weight: .11 lbs.
Safety factor: 6:1
Shackle size: 1/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.

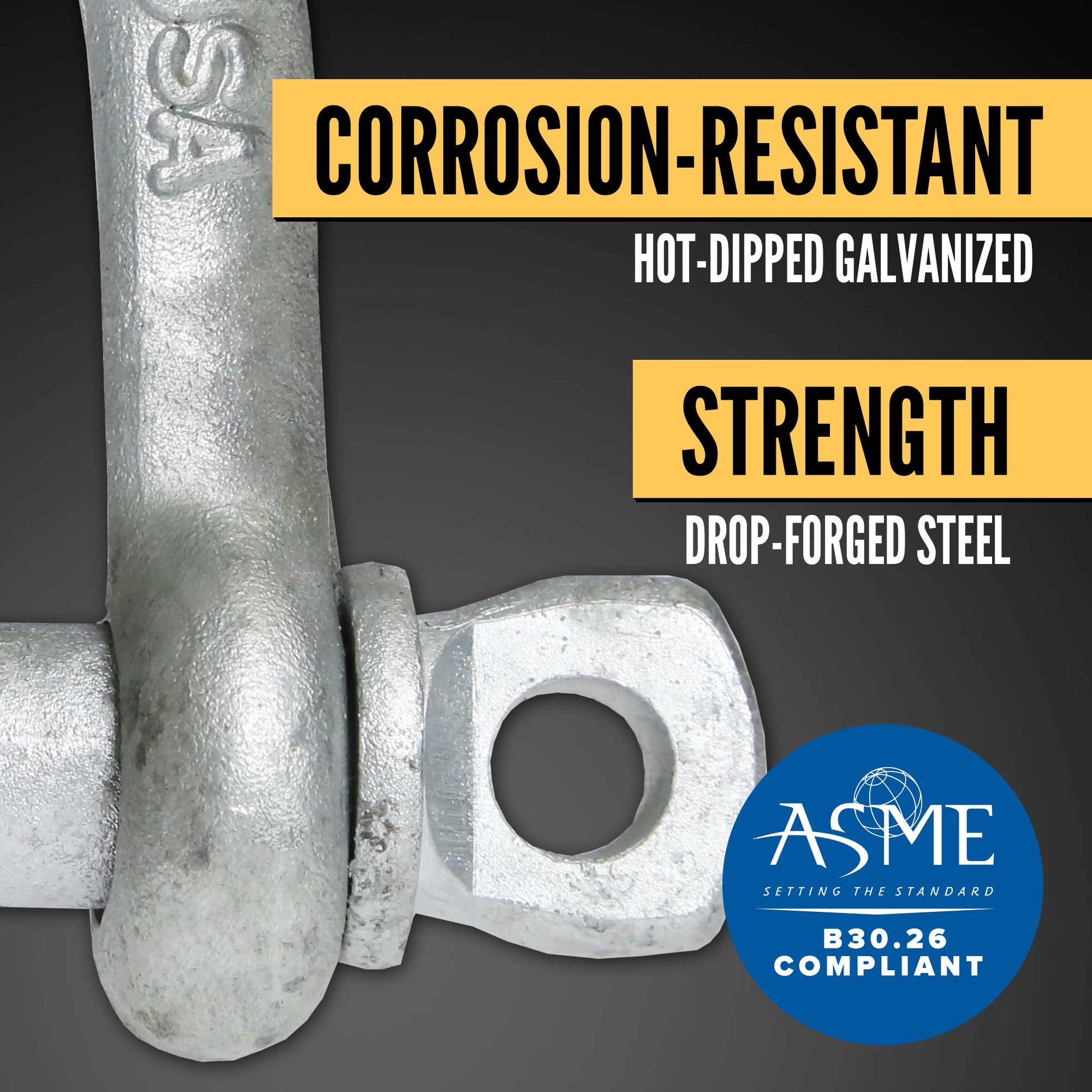

Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Screw Pin Chain
Description

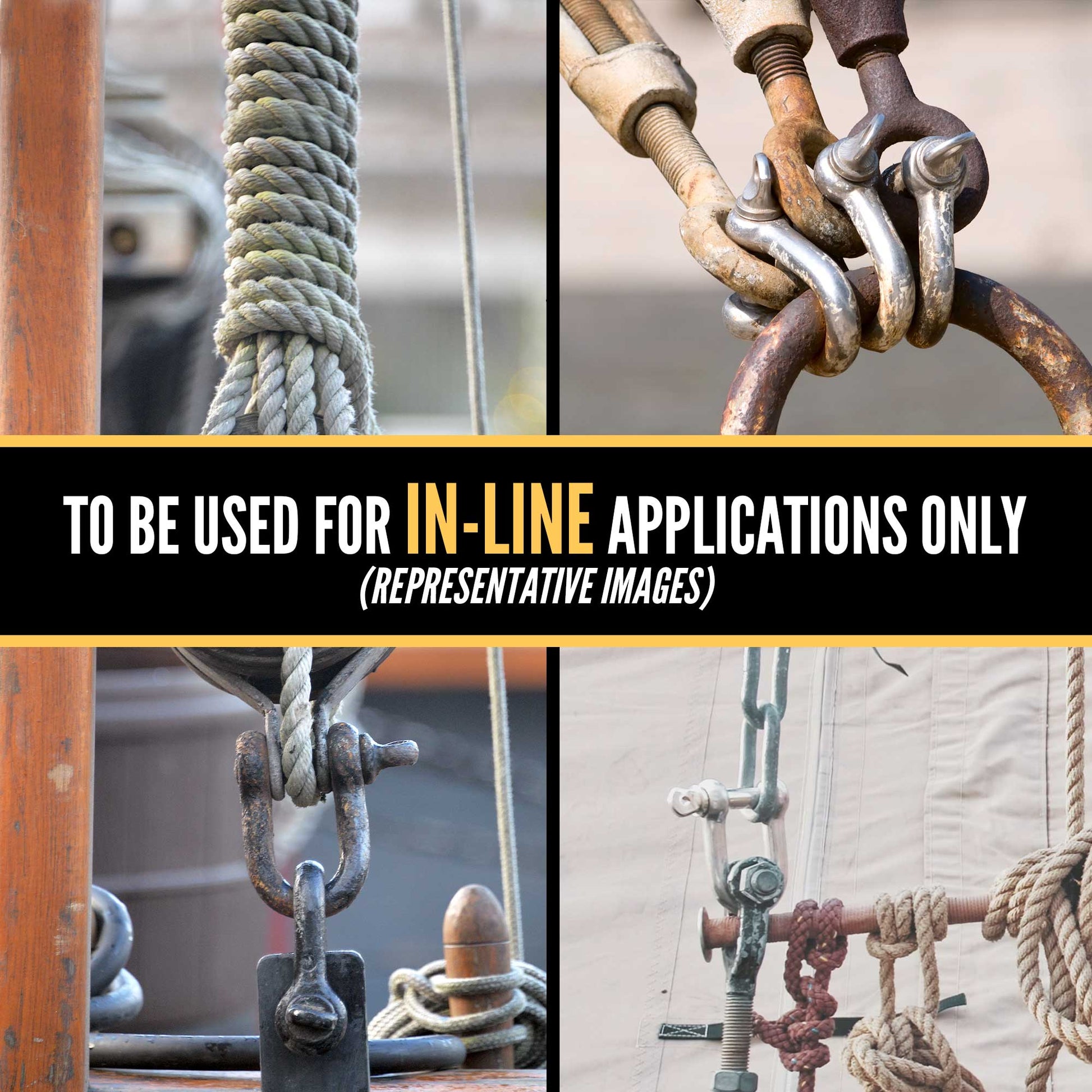

Also known as a D-Shackle in the industry because of its D shape, chain shackles are intended for use in straight line pulls or lifts only (side and racking loads run the risk of twisting or bending and fatigue, resulting in failure).

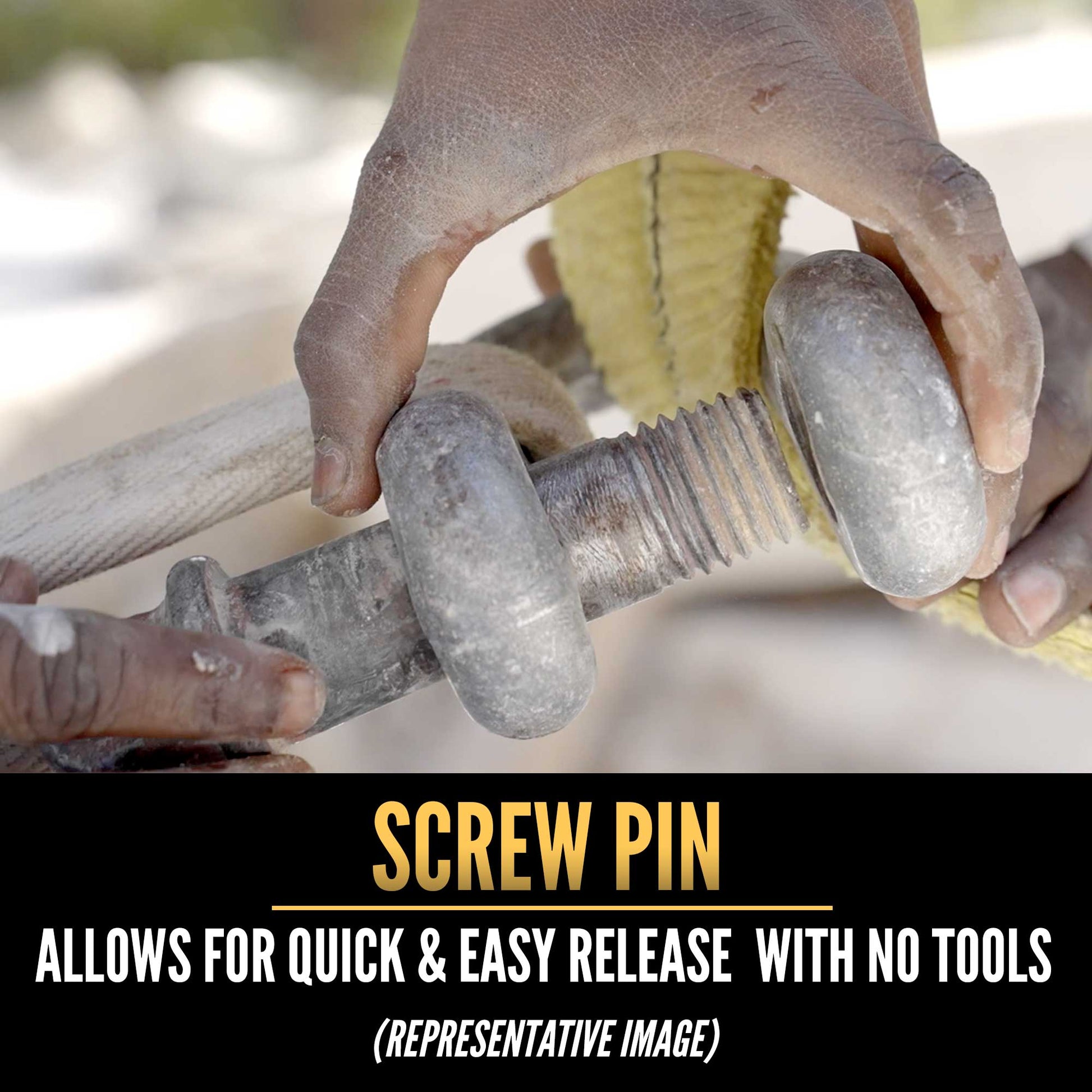

Chain shackles are also excellent for use with single leg web lifting slings. Paired with chain, they provide a connecting link to connect to other hardware. A secure screw pin mechanism makes connections fast and easy.
Made in the USA of galvanized steel.
