SKU: SB92A
93" - 103" Aluminum E-Track Load Bar with Patented Flat Latch - 2,200 lb Capacity
93" - 103" Aluminum E-Track Load Bar with Patented Flat Latch - 2,200 lb Capacity!
$139.09
Get 10+
$134.92/ea
Get 25+
$130.75/ea
Get 50+
$125.19/ea
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications

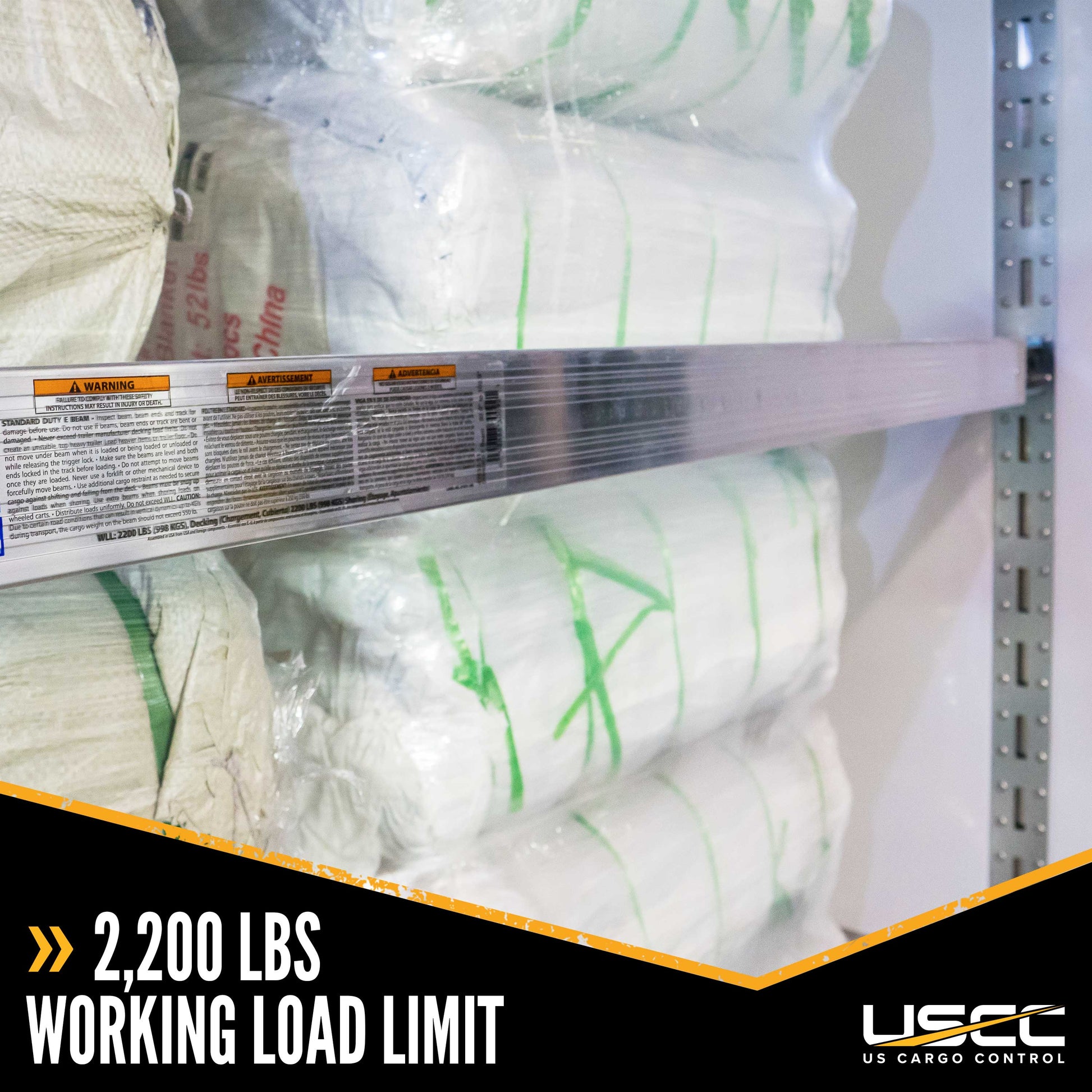

Working load limit: 2,200 lbs.
Manufacturer name: Ancra
Material: Aluminum body
11 gauge end fittings
11 gauge end fittings
Product weight: 19 lbs.
Type: E-Track / A-Track Shoring Beam
Additional Info: Vertical decking WLL: 2,200 lbs.
Closed Length: 93"
Open Length: 103"
Closed Length: 93"
Open Length: 103"
Description

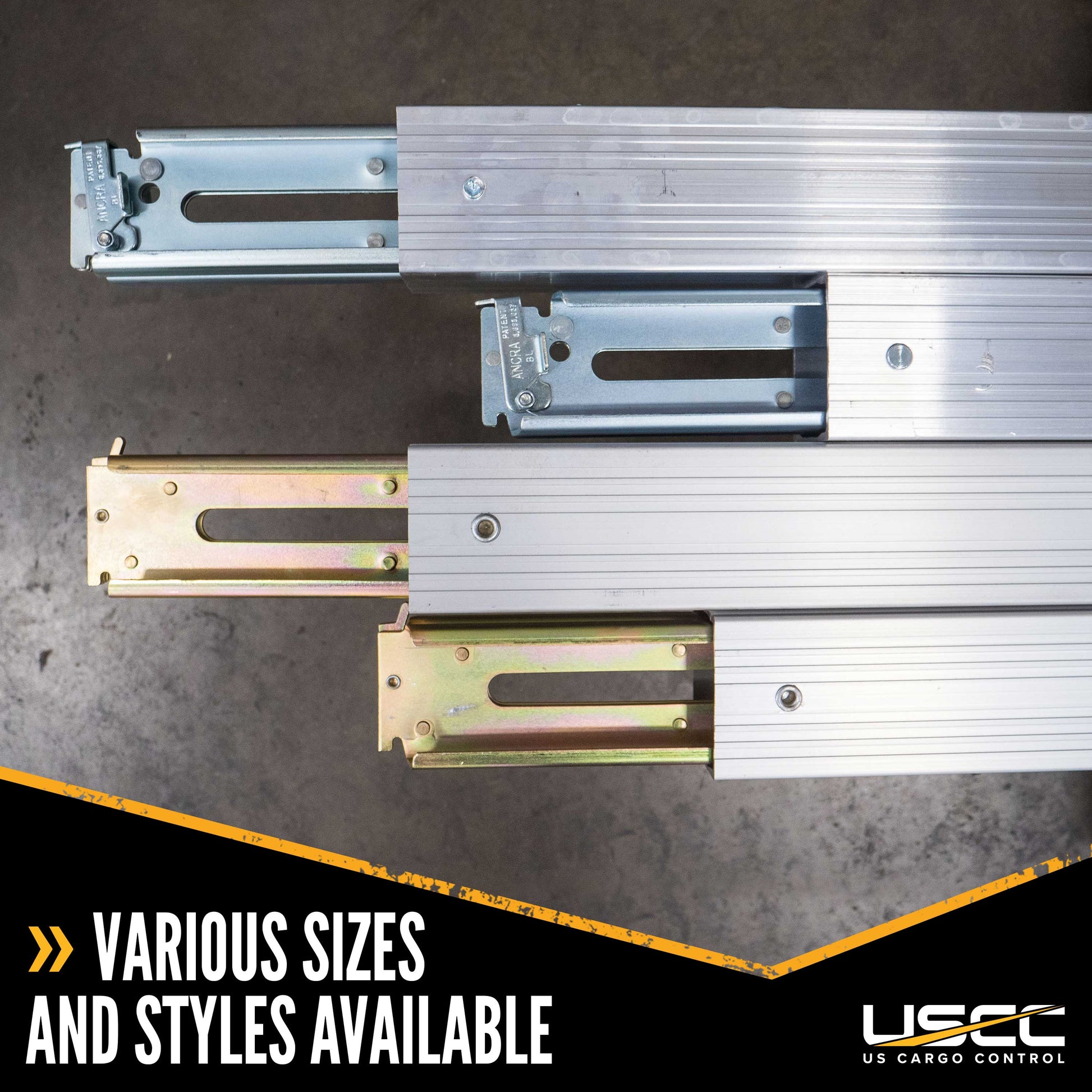

Versatile Ancra E-Track Load Bar

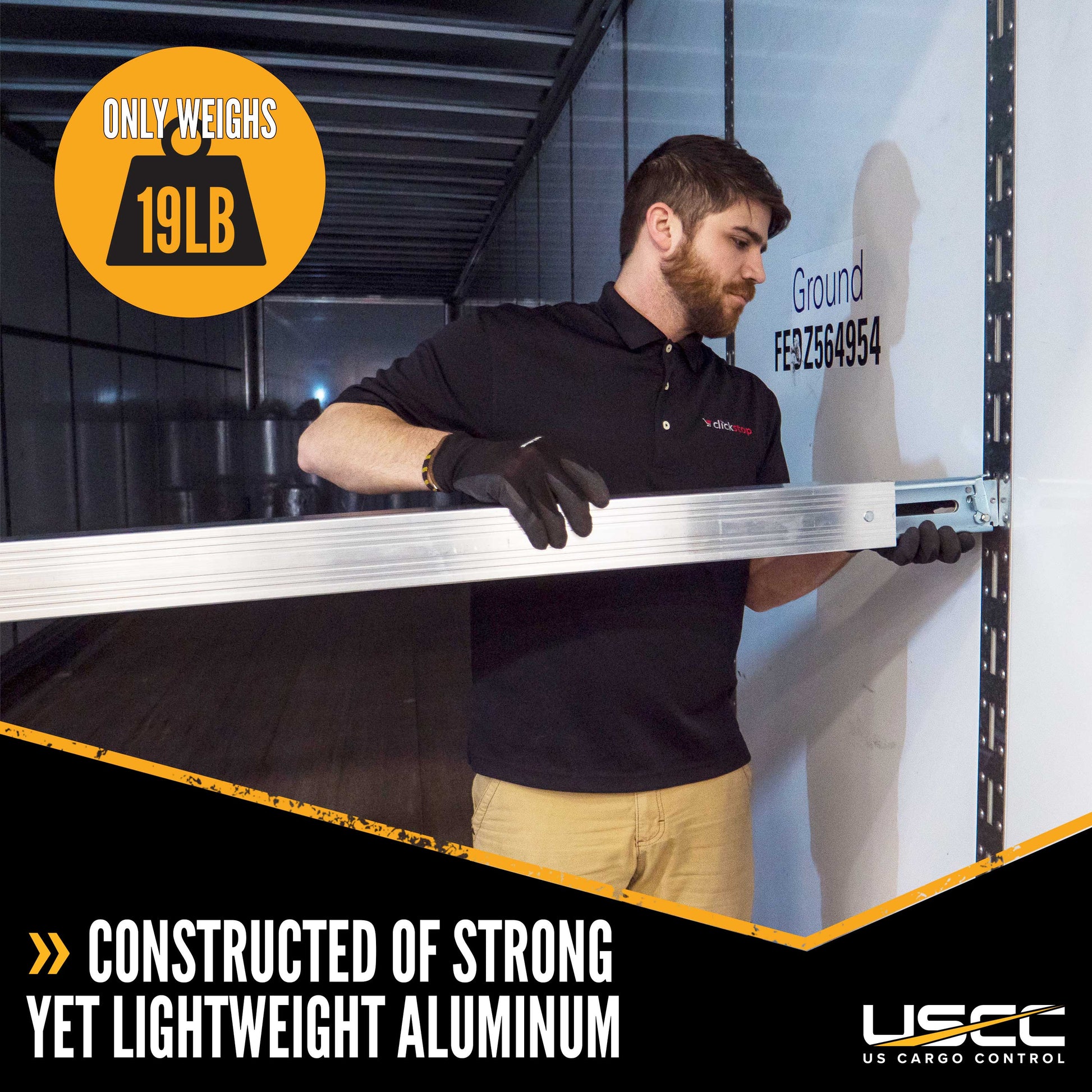

Shoring beams offer a great way to secure cargo using a high-strength aluminum and adjustable E-fitting ends that lock into E-track systems. Made of heavy-duty aluminum material and weighing in at only 19 pounds per beam, it offers higher strength than a steel shoring beam, as well as an easier-to-handle weight.
Side-Release Latch Benefits
This E-track shoring beam uses a patented side-release flat latch. This ensures the latch is down and out of the way, particularly in decking applications where top latches can be bent or damaged when you set pallets on top of the beam.

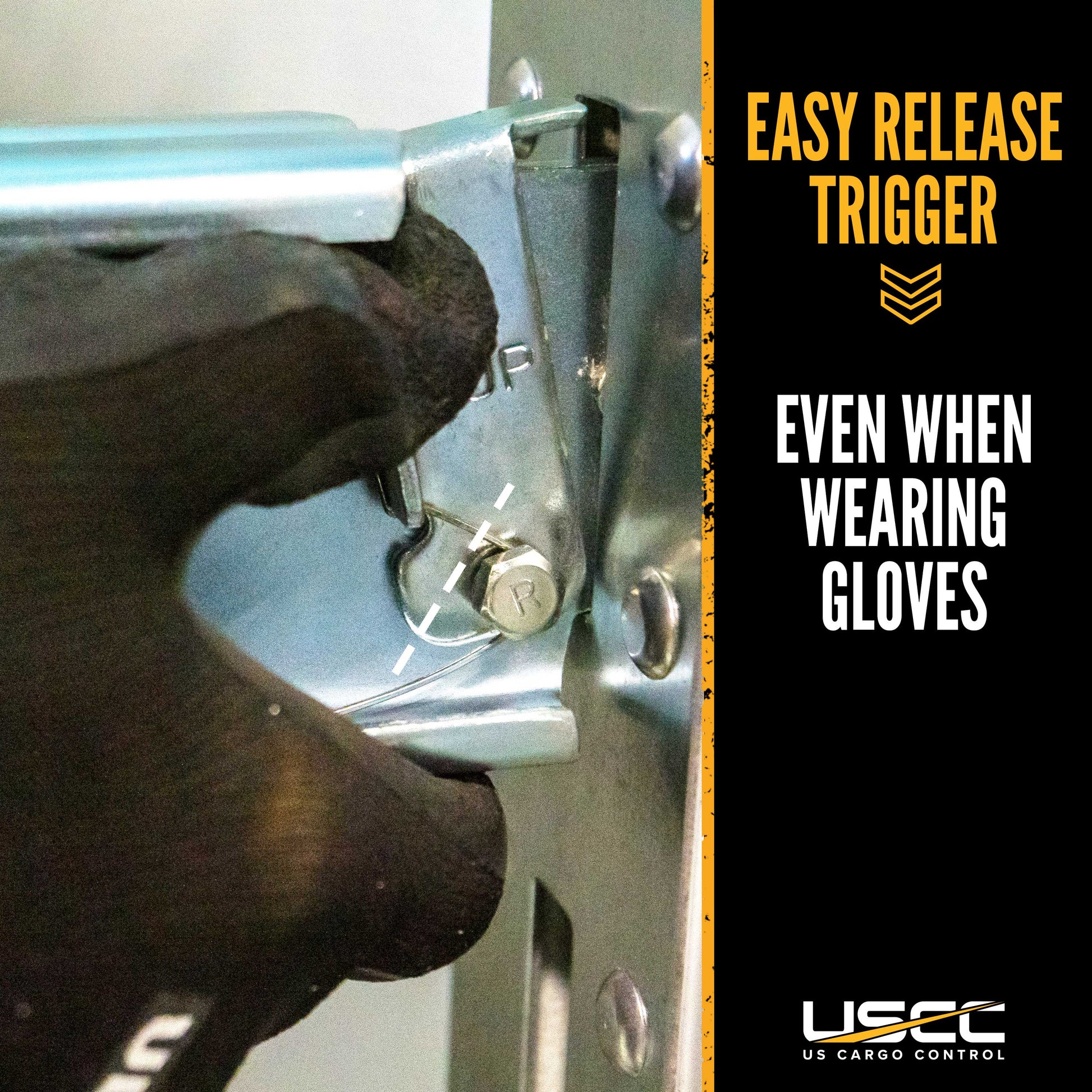

It also has an easy-release trigger that's simple to operate when wearing gloves, which can be a nuisance with other "trigger" E-track mechanisms.
Heavy-Duty Decking Bars

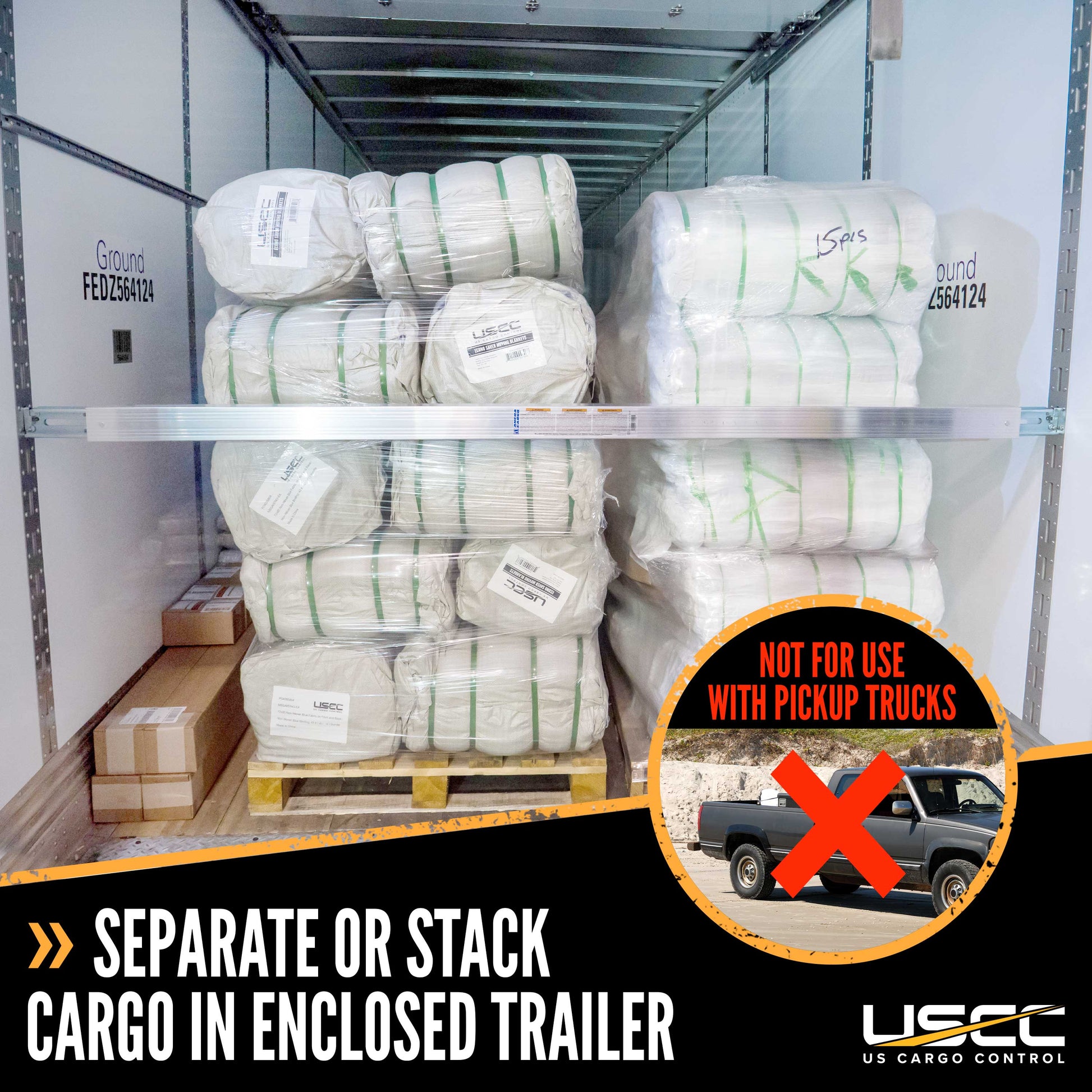

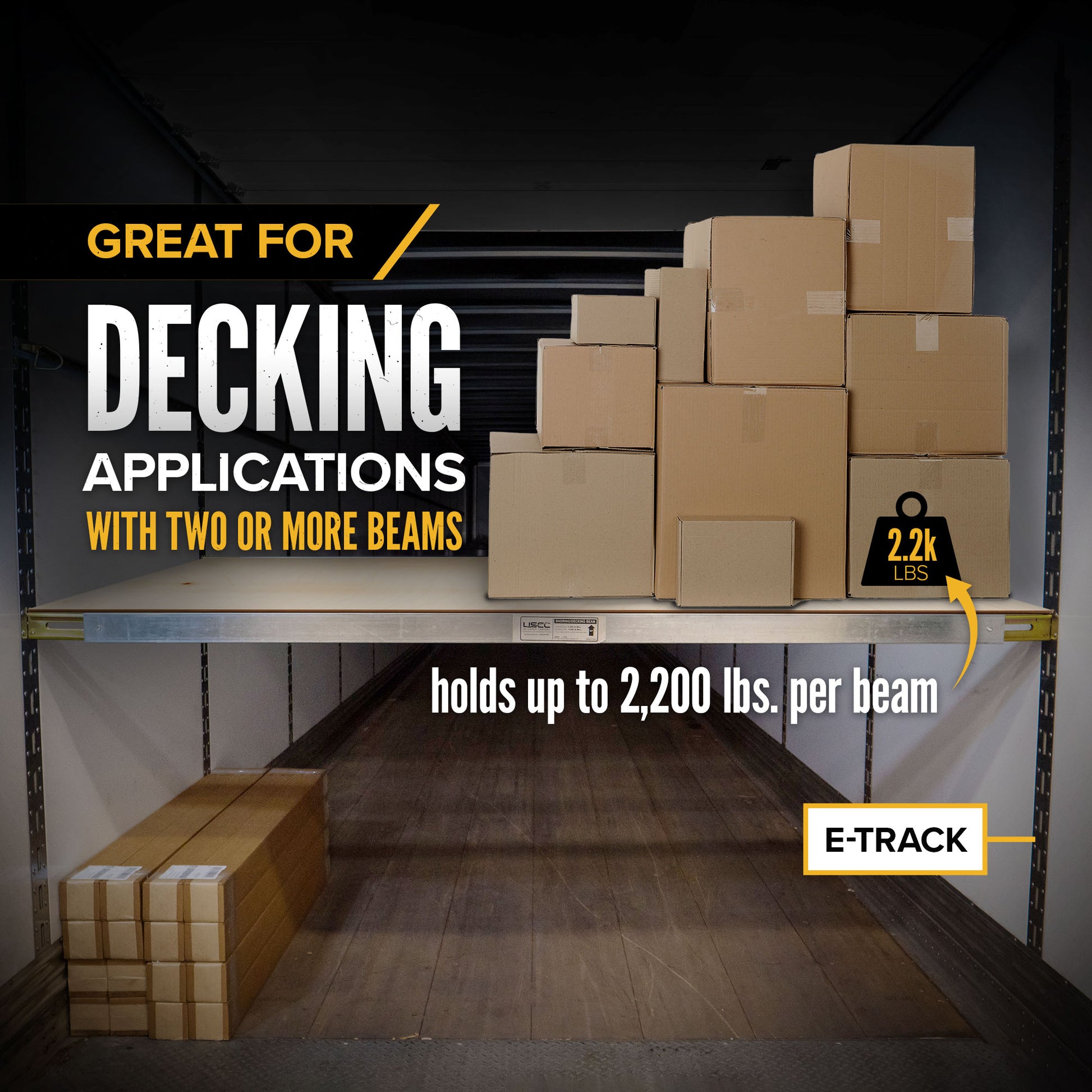

If you need more cubic usage out of your enclosed trailer, these E-track shoring beams are perfect for decking applications. Just attach two or more beams at the same height at different points along your trailer using E-track, then cover them with plywood or another flat surface to create your second level. This improves your transport capacity and even allows for better cargo organization.
Learn more about load bar decking on our blog!
E-Track Shoring Beam Features

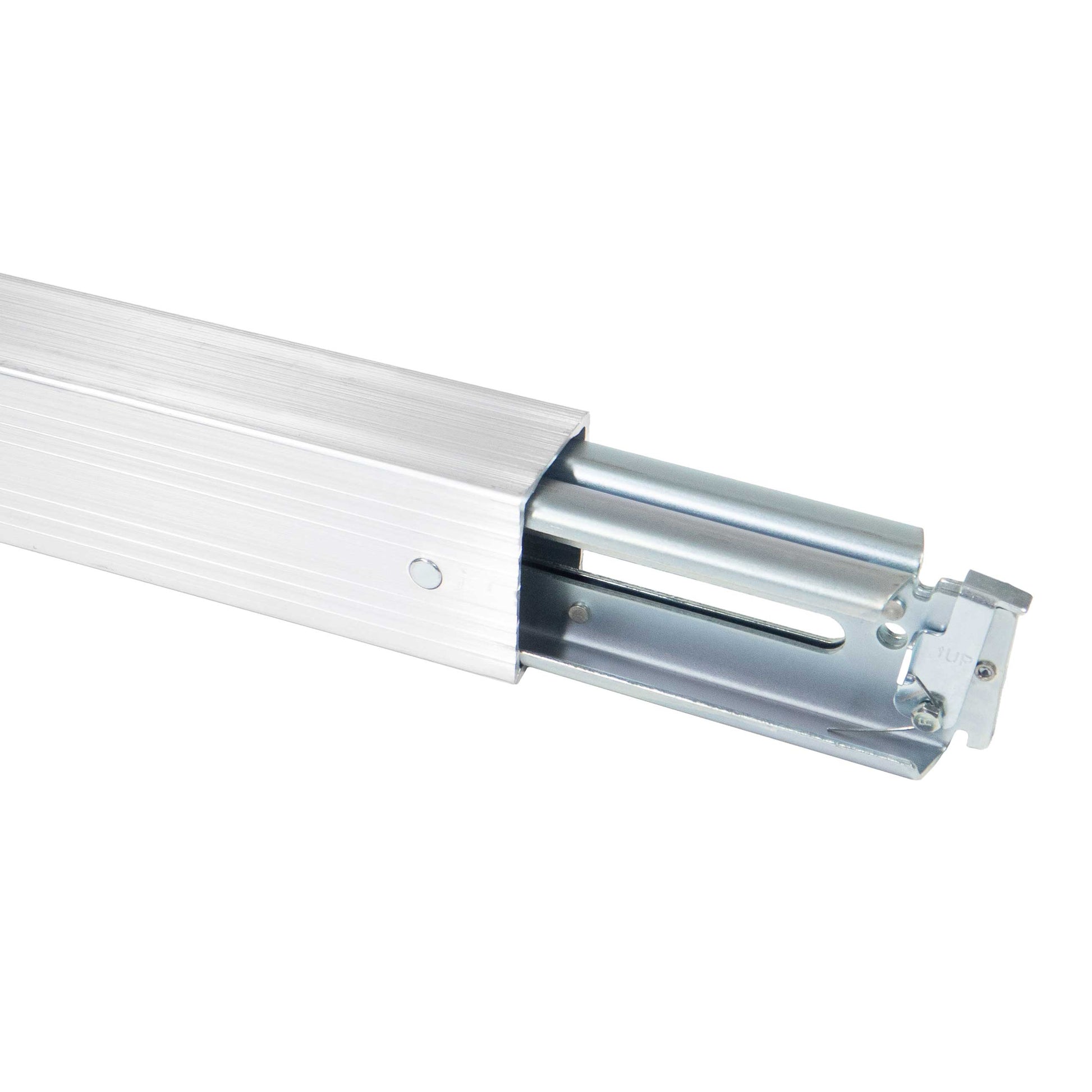

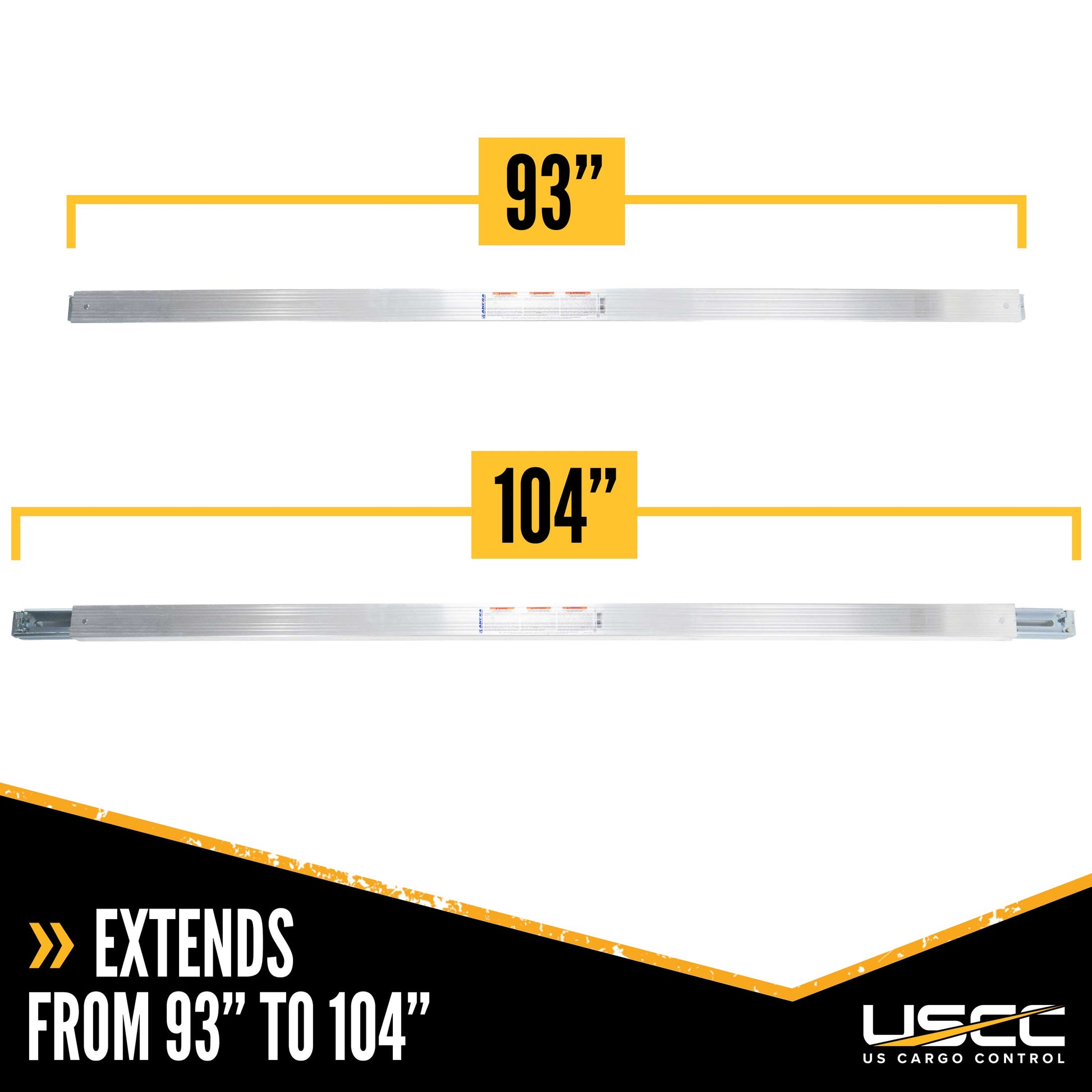

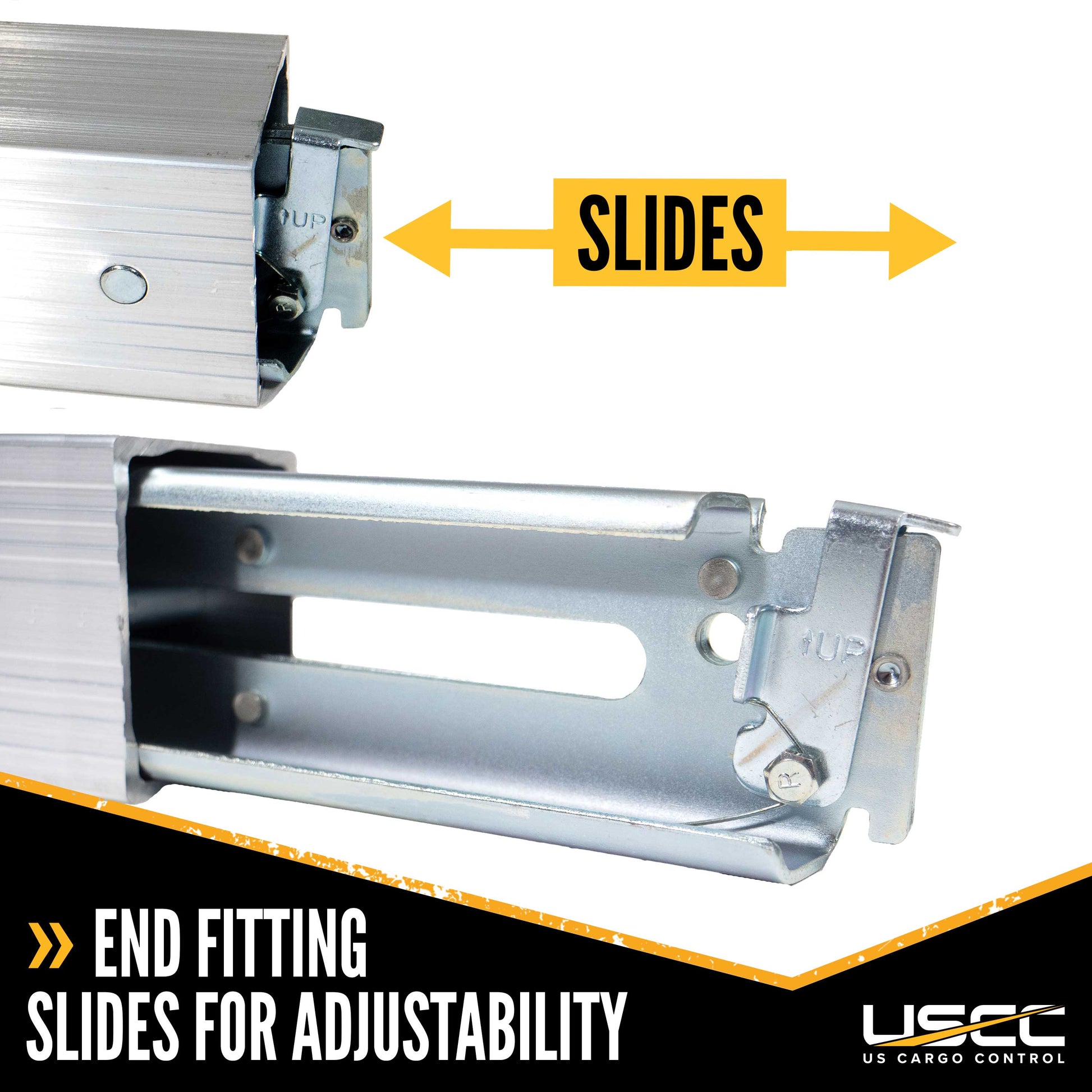

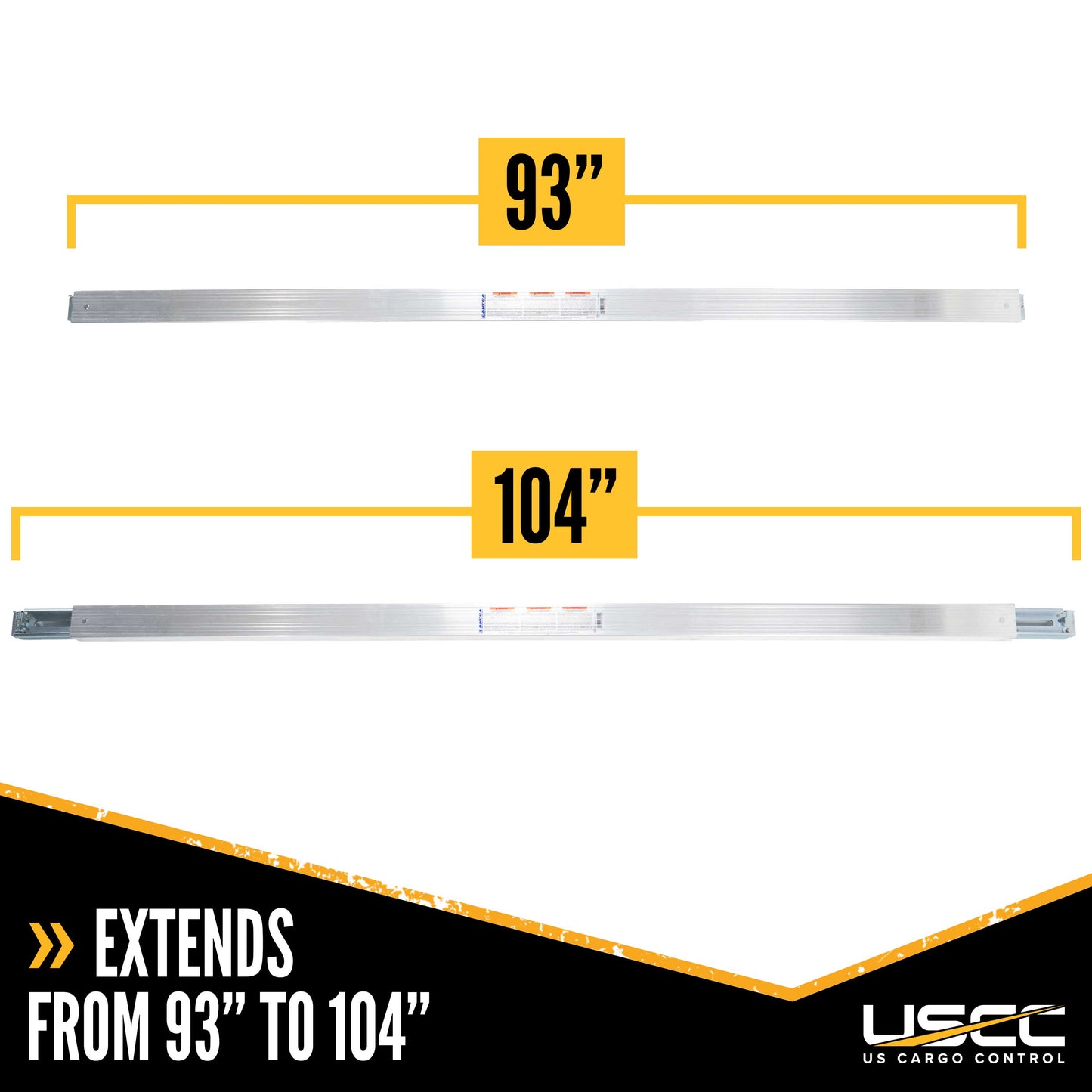

- Adjustable: The ends are designed to slide in and out of the aluminum body, making the entire unit adjustable from 93" to 106".

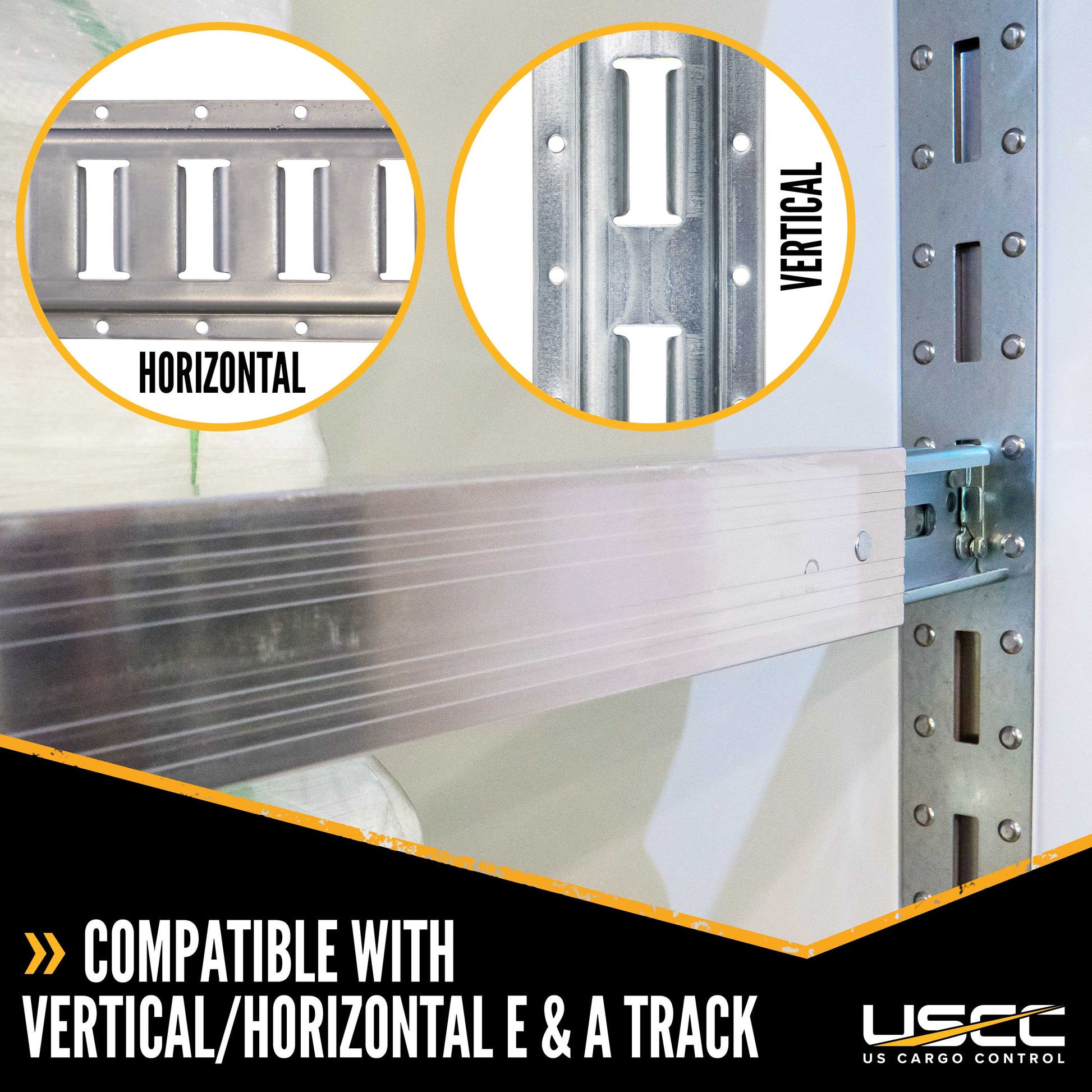

- Track-Compatible: Thumb release positively engages with both vertical and horizontal E-track / A-track.
-
Durable Construction: Lightweight aluminum beam and zinc-plated end fittings are strong and corrosion-resistant.
-
One-Person Operation: The adjustability lets you click and lock each side into place separately, so only one person is needed to install!
-
Customizable Length: Along with the adjustable ends, you can also shorten the aluminum body. Just remove the end, cut the body down to size, and reinstall the end.
More Cargo Securement Options
We also offer steel shoring beams and cargo load bars with 2" by 4" rubber feet for those applications where E-track doesn't apply.
Other popular cargo-bracing options include wood end sockets (an inexpensive way to shore up cargo using 2x4 lumber), dunnage bags, cargo nets, and E-track straps.
Please call for accurate shipping rates on quantities of 15 or more shoring beams.
