SKU: BTAS1
1" Galvanized Bolt Type Anchor Shackle - 8.5 Ton
1" Galvanized Bolt Type Anchor Shackle - 8.5 Ton!
$28.70
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 8.5 tons (US) / 17,000 lbs.

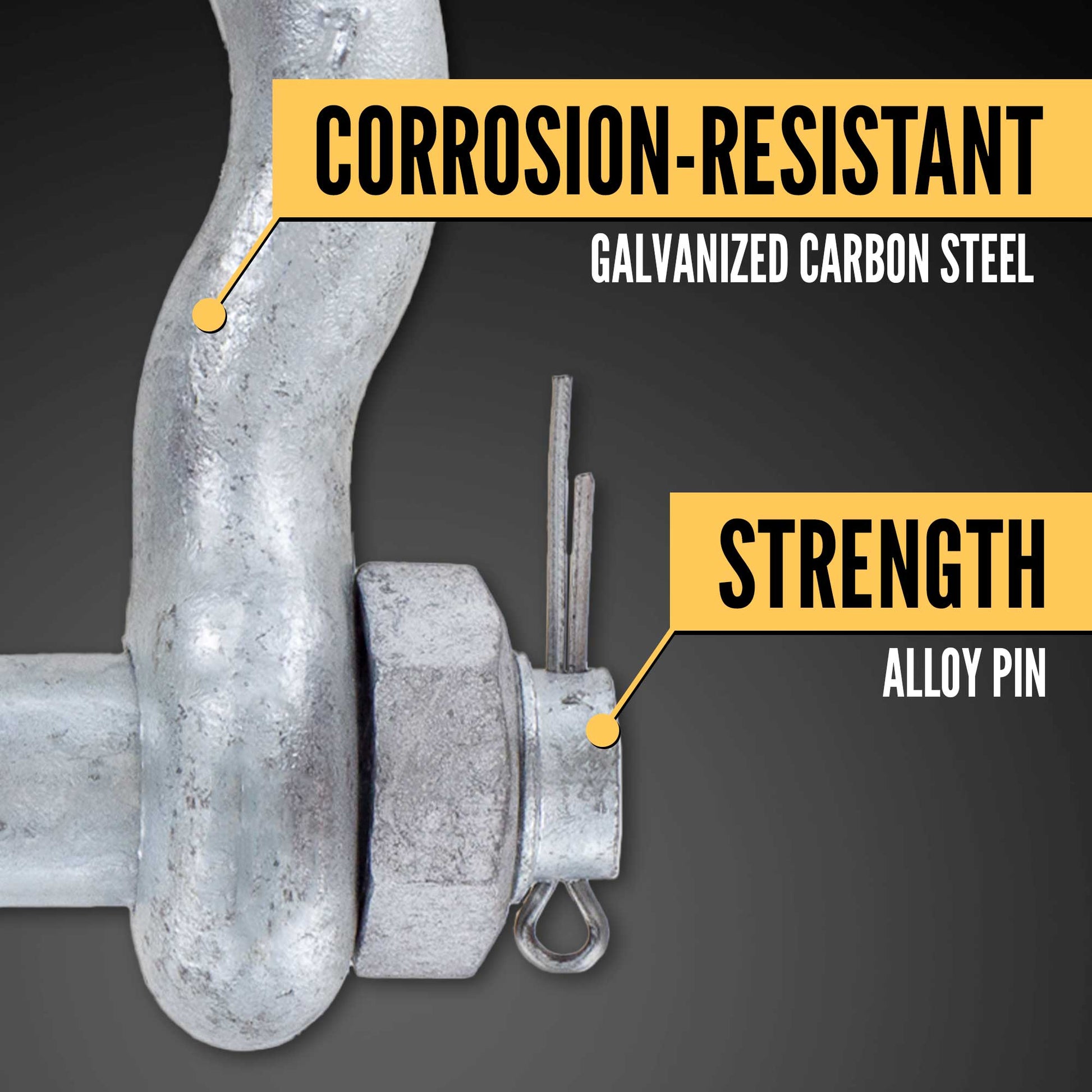

Finish: Galvanized
Inside height: 3.75"
Inside width: 2.69"
Material: Carbon Steel Shackle
Alloy Pin
Alloy Pin
Mouth width: 1.69"
Pin size: 1-1/8"
Product weight: 5.36 lbs.
Safety factor: 6:1
Shackle size: 1"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of Federal Specification RR-C-271 & ASTM A148M.
Type: Bolt Type Anchor
Additional Info: For measurement tolerances, see spec sheet.
Description

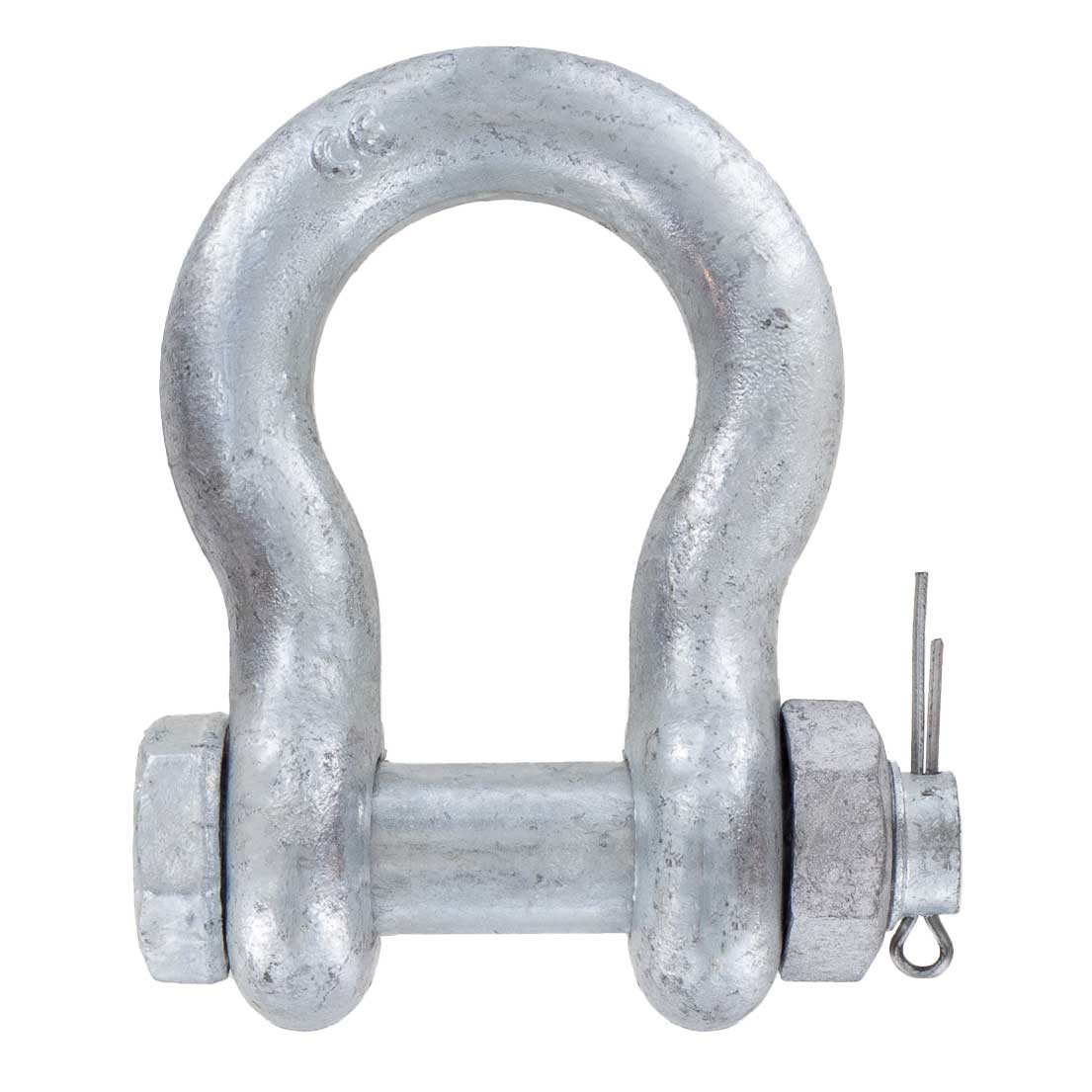

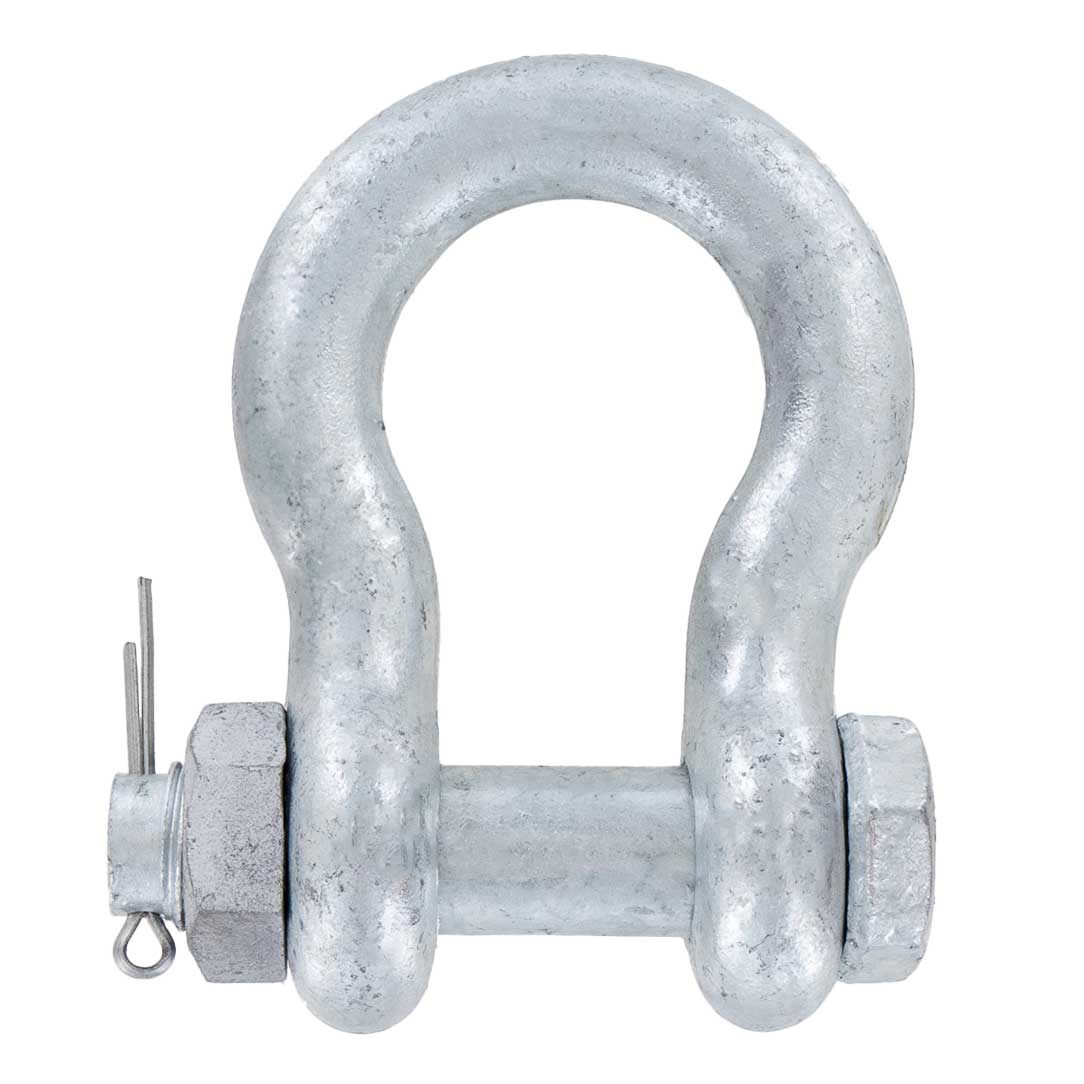

8.50 Ton Bolt Type Anchor Shackles
Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
Our bolt type anchor shackles are made with quality in mind. These shackles are great for protecting lifting slings from damage due to cutting or abrasion. Made of galvanized steel, they are corrosion-resistant but should not be used in high moisture conditions. For high moisture, check out our stainless bolt type shackles which will last considerably longer in those conditions.
Shackle Features
- Economically-priced with a drop in quality for applications where budget is key.
- Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.

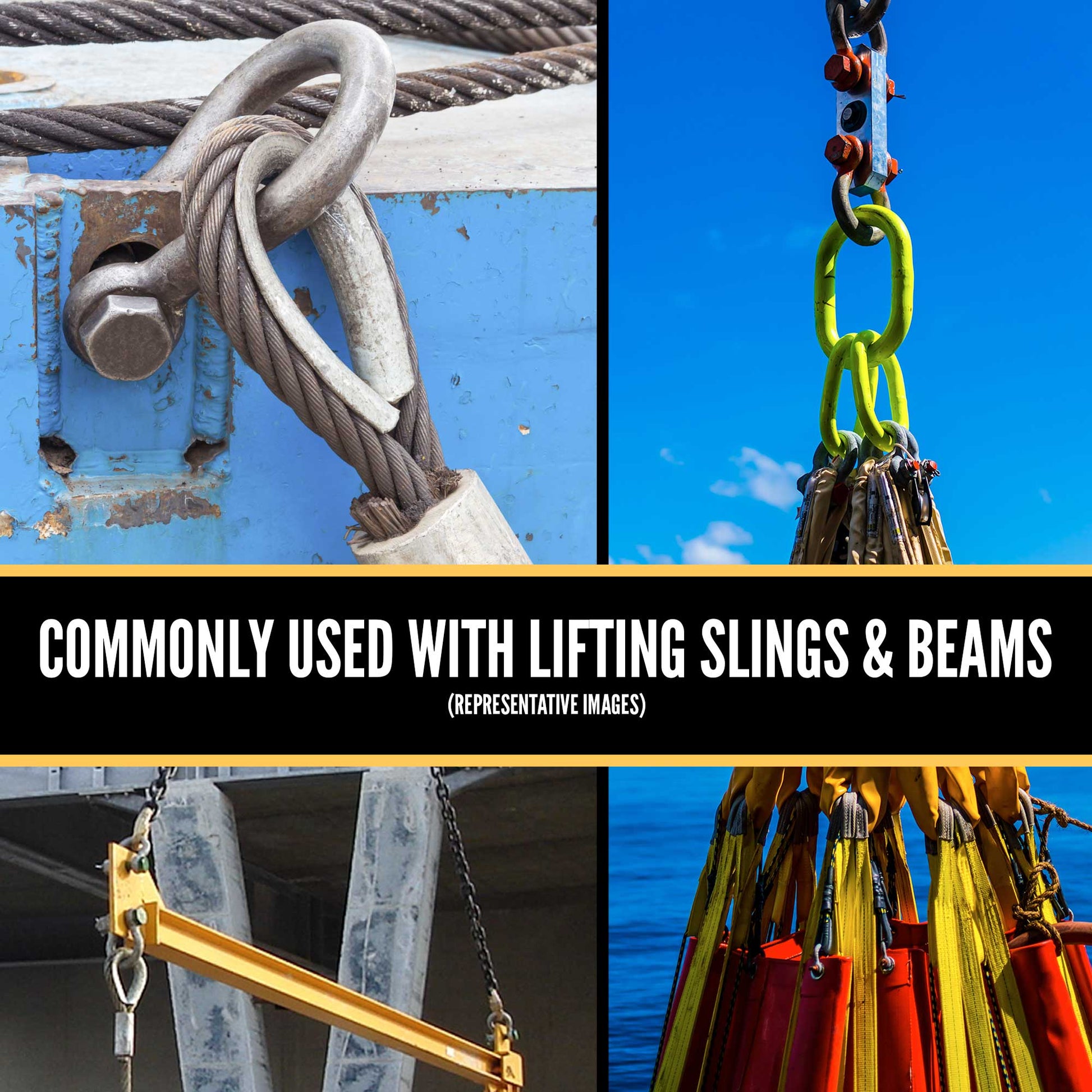

Don't forget to check out our nylon slings, polyester slings, wire rope slings, and chain slings.
Source: Import
