SKU: BTAS1-12

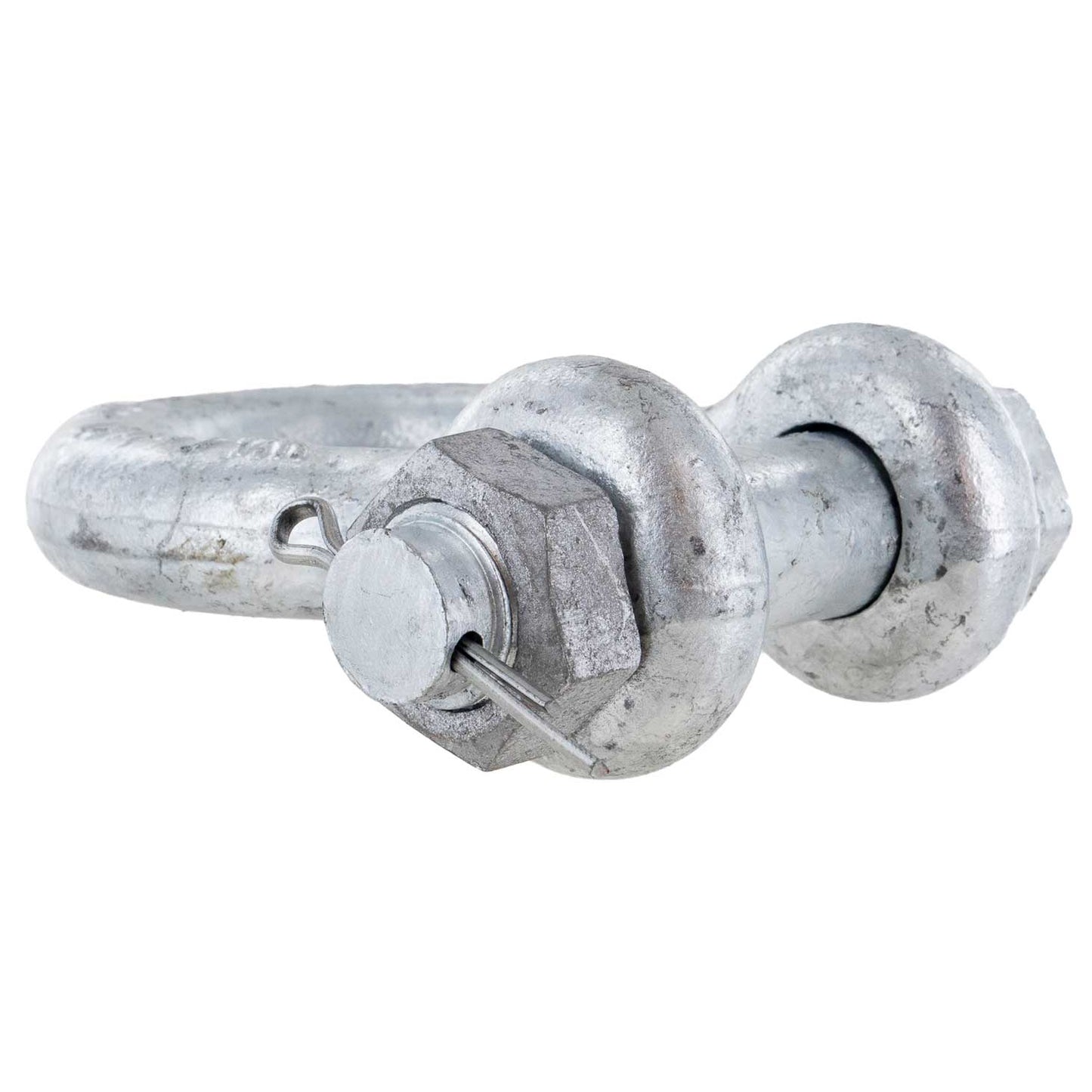

1-1/2" Galvanized Bolt Type Anchor Shackle - 17 Ton

1-1/2" Galvanized Bolt Type Anchor Shackle - 17 Ton!

Skip to product information
1 of 8

SKU: BTAS1-12

1-1/2" Galvanized Bolt Type Anchor Shackle - 17 Ton

1-1/2" Galvanized Bolt Type Anchor Shackle - 17 Ton!

Regular price $102.91
Sale price $102.91 Regular price
0% off
Ships today when you order in the next 6 hours 37 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 17 tons (US) / 34,000 lbs.
  • Inside width: 3.88"
  • Mouth width: 2.38"
  • Finish: Galvanized
  • Safety factor: 6:1
  • Inside height: 5.75"
  • Pin size: 1-5/8"
  • Shackle size: 1-1/2"
  • Standards: Meets all requirements of Federal Specification RR-C-271.
  • Type: Bolt Type Anchor
  • Material: Carbon Steel Shackle
    Alloy Pin
  • Product weight: 18.9 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
  • Additional info: Source: Import

Description

17 Ton Bolt Type Anchor Shackles

Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.

Our bolt type anchor shackles are made with quality in mind. These shackles are great for protecting lifting slings from damage due to cutting or abrasion. Made of galvanized steel, they are corrosion-resistant but should not be used in high moisture conditions. For high moisture, check out our stainless bolt type shackles which will last considerably longer in those conditions.

Shackle Features

  • Economically-priced with a drop in quality for applications where budget is key.
  • Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.

Don't forget to check out our nylon slings, polyester slings, wire rope slings, and chain slings.

View Product Safety Warnings

California Residents: WARNING

Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
