SKU: BTASA38-CR

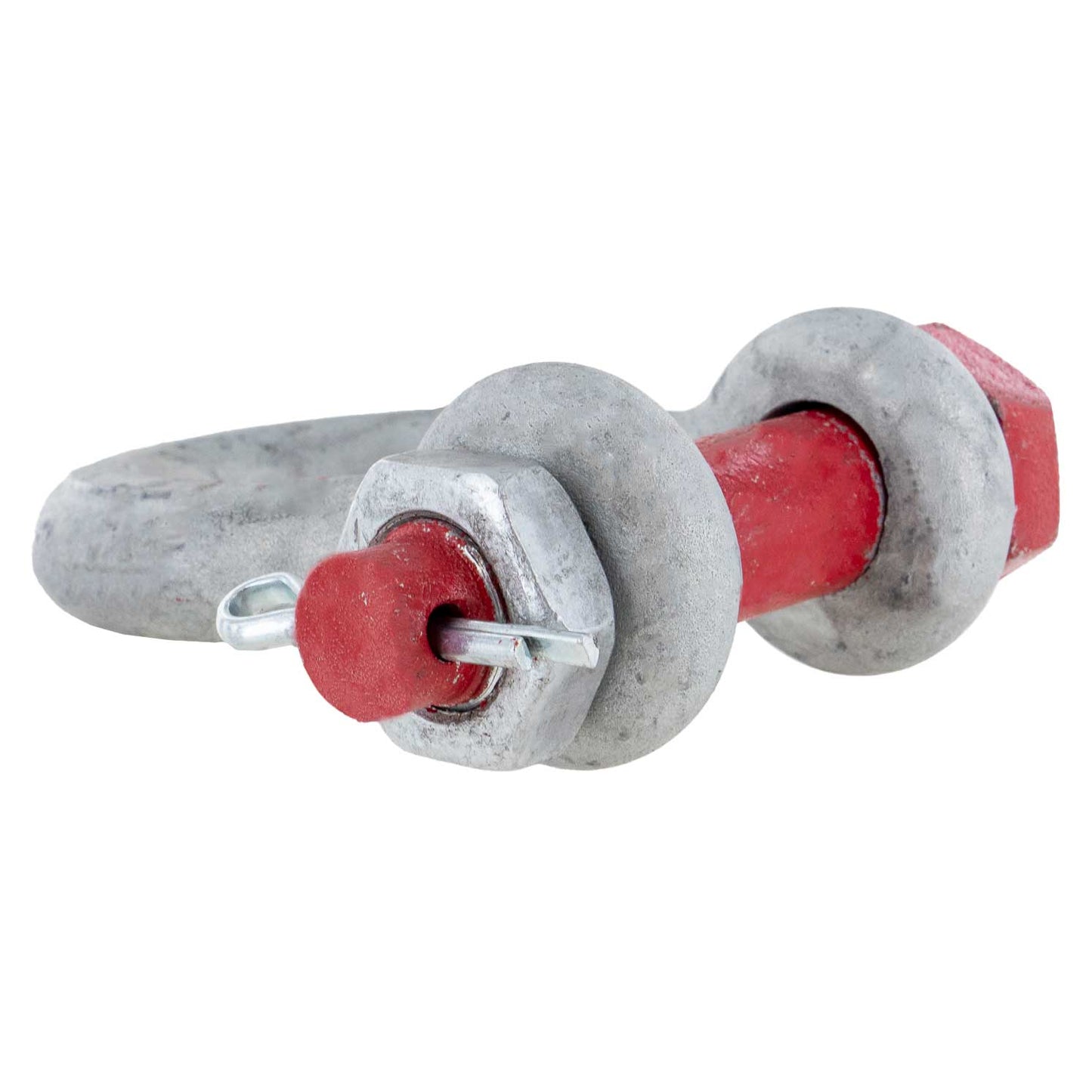

3/8" Crosby® Alloy Bolt Type Anchor Shackle | G-2140 - 2 Ton
3/8" Crosby® Alloy Bolt Type Anchor Shackle | G-2140 - 2 Ton!
Authorized Distributor
$46.55
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 2 tons
Brand part number: 1021015
Finish: Galvanized
Inside height: 1.44"
Inside width: 1.03"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 0.66"
Pin size: 7/16"
Product weight: .3 lbs.
Safety factor: 5.4:1
Shackle size: 3/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Additional Info: WLL (lbs.): 4,409
Description
Crosby® 2 Ton Bolt Type Anchor Shackles
USA-made Crosby alloy shackles are quenched and tempered for superior strength and have alloy pins. The rounded bow of anchor shackles allow them to take loads from multiple directions without developing excessive side load. That makes them excellent for connecting slings to load rings, use with wider straps, or use with multiple-leg slings.
G-2140 shackles meet the performance requirements of Grade 8 shackles and are stamped with the working load limit, PIC, and Crosby brand name. They are approved for use at temperatures between -40°F / -40°C and 400°F / 204°C, and can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C by request.
Why Choose Bolt Type Anchor Shackles?
Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
G-2140 Shackle Features
- Bolts are Dimetcoted and painted red.
- Certification for ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliances is available if requested at time of order. May include additional charges.
