SKU: PSN-3040-DL
30' x 40' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
$4,445.00
Net Size:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Load Capacity: 17,500 lbs.
Size: 30' x 40'
Minimum Wire Rope Diameter: 3/8"
Width: 40'
Length: 30'
Mesh Size: 3-1/2"
Material: Polyamide
Color: Black
Product Weight: 242 lbs.
Standards: Meets or exceeds ANSI A10.11 fall protection comliance.
Brand: InCord
Shipping and Returns: This item ships LTL; learn more. It cannot be returned due to safety risks associated with used materials.
Additional Info: Approximate strength: 17,500 lbs.
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Description

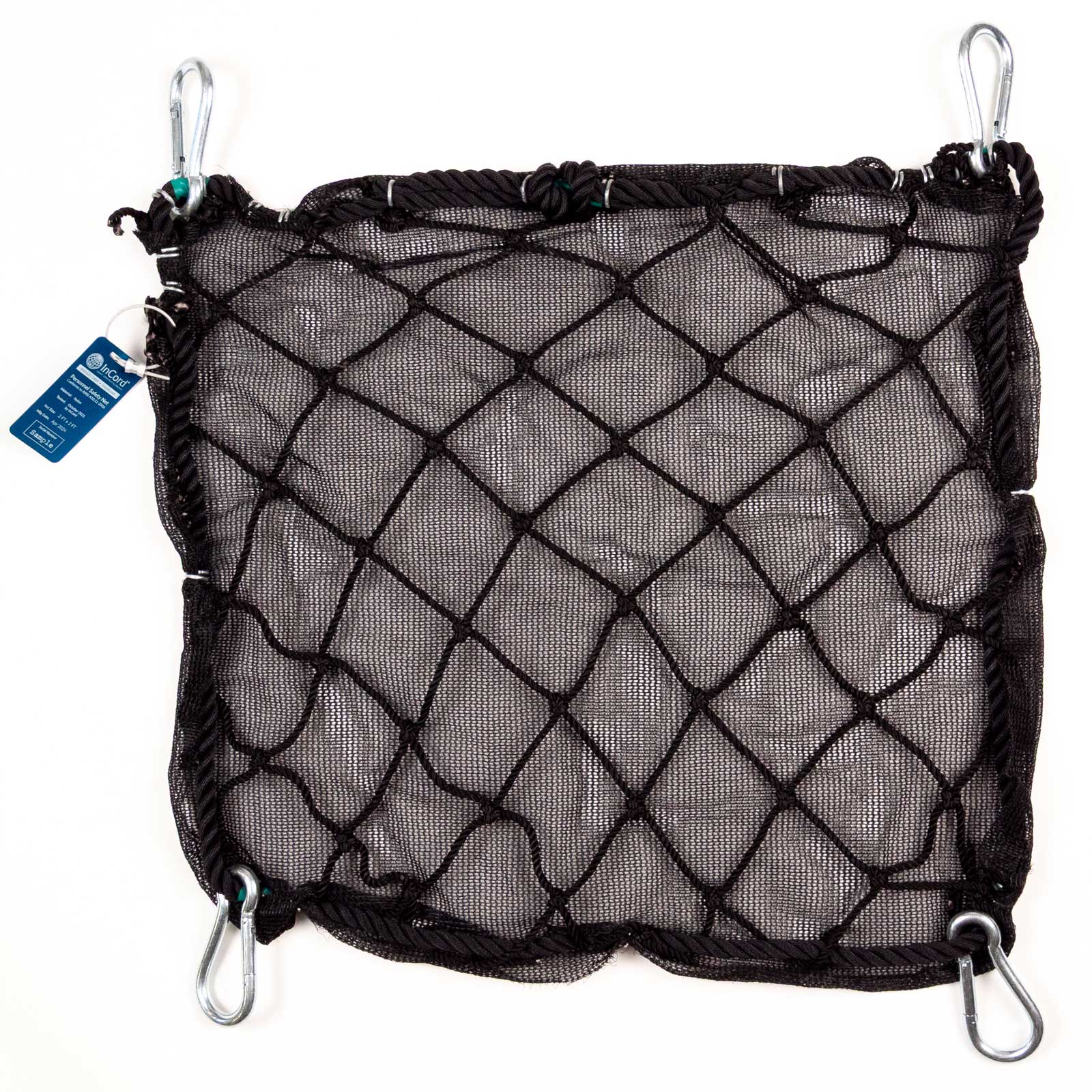

Personnel Safety Net w/ Debris Liner - 30' x 40'

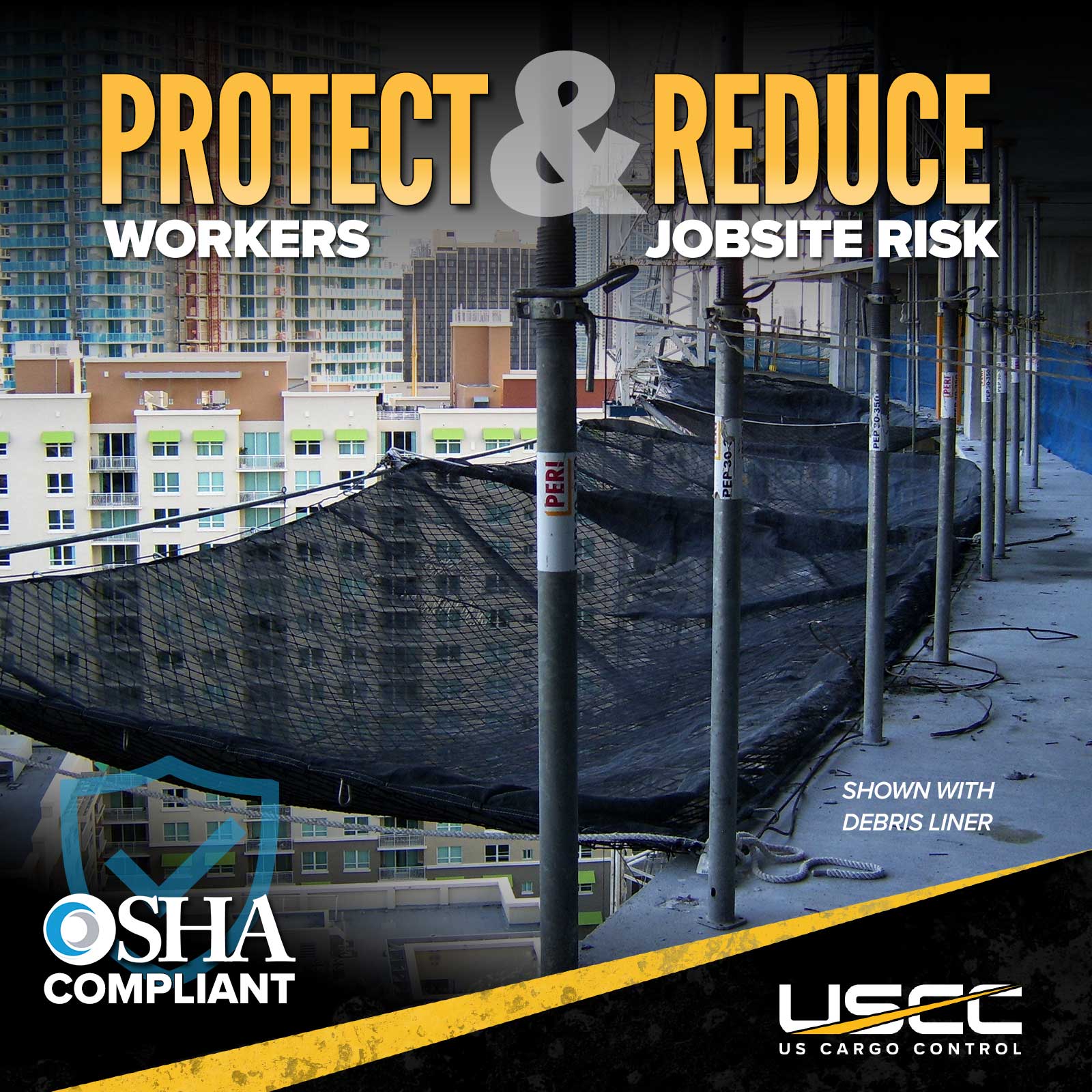

At 30' x 40', this large-format personnel safety net combines our standard fall-protection performance with an integrated WS70 1/16" debris liner for expansive elevated work areas.
Built for Fall Protection & Debris Containment

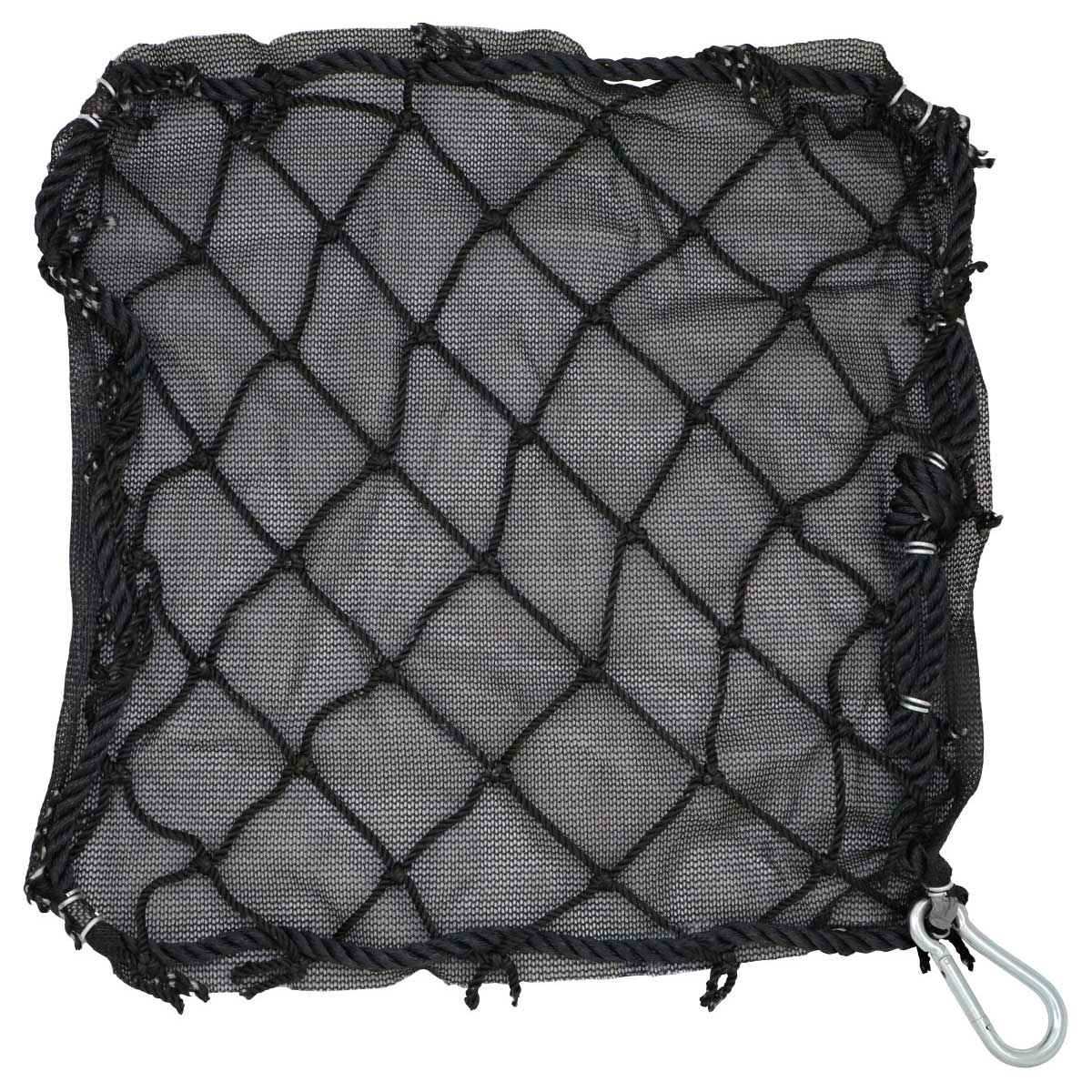

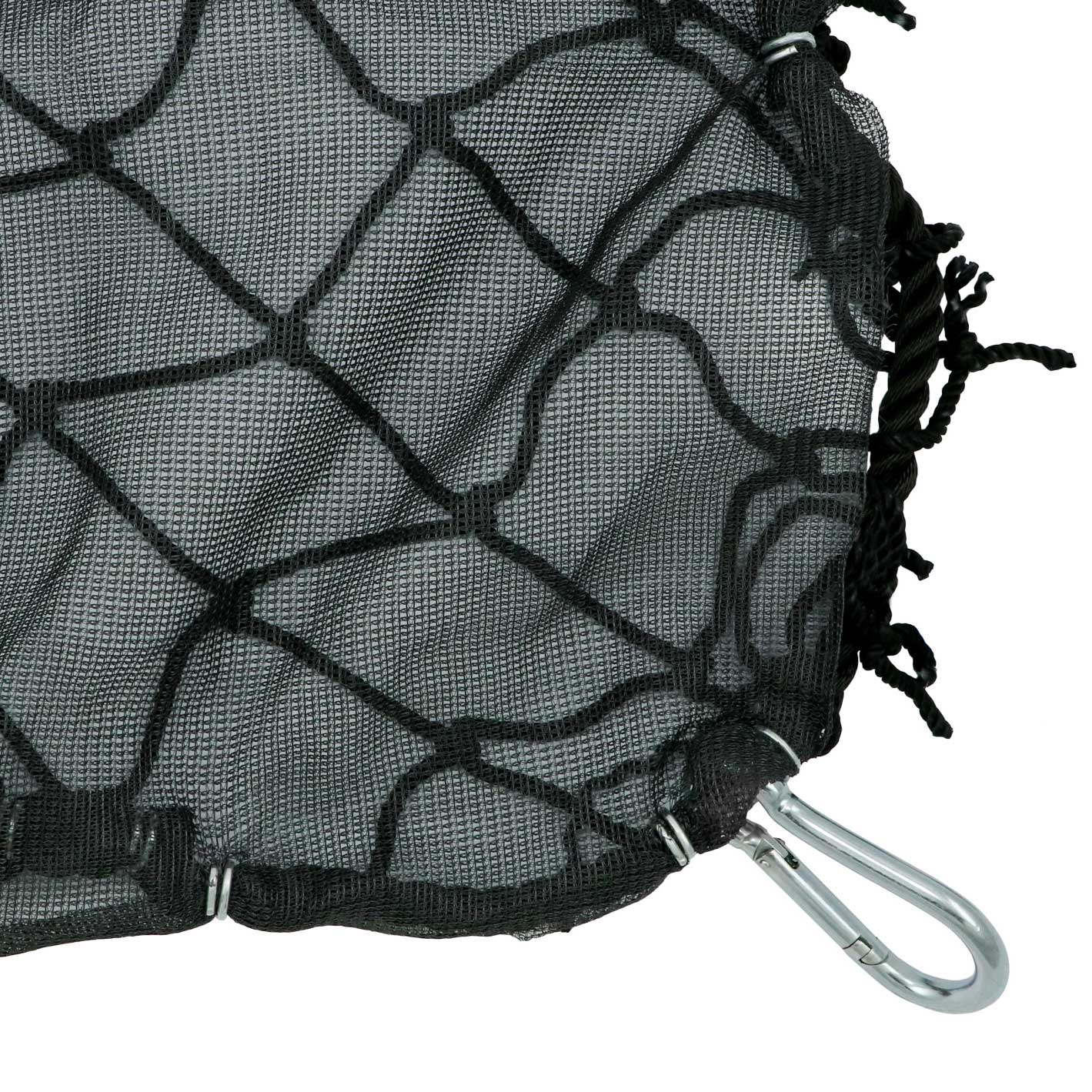

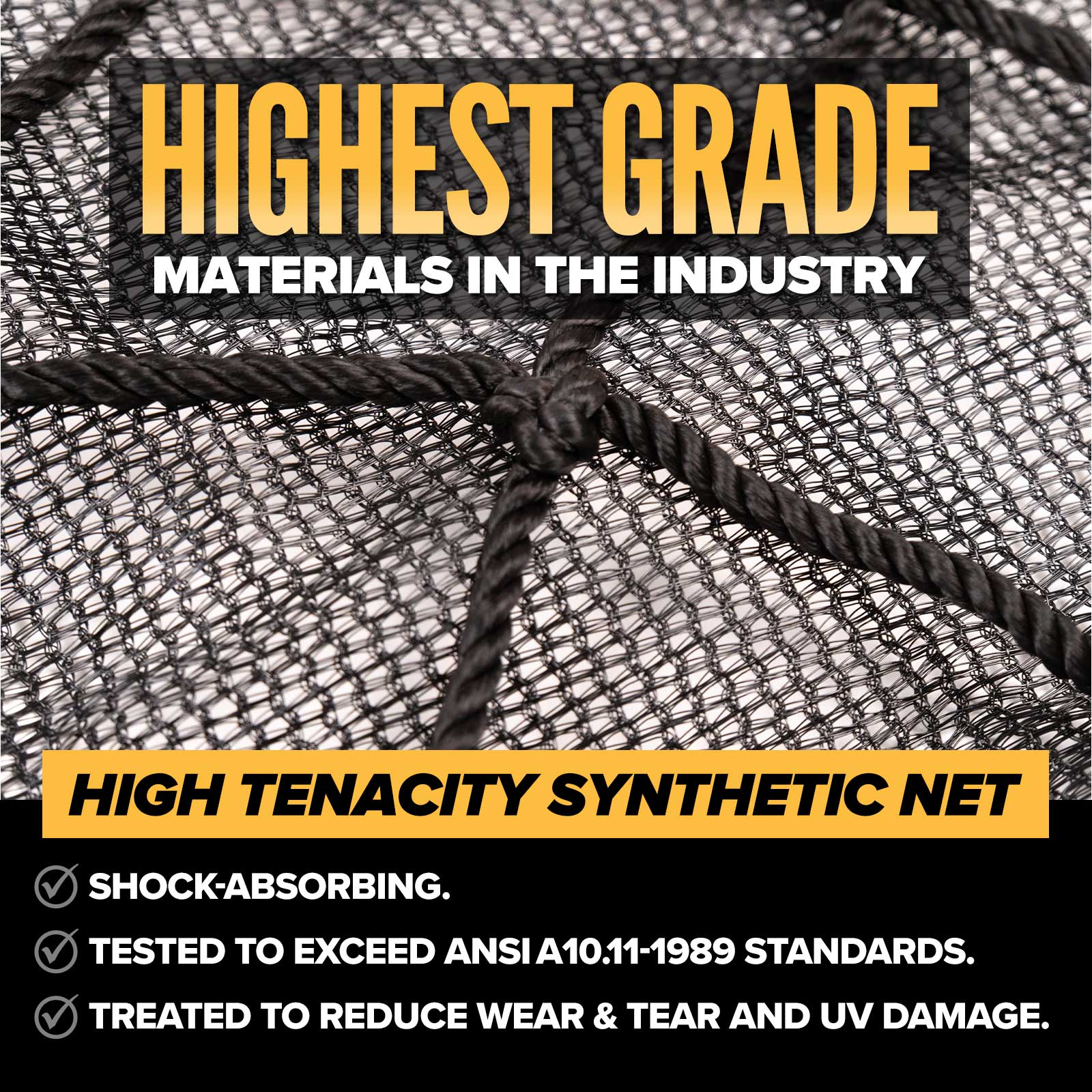

- 3.5" Diamond Mesh Construction: Knotted from #120 (5.0 mm) industrial-grade high-tenacity nylon cord for reliable energy absorption during a fall, at 0.0650 lb/ft².
- 6,700 lb-Rated Border Rope: A 1/2" high-tenacity nylon rope surrounds the panel, meeting a 6,700 lb minimum tensile strength standard.

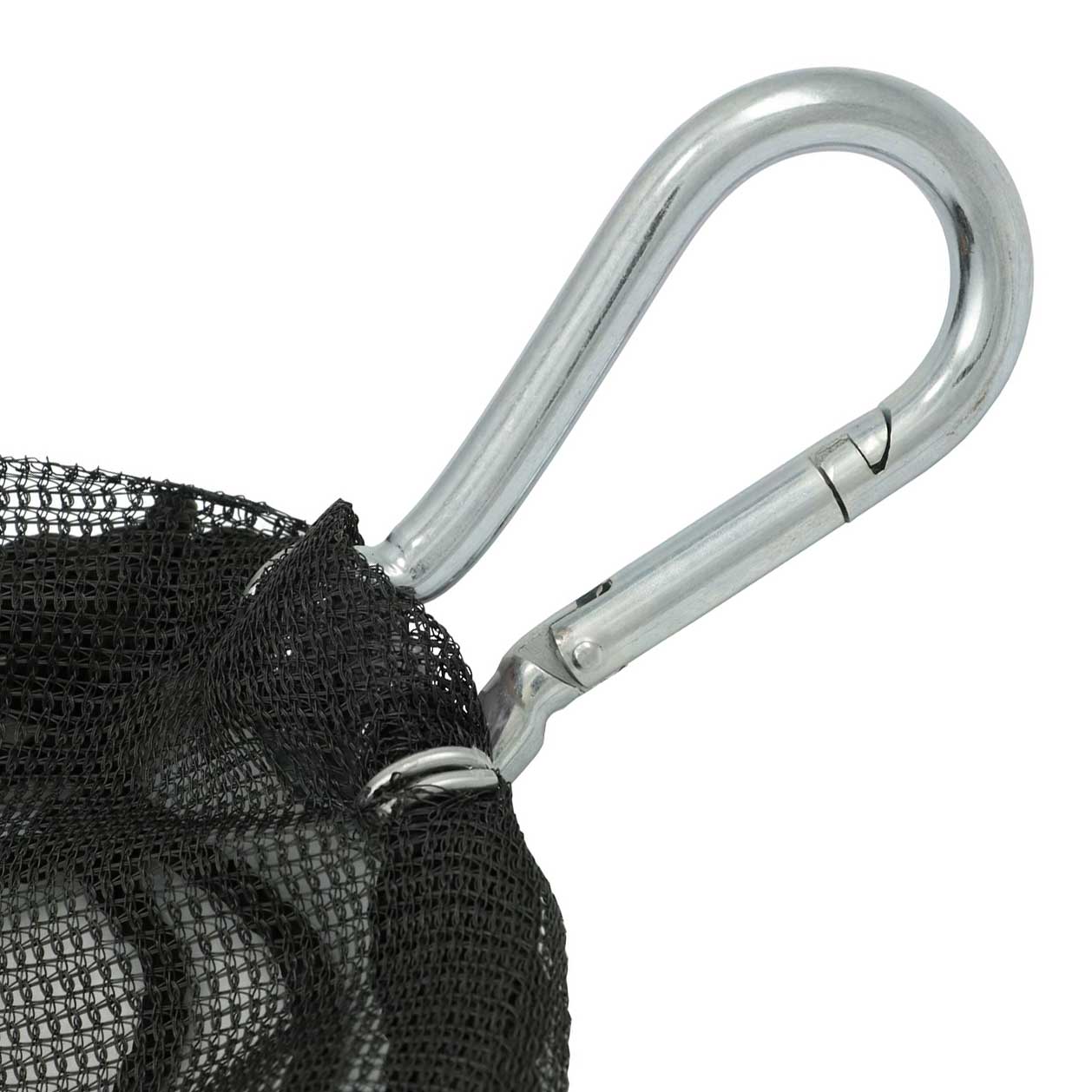

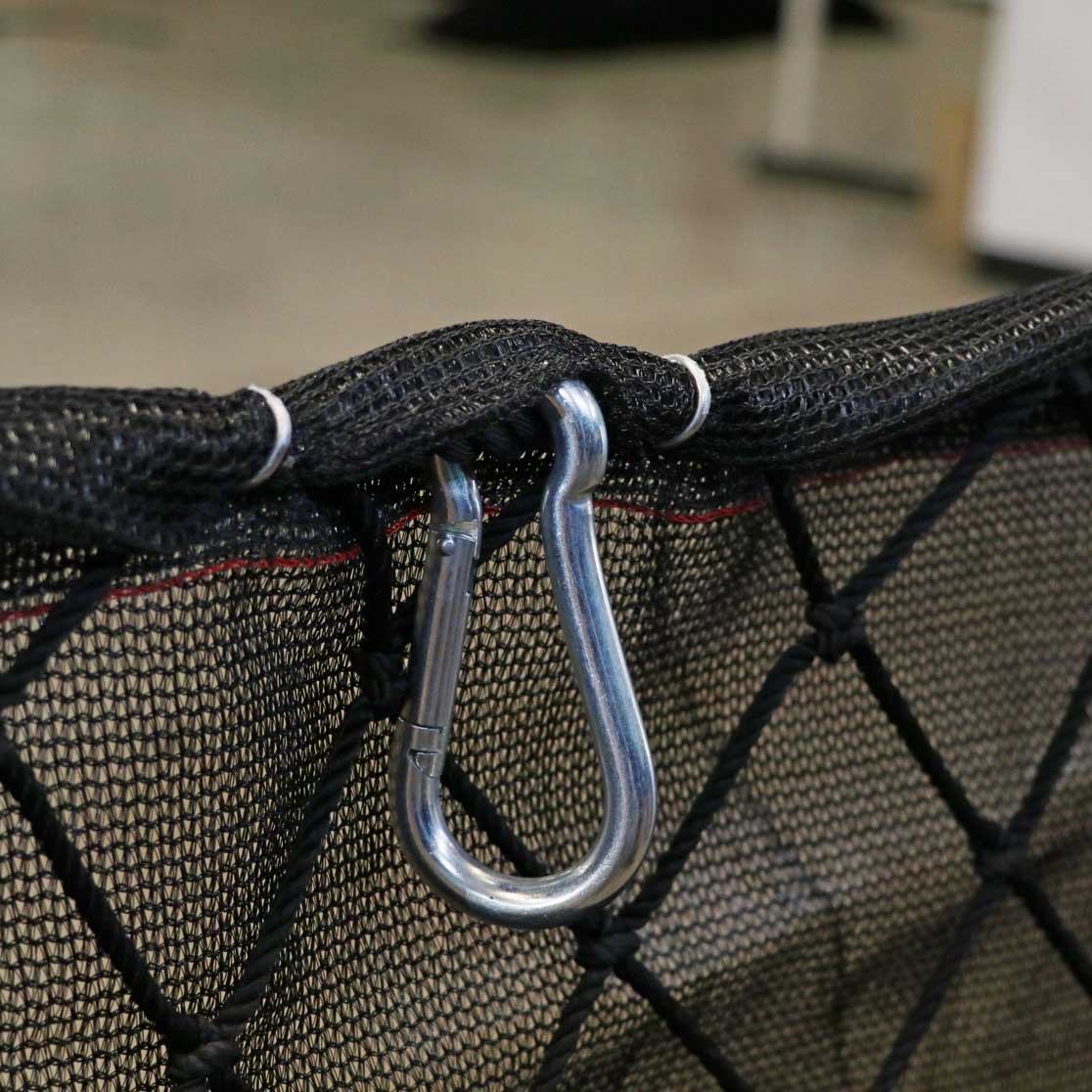

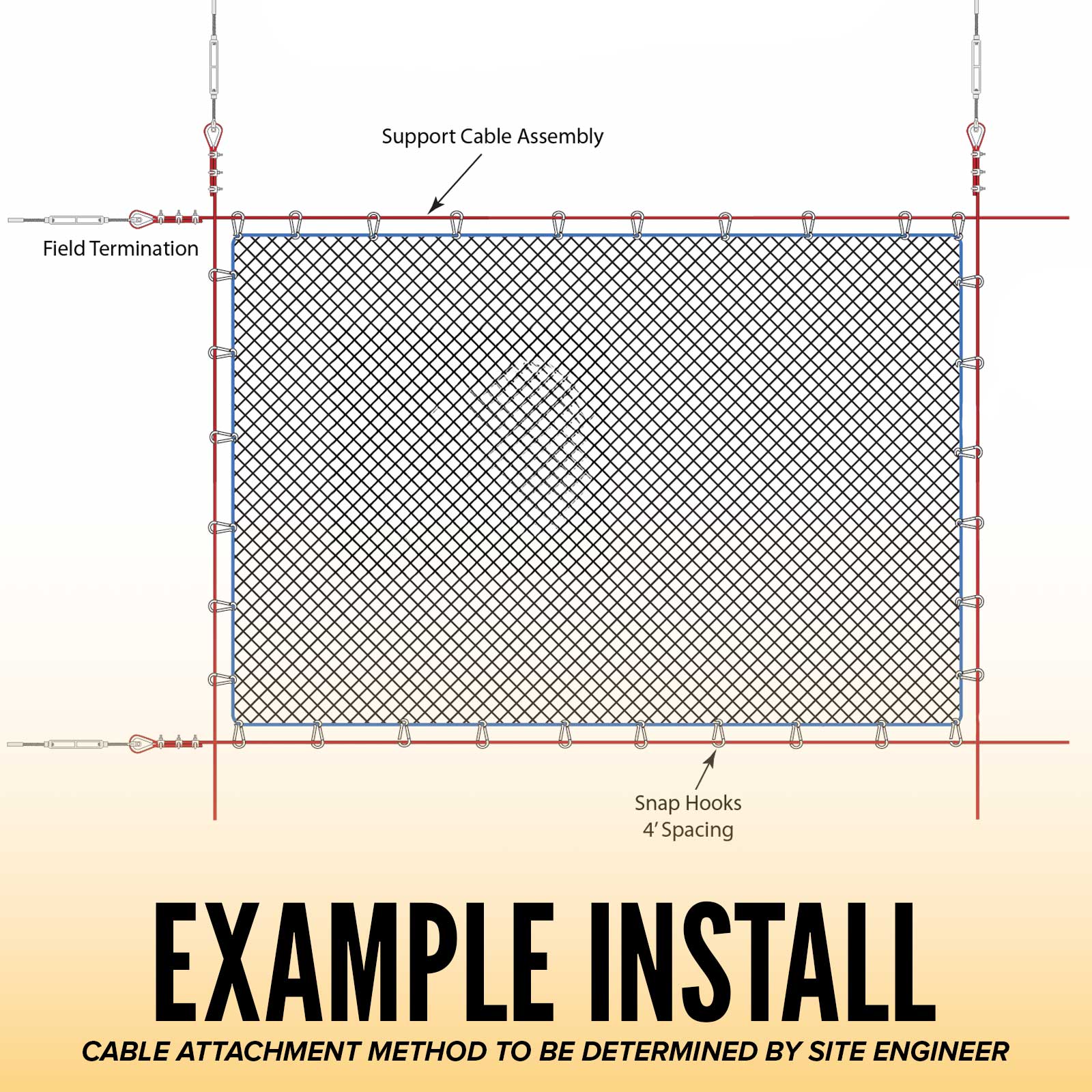

- Fast Panel-to-Panel Connection: 4.72" (120 mm) snap hooks are staggered along the border, spaced 36 in. on-center along the length and 24 in. on-center along the width, for quick attachment to neighboring nets.

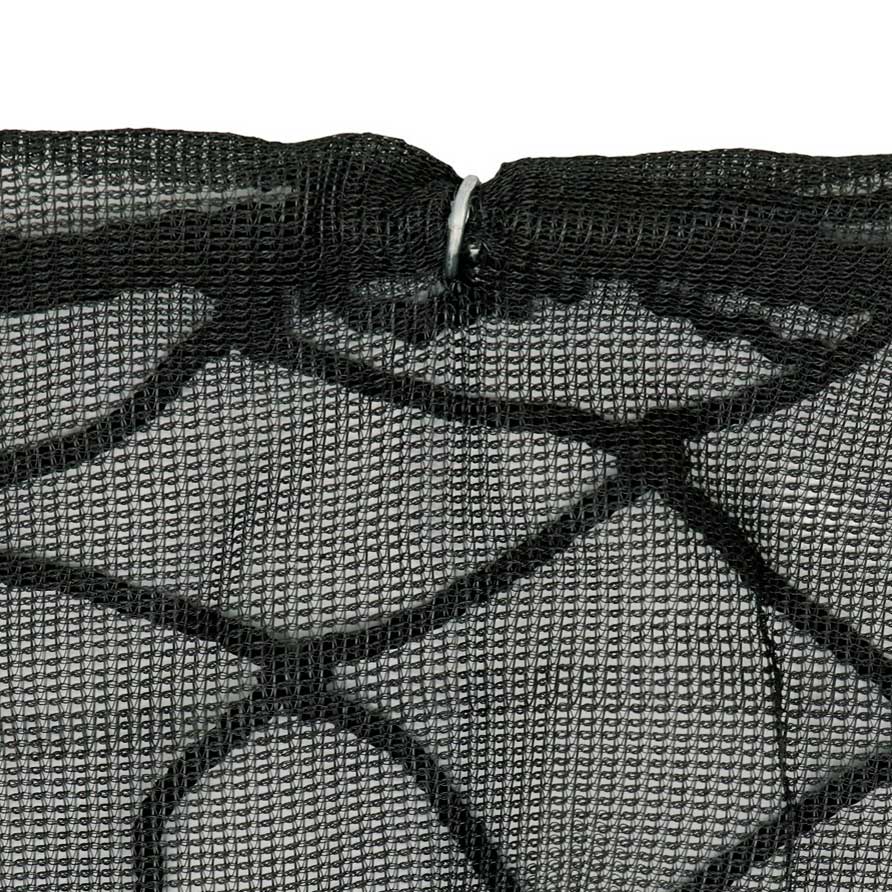

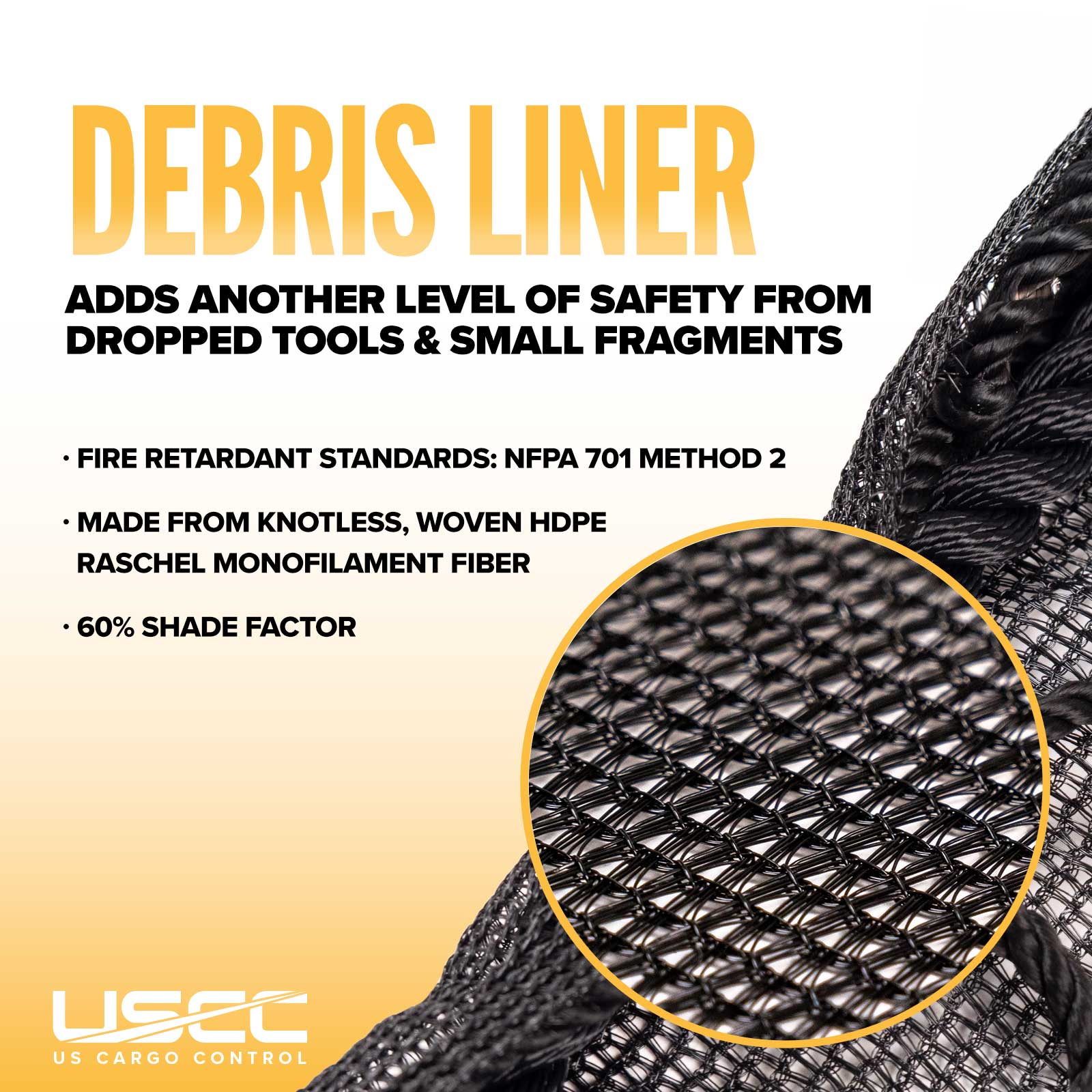

- WS70 Liner Attachment: A lightweight, tear-resistant 1/16" knit mesh liner (0.0358 lb/ft²) is bonded to the border rope using 15-gauge hog ring crimp fasteners for small-particle containment.
Important: the WS70 liner is designed for small-particle containment (tools, fasteners, small hardware) and is not a substitute for a dedicated debris containment system. Large construction debris should be managed with a separate containment solution.
Tested to Industry Standards
- ANSI A10.11 Tested: Dynamic drop tested to 17,500 ft-lb (350 lb test weight dropped three times from 50 ft into a 17×24 ft bordered net).

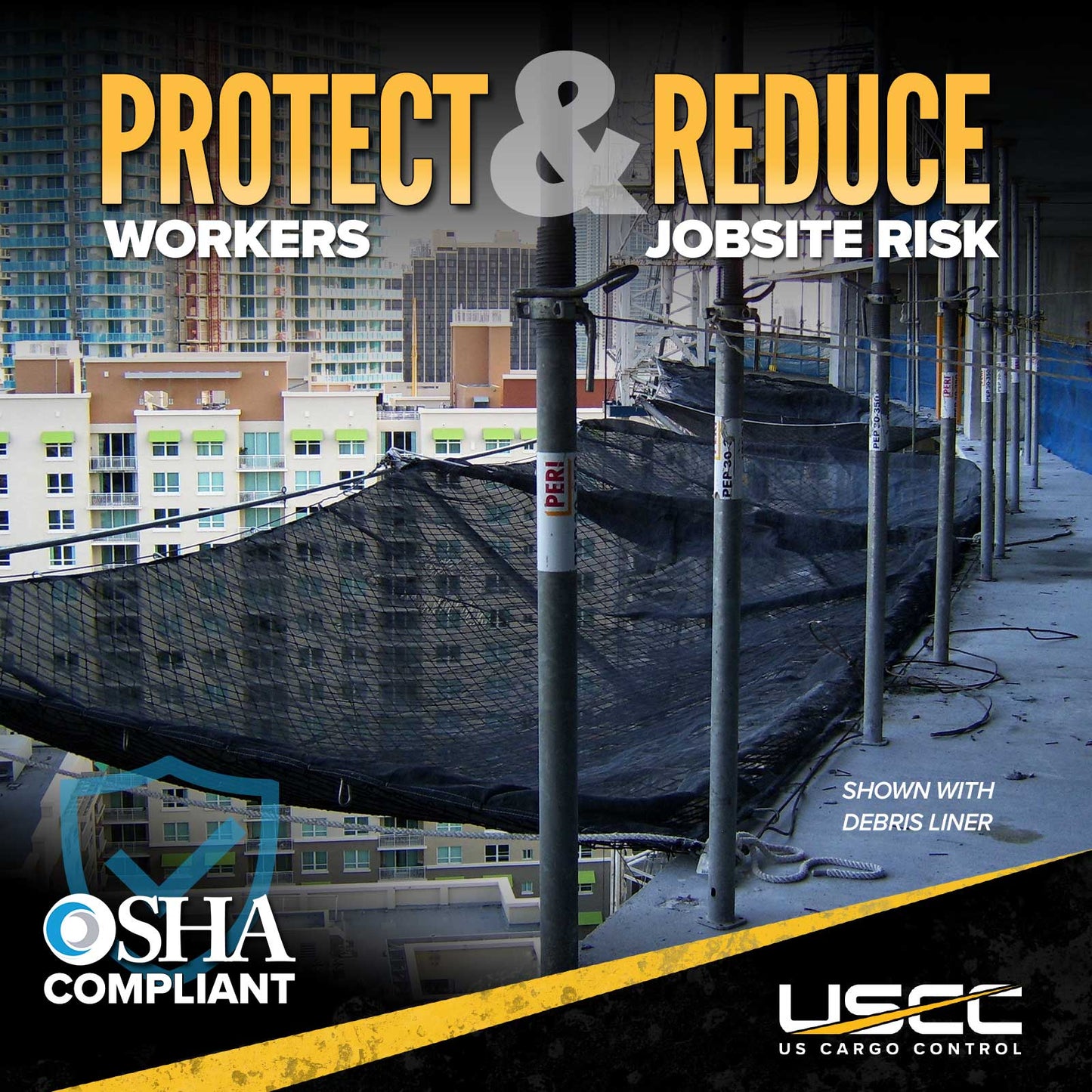

- OSHA Compliant: Meets OSHA regulations for personnel net installations when properly installed and maintained.
- NFPA 701 Flame-Retardant Treated: Solution-dyed black netting treated to NFPA 701 Method 2.
- UV Rated: Rated to 300 kLy for extended outdoor exposure.
Questions?
Prefer a net without the liner? Check out our standard Personnel Safety Nets, or see our full debris netting selection for heavier debris loads. Installation hardware, including 3/8" galvanized aircraft cable and snap hooks, is available separately. Our sales team is happy to answer any questions.
Debris Net vs Safety Net: Which Construction Net Do You Need?
Add the Essentials
Complete your order with these essentials, compatible with:
30' x 40' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
My Cart:
$199
-
ANSI-Tested Fall Protection
InCord personnel safety nets comply with ANSI A10.11-2010 and meet or exceed OSHA requirements. Rated to withstand dynamic loads of 17,500 ft-lb and manufactured in an ISO 9001:2015-certified facility, these are fall protection nets built for where failure isn't an option.
-
Highest Quality Materials in the Industry
Built in the USA from high-tenacity polyamide, this 5mm knotted nylon safety net delivers exceptional strength in a lightweight design. A 6,700 lb. minimum tensile strength synthetic rope reinforces the border, while zinc-plated snap hooks provide secure, corrosion-resistant attachment. A fire-retardant monofilament debris liner adds another layer of protection from smaller falling debris..
-
Safety Netting Built to Your Specifications
Start BuildingWhen standard netting won't fit the job, we have custom safety netting solutions built to your exact specifications. Made in the USA and designed for a wide range of applications, you can dictate size, accessories, and more. Build the perfect nets for your job.
-
