SKU: PSN-171724-DL
17' x 17' x 24' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
$1,375.00
Net Size:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Load Capacity: 17,500 lbs.
Size: 17' x 17' x 24'
Minimum Wire Rope Diameter: 3/8"
Width: 17'
Length: 17'
Depth: 24'
Mesh Size: 3-1/2"
Material: Polyamide
Color: Black
Product Weight: 68 lbs.
Standards: Meets or exceeds ANSI A10.11 fall protection comliance.
Brand: InCord
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Approximate strength: 17,500 lbs.
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Description

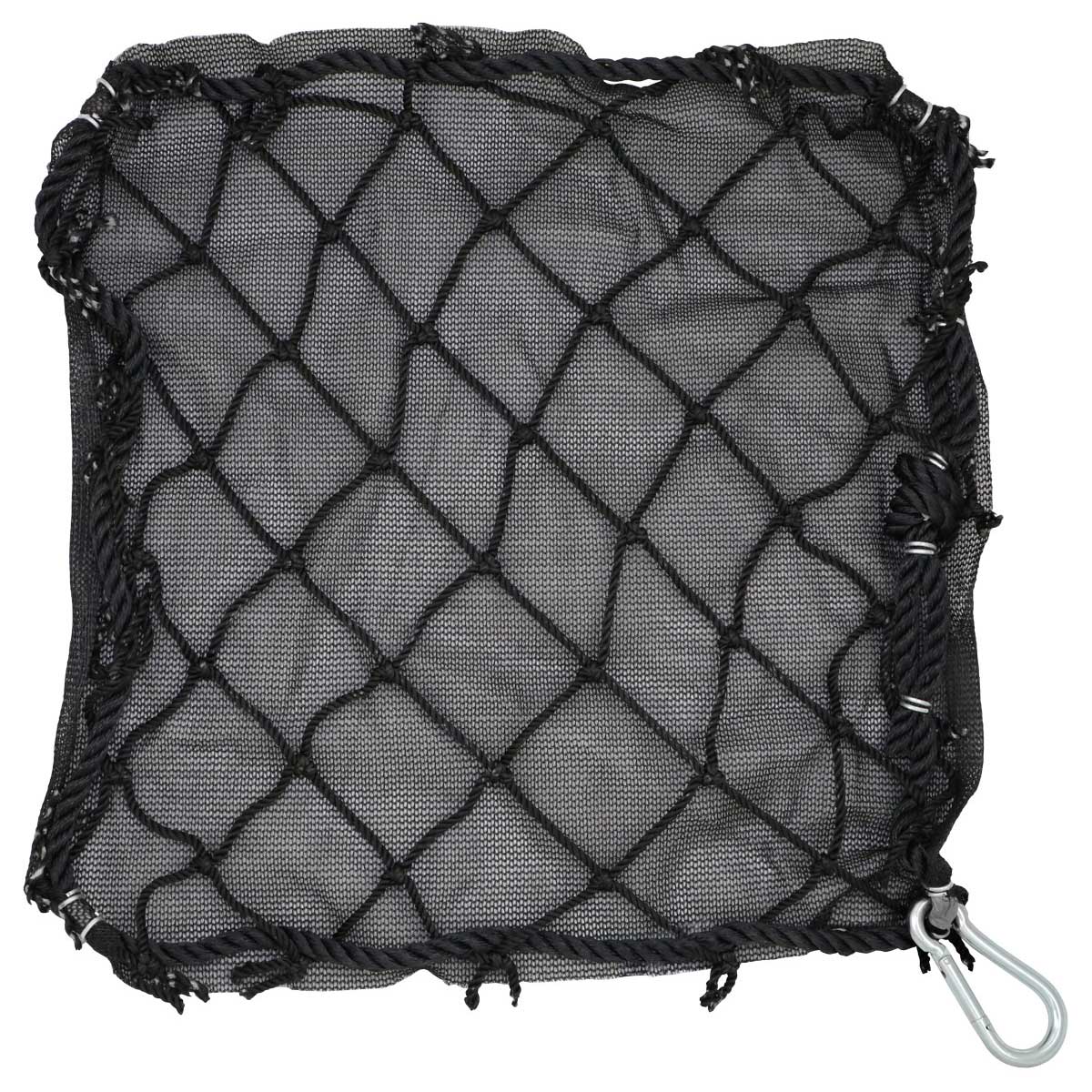

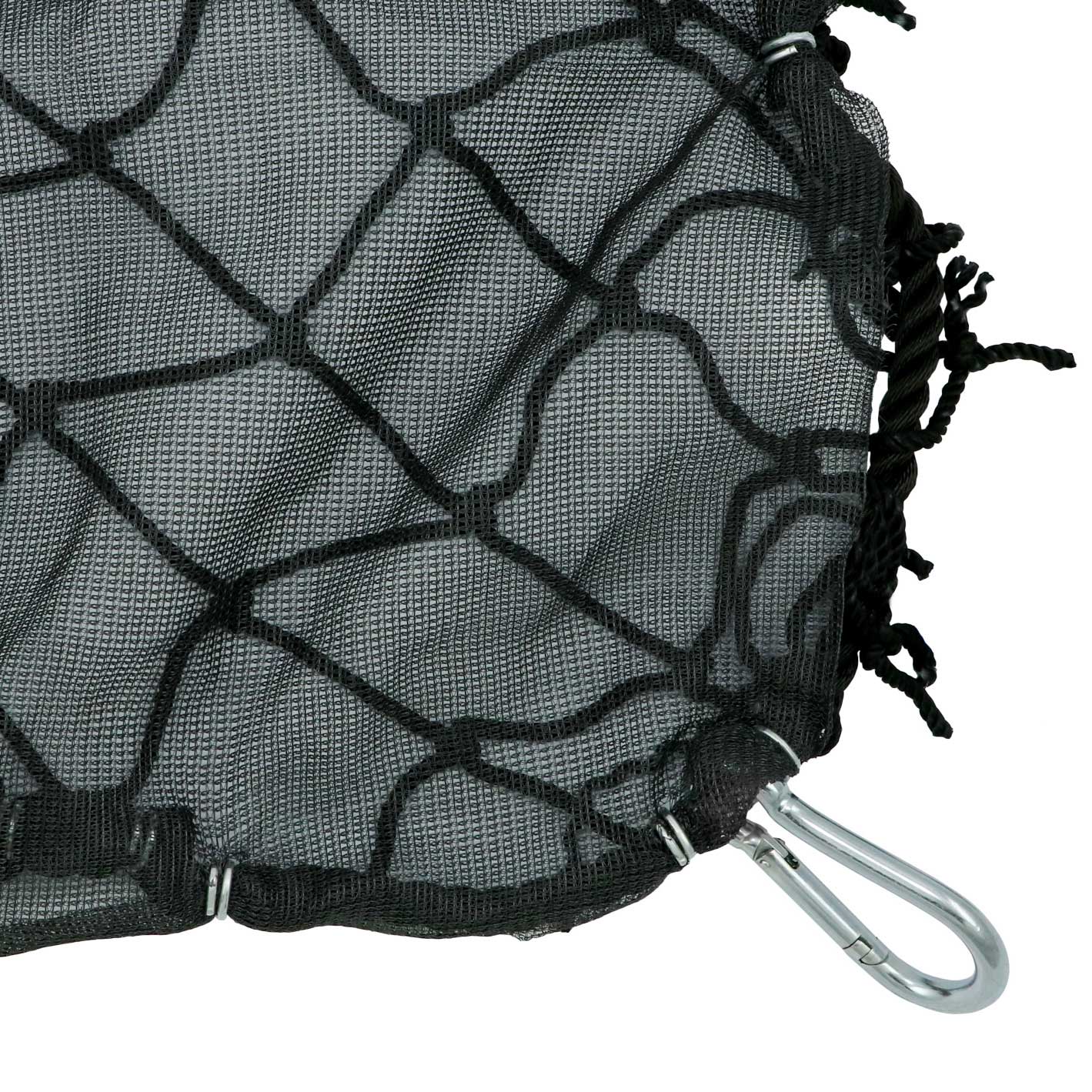

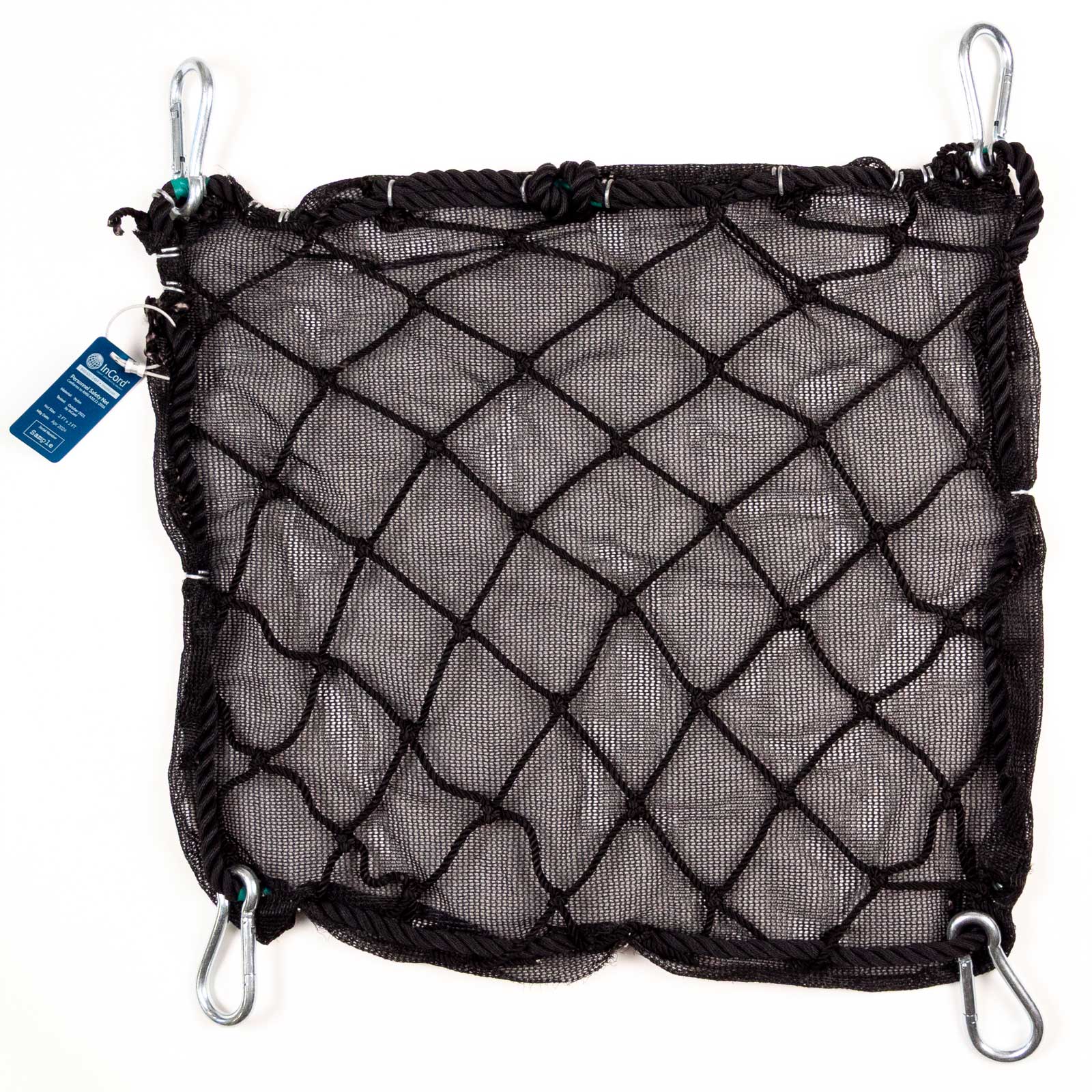

Personnel Safety Net w/ Debris Liner - 17' x 17' x 24' Triangle

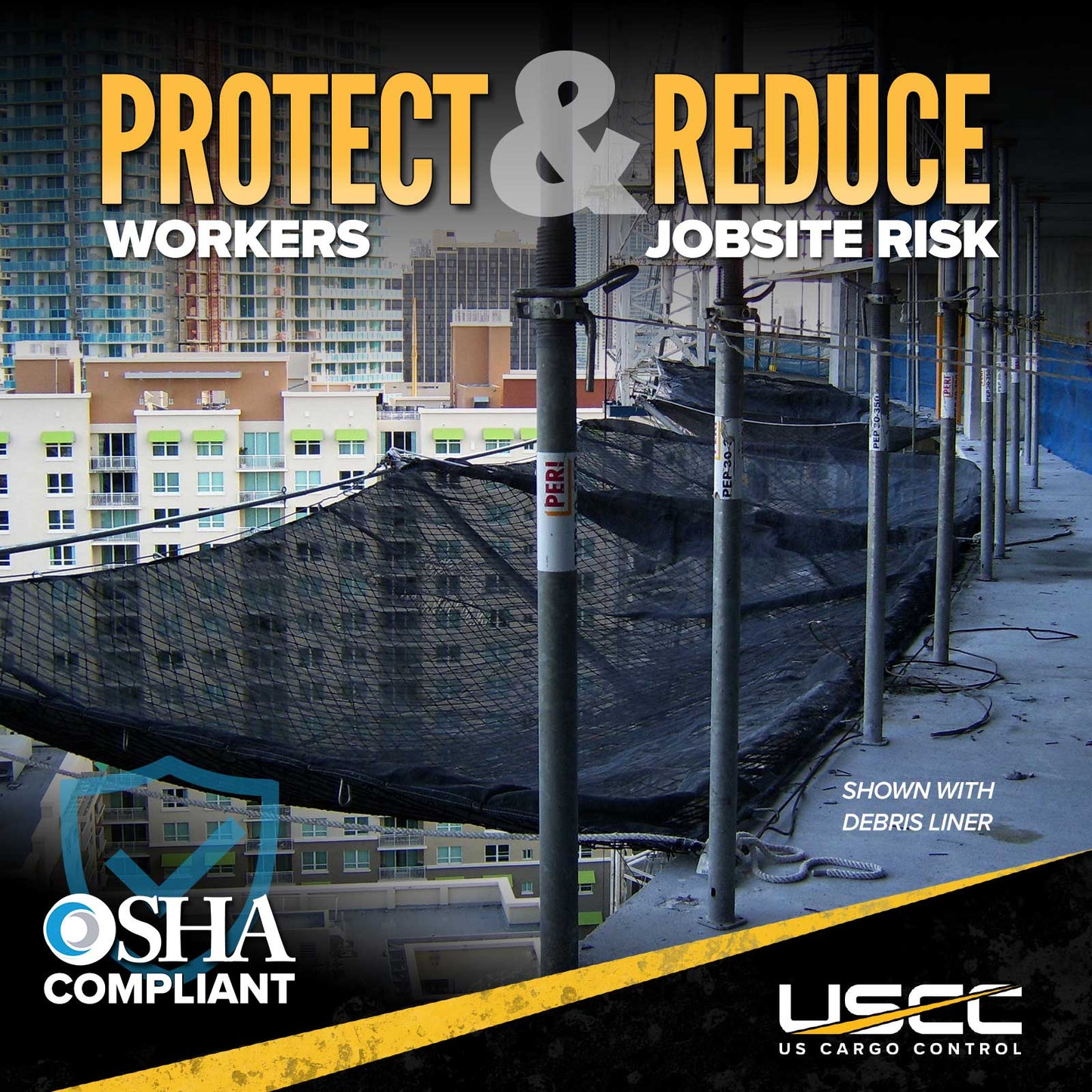

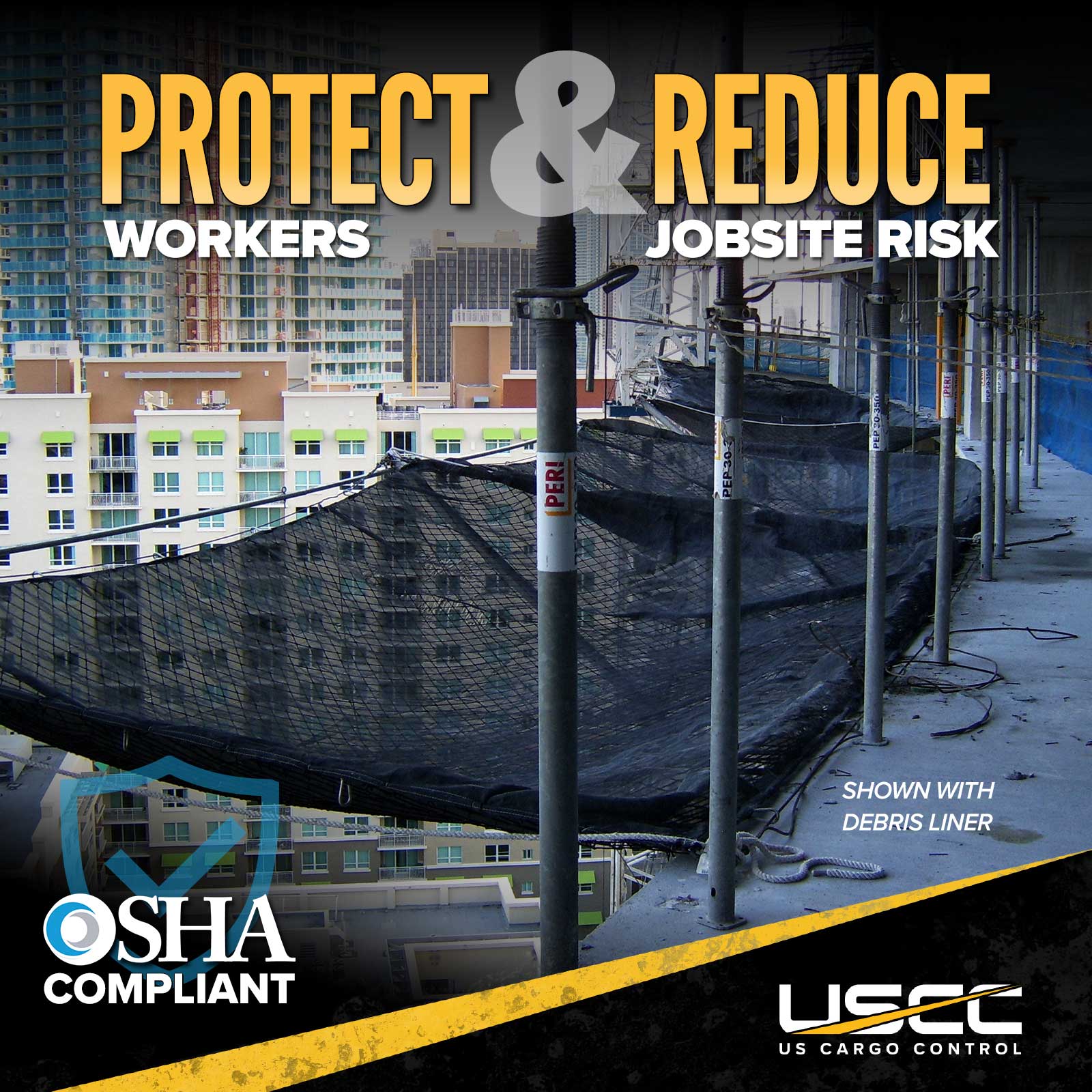

Configured as a 17' x 17' x 24' triangular panel, this personnel safety net adds a WS70 1/16" debris liner to our standard fall-protection net for corner conditions and irregular openings.
Built for Fall Protection & Debris Containment
- Durable Knotted Construction: High-tenacity #120 nylon cord (5.0 mm) knotted into a 3.5" diamond mesh pattern engineered for high-impact shock absorption on active jobsites.
- Reinforced 1/2" Nylon Border Rope: Rated to a 6,700 lb minimum tensile strength for personnel net borders.

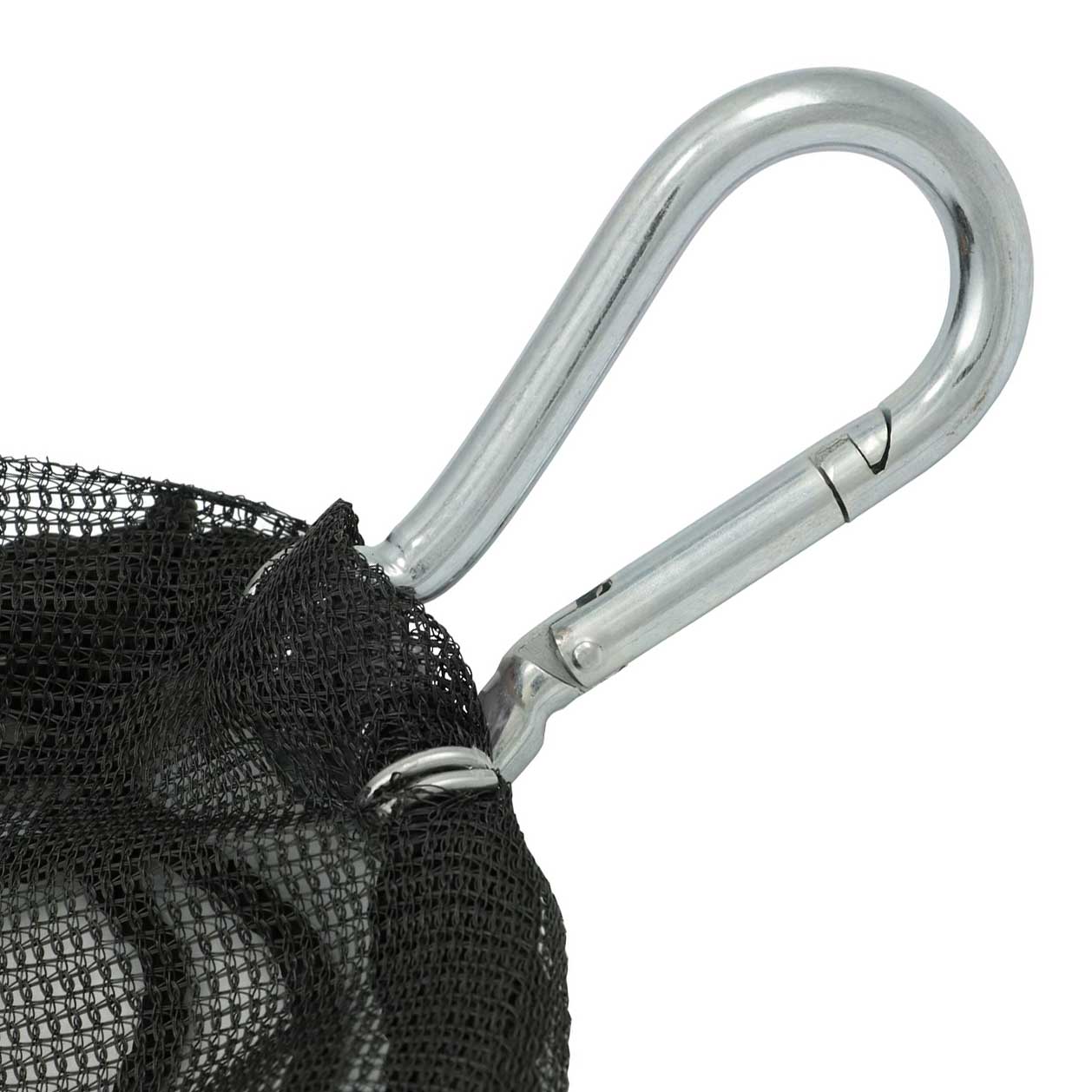

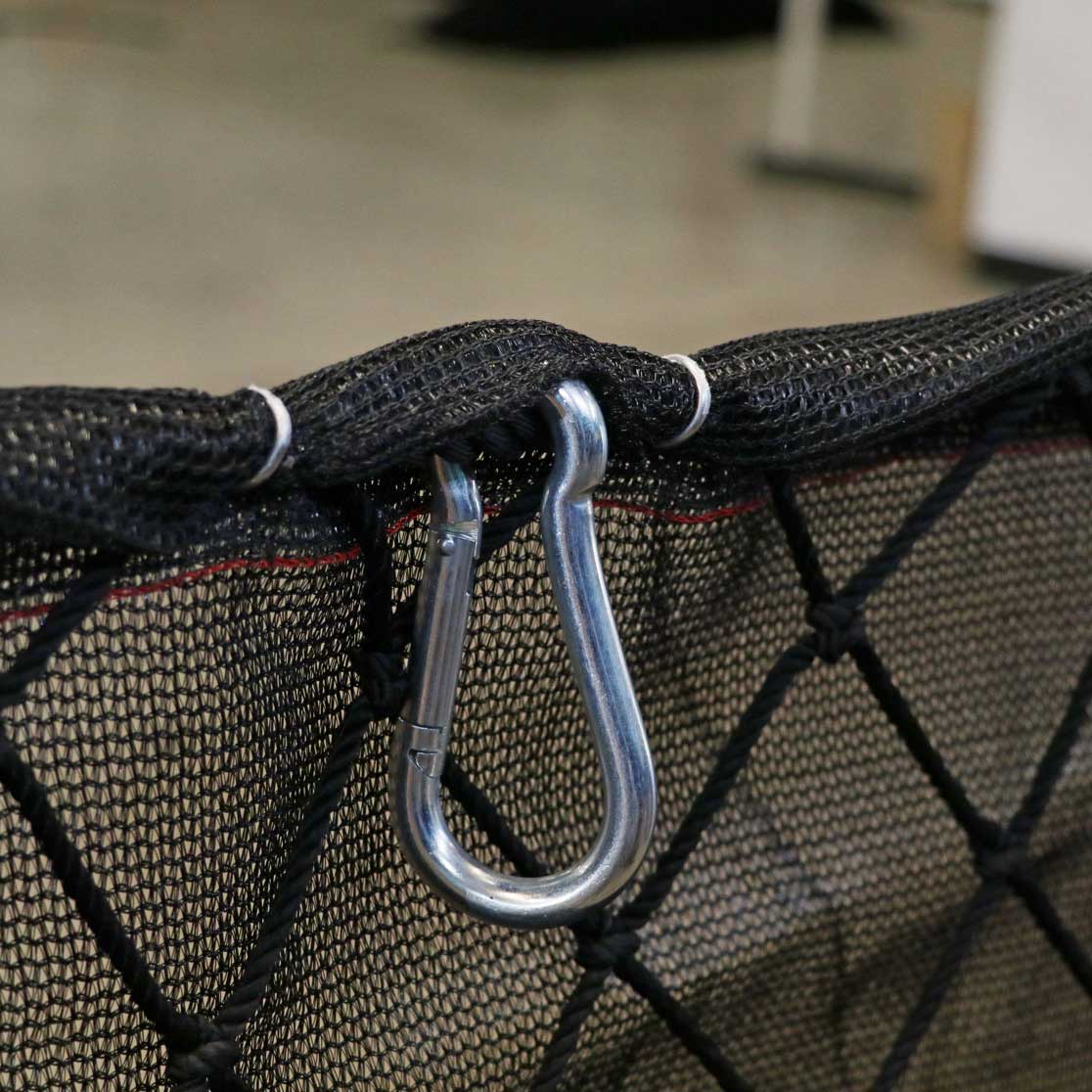

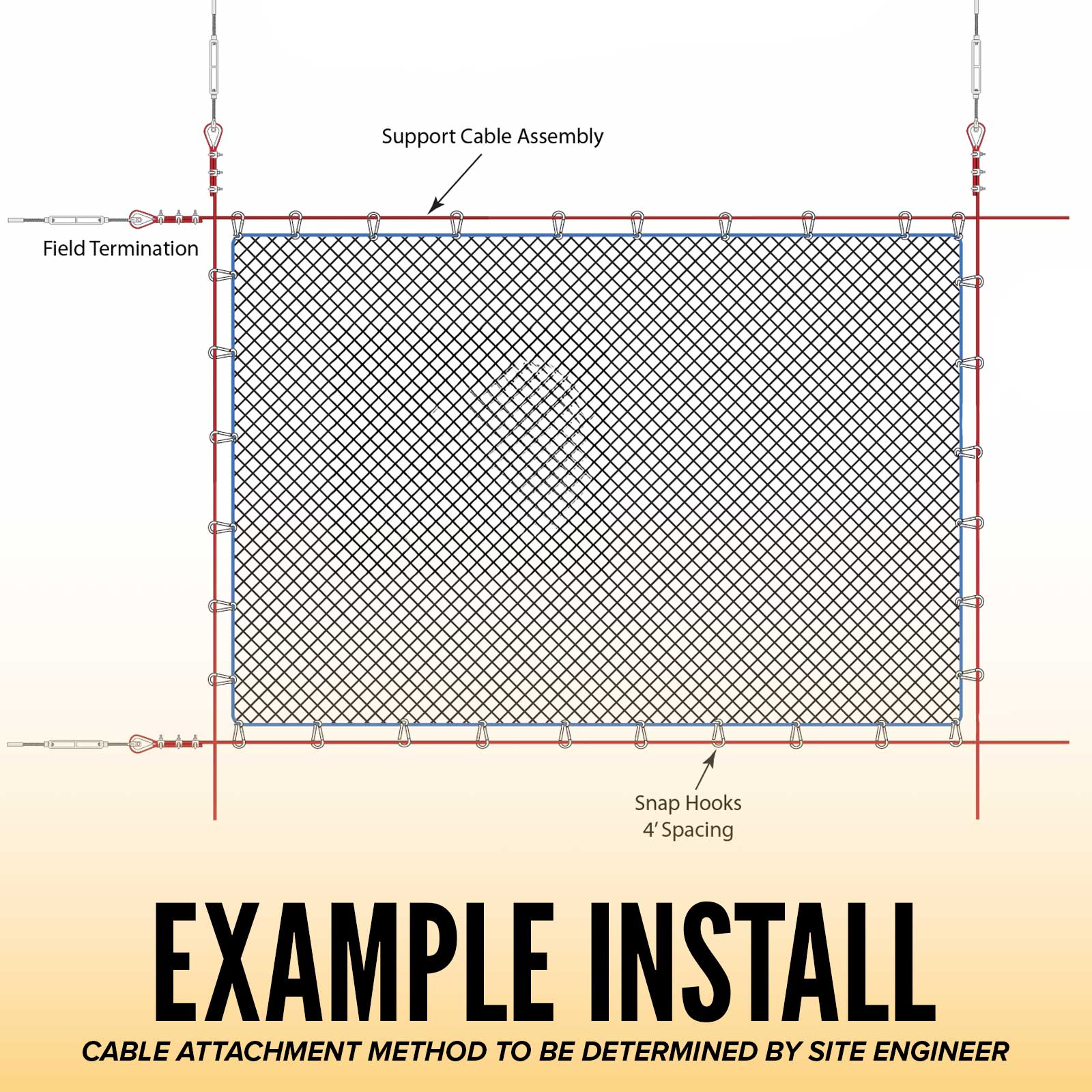

- Staggered Hook Spacing: 4.72" (120 mm) snap hooks, spaced 36 in. on-center along the length and 24 in. on-center along the width, let this panel link cleanly into a larger protected work zone.

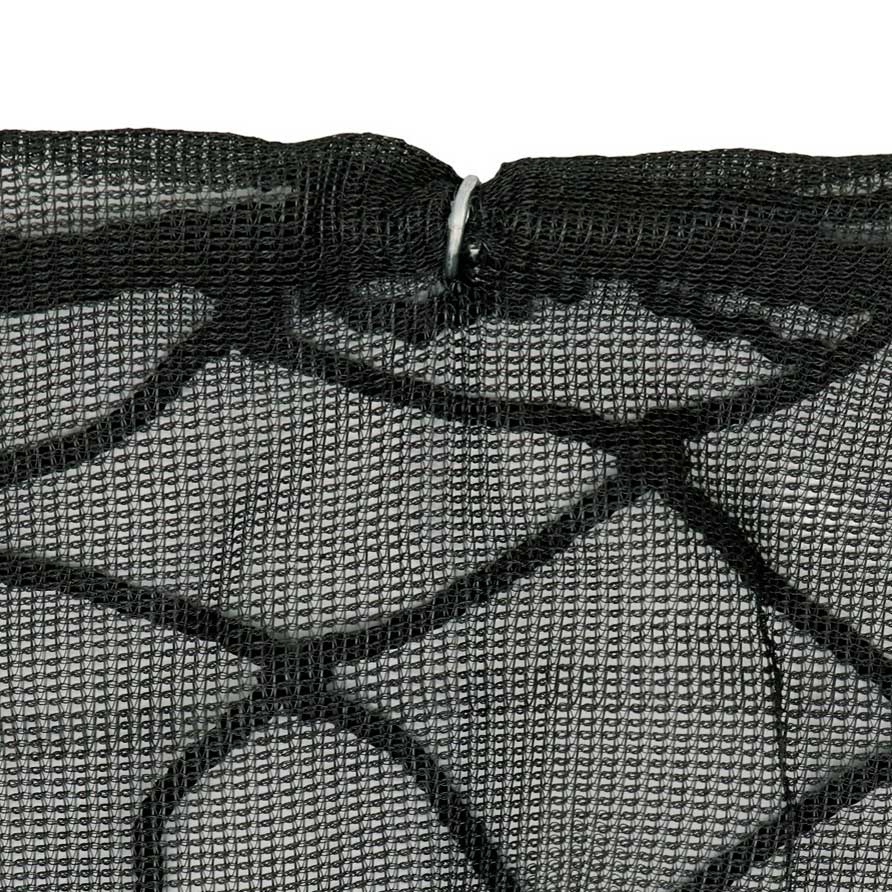

- Small-Particle Containment Liner: A WS70 1/16" HDPE monofilament liner (0.0358 lb/ft²) is crimped to the border rope with 15-gauge hog rings, adding tool and fastener capture to the base net.
Important: the WS70 liner is designed for small-particle containment (tools, fasteners, small hardware) and is not a substitute for a dedicated debris containment system. Large construction debris should be managed with a separate containment solution.
Tested to Industry Standards
- Certified to ANSI A10.11: Passes the 17,500 ft-lb dynamic drop test (350 lb weight, three drops, 50 ft, into a 17×24 ft bordered net).
- OSHA-Aligned Installation: Designed to meet OSHA rules for personnel net systems.
- NFPA 701 Method 2: Flame-retardant treated, solution-dyed black.
- 300 kLy UV Rating: Built to withstand prolonged sun exposure.
Questions?
Don't need the debris liner? See our standard Personnel Safety Nets, or for larger debris loads, browse our debris netting lineup. We also stock 3/8" galvanized aircraft cable and snap hooks for installation. Contact our sales team with any questions.
