SKU: PSN-2030-DL
20' x 30' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
$2,375.00
Net Size:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Load Capacity: 17,500 lbs.
Size: 20' x 30'
Minimum Wire Rope Diameter: 3/8"
Width: 30'
Length: 20'
Mesh Size: 3-1/2"
Material: Polyamide
Color: Black
Product Weight: 91 lbs.
Standards: Meets or exceeds ANSI A10.11 fall protection comliance.
Brand: InCord
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Approximate strength: 17,500 lbs.
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Description

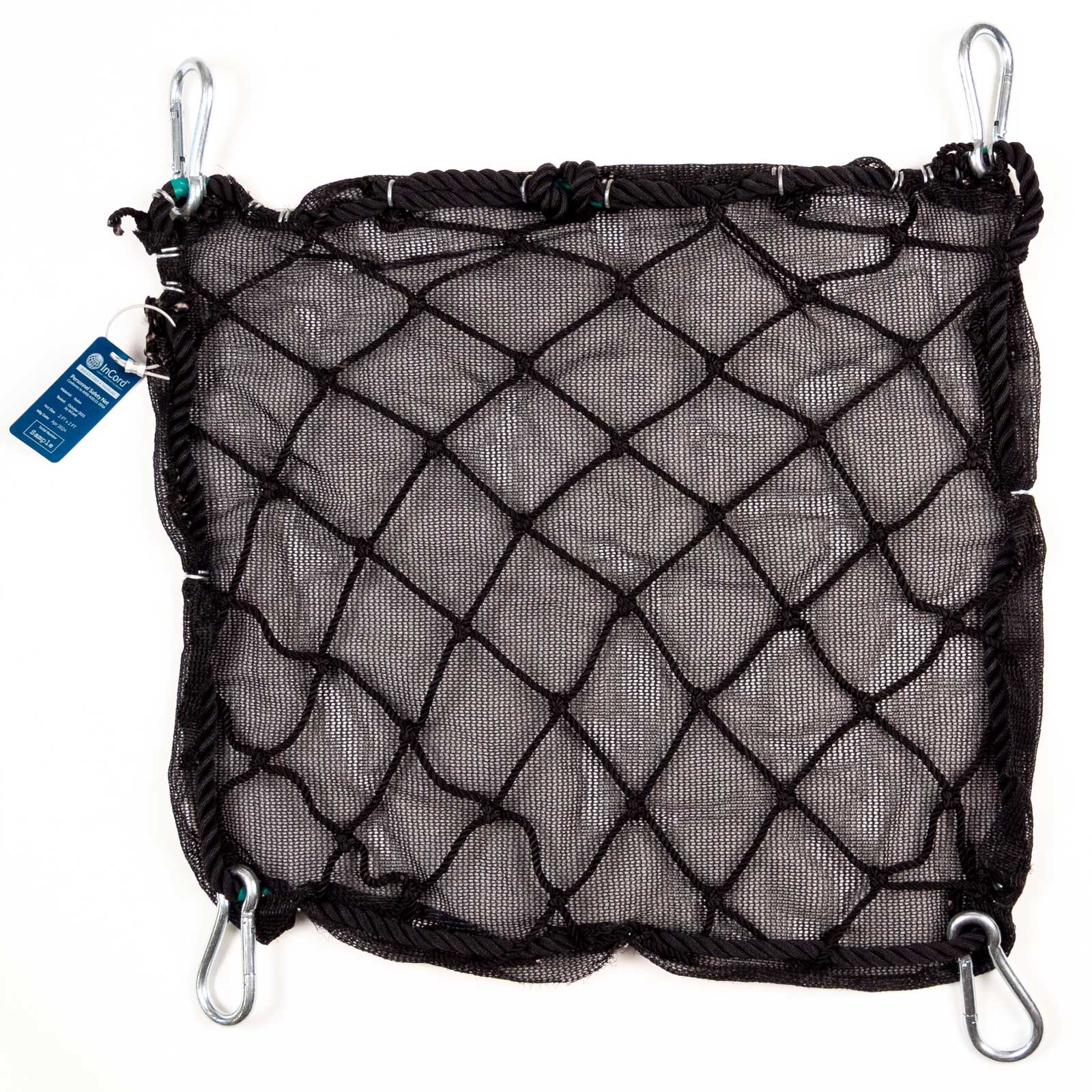

Personnel Safety Net w/ Debris Liner - 20' x 30'

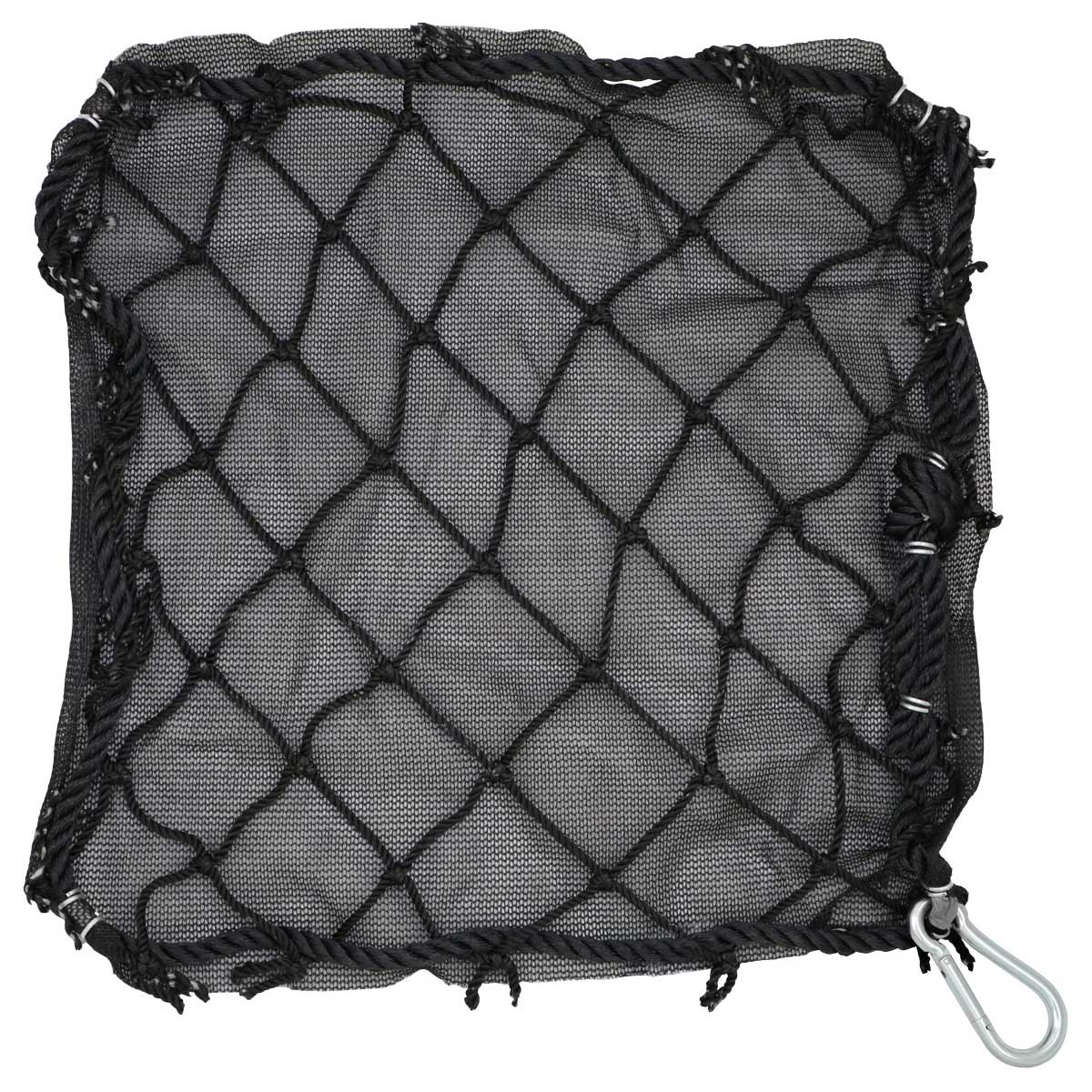

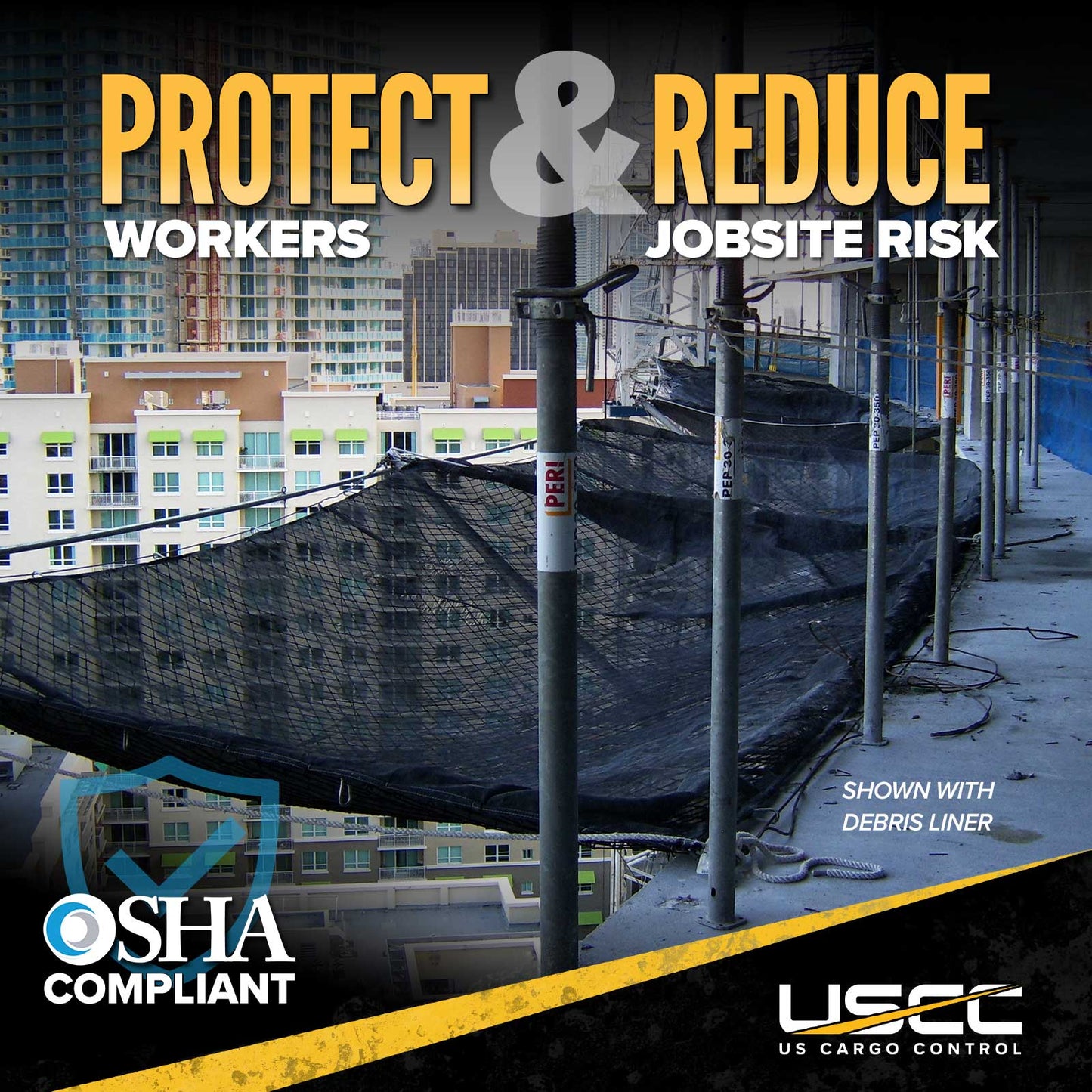

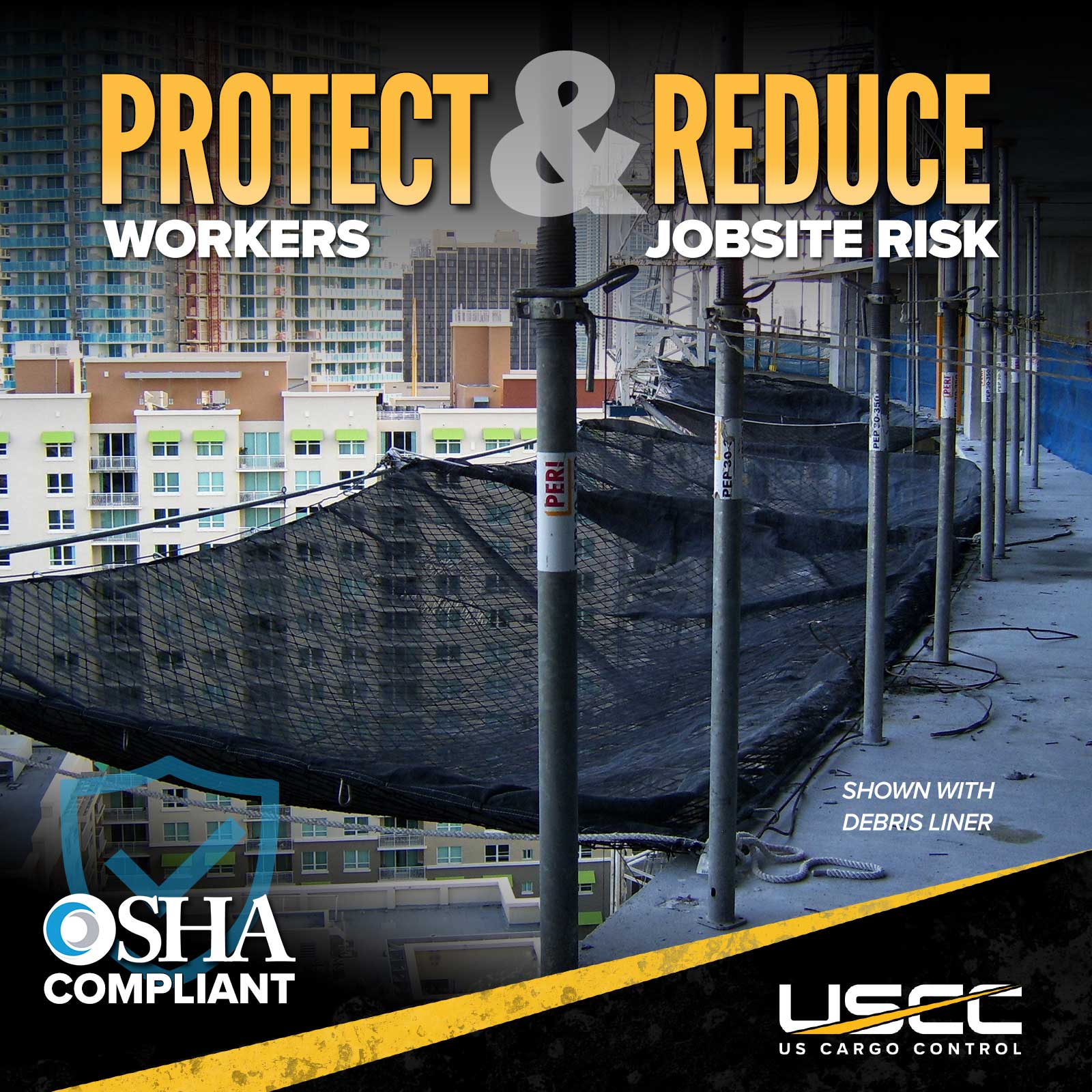

This 20' x 30' personnel safety net delivers fall protection and small-particle containment in one panel, pairing knotted nylon mesh with a bonded WS70 1/16" debris liner across a wider work zone.
Built for Fall Protection & Debris Containment

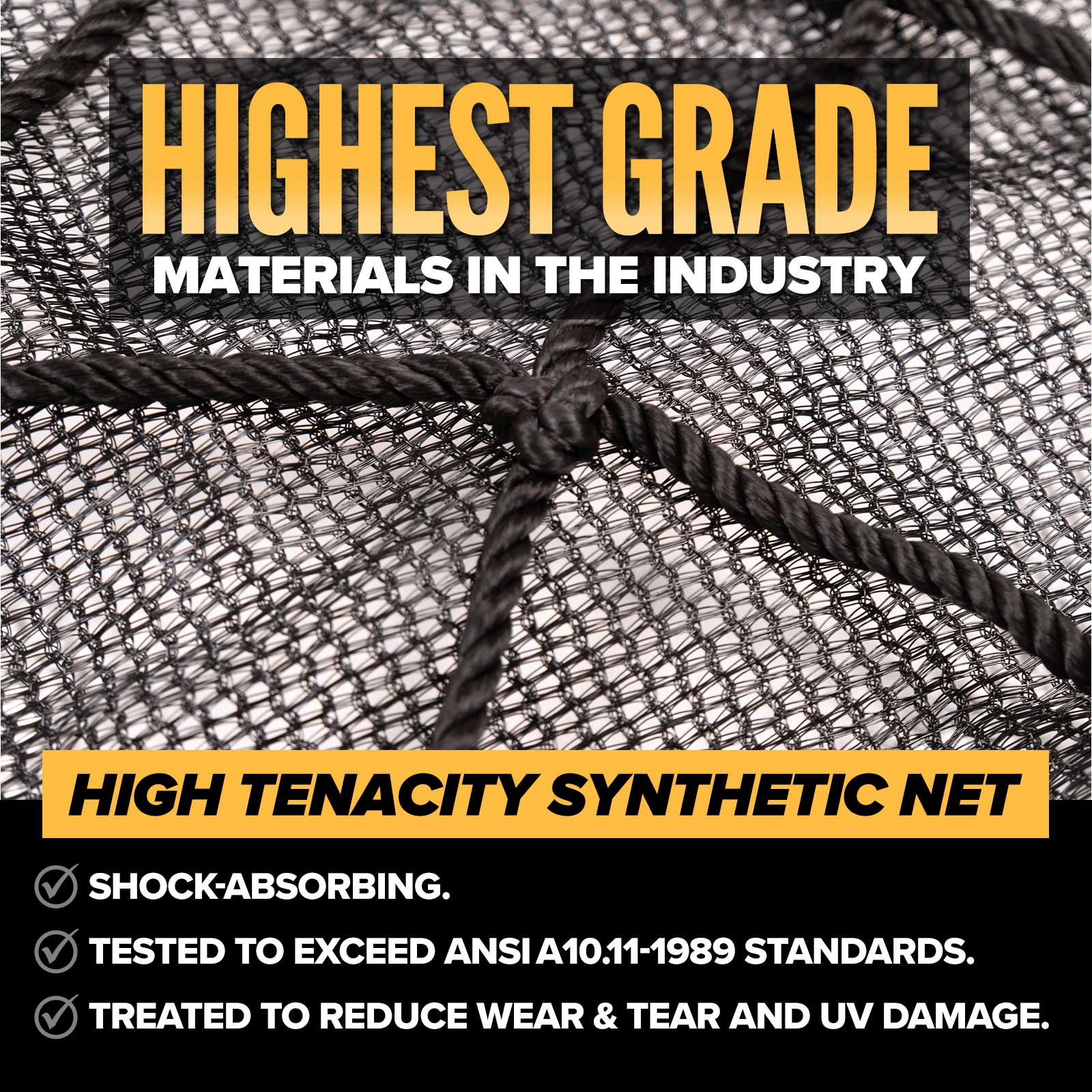

- Knotted #120 Nylon Netting: Three-strand twisted, high-tenacity nylon cord (210/378 denier) knotted into a 3.5" square diamond mesh built to hold up to repeated impact over the life of a project.

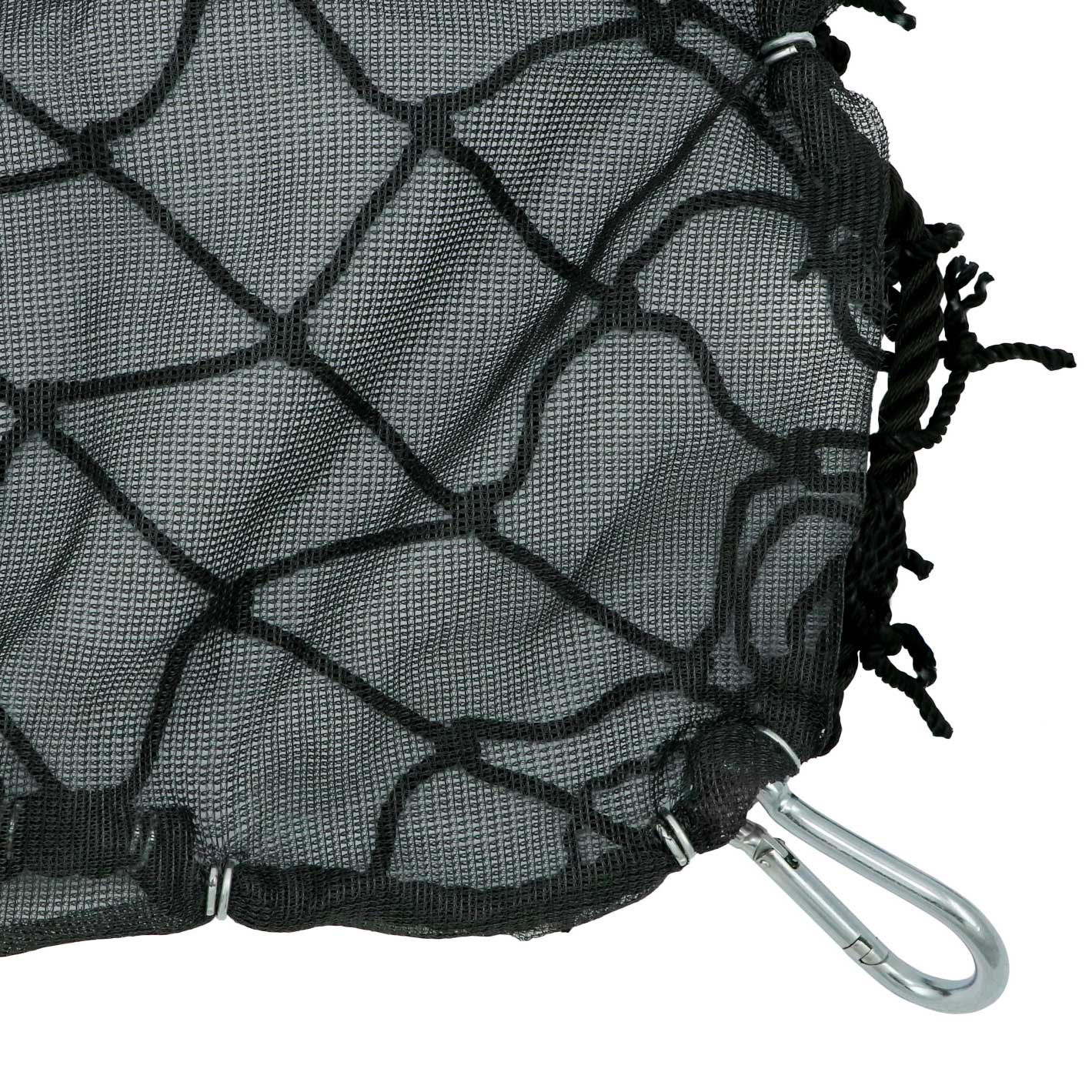

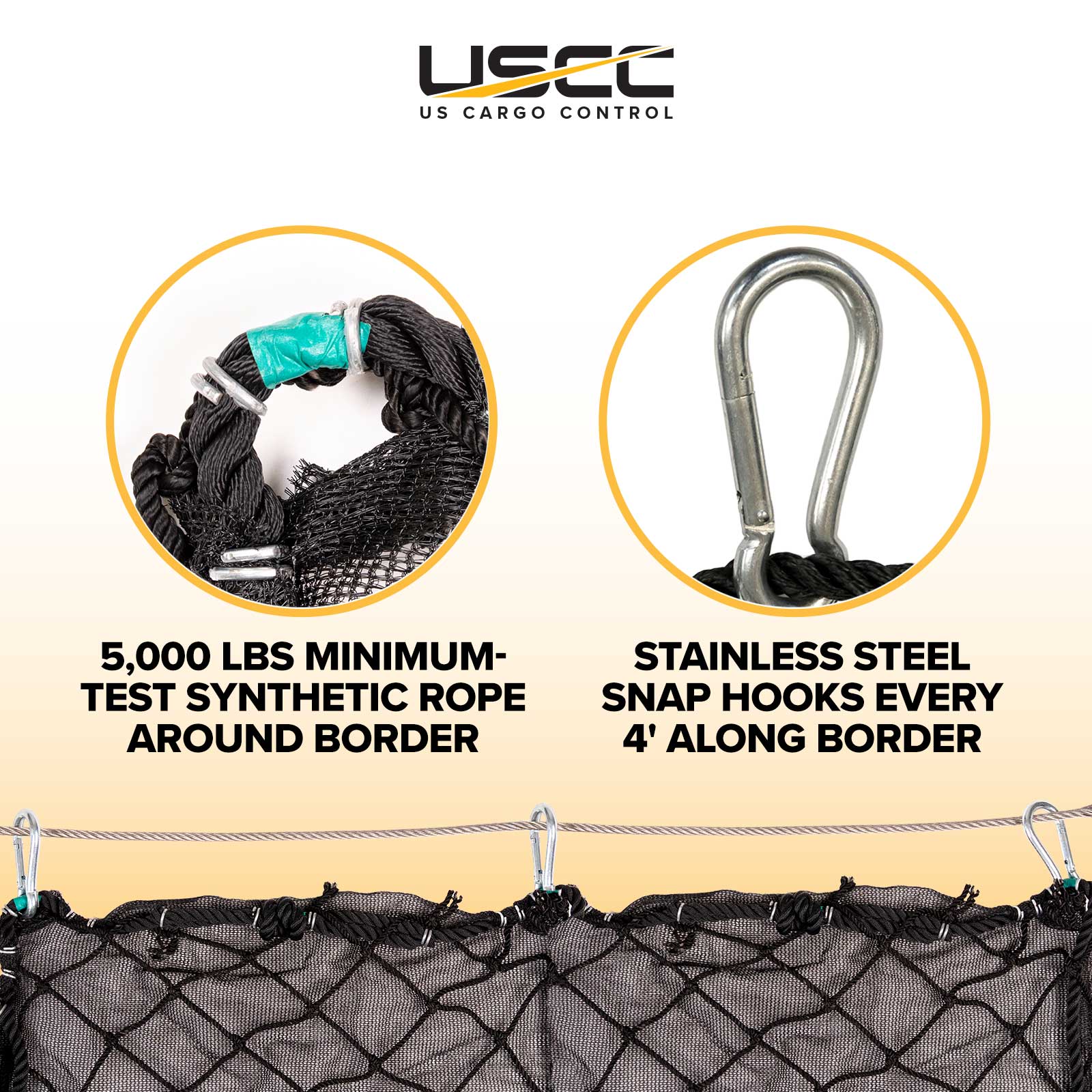

- Perimeter Rope Reinforcement: A 1/2" nylon synthetic rope rated to 6,700 lb provides added structural integrity around the full border.

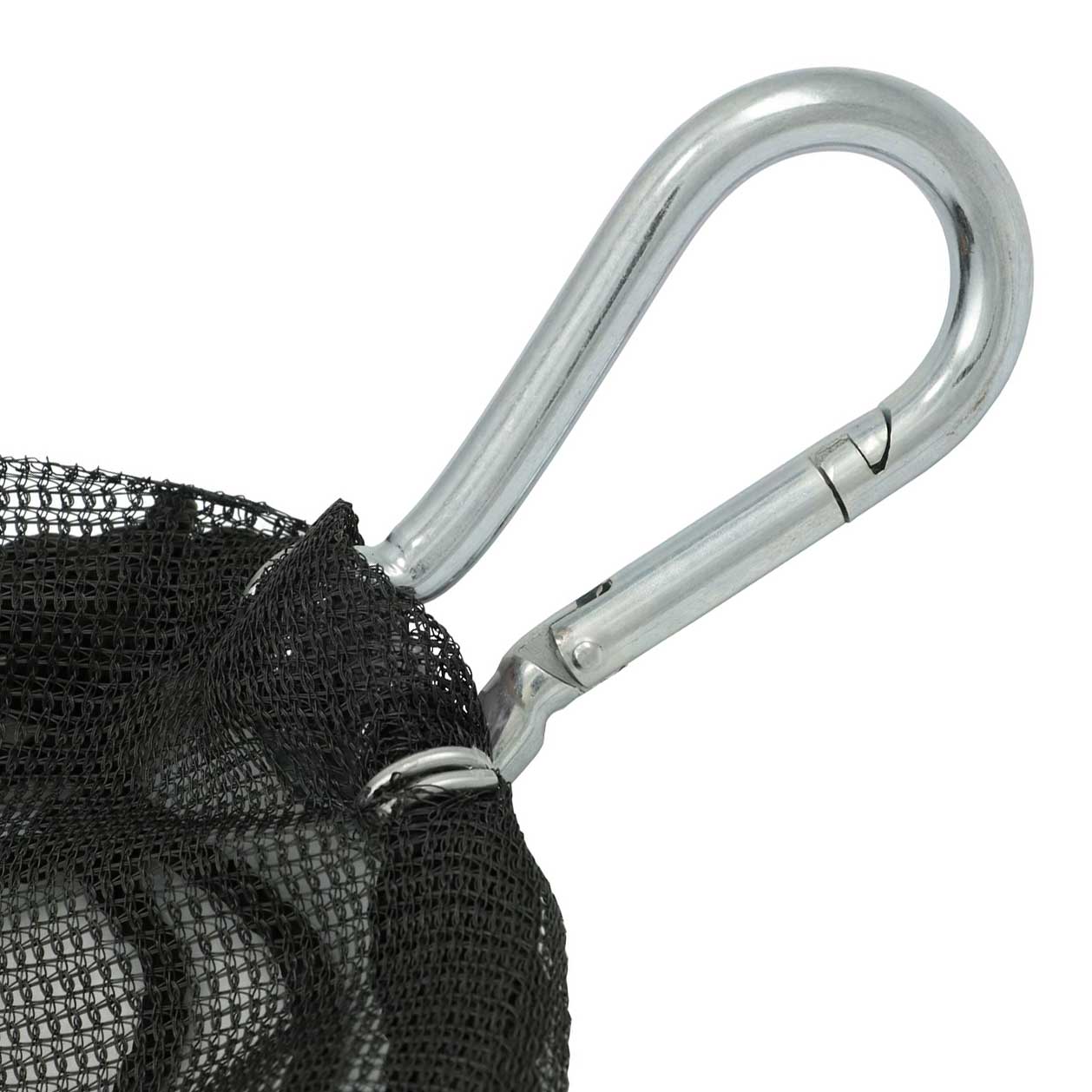

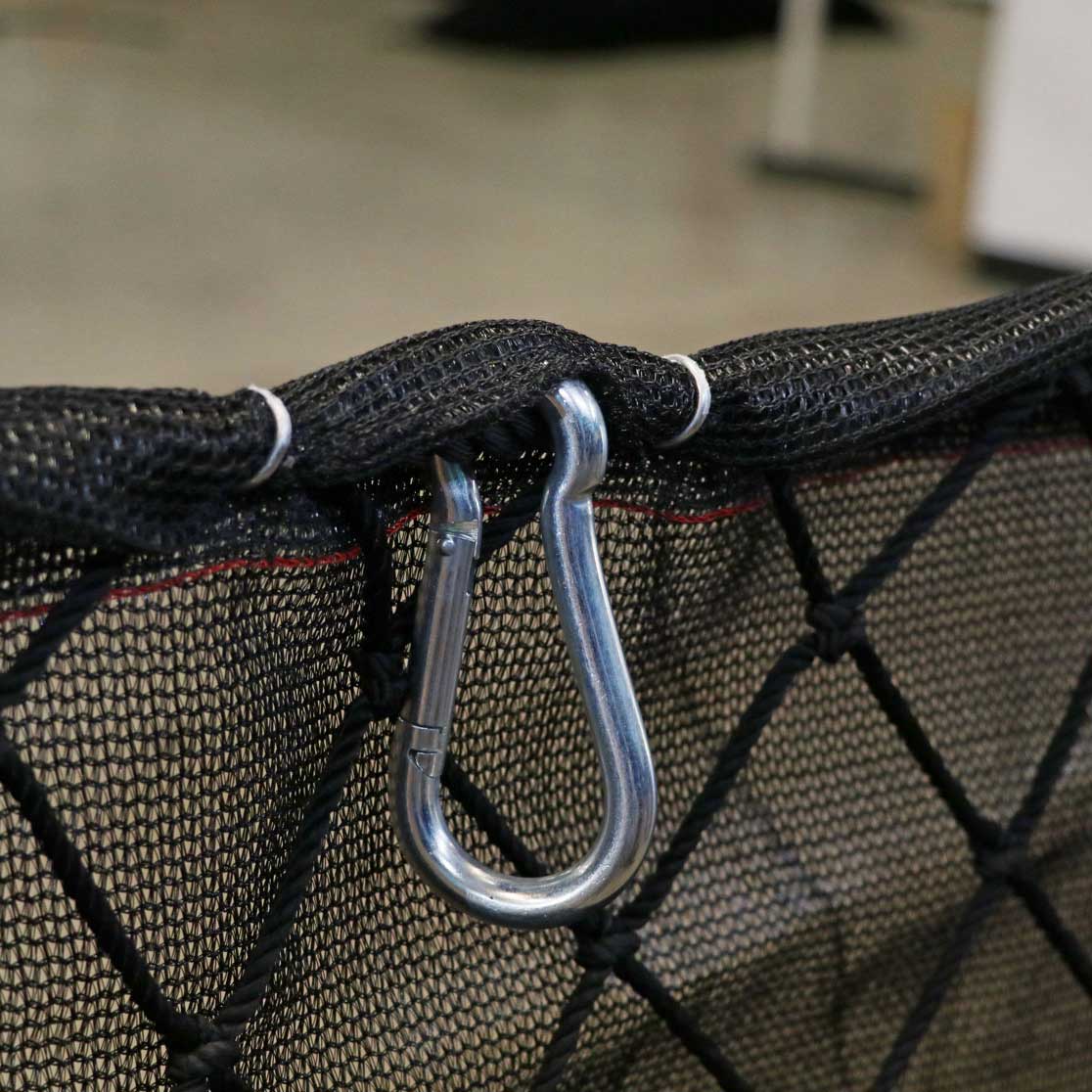

- Built-In Linking Hardware: Staggered 4.72" (120 mm) snap hooks, spaced 36 in. on-center along the length and 24 in. on-center along the width, make it easy to combine this panel with others as coverage needs grow.

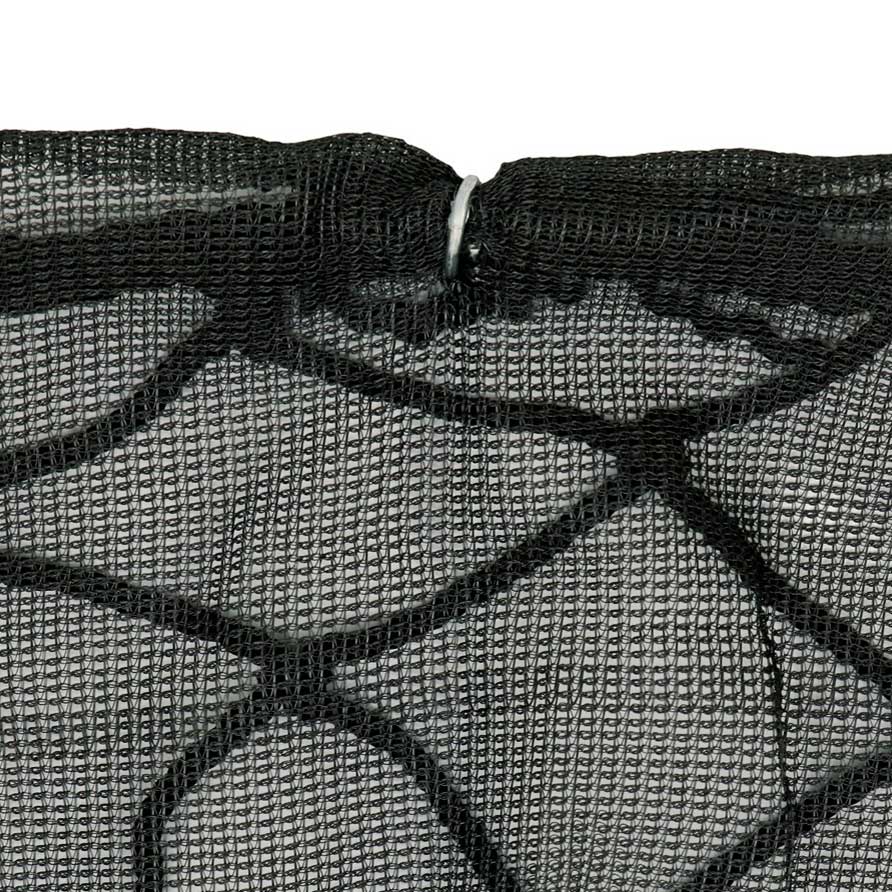

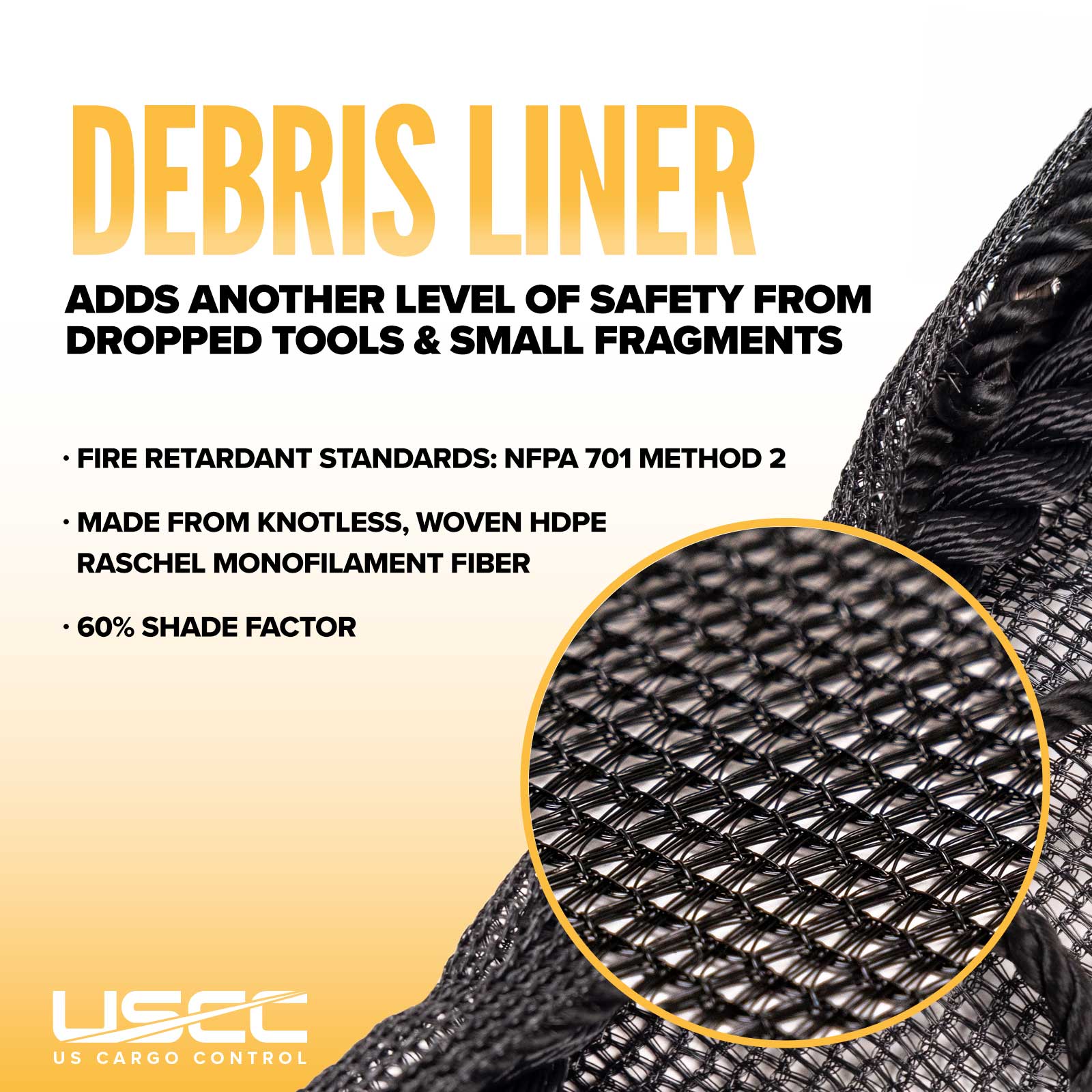

- Integrated WS70 1/16" Debris Liner: A lightweight, tear-resistant raschel HDPE monofilament mesh (0.0358 lb/ft²) bonded to the net's border rope with 15-gauge hog ring crimp fasteners, recommended for small-particle containment.
Important: the WS70 liner is designed for small-particle containment (tools, fasteners, small hardware) and is not a substitute for a dedicated debris containment system. Large construction debris should be managed with a separate containment solution.
Tested to Industry Standards
- Certified to ANSI A10.11: Passes the 17,500 ft-lb dynamic drop test (350 lb weight, three drops, 50 ft, into a 17×24 ft bordered net).
- OSHA-Aligned Installation: Designed to meet OSHA rules for personnel net systems.
- NFPA 701 Method 2: Flame-retardant treated, solution-dyed black.
- 300 kLy UV Rating: Built to withstand prolonged sun exposure.
Questions?

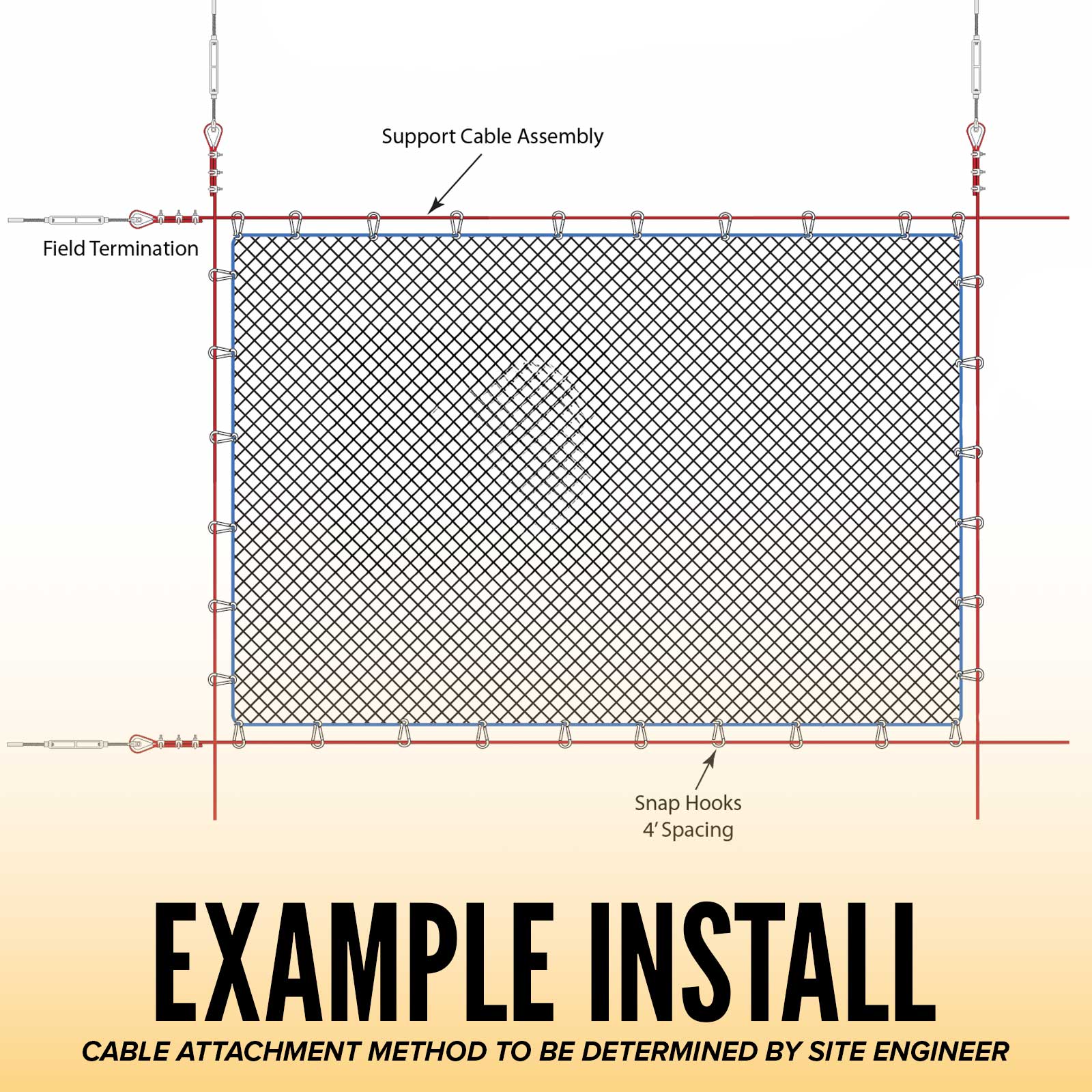

Don't need the debris liner? See our standard Personnel Safety Nets, or for larger debris loads, browse our debris netting lineup. We also stock 3/8" galvanized aircraft cable and snap hooks for installation. Contact our sales team with any questions.
Debris Net vs Safety Net: Which Construction Net Do You Need?
Add the Essentials
Complete your order with these essentials, compatible with:
20' x 30' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
My Cart:
$199
-
ANSI-Tested Fall Protection
InCord personnel safety nets comply with ANSI A10.11-2010 and meet or exceed OSHA requirements. Rated to withstand dynamic loads of 17,500 ft-lb and manufactured in an ISO 9001:2015-certified facility, these are fall protection nets built for where failure isn't an option.
-
Highest Quality Materials in the Industry
Built in the USA from high-tenacity polyamide, this 5mm knotted nylon safety net delivers exceptional strength in a lightweight design. A 6,700 lb. minimum tensile strength synthetic rope reinforces the border, while zinc-plated snap hooks provide secure, corrosion-resistant attachment. A fire-retardant monofilament debris liner adds another layer of protection from smaller falling debris..
-
