SKU: PSN-2020-DL
20' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
20' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.!
Continue Browsing
Personnel Safety Nets
Safety Nets & Construction Nets
Rigging Supplies & Rigging Hardware
Related Articles
SKU: PSN-2020-DL
20' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
$1,675.00
Net Size:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Load Capacity: 17,500 lbs.
Size: 20' x 20'
Minimum Wire Rope Diameter: 3/8"
Width: 20'
Length: 20'
Mesh Size: 3-1/2"
Material: Polyamide
Color: Black
Product Weight: 61 lbs.
Standards: Meets or exceeds ANSI A10.11 fall protection comliance.
Brand: InCord
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Approximate strength: 17,500 lbs.
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Description

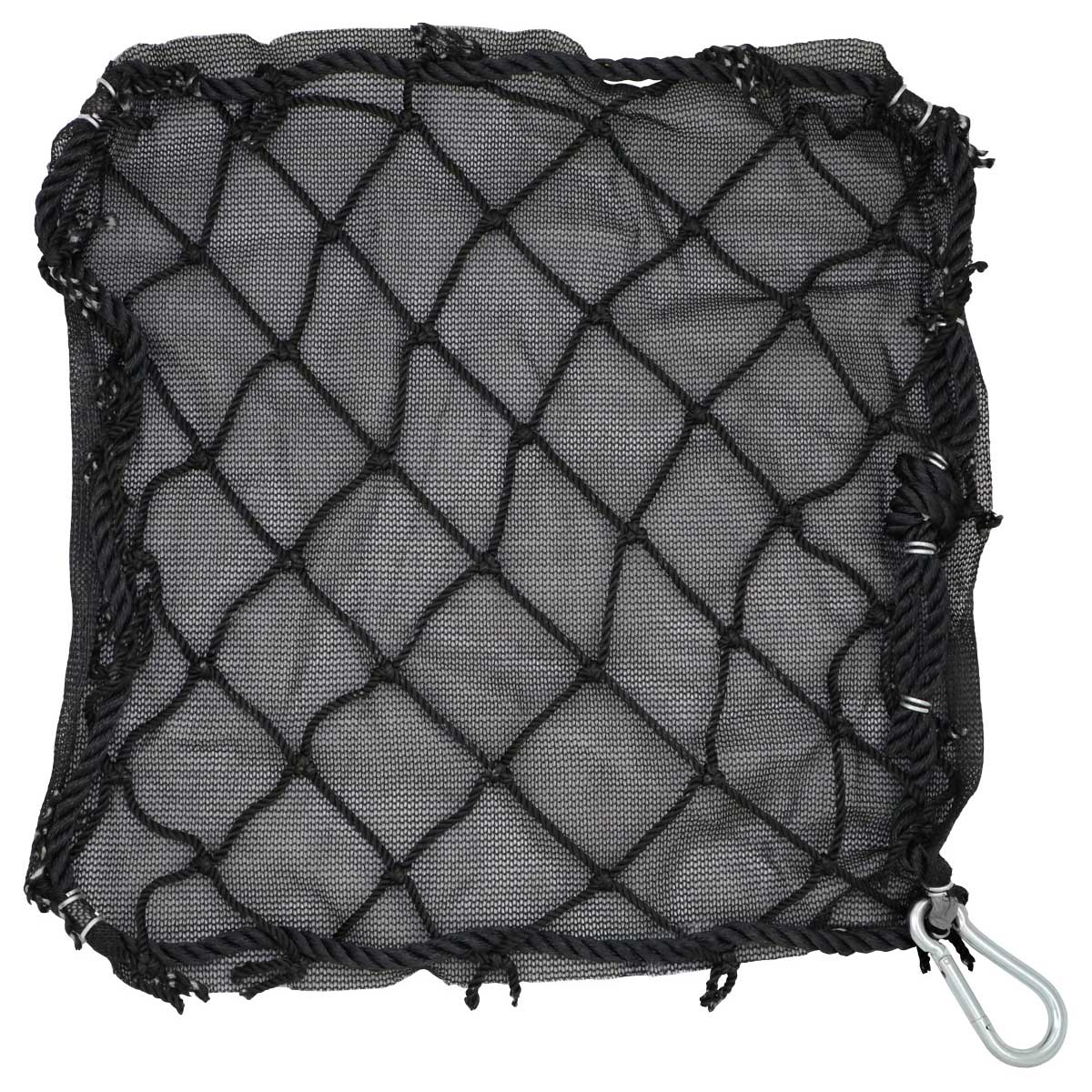

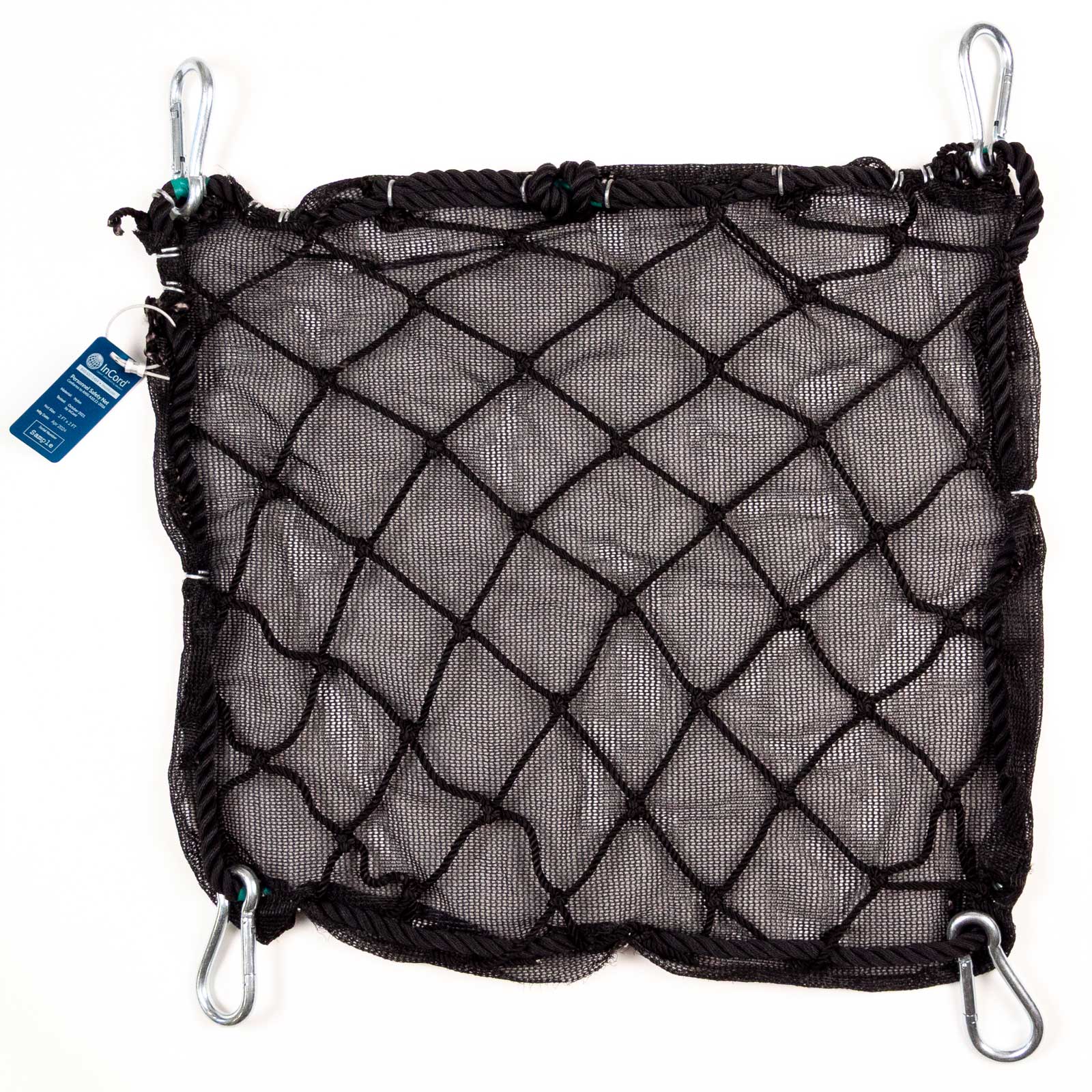

Personnel Safety Net w/ Debris Liner - 20' x 20'

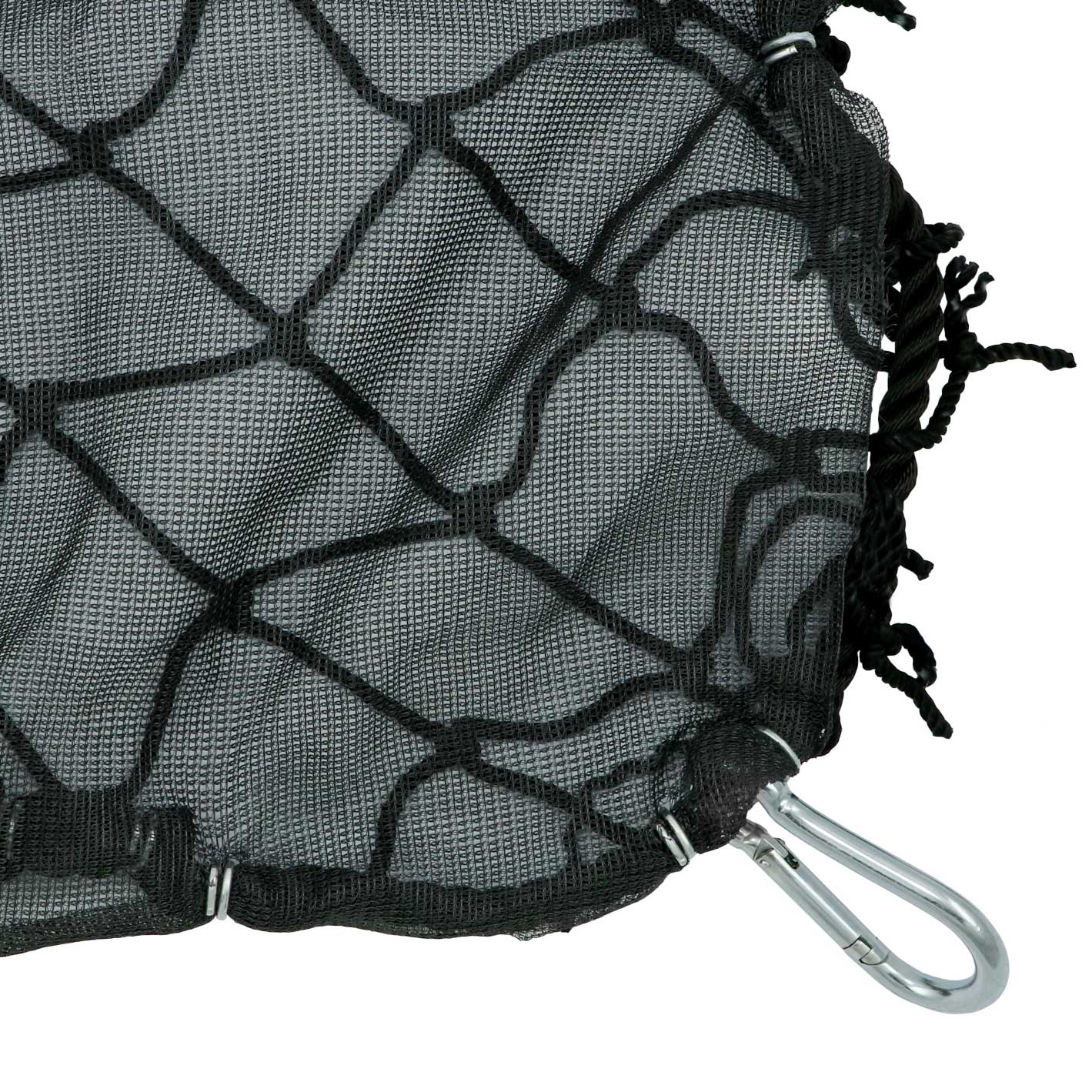

This 20' x 20' square personnel safety net combines knotted nylon fall protection with a bonded WS70 1/16" debris liner for larger floor openings and equipment wells.
Built for Fall Protection & Debris Containment
- High-Tenacity Nylon Mesh: Three-strand twisted #120 (5.0 mm) high-tenacity nylon cord (210/378 denier) knotted into a 3.5" (90 mm) diamond mesh, weighing 0.0650 lb/ft², for high-impact shock absorption.
- High-Strength Rope Border: A 1/2" high-tenacity nylon synthetic rope rated to 6,700 lb reinforces the full perimeter of the panel.

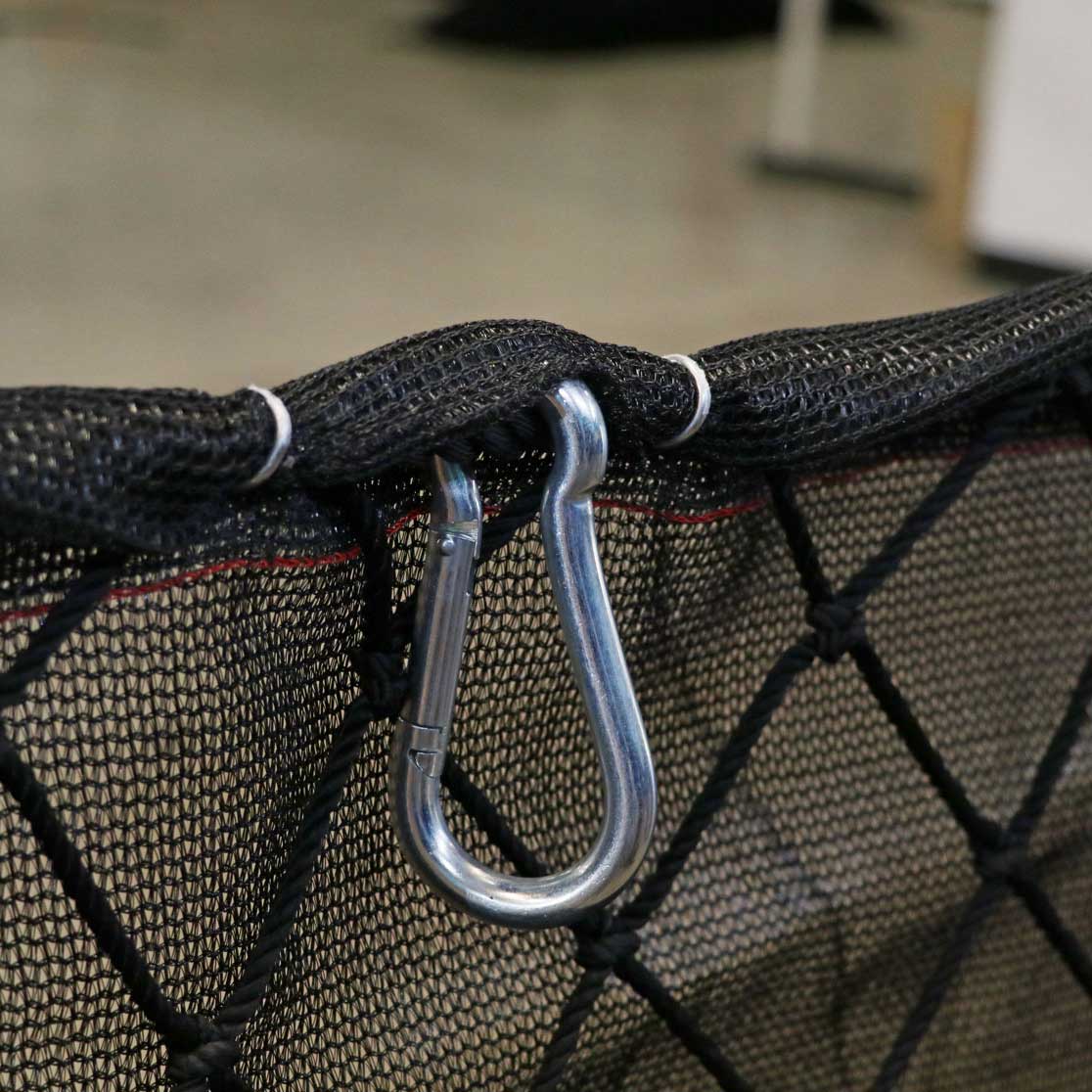

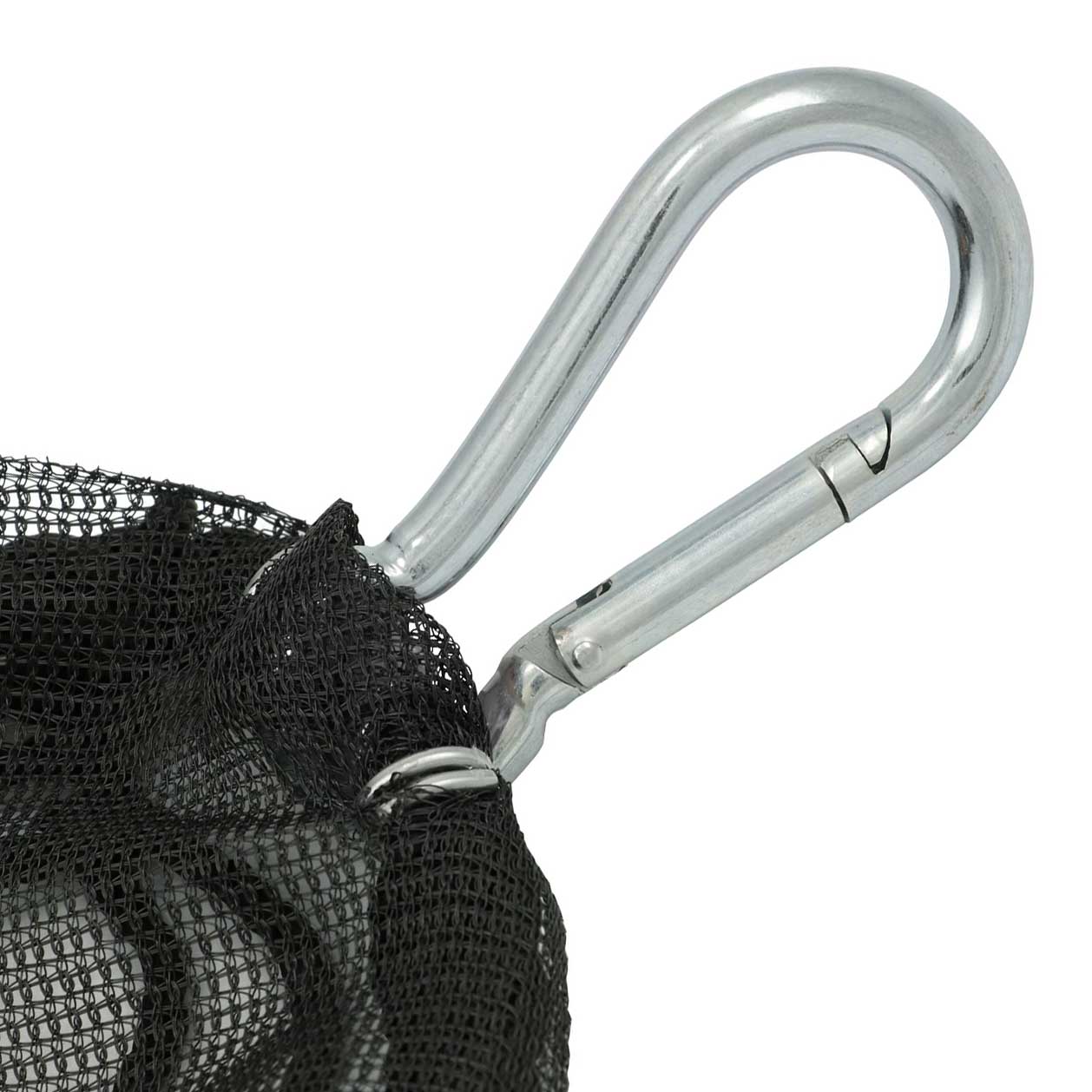

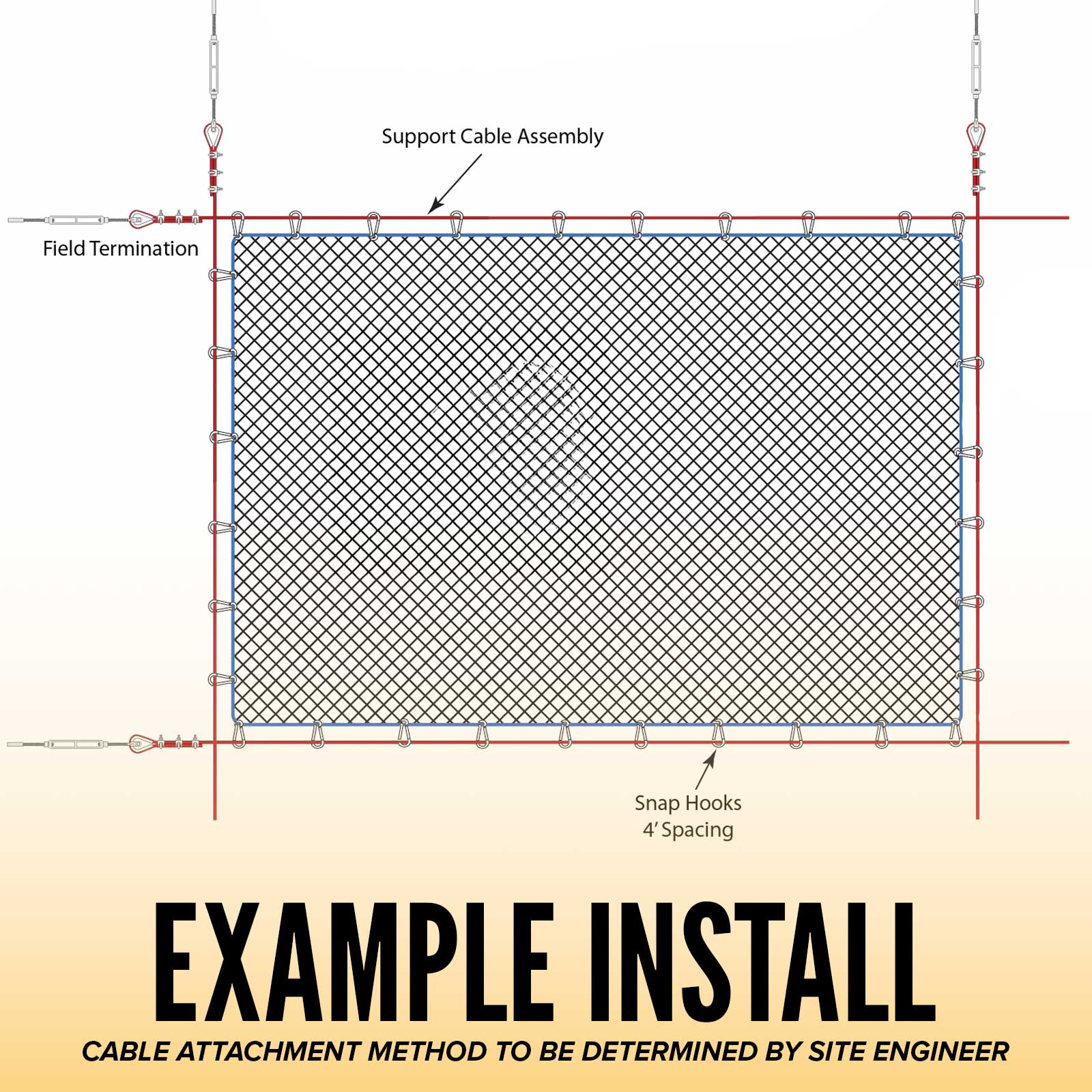

- Quick-Connect Attachment System: Staggered 4.72" (120 mm) snap hooks every 4 feet on-center allow multiple panels to be joined without gaps in coverage.

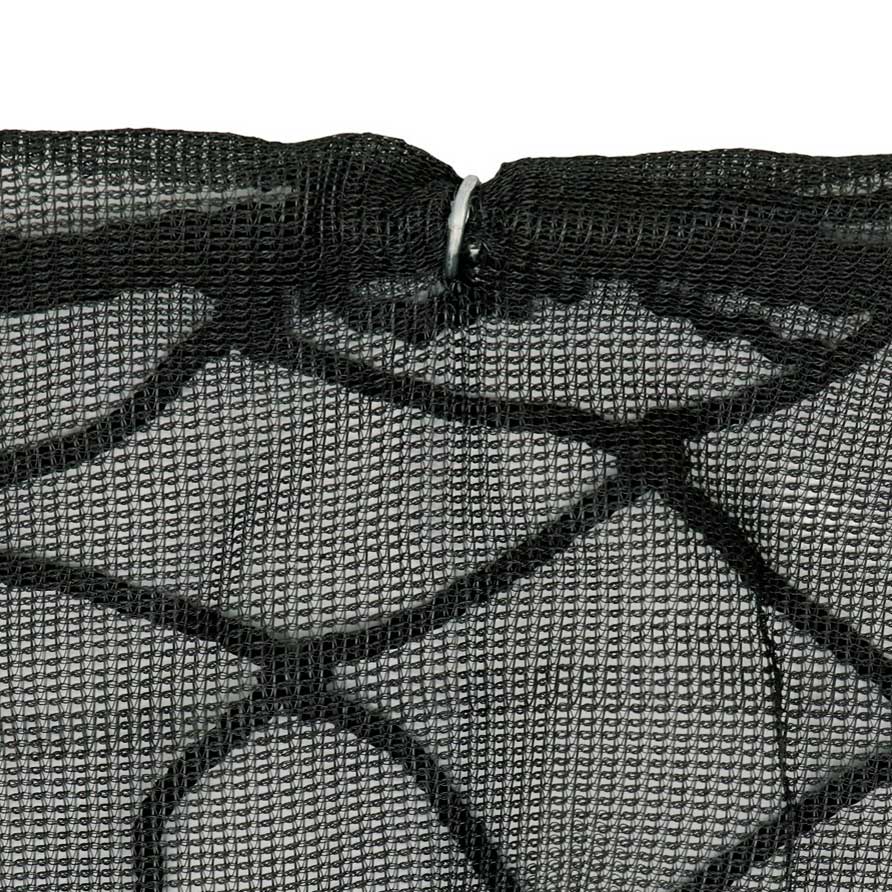

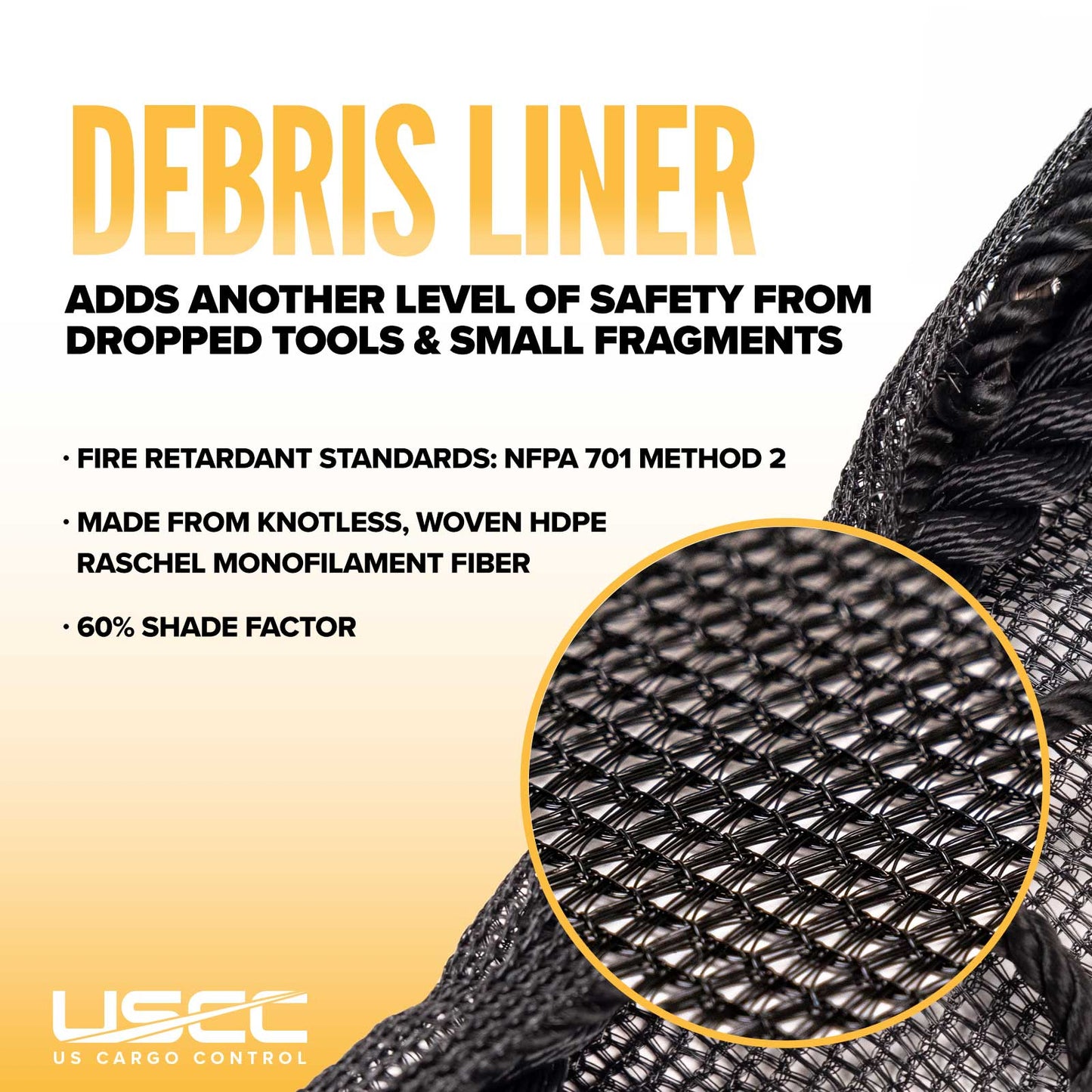

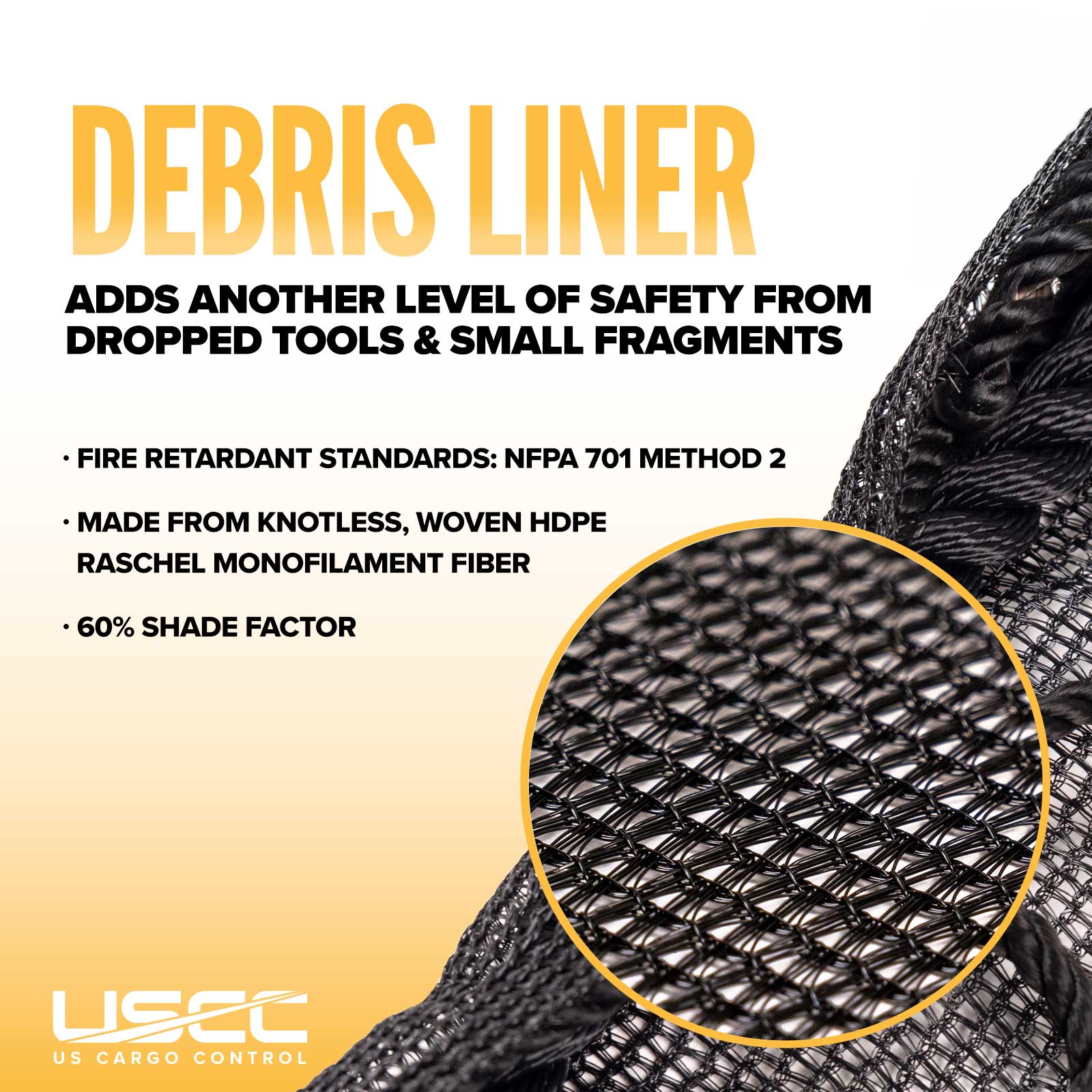

- Two-Ply Liner Construction: The WS70 1/16" debris liner (0.0358 lb/ft²) attaches to the structural net's border rope with 15-gauge hog ring crimp fasteners for lightweight, tear-resistant small-debris capture.
Important: the WS70 liner is designed for small-particle containment (tools, fasteners, small hardware) and is not a substitute for a dedicated debris containment system. Large construction debris should be managed with a separate containment solution.
Tested to Industry Standards
- ANSI A10.11 Tested: Dynamic drop tested to 17,500 ft-lb (350 lb test weight dropped three times from 50 ft into a 17×24 ft bordered net).
- OSHA Compliant: Meets OSHA regulations for personnel net installations when properly installed and maintained.
- NFPA 701 Flame-Retardant Treated: Solution-dyed black netting treated to NFPA 701 Method 2.
- UV Rated: Rated to 300 kLy for extended outdoor exposure.
Questions?
Prefer a net without the liner? Check out our standard Personnel Safety Nets, or see our full debris netting selection for heavier debris loads. Installation hardware, including 3/8" galvanized aircraft cable and snap hooks, is available separately. Our sales team is happy to answer any questions.
Debris Net vs Safety Net: Which Construction Net Do You Need?
Add the Essentials
Complete your order with these essentials, compatible with:
20' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
My Cart:
$199
-
ANSI-Tested Fall Protection

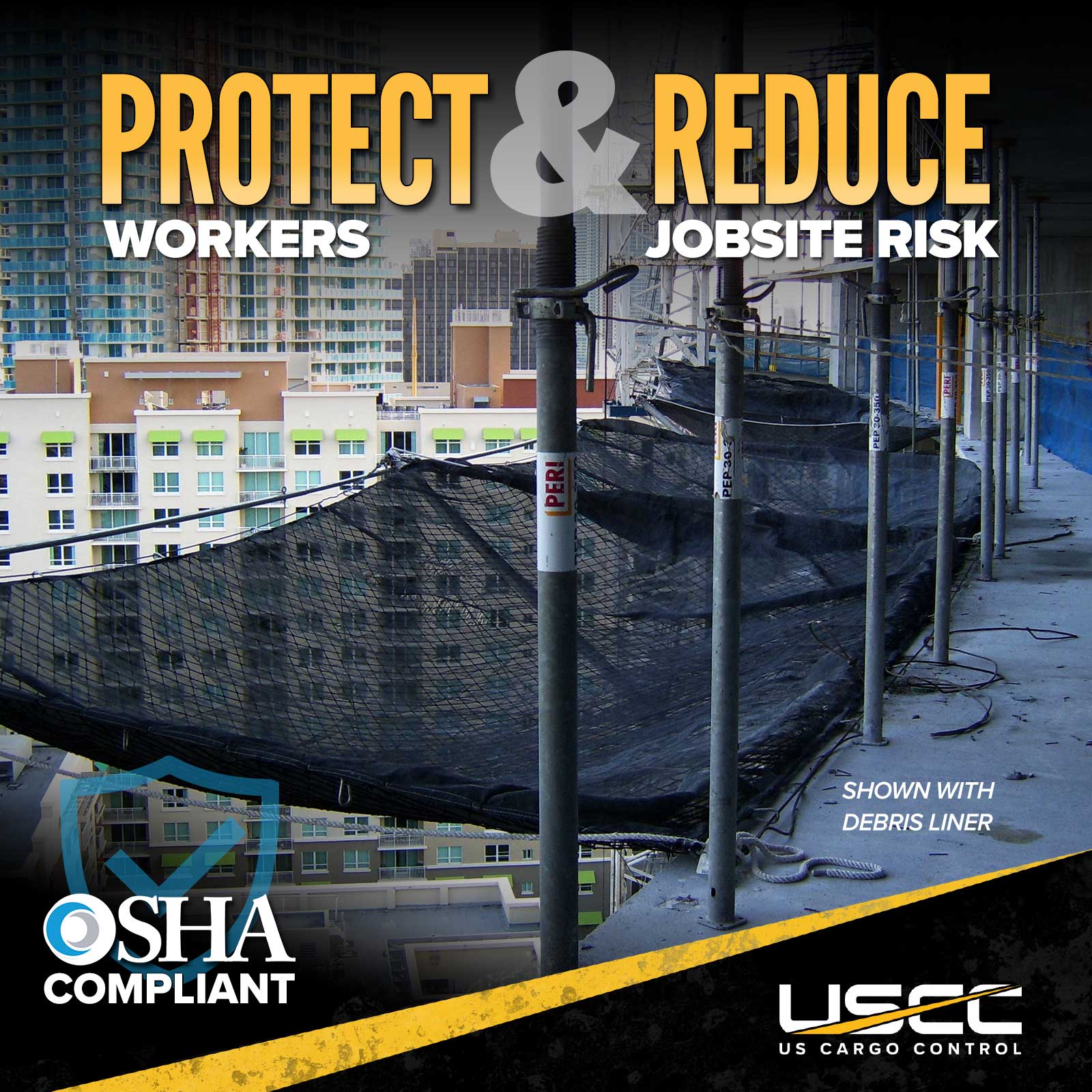

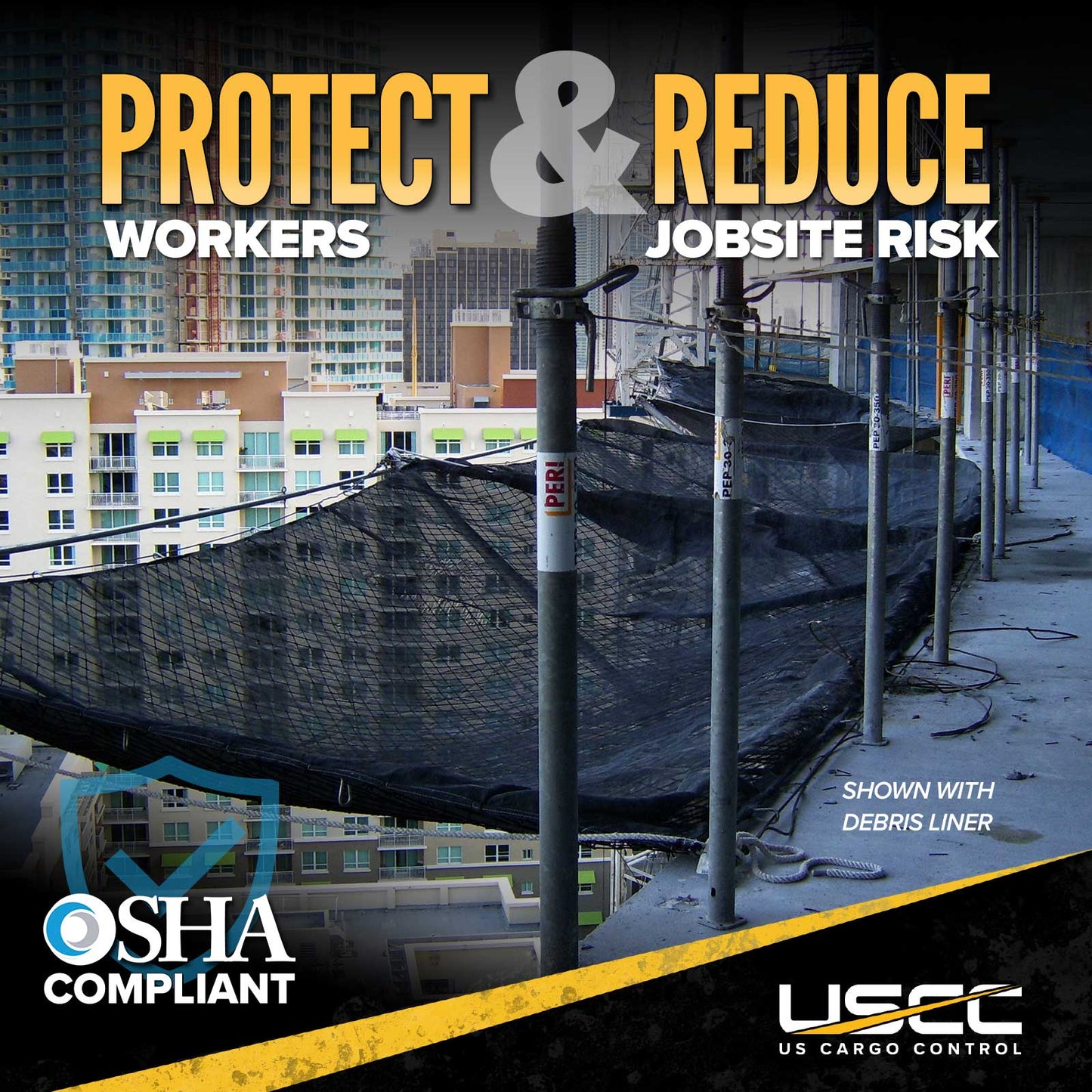

InCord personnel safety nets comply with ANSI A10.11-2010 and meet or exceed OSHA requirements. Rated to withstand dynamic loads of 17,500 ft-lb and manufactured in an ISO 9001:2015-certified facility, these are fall protection nets built for where failure isn't an option.
-

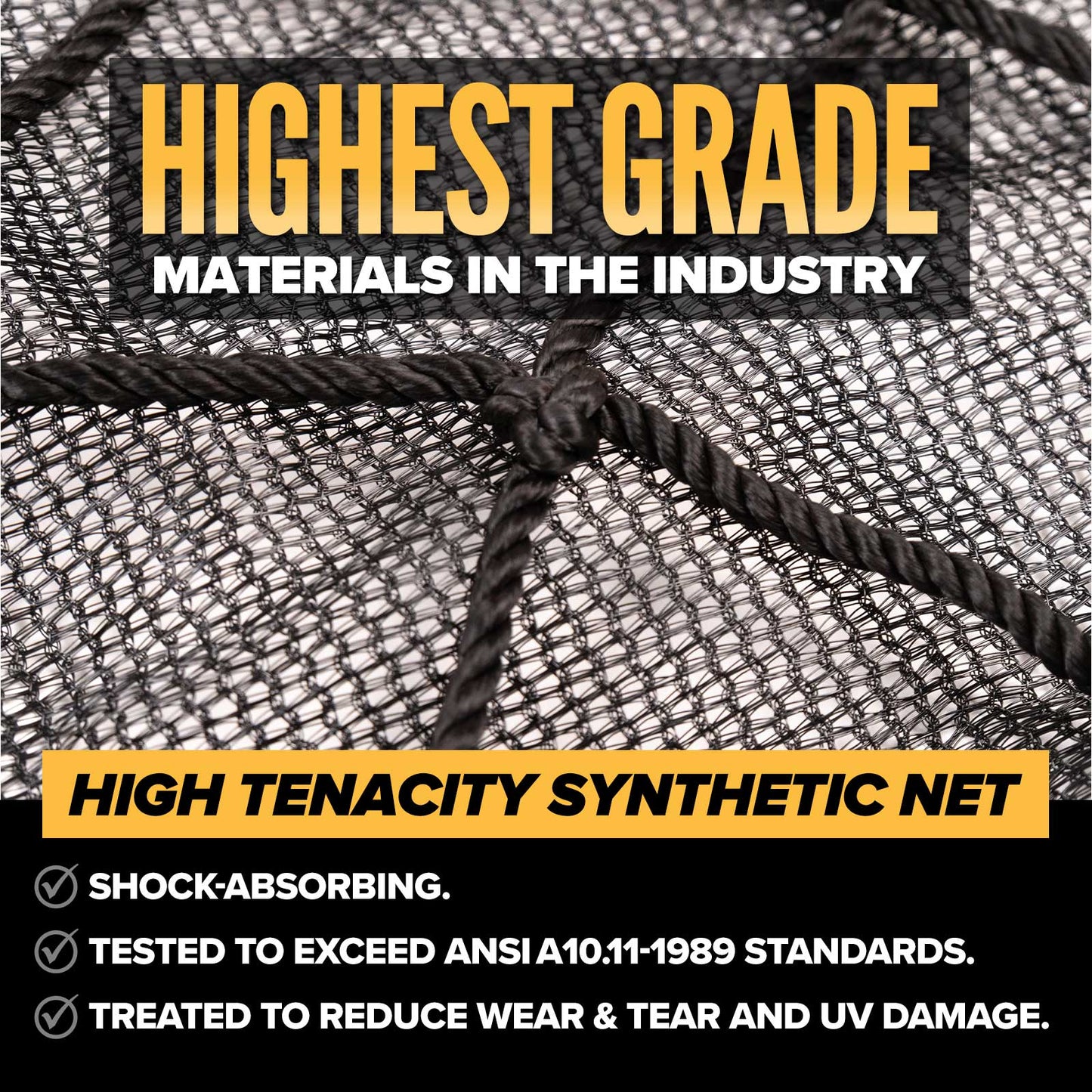

Highest Quality Materials in the Industry

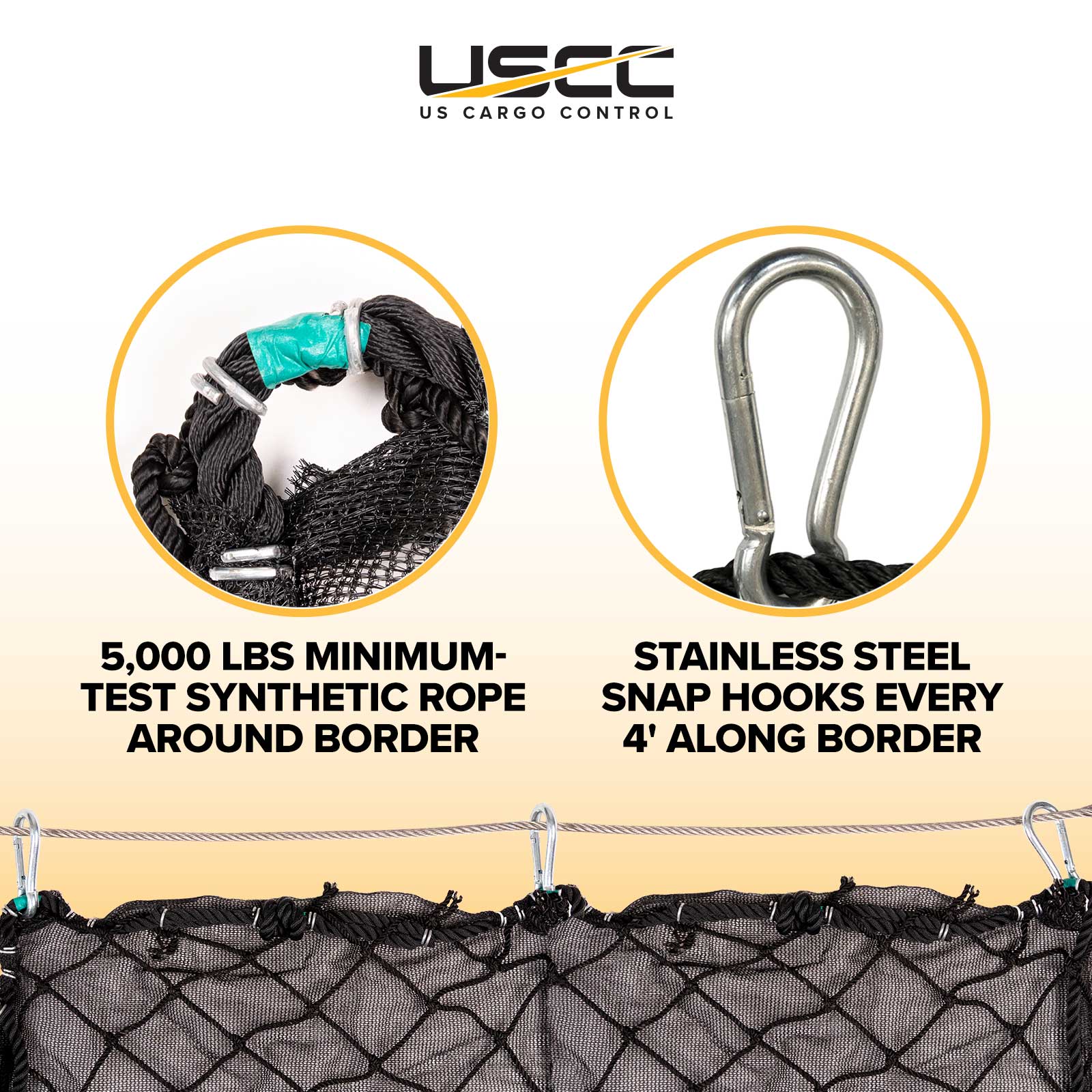

Built in the USA from high-tenacity polyamide, this 5mm knotted nylon safety net delivers exceptional strength in a lightweight design. A 5,000 lb. minimum-test synthetic rope reinforces the border, while stainless steel snap hooks every 4 feet provide secure, corrosion-resistant attachment. A fire-retardant monofilament debris liner adds another layer of protection from smaller falling debris..
-
