SKU: PSN-1020-DL
10' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
10' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.!
Continue Browsing
Personnel Safety Nets
Safety Nets & Construction Nets
Rigging Supplies & Rigging Hardware
Related Articles
SKU: PSN-1020-DL
10' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
$1,225.00
Net Size:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Load Capacity: 17,500 lbs.
Size: 10' x 20'
Minimum Wire Rope Diameter: 3/8"
Width: 20'
Length: 10'
Mesh Size: 3-1/2"
Material: Polyamide
Color: Black
Product Weight: 34 lbs.
Standards: Meets or exceeds ANSI A10.11 fall protection comliance.
Brand: InCord
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Approximate strength: 17,500 lbs.
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Description

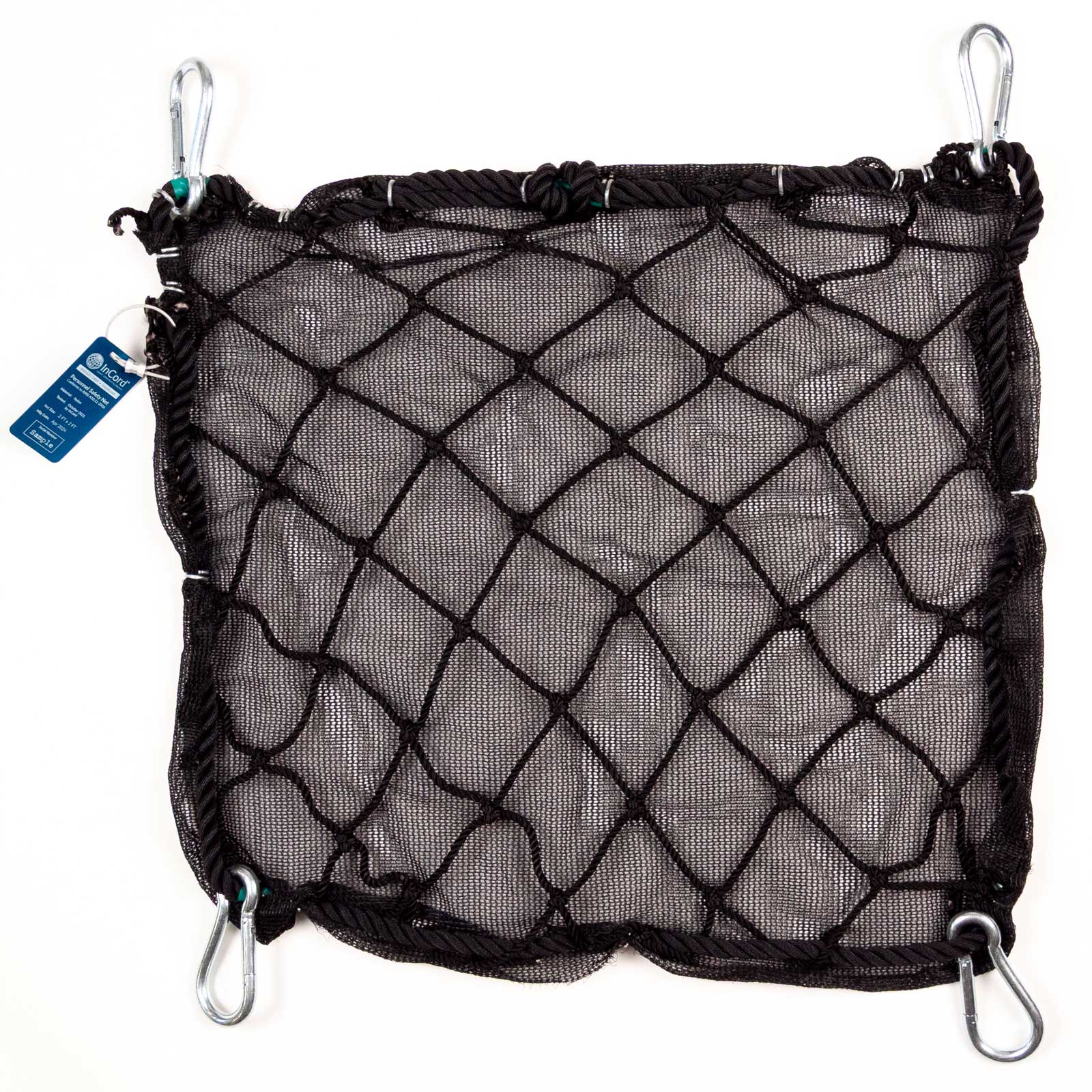

Personnel Safety Net w/ Debris Liner - 10' x 20'

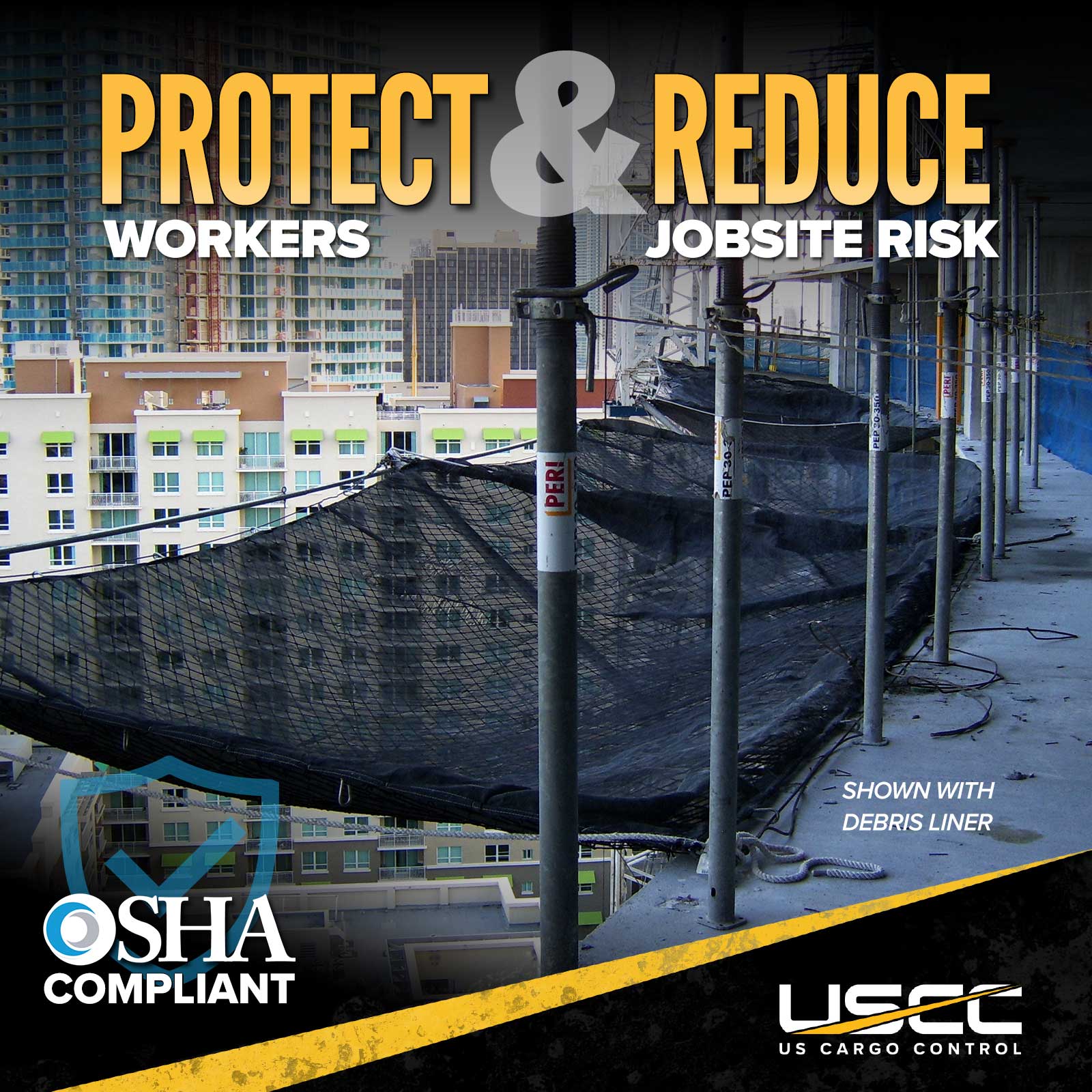

Built for narrow, elongated openings, this 10' x 20' personnel safety net combines fall-arrest-rated nylon mesh with a bonded WS70 1/16" debris liner to keep dropped tools and hardware from reaching lower levels.
Built for Fall Protection & Debris Containment
- Industrial-Grade Nylon Mesh: 3.5" (90 mm) diamond mesh knotted from #120 (5.0 mm) high-tenacity nylon cord, solution-dyed black and weighing 0.0650 lb/ft².

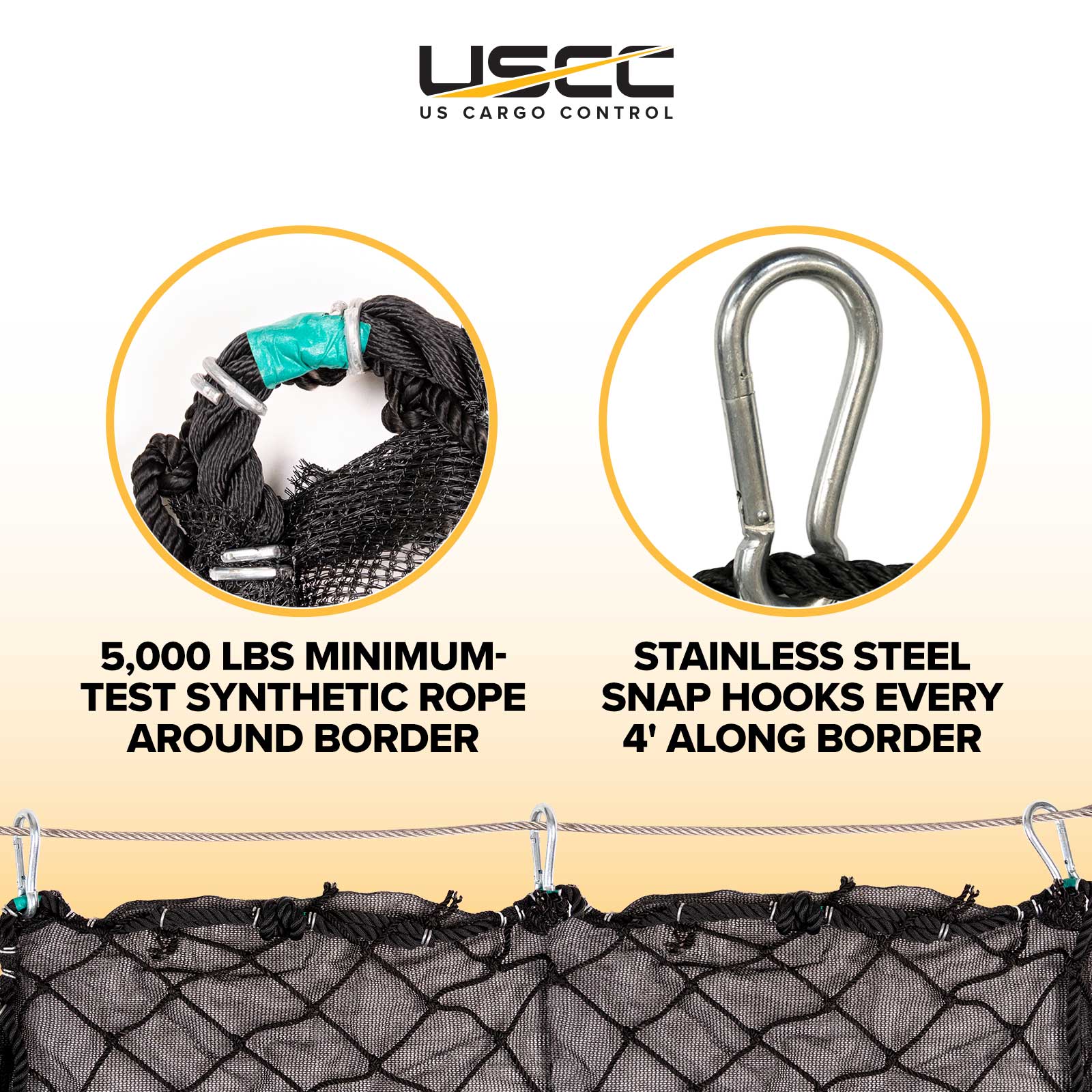

- Heavy-Duty Border Construction: A 1/2" high-tenacity nylon rope, rated to 6,700 lb, is sewn around the entire panel perimeter.

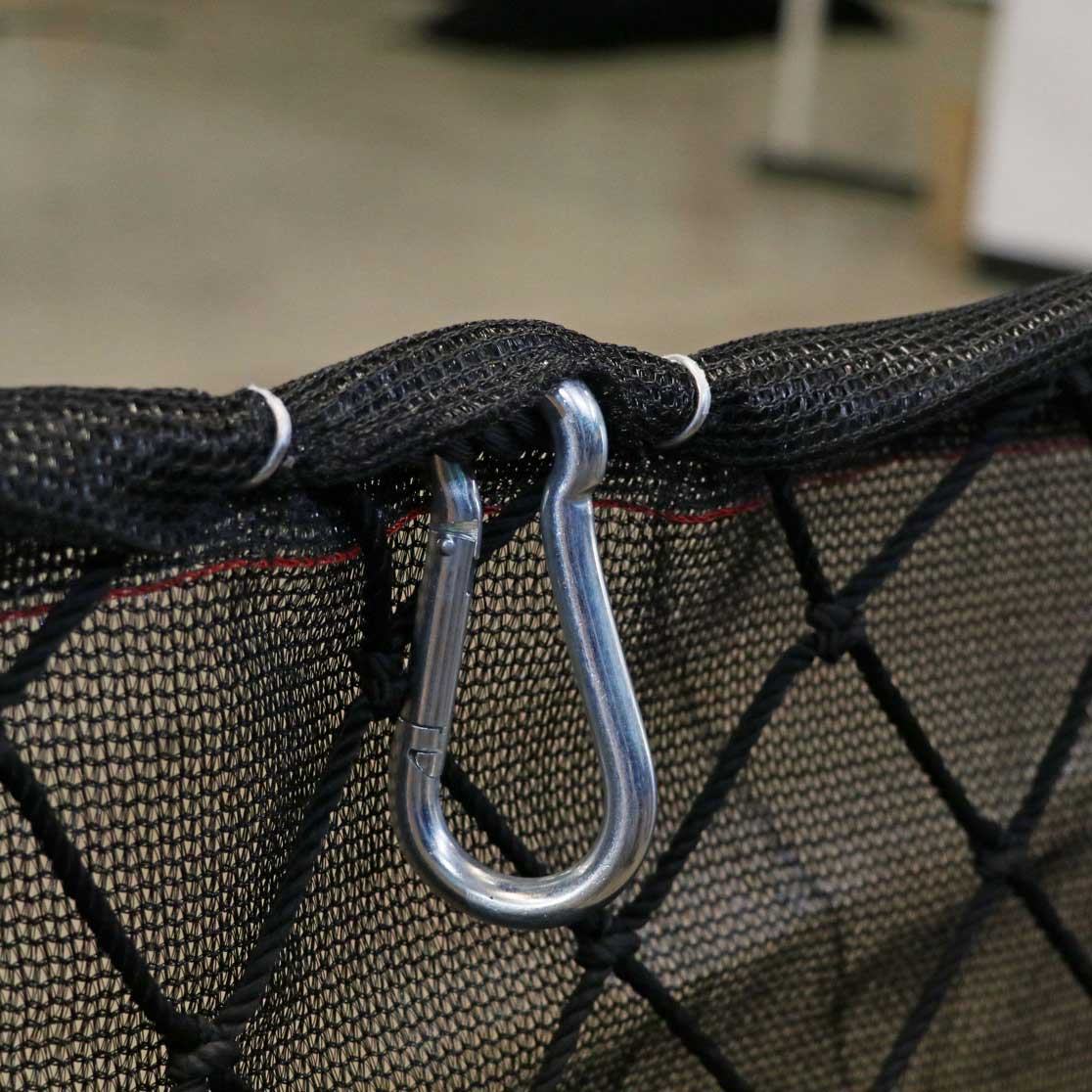

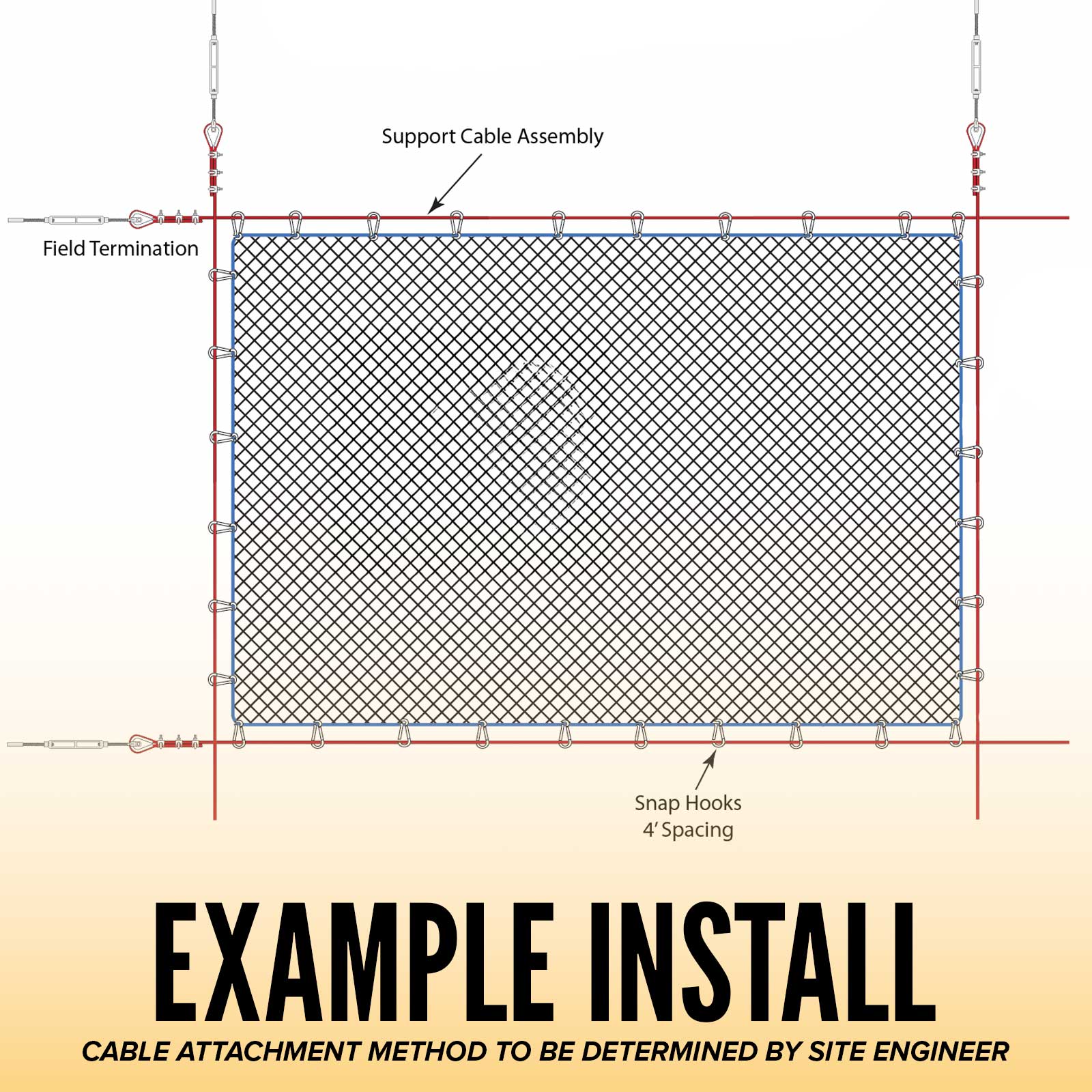

- Staggered Quick-Connect Hooks: 4.72" (120 mm) snap hooks (0.422 lb each), staggered along the perimeter and spaced 36 in. on-center along the length and 24 in. on-center along the width, for fast, secure linking to adjacent panels.

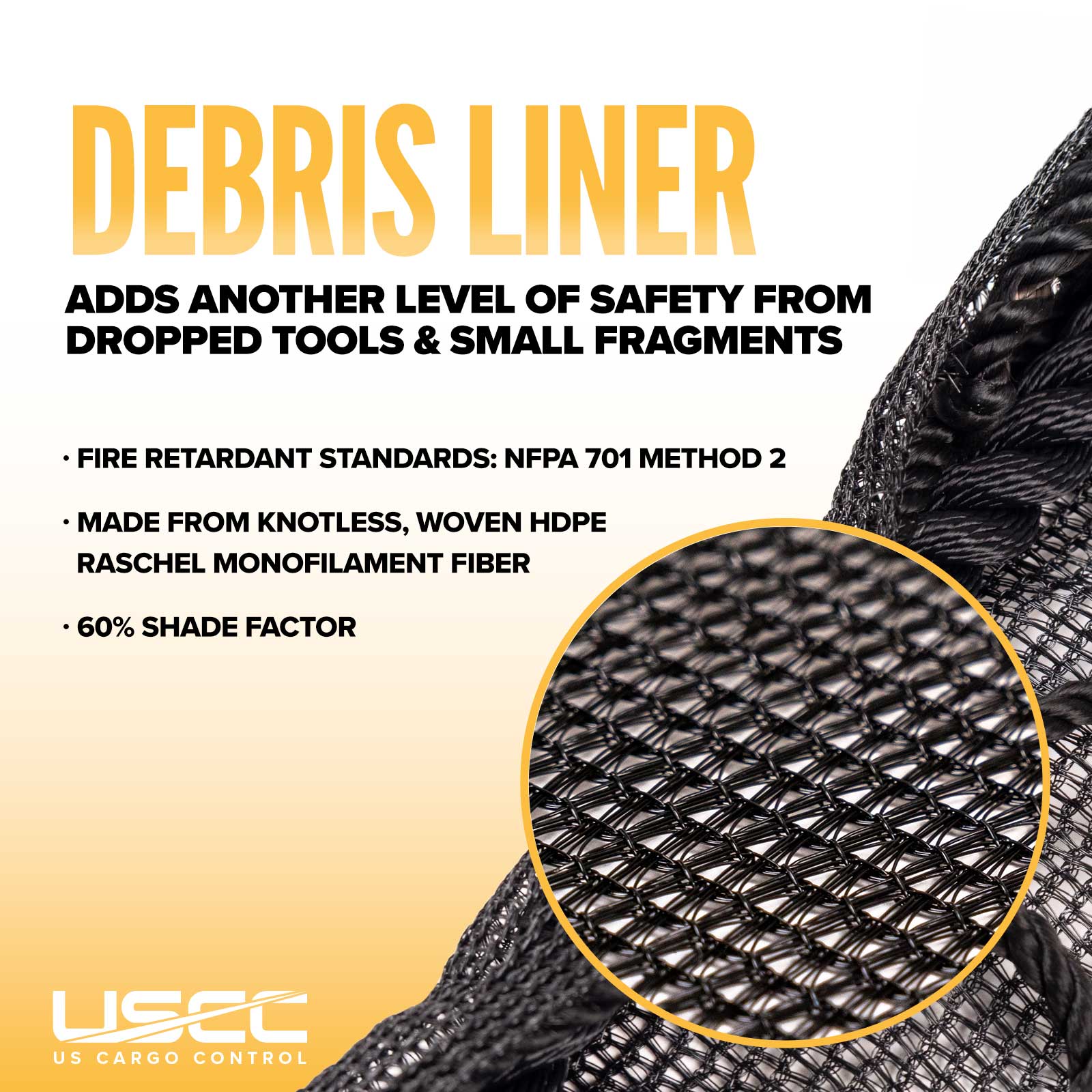

- Bonded WS70 Debris Liner: InCord's 1/16" knit mesh liner (0.0358 lb/ft²) is joined to the border rope via 15-gauge hog ring crimp fasteners in a two-ply construction, ideal for catching tools and hardware.
Important: the WS70 liner is designed for small-particle containment (tools, fasteners, small hardware) and is not a substitute for a dedicated debris containment system. Large construction debris should be managed with a separate containment solution.
Tested to Industry Standards
- Certified to ANSI A10.11: Passes the 17,500 ft-lb dynamic drop test (350 lb weight, three drops, 50 ft, into a 17×24 ft bordered net).

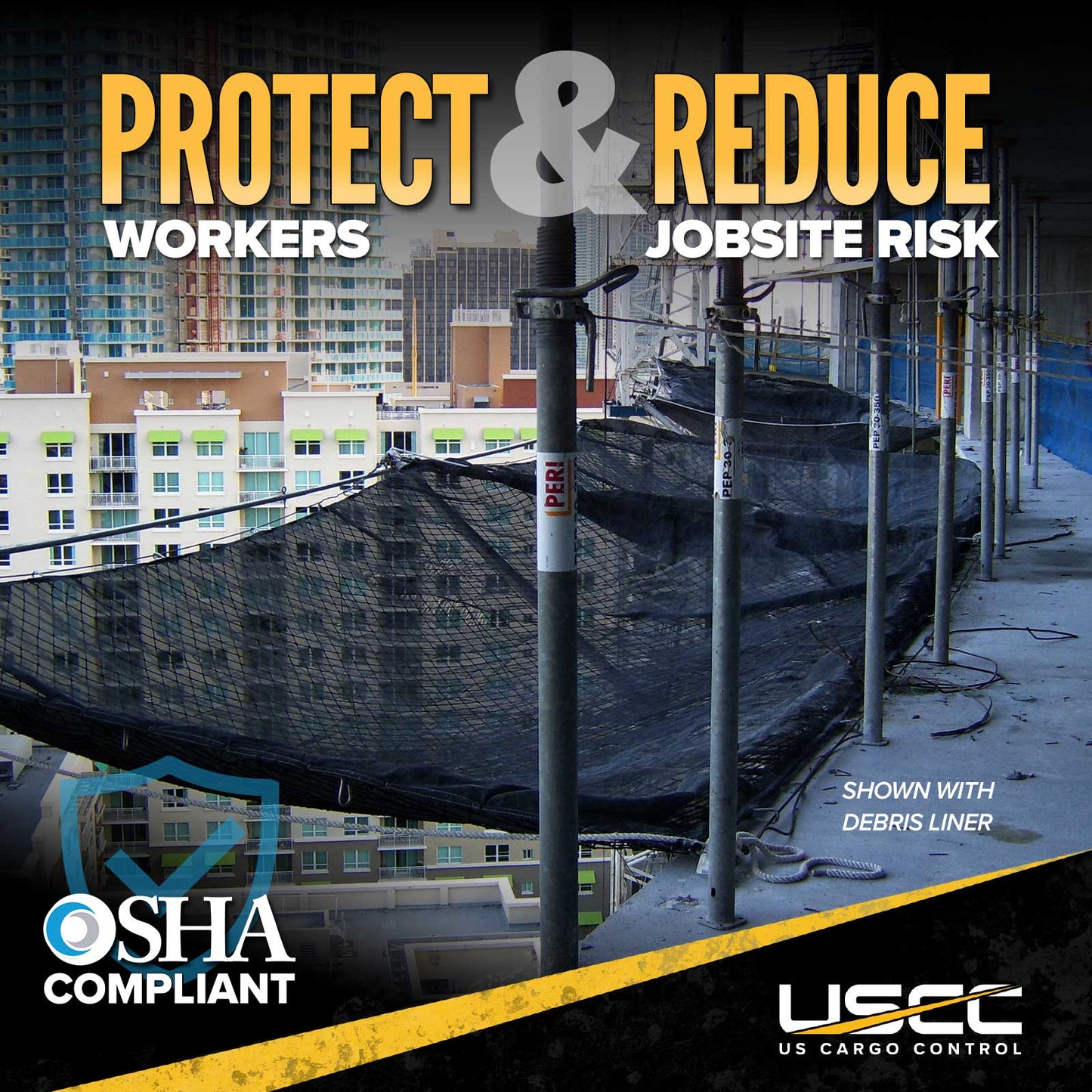

- OSHA-Aligned Installation: Designed to meet OSHA rules for personnel net systems.
- NFPA 701 Method 2: Flame-retardant treated, solution-dyed black.
- 300 kLy UV Rating: Built to withstand prolonged sun exposure.
Questions?
Don't need the debris liner? See our standard Personnel Safety Nets, or for larger debris loads, browse our debris netting lineup. We also stock 3/8" galvanized aircraft cable and snap hooks for installation. Contact our sales team with any questions.
Debris Net vs Safety Net: Which Construction Net Do You Need?
Add the Essentials
Complete your order with these essentials, compatible with:
10' x 20' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
My Cart:
$199
-
ANSI-Tested Fall Protection
InCord personnel safety nets comply with ANSI A10.11-2010 and meet or exceed OSHA requirements. Rated to withstand dynamic loads of 17,500 ft-lb and manufactured in an ISO 9001:2015-certified facility, these are fall protection nets built for where failure isn't an option.
-

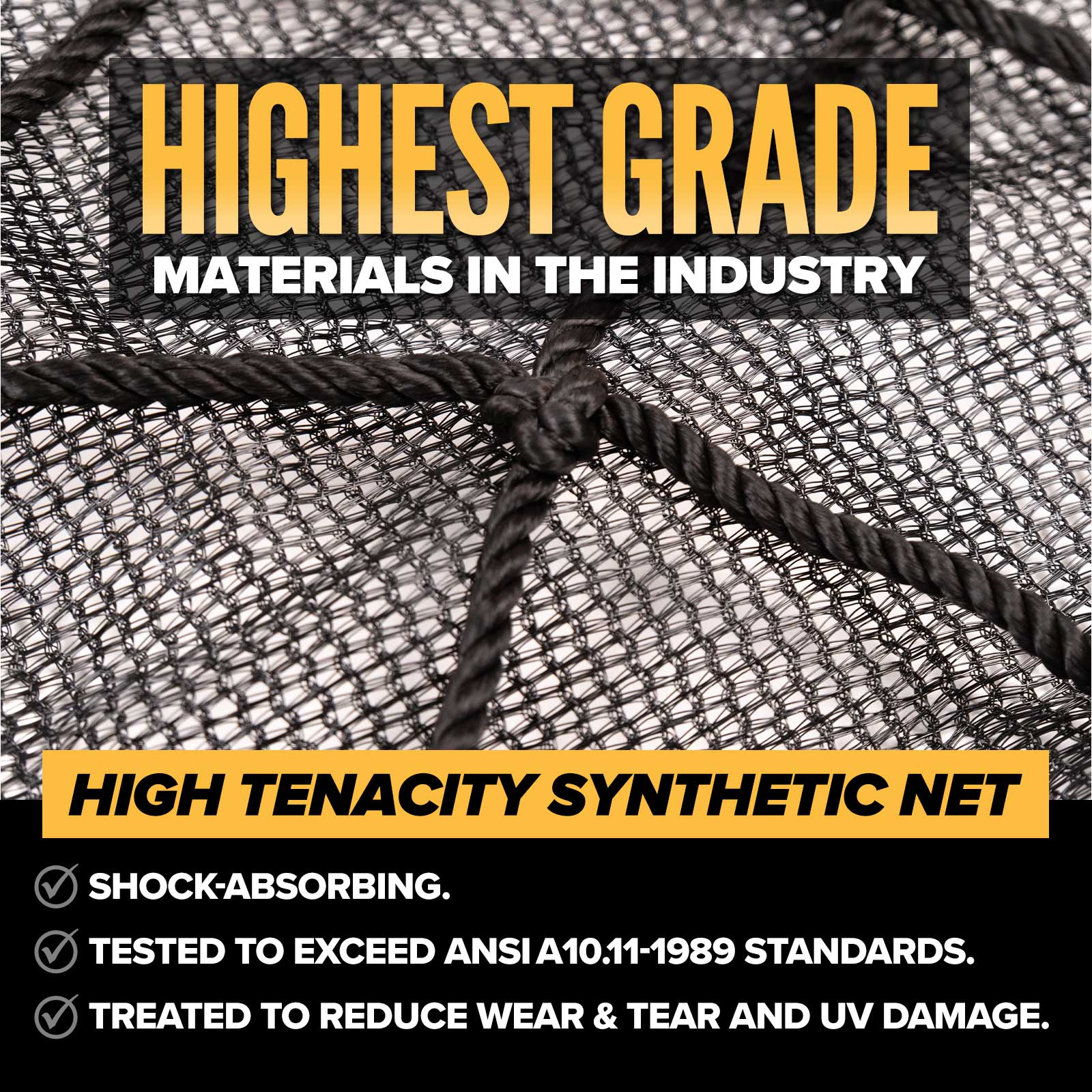

Highest Quality Materials in the Industry
Built in the USA from high-tenacity polyamide, this 5mm knotted nylon safety net delivers exceptional strength in a lightweight design. A 6,700 lb. minimum tensile strength synthetic rope reinforces the border, while zinc-plated snap hooks provide secure, corrosion-resistant attachment. A fire-retardant monofilament debris liner adds another layer of protection from smaller falling debris..
-
