SKU: PSN-2025-DL
20' x 25' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
$2,025.00
Net Size:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Load Capacity: 17,500 lbs.
Size: 20' x 25'
Minimum Wire Rope Diameter: 3/8"
Width: 25'
Length: 20'
Mesh Size: 3-1/2"
Material: Polyamide
Color: Black
Product Weight: 74 lbs.
Standards: Meets or exceeds ANSI A10.11 fall protection comliance.
Brand: InCord
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Approximate strength: 17,500 lbs.
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Description

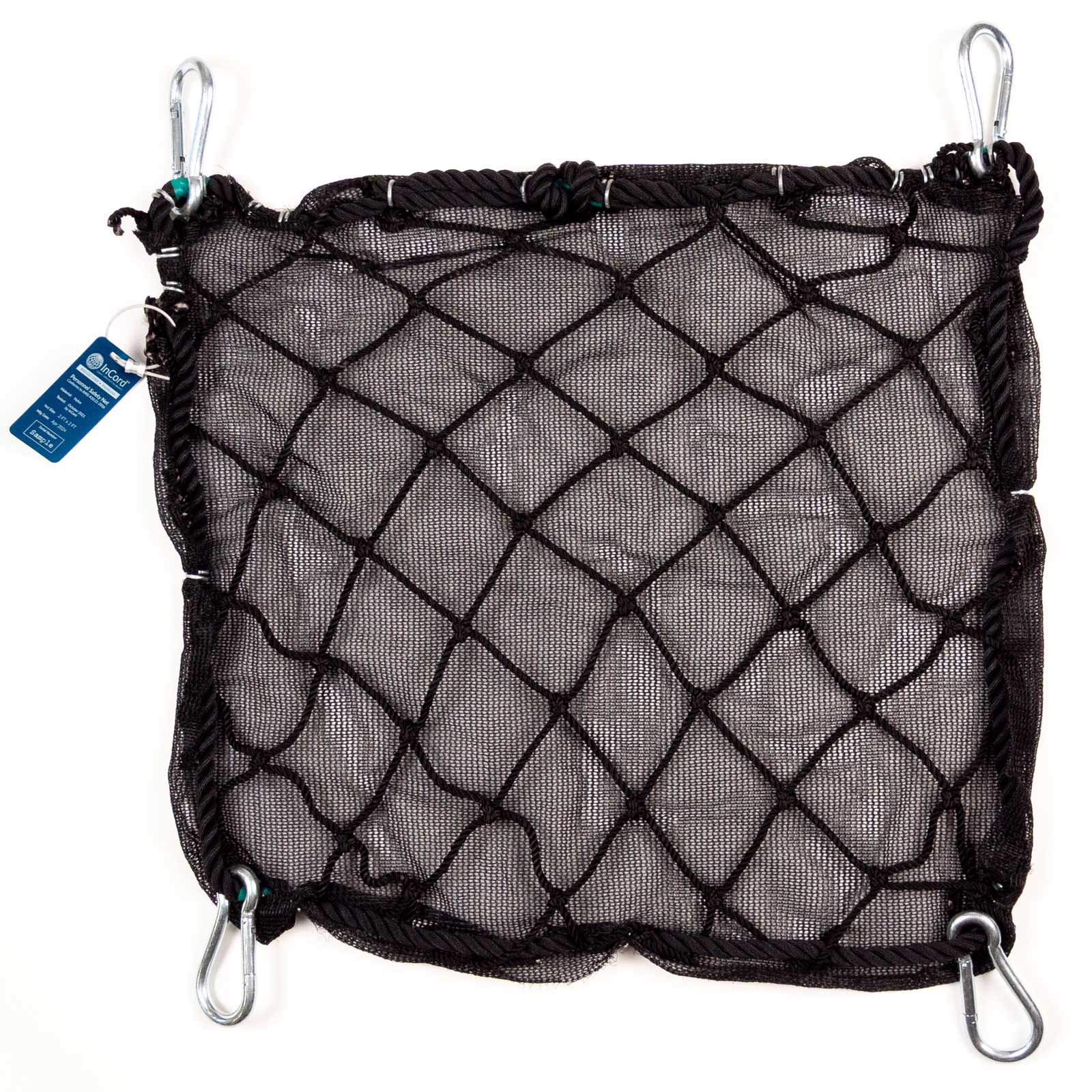

Personnel Safety Net w/ Debris Liner - 20' x 25'

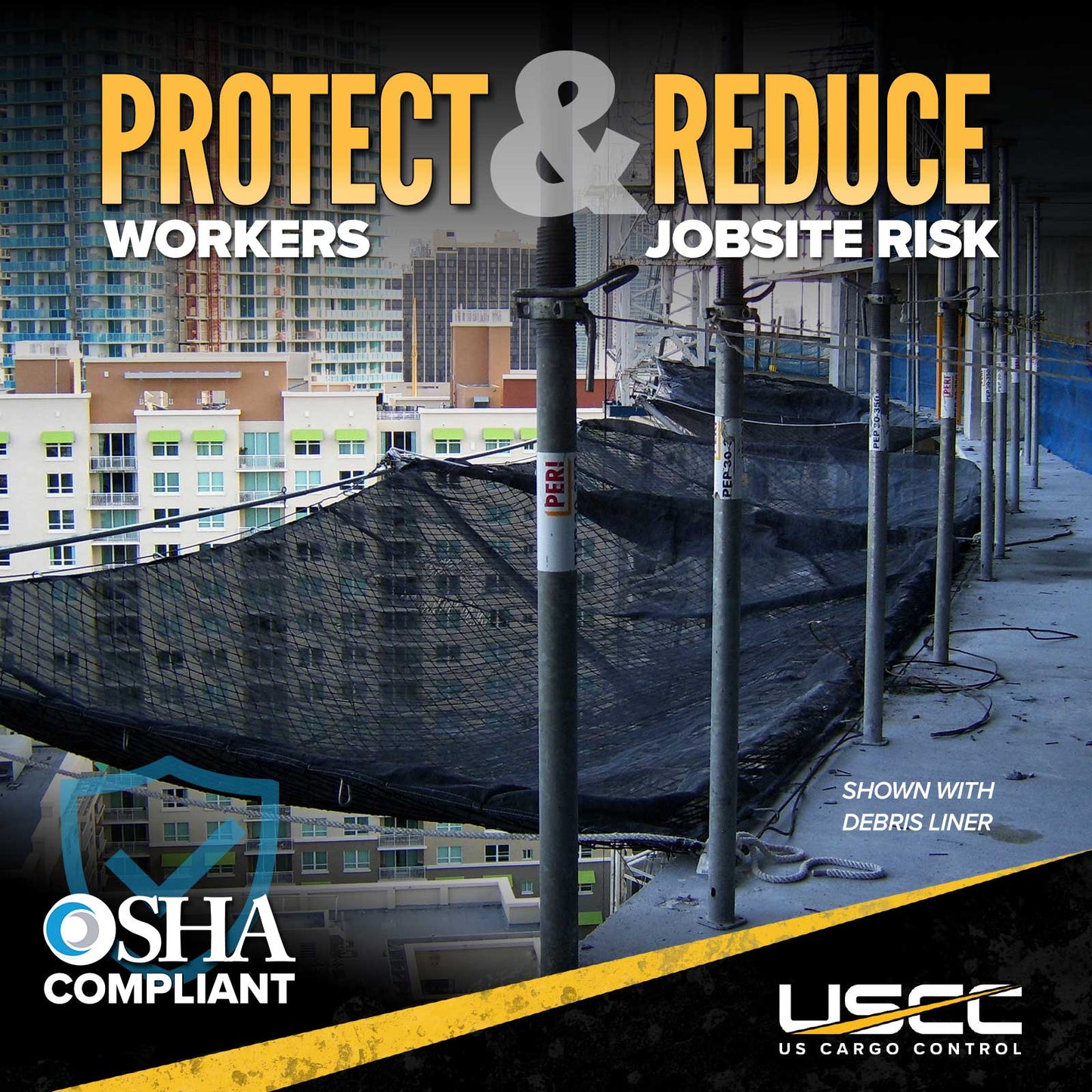

Covering 20' x 25', this personnel safety net joins our 17,500 ft-lb dynamic-drop-rated net to a WS70 1/16" debris liner for mid-size elevated work areas that need both fall arrest and small-particle containment.
Built for Fall Protection & Debris Containment
- 3.5" Diamond Mesh Construction: Knotted from #120 (5.0 mm) industrial-grade high-tenacity nylon cord for reliable energy absorption during a fall, at 0.0650 lb/ft².
- 6,700 lb-Rated Border Rope: A 1/2" high-tenacity nylon rope surrounds the panel, meeting a 6,700 lb minimum tensile strength standard.

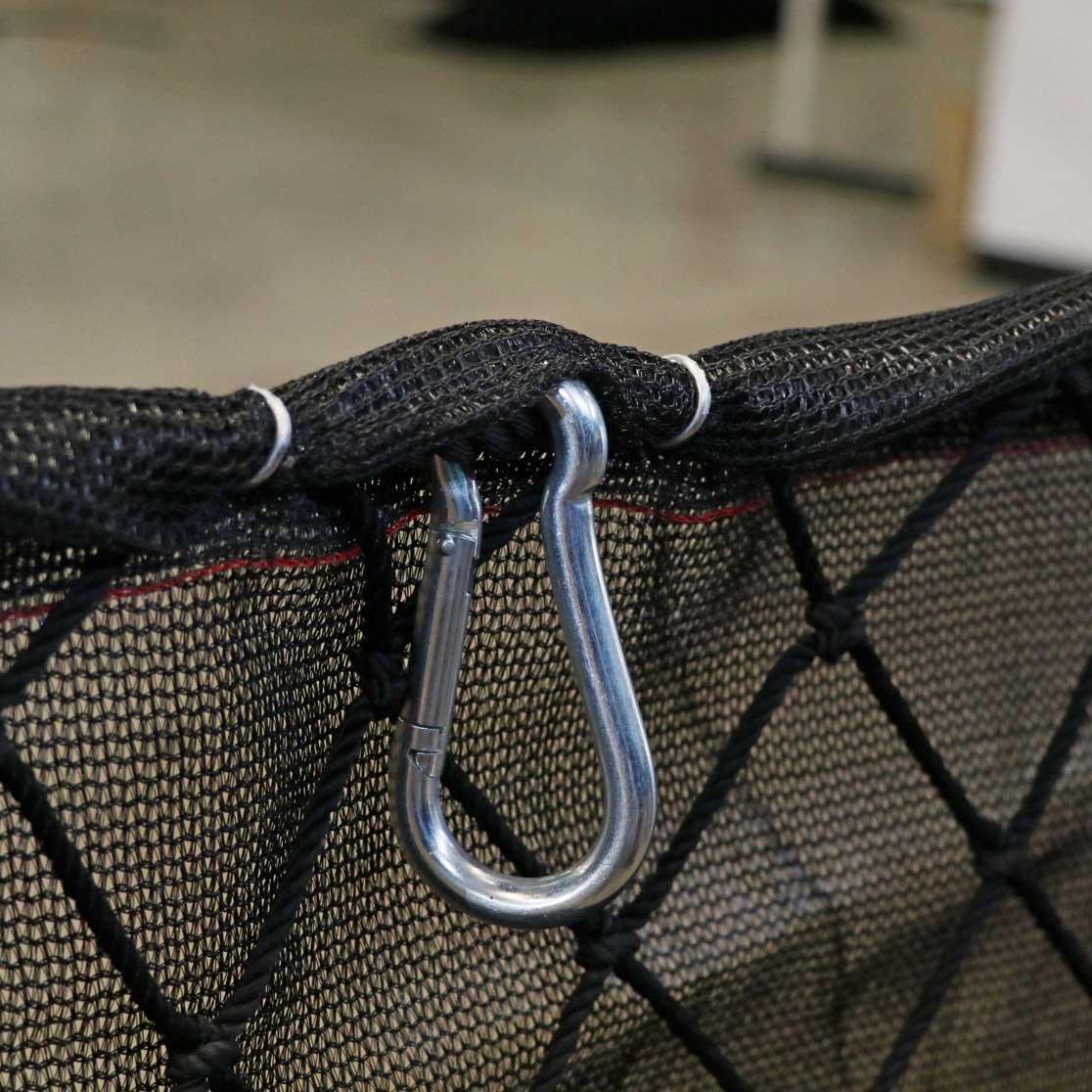

- Fast Panel-to-Panel Connection: 4.72" (120 mm) snap hooks are staggered along the border, spaced 36 in. on-center along the length and 24 in. on-center along the width, for quick attachment to neighboring nets.

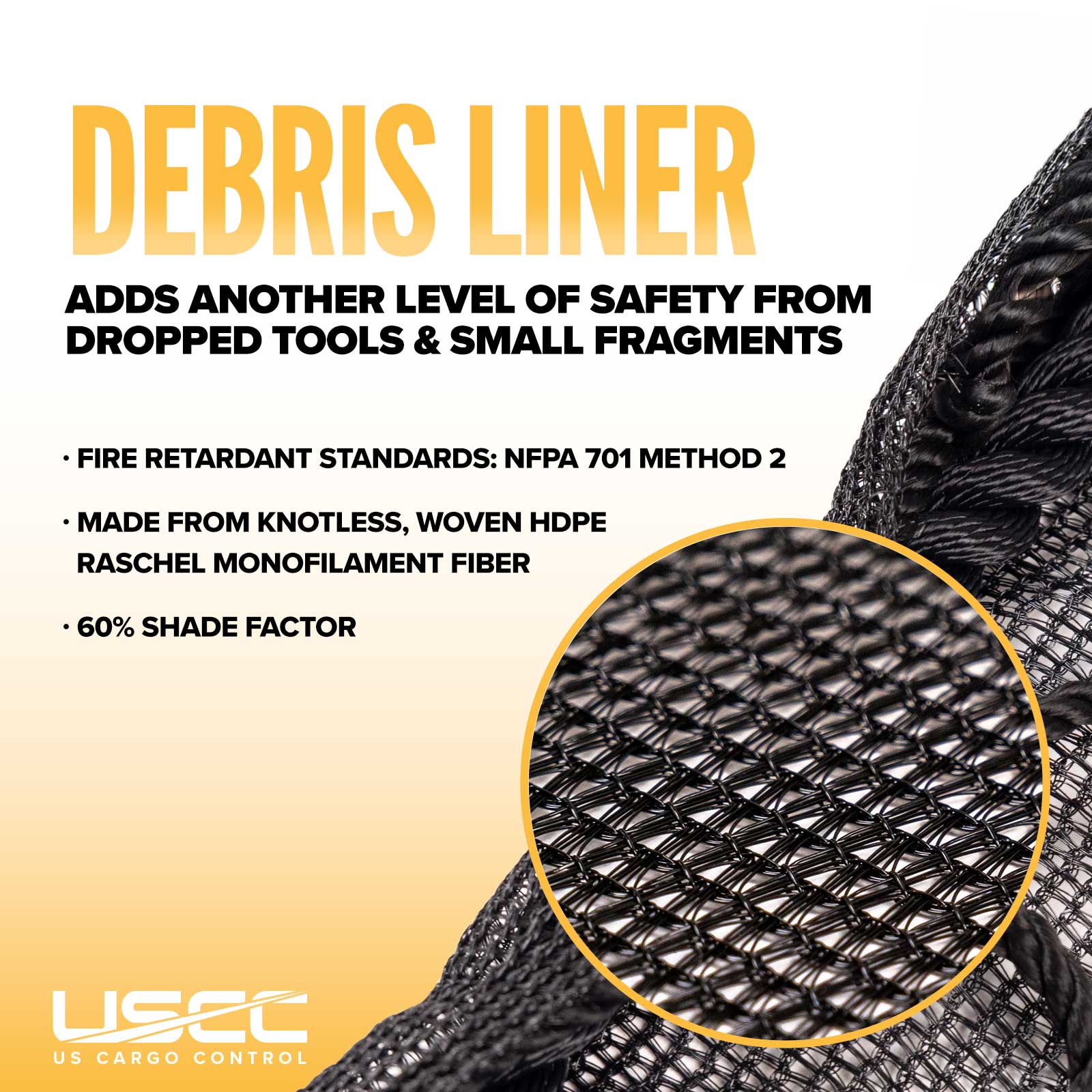

- WS70 Liner Attachment: A lightweight, tear-resistant 1/16" knit mesh liner (0.0358 lb/ft²) is bonded to the border rope using 15-gauge hog ring crimp fasteners for small-particle containment.
Important: the WS70 liner is designed for small-particle containment (tools, fasteners, small hardware) and is not a substitute for a dedicated debris containment system. Large construction debris should be managed with a separate containment solution.
Tested to Industry Standards
- Dynamic Drop-Tested: Rated to 17,500 ft-lb per the ANSI A10.11 test method (350 lb weight dropped three times from 50 ft into a 17×24 ft bordered net).

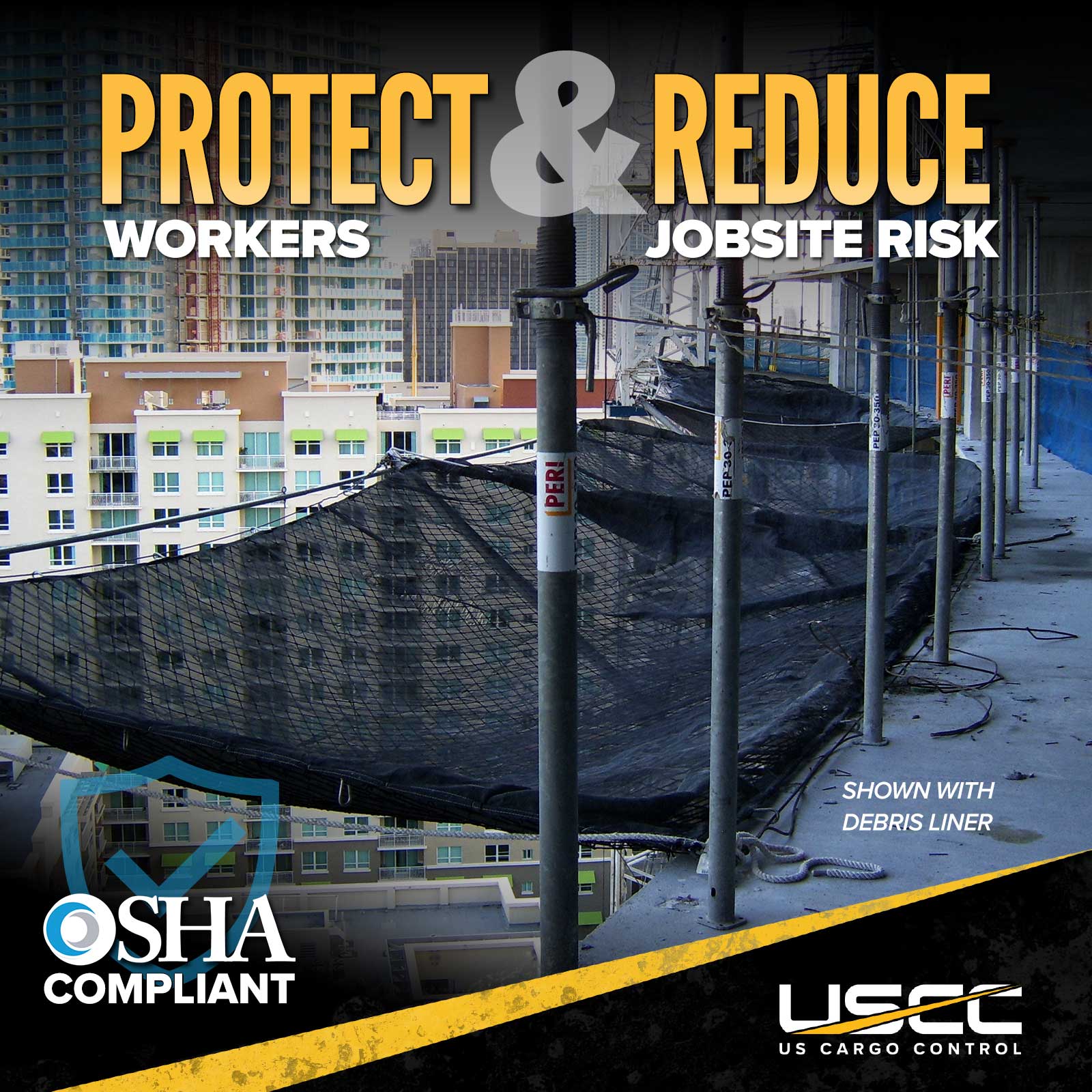

- Meets OSHA Requirements: Complies with OSHA regulations governing personnel net installations.
- Flame-Retardant Treated: Meets NFPA 701 Method 2.
- UV Resistant: UV rated to 300 kLy.
Questions?

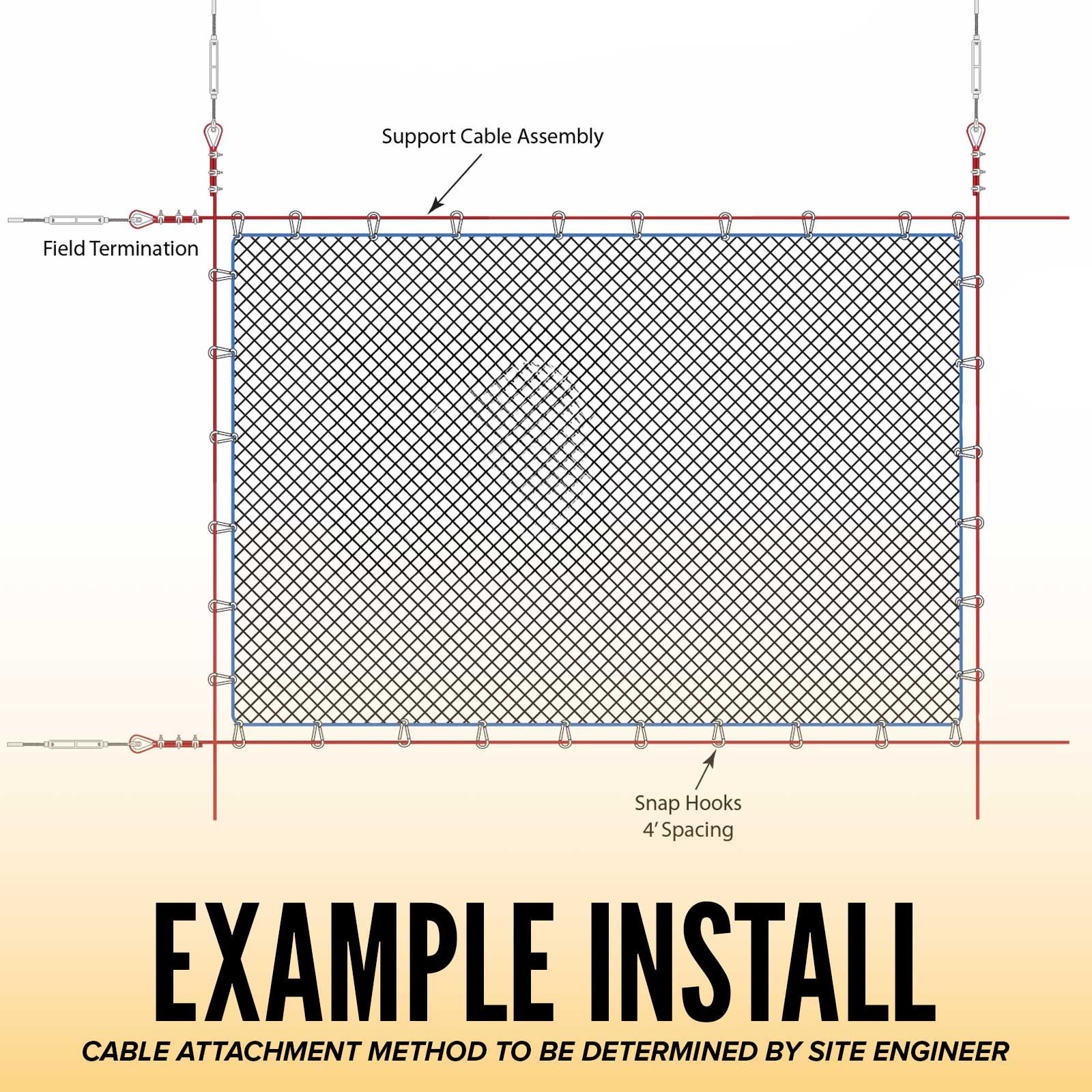

If a built-in liner isn't needed for your project, see our standard Personnel Safety Nets, or browse our full debris netting selection for larger debris loads. Installation hardware such as 3/8" galvanized aircraft cable and snap hooks is also available. Reach out to our sales team with any product questions.
Debris Net vs Safety Net: Which Construction Net Do You Need?
Add the Essentials
Complete your order with these essentials, compatible with:
20' x 25' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
My Cart:
$199
-
ANSI-Tested Fall Protection
InCord personnel safety nets comply with ANSI A10.11-2010 and meet or exceed OSHA requirements. Rated to withstand dynamic loads of 17,500 ft-lb and manufactured in an ISO 9001:2015-certified facility, these are fall protection nets built for where failure isn't an option.
-
Highest Quality Materials in the Industry
Built in the USA from high-tenacity polyamide, this 5mm knotted nylon safety net delivers exceptional strength in a lightweight design. A 6,700 lb. minimum tensile strength synthetic rope reinforces the border, while zinc-plated snap hooks provide secure, corrosion-resistant attachment. A fire-retardant monofilament debris liner adds another layer of protection from smaller falling debris..
-
