SKU: PSN-1020
10' x 20' ANSI A10.11 Personnel Safety Net | 17,500 lbs.
10' x 20' ANSI A10.11 Personnel Safety Net | 17,500 lbs.!
Continue Browsing
Personnel Safety Nets
Safety Nets & Construction Nets
Rigging Supplies & Rigging Hardware
Related Articles
SKU: PSN-1020
10' x 20' ANSI A10.11 Personnel Safety Net | 17,500 lbs.
$929.00
Net Size:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Load Capacity: 17,500 lbs.
Size: 10' x 20'
Minimum Wire Rope Diameter: 3/8"
Width: 20'
Length: 10'
Mesh Size: 3-1/2"
Material: Polyamide
Color: Black
Product Weight: 25 lbs.
Standards: Meets or exceeds ANSI A10.11 fall protection comliance.
Brand: InCord
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Approximate strength: 17,500 lbs.
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy
Description

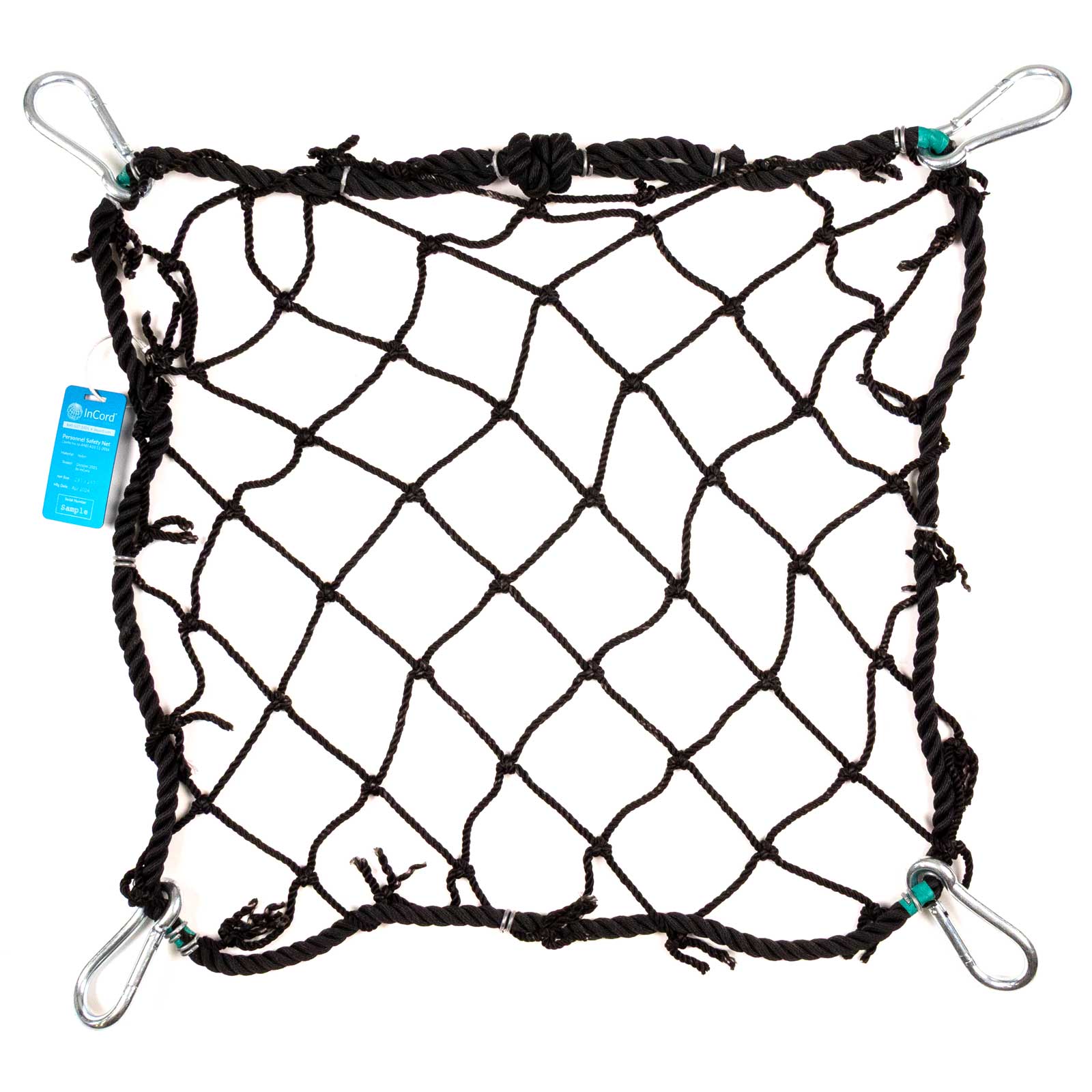

Personnel Safety Net - 10' x 20'
This 10' x 20' personnel safety net gives narrow, elongated openings continuous fall coverage in a single panel, built from 3.5" diamond mesh nylon netting tested to a 17,500 ft-lb dynamic drop.
Built for Fall Protection

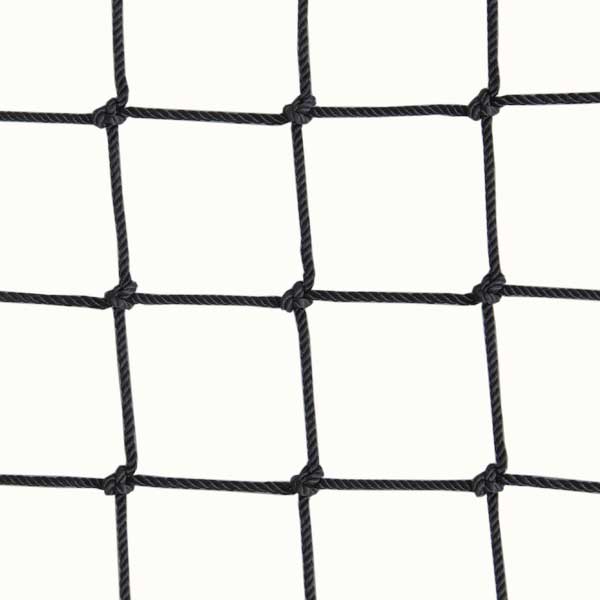

- 3.5" Diamond Mesh Construction: Knotted from #120 (5.0 mm) industrial-grade high-tenacity nylon cord for reliable energy absorption during a fall, at 0.0650 lb/ft².
- 6,700 lb-Rated Border Rope: A 1/2" high-tenacity nylon rope surrounds the panel, meeting a 6,700 lb minimum tensile strength standard.
- Fast Panel-to-Panel Connection: Hooks are staggered along the border, spaced 36 in. on-center along the length and 24 in. on-center along the width, for quick attachment to neighboring nets.
Tested to Industry Standards
- Dynamic Drop-Tested: Rated to 17,500 ft-lb per the ANSI A10.11 test method (350 lb weight dropped three times from 50 ft into a 17×24 ft bordered net).

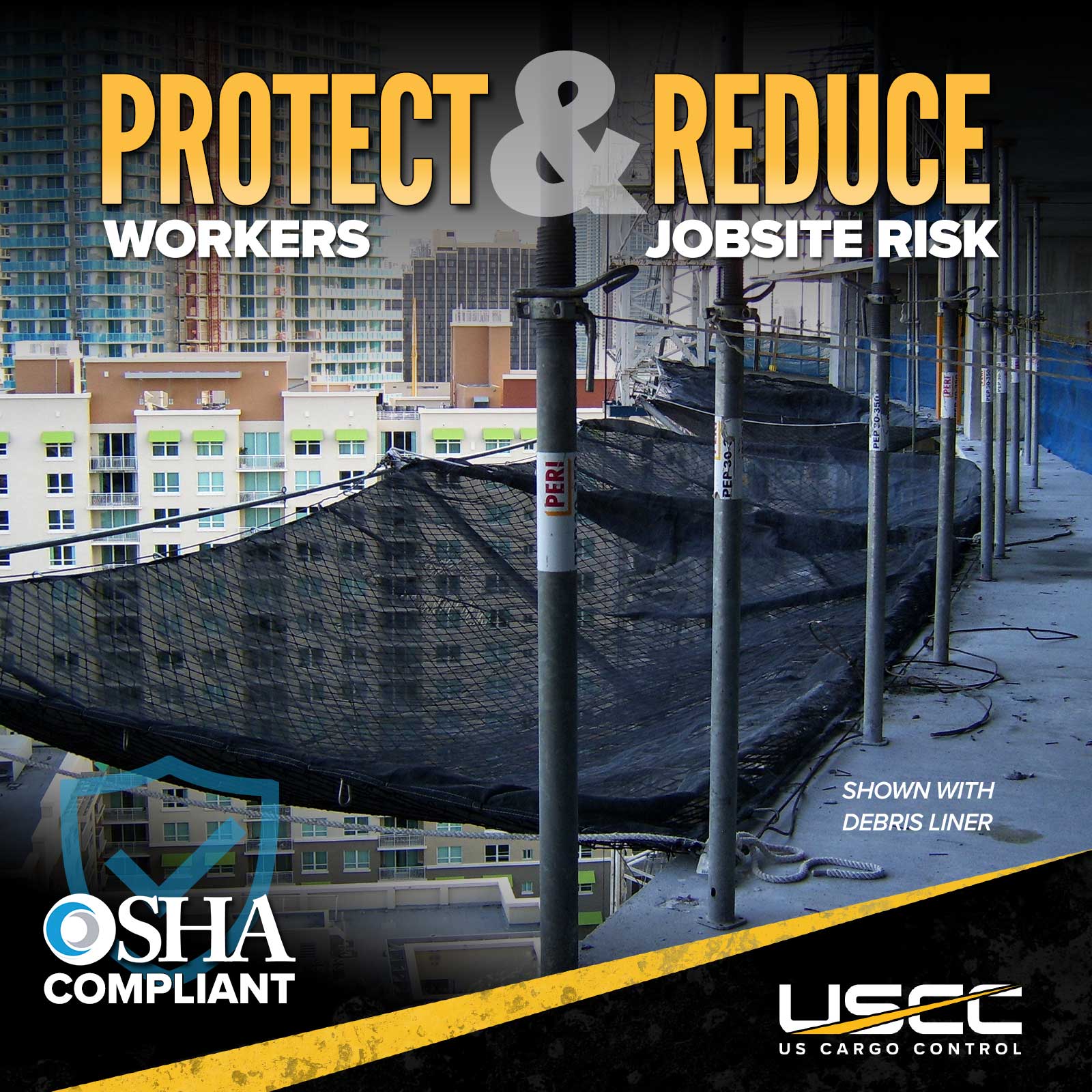

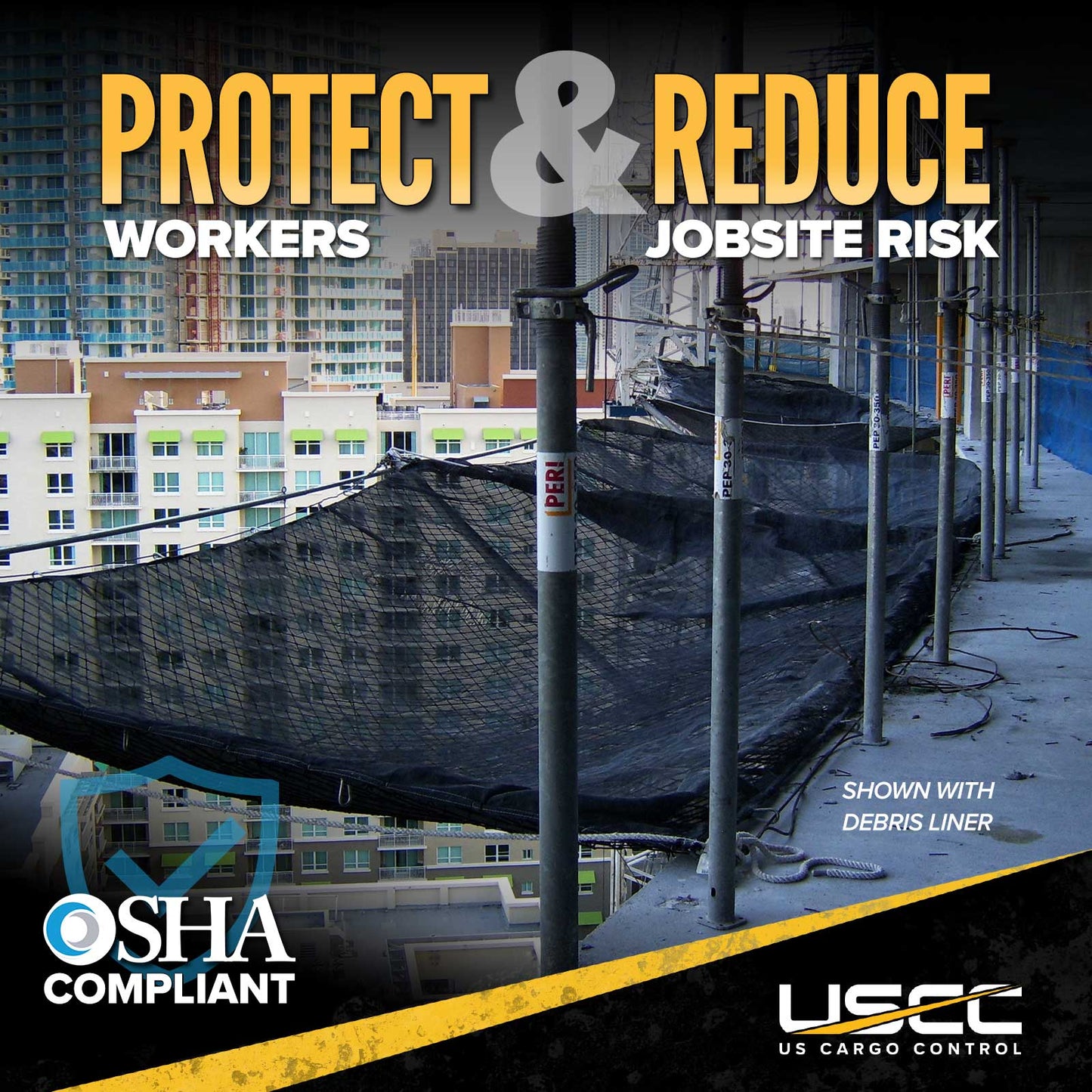

- Meets OSHA Requirements: Complies with OSHA regulations governing personnel net installations.
- Flame-Retardant Treated: Meets NFPA 701 Method 2.
- UV Resistant: UV rated to 300 kLy.
Questions?
Need to catch small debris as well as arrest falls? See our Personnel Safety Net w/ Debris Liner, or explore our debris netting lineup. We also stock 3/8" galvanized aircraft cable and snap hooks for installation. Contact our sales team with any questions.
Debris Net vs Safety Net: Which Construction Net Do You Need?
Add the Essentials
Complete your order with these essentials, compatible with:
10' x 20' ANSI A10.11 Personnel Safety Net | 17,500 lbs.
My Cart:
$199
-
ANSI-Tested Fall Protection
InCord personnel safety nets comply with ANSI A10.11-2010 and meet or exceed OSHA requirements. Rated to withstand dynamic loads of 17,500 ft-lb and manufactured in an ISO 9001:2015-certified facility, these are fall protection nets built for where failure isn't an option.
-

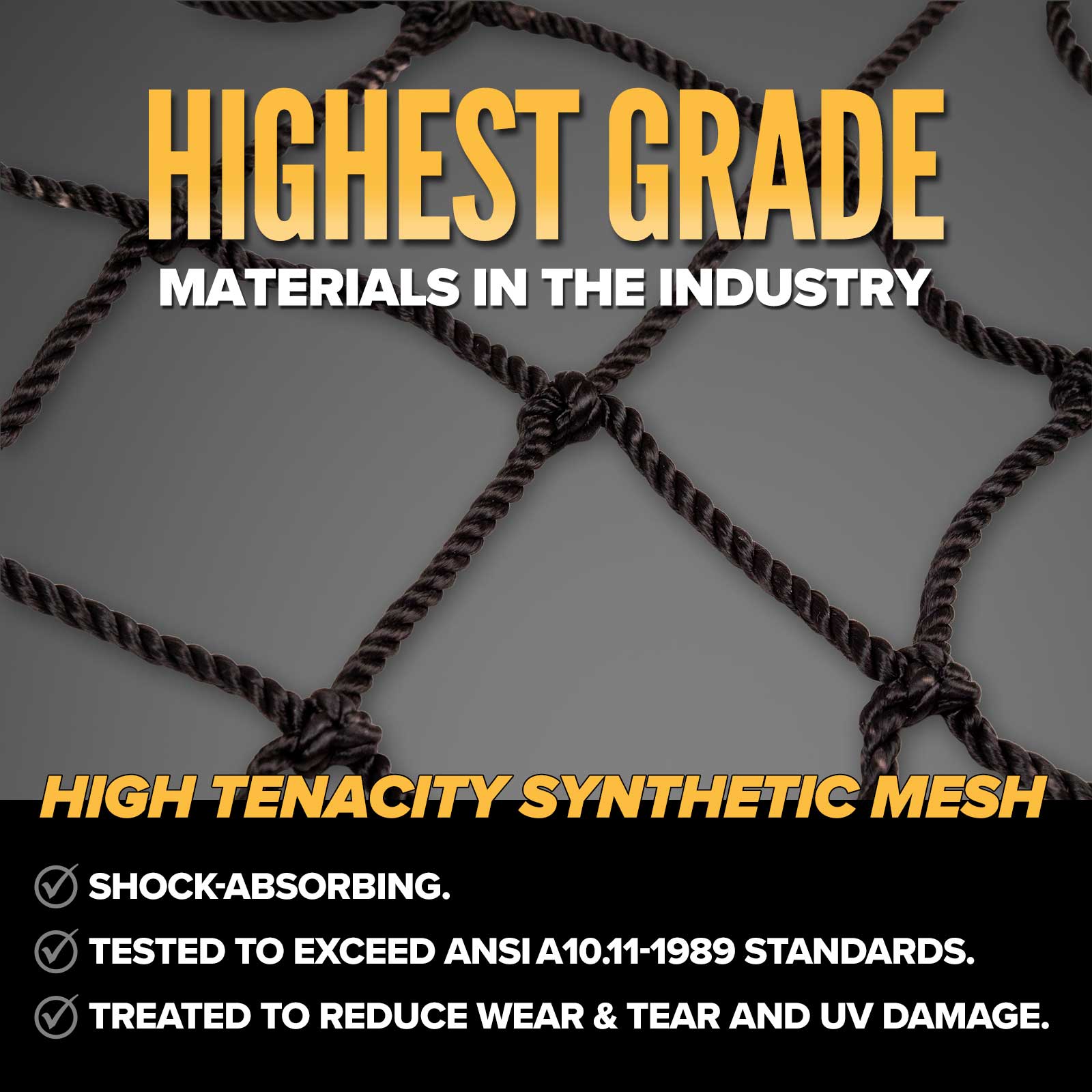

Highest Grade Materials in the Industry

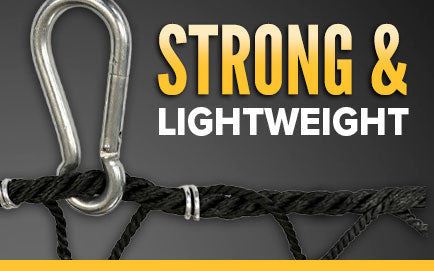

Built from high-tenacity polyamide, this 5mm knotted nylon safety net delivers exceptional strength in a lightweight design. A 6,700 lb. minimum tensile strength synthetic rope reinforces the border, while zinc-plated snap hooks provide secure, corrosion-resistant attachment. Made in the USA by InCord.
-
Safety Netting Built to Your Specifications
Start BuildingWhen standard netting won't fit the job, we have custom safety netting solutions built to your exact specifications. Made in the USA and designed for a wide range of applications, you can dictate size, accessories, and more. Build the perfect nets for your job.
-
