SKU: BTAS3-12-CR
3-1/2" Crosby® Bolt Type Anchor Shackle | G-2130 - 120 Ton
3-1/2" Crosby® Bolt Type Anchor Shackle | G-2130 - 120 Ton!
Authorized Distributor
$6,200.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 120 tons (Metric) / 264,554 lbs.
Brand part number: 1019739
Finish: Galvanized
Inside height: 14.63"
Inside width: 9"
Manufacturer name: Crosby®
Material: Carbon Steel Shackle
Alloy Steel Bolt
Alloy Steel Bolt
Mouth width: 5.25"
Pin size: 3-3/4"
Product weight: 265 lbs.
Safety factor: 6:1
Shackle size: 3-1/2"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Description

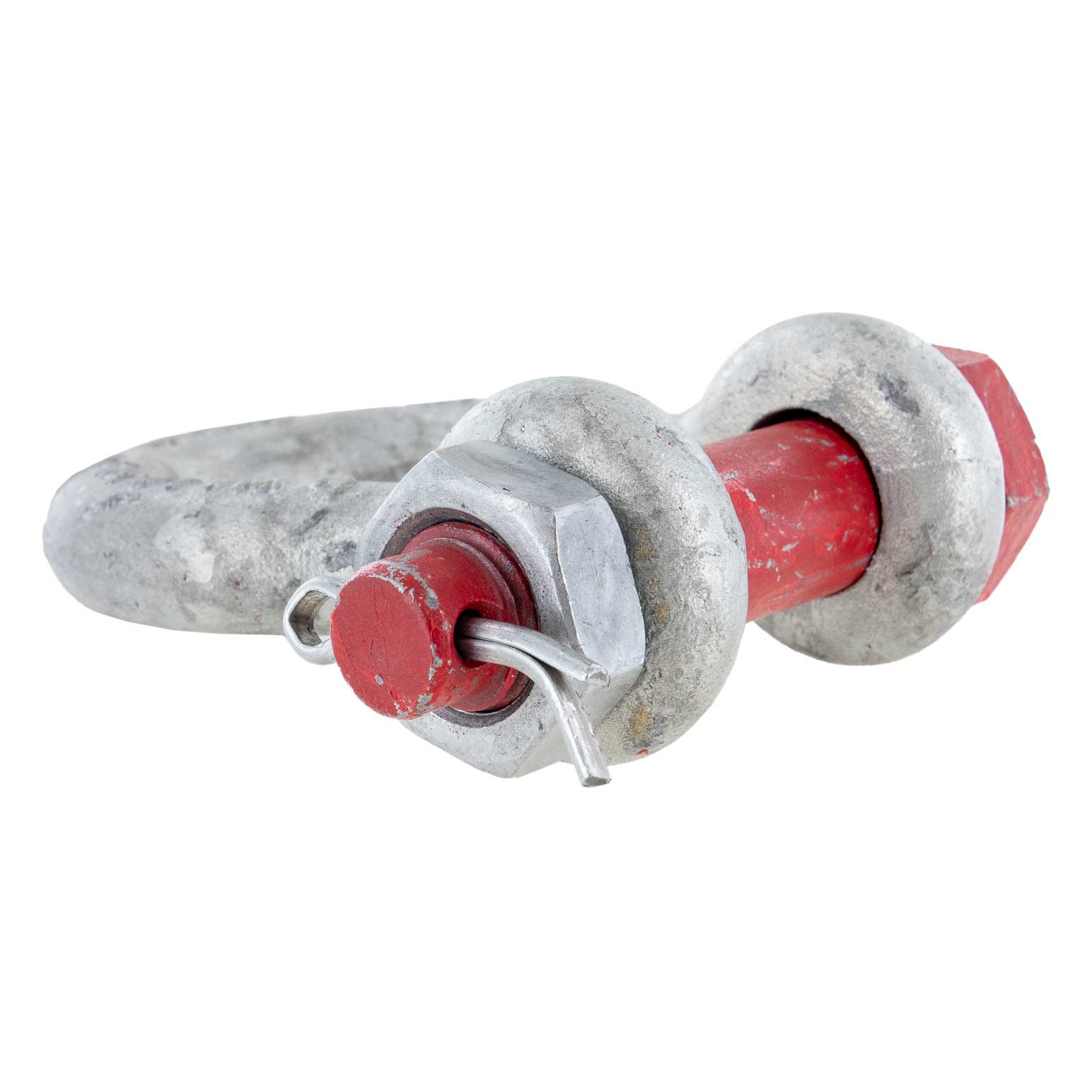

Crosby® 120 Ton Bolt Type Anchor Shackles
USA-made Crosby® bolt type shackles are manufactured with a thin head bolt with nut/cotter pin combination. Quenched and tempered forged steel with an alloy bolt for superior strength; hot dipped galvanization adds a layer of protection from corrosive elements.
Why Choose Bolt Type Anchor Shackles?
Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
G-2130 Shackle Features
- Working load limit, Grade 6, PIC, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
- Approved for use at temperatures between -40°F / -40°C and 400°F / 204°C.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
