description

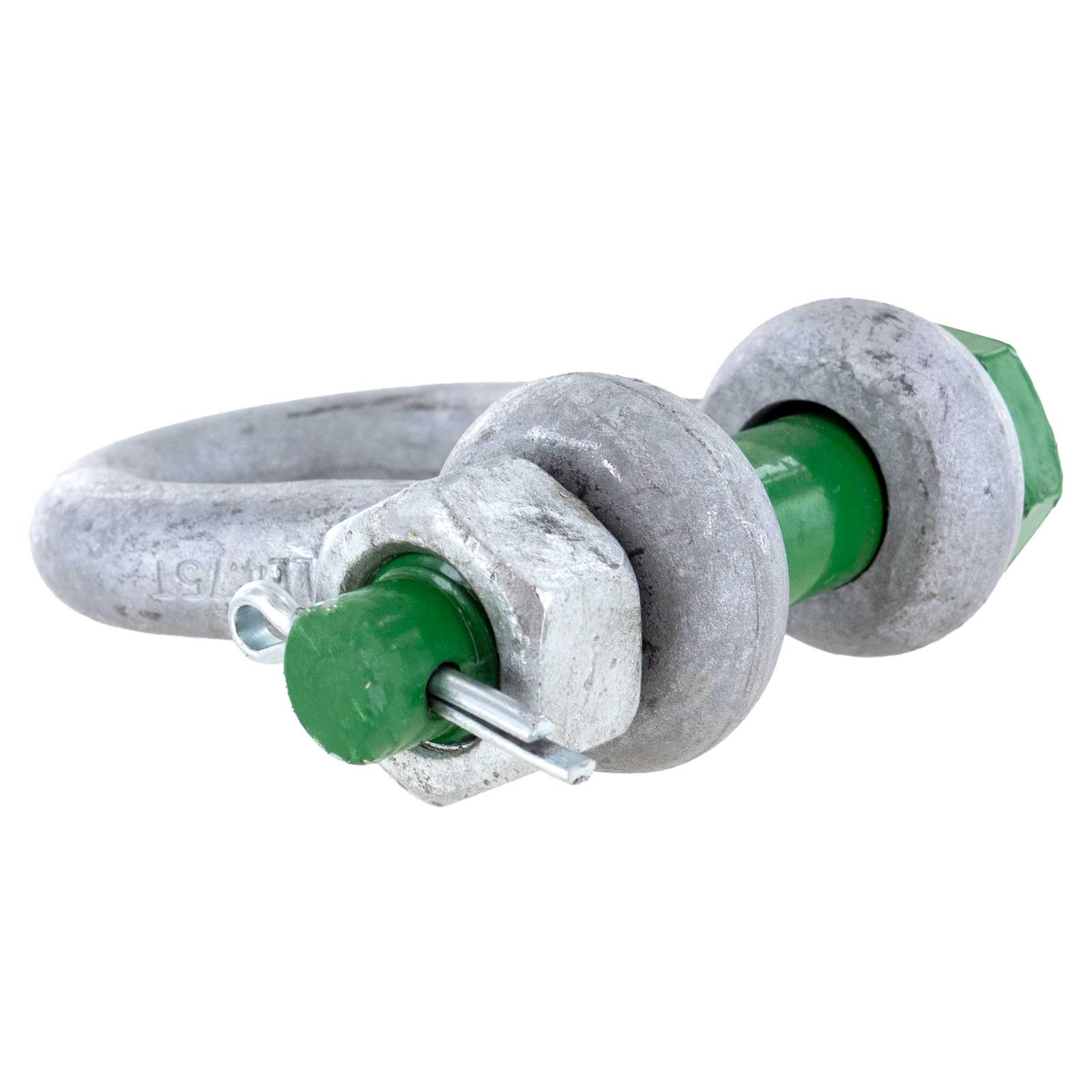

Van Beest Green Pin® Anchor Shackles are extremely high quality shackles that are made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
California Residents: WARNING
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
California Residents: WARNING
Van Beest Green Pin® Anchor Shackles are extremely high quality shackles that are made in Holland. These shackles are very easily identifiable in the ...
Van Beest Green Pin® Anchor Shackles are extremely high quality shackles that are made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion.
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
California Residents: WARNING
Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
California Residents: WARNING
specifications
Working Load Limit:
4.75 ton
Product Weight (lbs.):
2.59
Manufacturer Name:
Van Beest
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
3"
Inside Width:
2"
Mouth Width:
1.22"
Pin Size:
7/8"
Shackle Size:
3/4"
Product Guide:
Shackle Dimensions:
S:
3/4"
A:
7/8"
B:
3
C:
1.22
D:
2
