3" Van Beest Green Pin® Bolt Type Anchor Shackle | G-4163 - 85 Ton
3" Van Beest Green Pin® Bolt Type Anchor Shackle | G-4163 - 85 Ton!
Specifications
Specifications
- Working load limit: 85 tons (Metric) / 187,392 lbs.
- Inside width: 7.47"
- Mouth width: 5"
- Finish: Galvanized
- Safety factor: 6:1
- Manufacturer name: Van Beest
- Brand part number: GPGHMB75
- Inside height: 13"
- Pin size: 3-1/4"
- Shackle size: 3"
- Standards: Meets all requirements of EN13889, ASME B30.26, and Federal Specification RR-C-271.
- Type: Bolt Type Anchor
- Material: Grade 6 High-Tensile Steel
- Product weight: 136.69 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
Description
Description
Van Beest 85 Ton Bolt Type Anchor Shackles

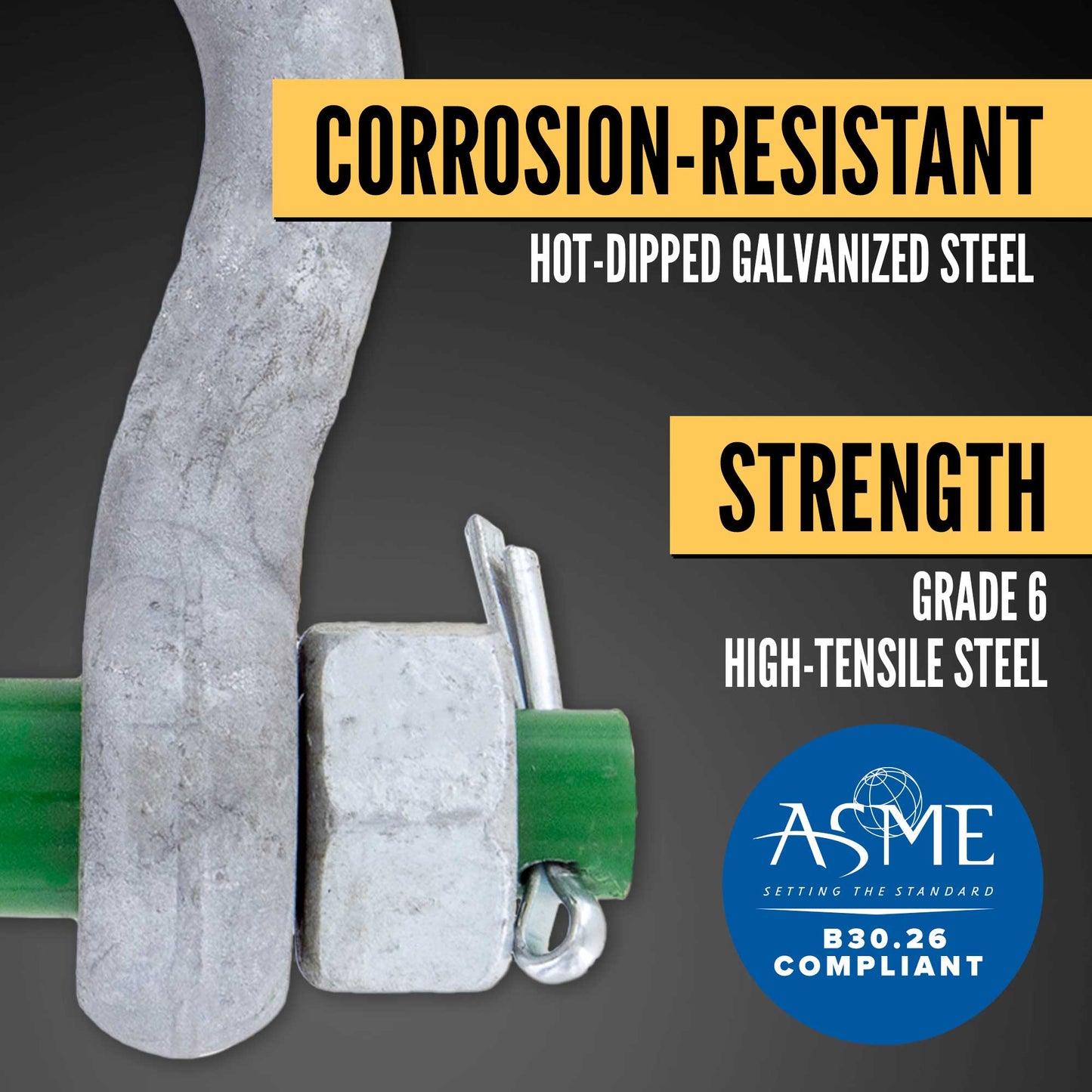

Van Beest Green Pin® Anchor Shackles are extremely high quality, European-made shackles. They are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion.

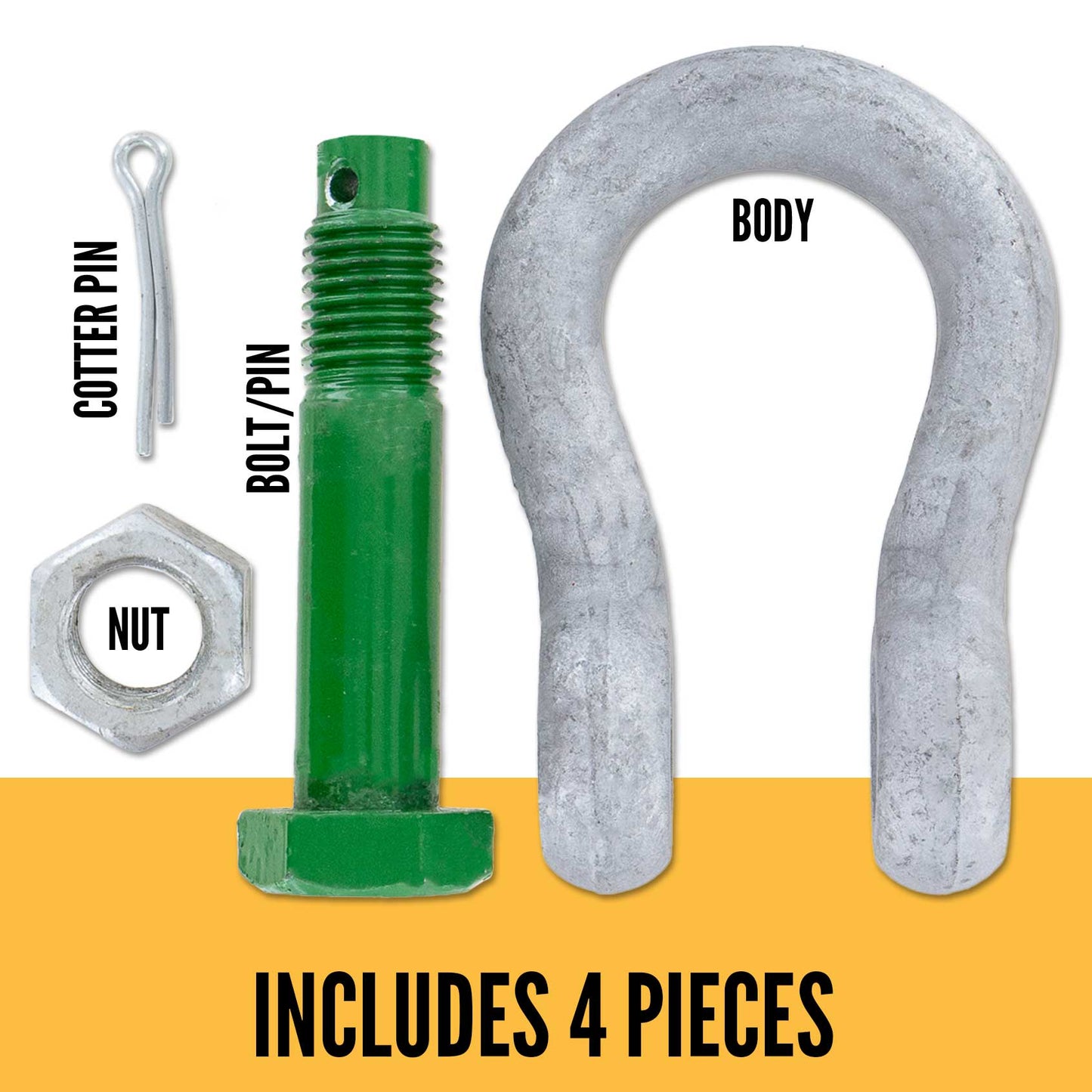

The shackle design includes a double safety - it has both a split pin and a safety bolt to prevent accidental unscrewing.
Why Choose Bolt Type Anchor Shackles?
Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are suitable for both single- and multi-leg rigging systems.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
