Straightpoint® 25 T Running Line Dynamometer - TIMH25T

  • Straightpoint® 25 T Running Line Dynamometer - TIMH25T
  • Straightpoint® 25 T Running Line Dynamometer - TIMH25T
  • Straightpoint® 25 T Running Line Dynamometer - TIMH25T
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
SKU: TIMH-25-T

$20,639.00
Free Shipping
Call/Chat for exact lead times
Standard Lead Time 14-21 business days.

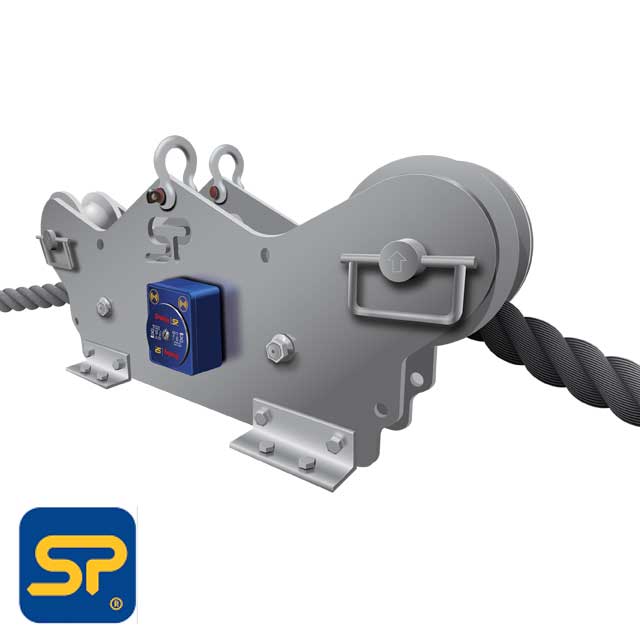

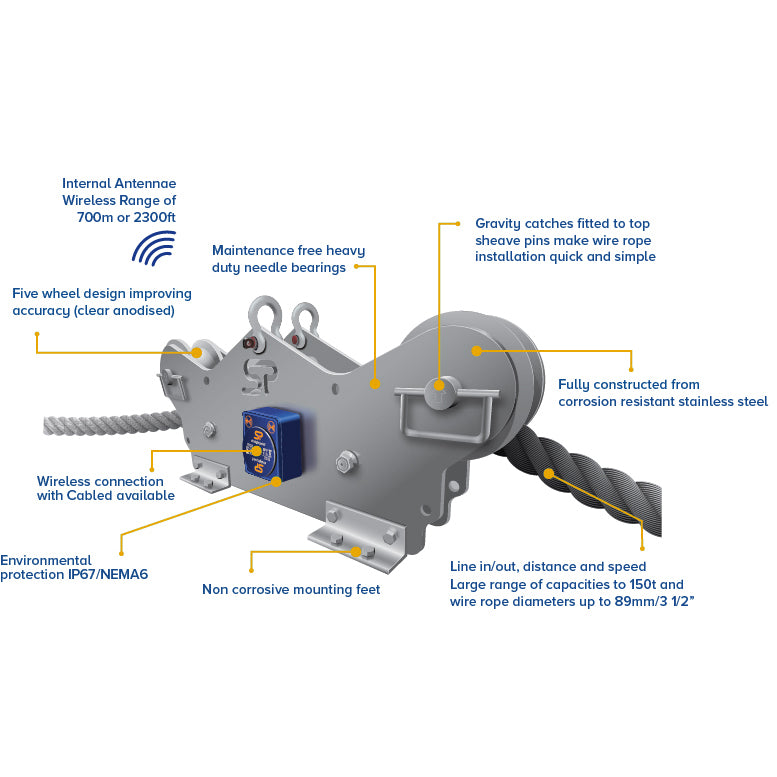

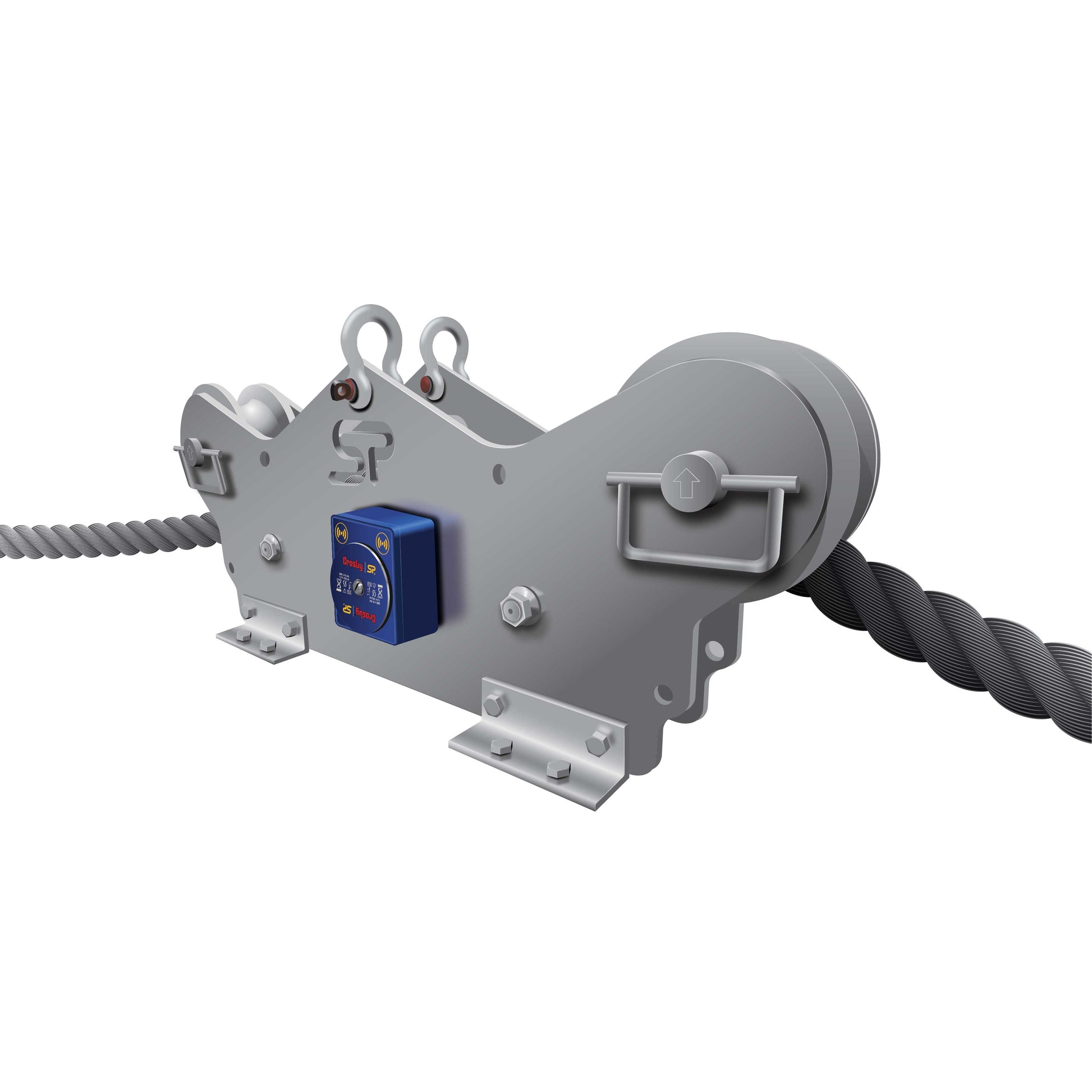

This running line tensionmeter from Straightpoint is a smart way to measure tension, line in/out speed, and distance for wire rope with 5/8"-1" diameter with a 25-ton maximum load rating. It is particularly useful in situations where there is no anchor or dead end on the line to rig a Straightpoint Radiolink or Loadlink digital dynamometer to measure tension force. This particular model (Straightpoint part #TIMH25T & Crosby part #2789137) has an output that connects to Straightpoint's SW-HHP handheld device (sold separately) or Straightpoint INSIGHT computer software (sold separately). For line out & speed, SW-MWLC software is required. This premium 25-ton running line dynamometer is made from corrosion resistant stainless steel and ideal for dockside, marine, offshore, towage, and salvage applications. We also offer a completely wireless running line dynamometer with the same wire rope dimension/load ratings.
This running line tensionmeter from Straightpoint is a smart way to measure tension, line in/out speed, and distance for wire rope with 5/8"-1" diamet...

Read More

This running line tensionmeter from Straightpoint is a smart way to measure tension, line in/out speed, and distance for wire rope with 5/8"-1" diameter with a 25-ton maximum load rating. It is particularly useful in situations where there is no anchor or dead end on the line to rig a Straightpoint Radiolink or Loadlink digital dynamometer to measure tension force. This particular model (Straightpoint part #TIMH25T & Crosby part #2789137) has an output that connects to Straightpoint's SW-HHP handheld device (sold separately) or Straightpoint INSIGHT computer software (sold separately). For line out & speed, SW-MWLC software is required. This premium 25-ton running line dynamometer is made from corrosion resistant stainless steel and ideal for dockside, marine, offshore, towage, and salvage applications. We also offer a completely wireless running line dynamometer with the same wire rope dimension/load ratings.

Show Less

Product Weight:
190

Load Capacity:
55,000 lbs.

Wire Rope Diameter:
5/8" - 1"

Protection:
IP67

Operating Temperature:
-10° to +50°C | 14° to 122° F

Accuracy:
+/- 2% of Full Scale

Product Guide:

Read More

Show Less
