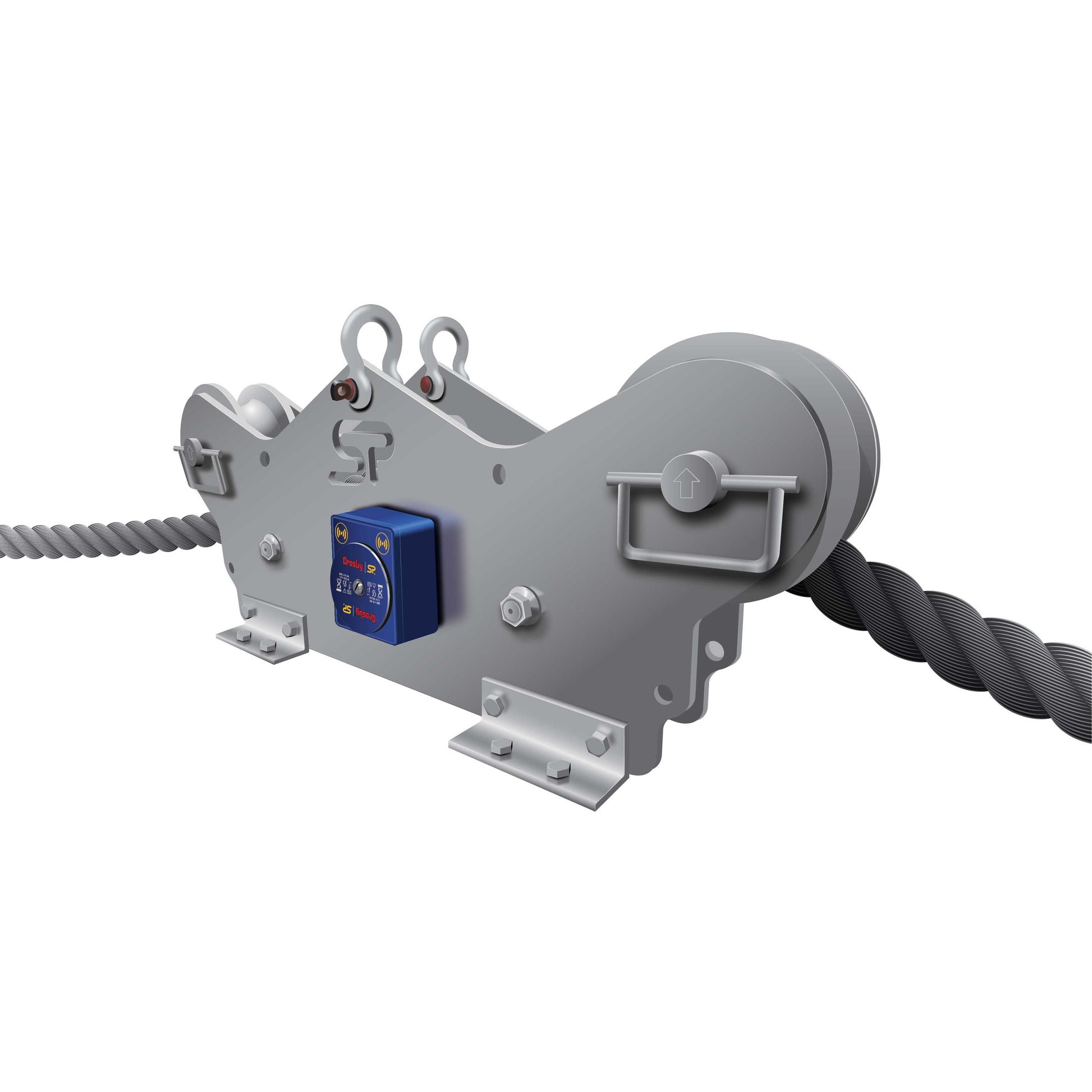

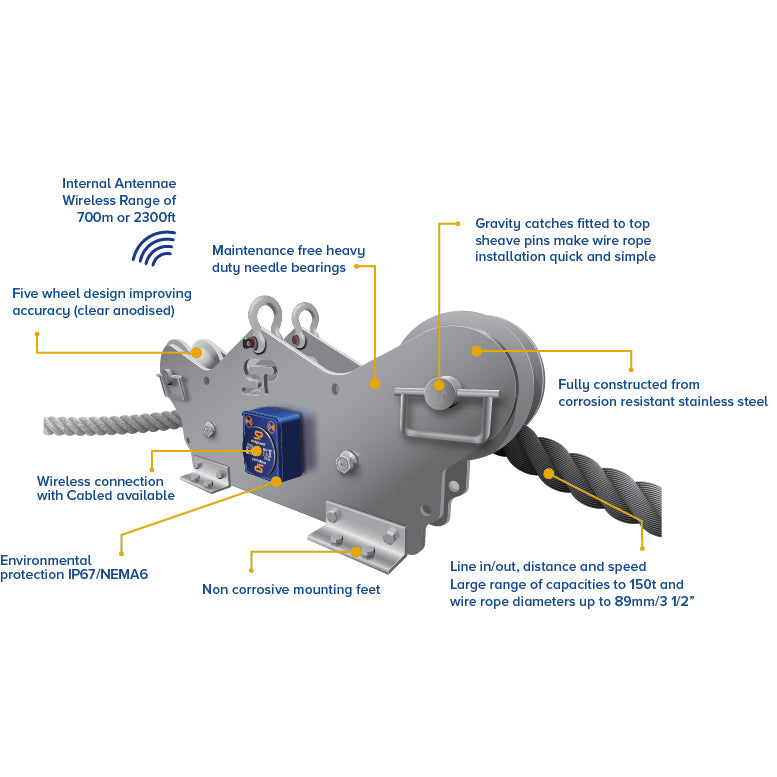

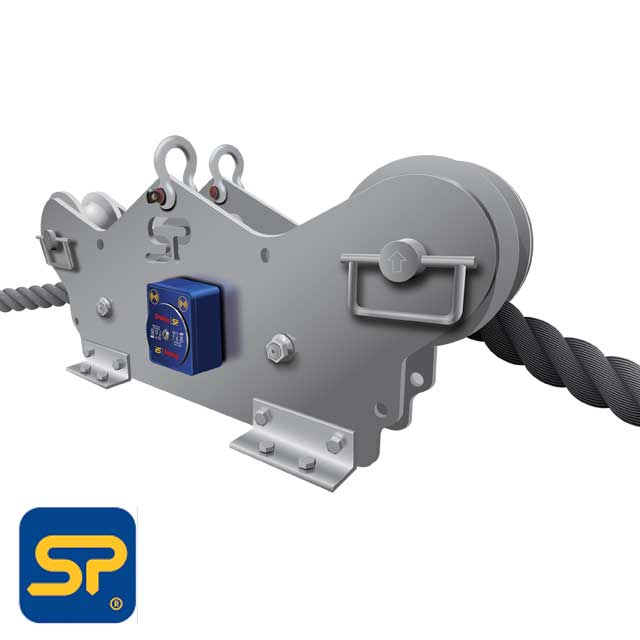

This running line tensionmeter from Straightpoint is a smart way to measure tension, line in/out speed, and distance for wire rope with 2"-3-1/2" diameter with a 150-ton maximum load rating. It is particularly useful in situations where there is no anchor or dead end on the line to rig a Straightpoint Radiolink or Loadlink digital dynamometer to measure tension force. This particular model (Straightpoint part #TIMH10T & Crosby part #2789133) has an output that connects to Straightpoint's SW-HHP handheld device (sold separately) or Straightpoint INSIGHT computer software (sold separately). For line out & speed, SW-MWLC software is required. This premium 150-ton running line dynamometer is made from corrosion resistant stainless steel and ideal for dockside, marine, offshore, towage, and salvage applications. We also offer a completely wireless running line dynamometer with the same wire rope dimension/load ratings.
This running line tensionmeter from Straightpoint is a smart way to measure tension, line in/out speed, and distance for wire rope with 2"-3-1/2" diam...
This running line tensionmeter from Straightpoint is a smart way to measure tension, line in/out speed, and distance for wire rope with 2"-3-1/2" diameter with a 150-ton maximum load rating. It is particularly useful in situations where there is no anchor or dead end on the line to rig a Straightpoint Radiolink or Loadlink digital dynamometer to measure tension force. This particular model (Straightpoint part #TIMH10T & Crosby part #2789133) has an output that connects to Straightpoint's SW-HHP handheld device (sold separately) or Straightpoint INSIGHT computer software (sold separately). For line out & speed, SW-MWLC software is required. This premium 150-ton running line dynamometer is made from corrosion resistant stainless steel and ideal for dockside, marine, offshore, towage, and salvage applications. We also offer a completely wireless running line dynamometer with the same wire rope dimension/load ratings.
specifications
Product Weight (lbs.):
506
Load Capacity:
330,000 lbs.
Wire Rope Diameter:
2" - 3-1/2"
Protection:
IP67
Operating Temperature:
-10° to +50°C | 14° to 122° F
Accuracy:
+/- 2% of Full Scale
Product Guide:
