1-5/8" x 1-5/8" Short Slotted Strut Channel 4 ft. - Aluminum
1-5/8" x 1-5/8" Short Slotted Strut Channel 4 ft. - Aluminum!
1-5/8" x 1-5/8" Short Slotted Strut Channel 4 ft. - Aluminum
Type:
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions?
We can help!Payment Options
Specifications

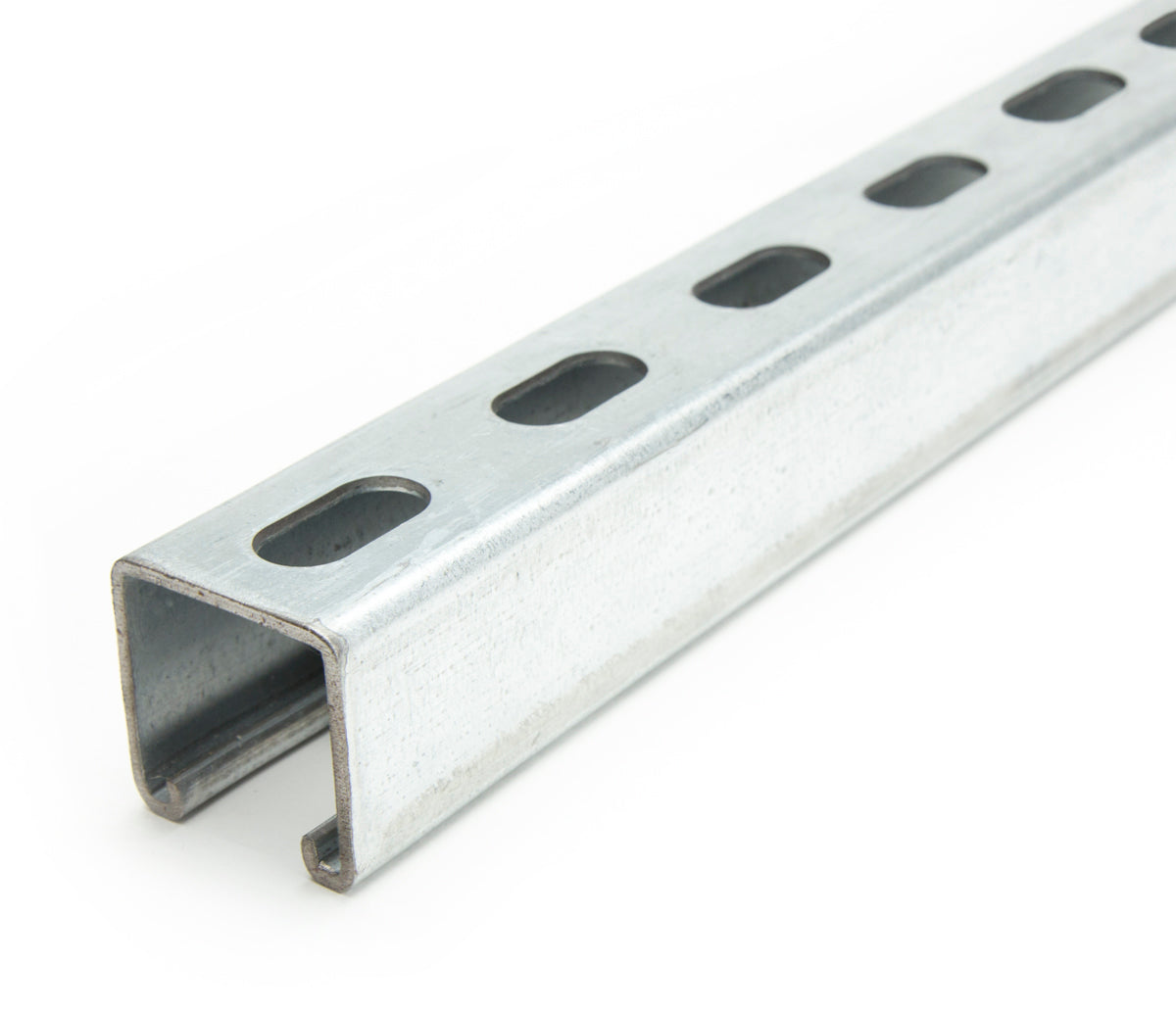

1-5/8" x 1-5/8" Short Slotted Strut Channel, 4 ft. - Aluminum
This 4-foot aluminum strut channel is a go-to choice for longer support runs that still need easy handling on the job. The square profile keeps strength consistent, while the short slots help you dial in alignment without turning the install into a constant rework. Plain aluminum construction adds corrosion resistance for everyday exposure conditions.
Notice: When pairing aluminum strut with other metals, choose compatible fasteners and fittings to help reduce corrosion risk over time.
4-Foot Aluminum Short-Slotted Square Strut Channel for Framing and Mounting
Built for electrical, plumbing, and HVAC support systems, this channel provides a straight, dependable mounting path with controlled adjustability. It’s well-suited for runs where you want fewer joints and a cleaner finished layout.
Key Features
- 6005-T5 Aluminum Strength: High-strength alloy provides robust support performance and exceeds 6063-T6 strength.
- Square Profile Stability: 1-5/8" x 1-5/8" design supports balanced loads and consistent framing.
- Heavy-Duty 12 Gauge Wall: 0.098" thickness helps reduce flex in longer spans.
- Short Slots for Control: Provides moderate adjustment for bolt placement while maintaining strong alignment.

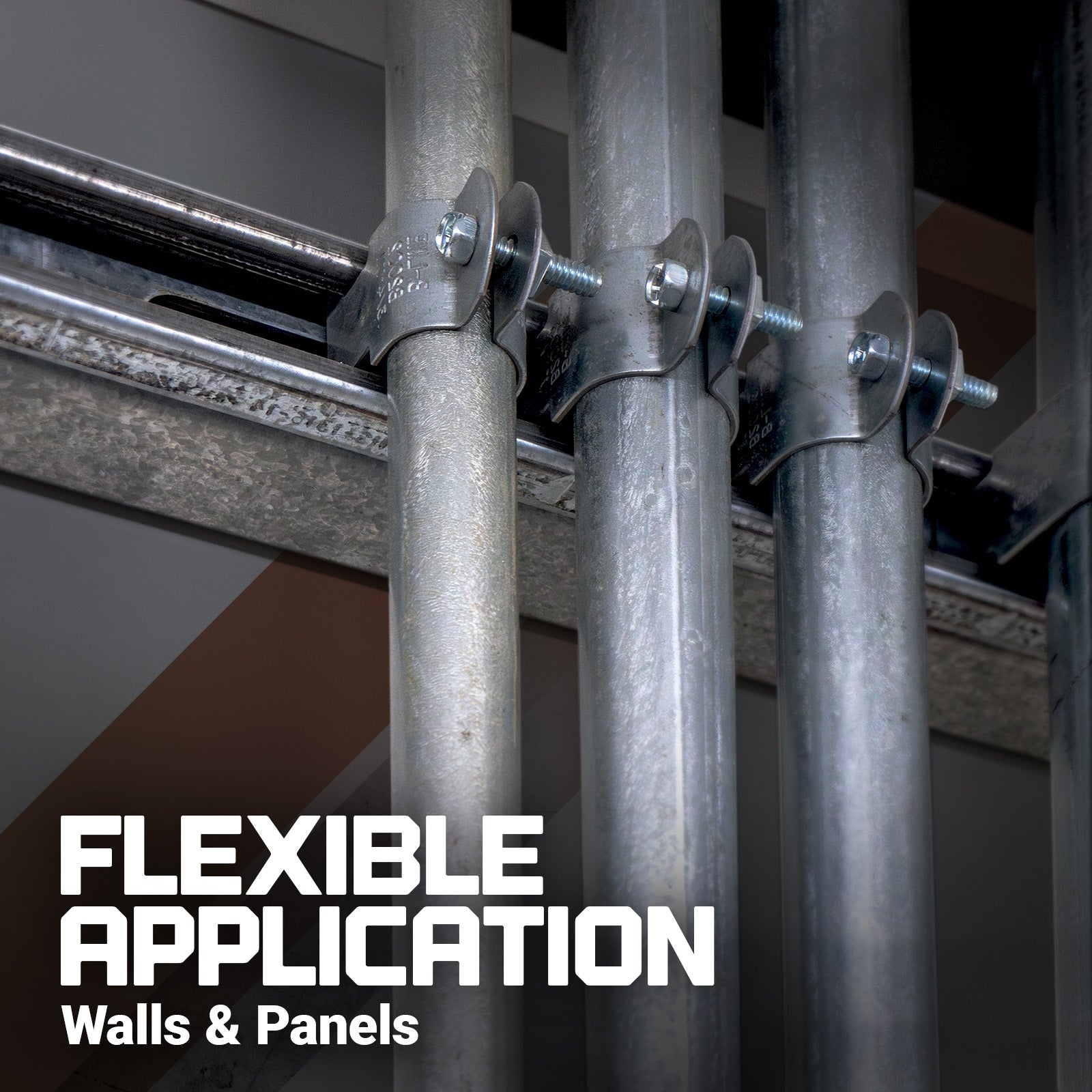

Common Applications
- Electrical Support Runs: Creates mounting structure for conduit, boxes, and accessories.
- HVAC Frameworks: Supports ducting, hangers, and mechanical equipment components.
- Plumbing Support Systems: Used as a stable mounting path for pipe clamps and supports.
- Facility Maintenance Projects: Ideal for adjustable framing and equipment mounting upgrades.
- Light Structural Framing: Builds clean, modular frameworks where corrosion resistance is preferred.
Installation Tips
- Plan Anchor Locations: Longer runs perform best when supports are spaced appropriately for the load.

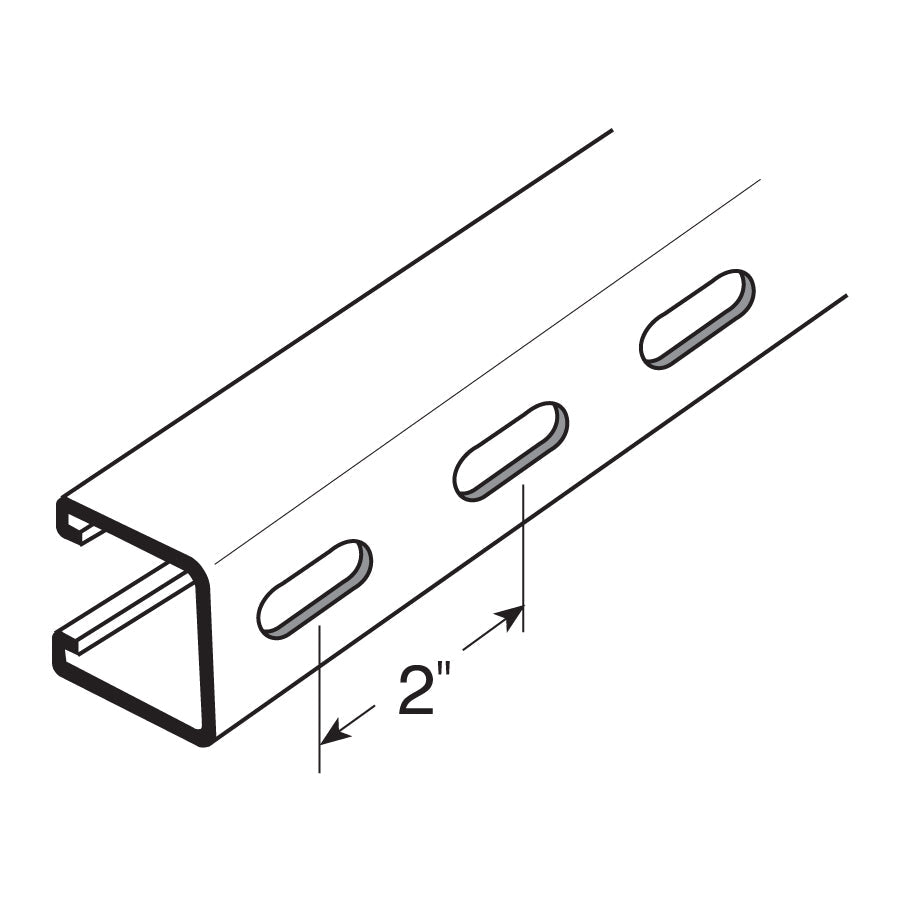

- Confirm Slot Sizing: 1-1/8" x 9/16" slots on 2" centers help standardize hardware placement.
- Keep Cuts Clean: If trimming is needed, deburr edges to maintain safe, professional finishes.
