Specifications
1-5/8" x 1-5/8" Short Slotted Strut Channel, 1 ft. - Pre-Galvanized
This 1-foot pre-galvanized strut channel is designed for compact support needs where corrosion resistance and strength are required. The square profile provides balanced load support, while short slots allow controlled alignment during installation. It’s a dependable option for clean, professional builds.
Notice: Pre-galvanized finishes protect against surface corrosion, but cut edges may require additional coating in moisture-prone environments.
Pre-Galvanized Square Short-Slotted Strut Channel for Compact Framing
Ideal for electrical, plumbing, and HVAC installations, this channel supports precise layouts with predictable hardware placement. The short-slot pattern helps maintain straight assemblies while allowing minor adjustment.
Key Features
- Pre-Galvanized Carbon Steel: Zinc-coated finish helps resist rust in general-purpose applications.

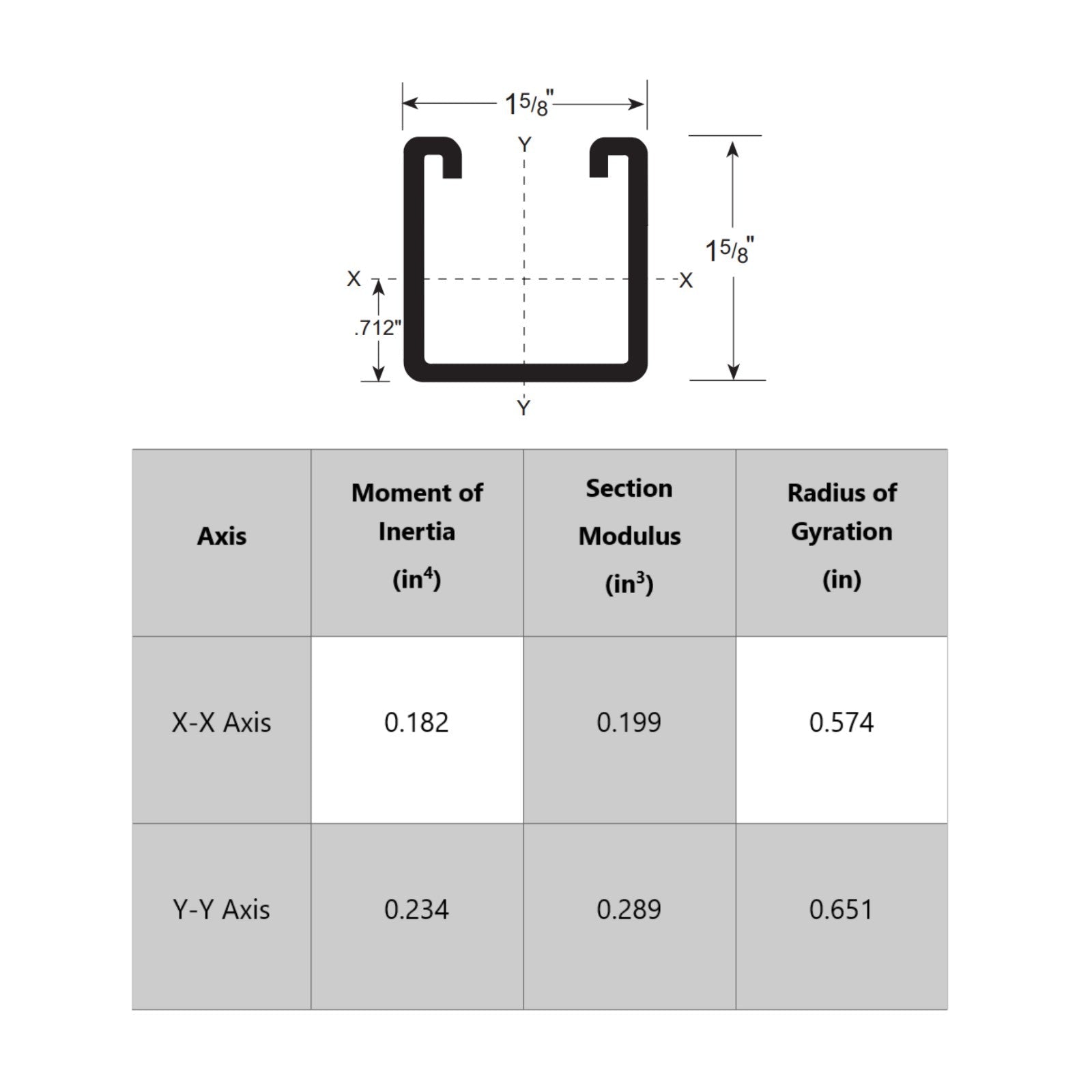

- Square 1-5/8" x 1-5/8" Profile: Provides uniform strength and stability.
- 12 Gauge Construction: 0.098" thickness adds rigidity for dependable support.
- 1-Foot Length: Well-suited for short spans and connection points.
Common Applications

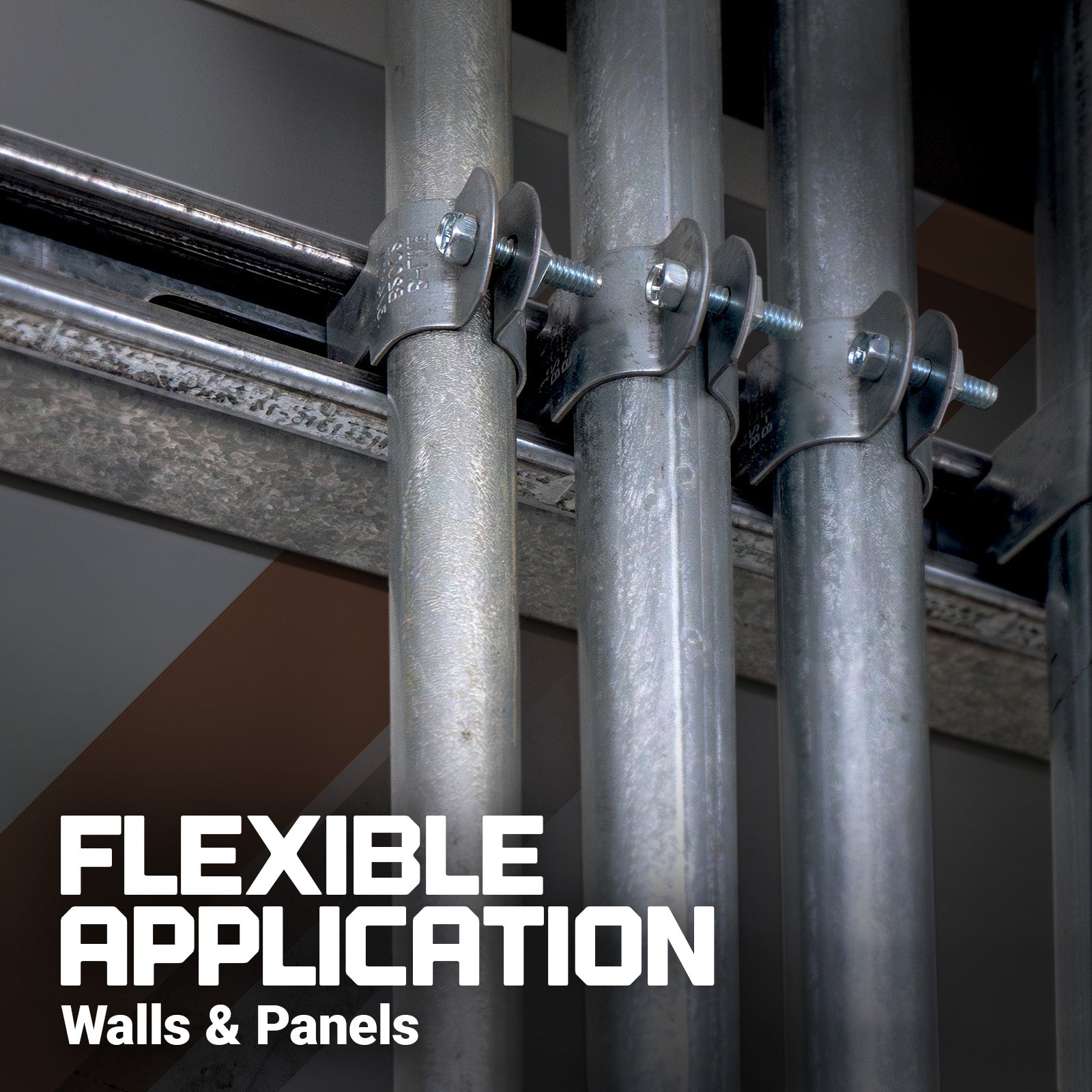

- Electrical Mounting: Supports conduit, boxes, and fittings.
- HVAC Supports: Used for short hanger sections and brackets.
- Plumbing Framing: Provides mounting structure for pipe clamps.
- Equipment Mounts: Acts as a compact structural tie-in.
- Interior Construction: Ideal where moderate corrosion resistance is needed.
Installation Tips

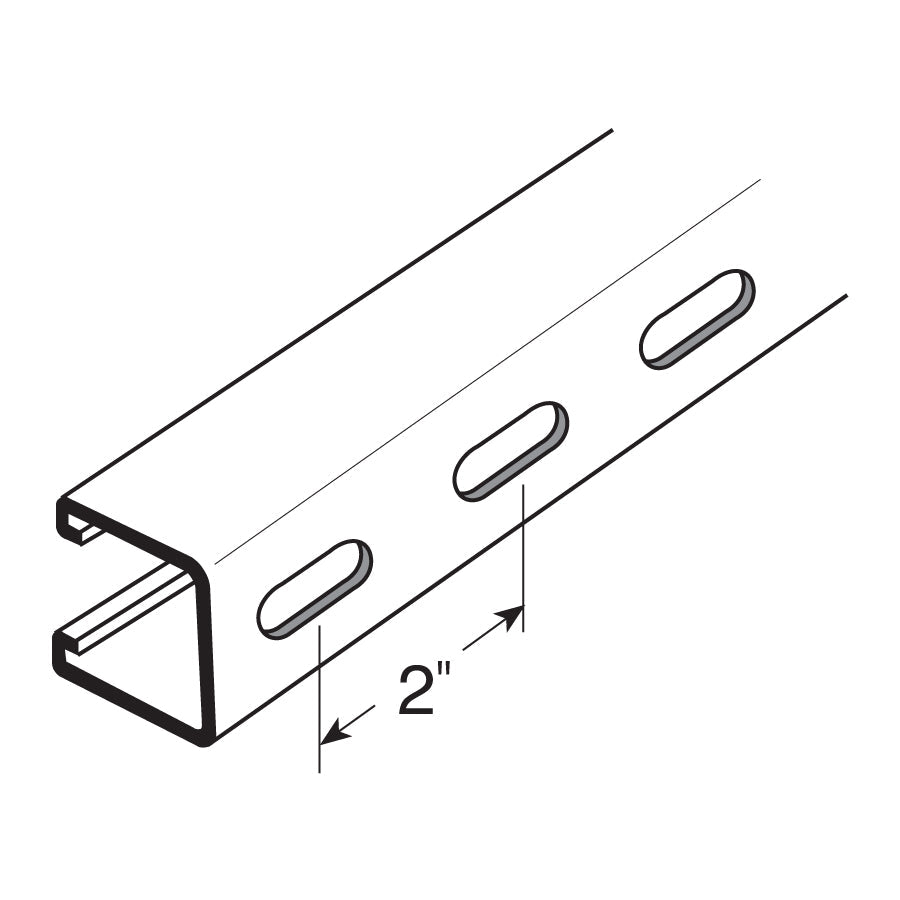

- Confirm Slot Spacing: Slots are 1-1/8" x 9/16" on 2" centers.
- Use Compatible Hardware: Pair with 1-5/8" strut nuts and fittings.
- Protect Cut Areas: Treat exposed steel to maintain corrosion resistance.
