Specifications

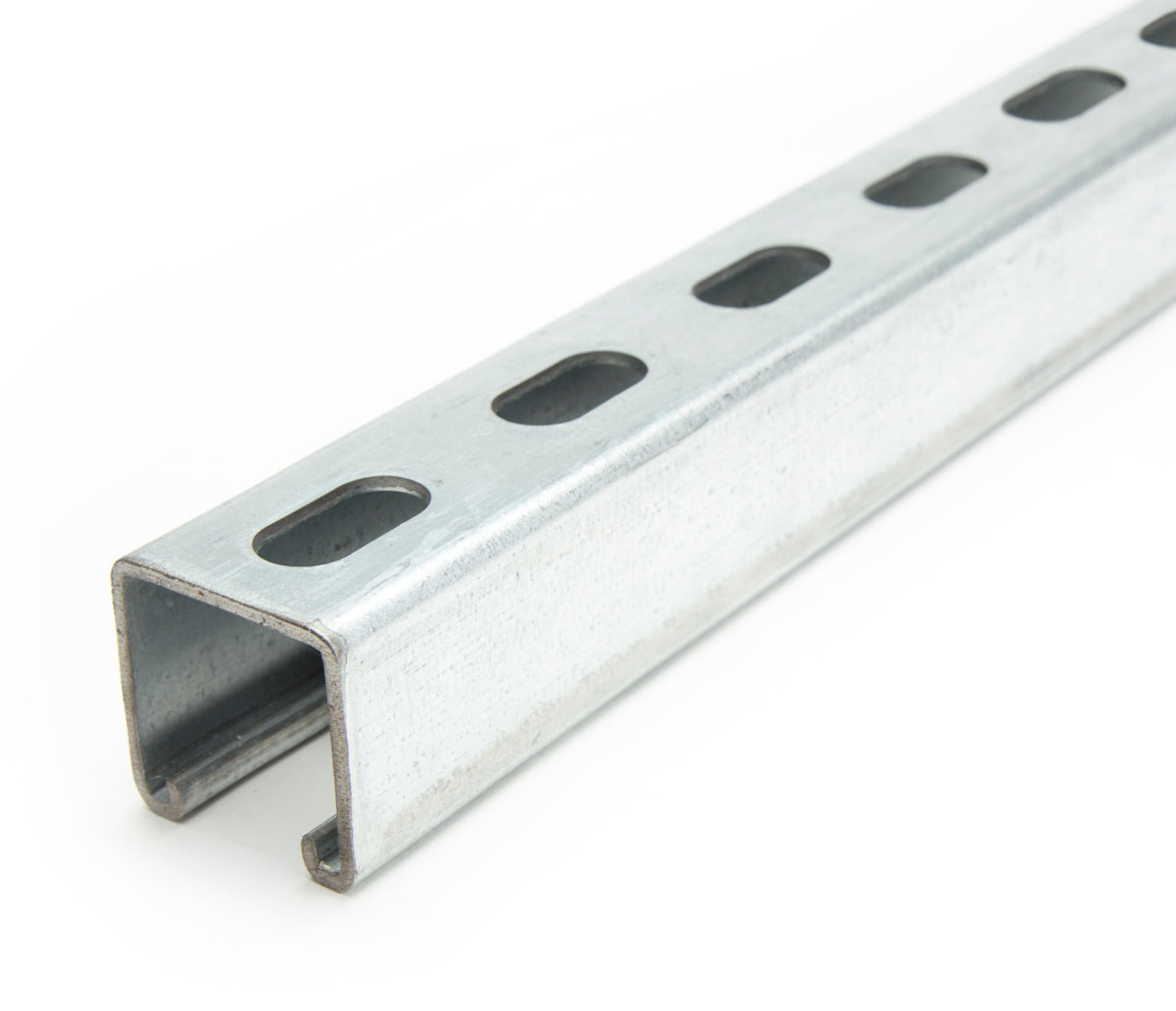

1-5/8" x 1-5/8" Short Slotted Strut Channel, 3 ft. - Aluminum
This 3-foot aluminum strut channel is built for clean, reliable support where you need a longer run without extra weight. The square profile provides balanced strength, and the short slots give you practical adjustability to line up hardware fast. With a plain aluminum finish, it’s a strong fit for jobs where corrosion resistance matters.
Notice: Aluminum resists corrosion naturally, but overall performance depends on using compatible hardware and considering the install environment.
Aluminum Short-Slotted Square Strut Channel for Mid-Length Support Runs
Use this channel for electrical, plumbing, and HVAC support structures that need consistent alignment with just enough flexibility to make installation easier. The short-slot pattern helps keep the build straight while still allowing fine positioning.
Key Features
- High-Strength Aluminum Alloy: Manufactured from 6005-T5 aluminum, exceeding 6063-T6 strength for demanding support work.

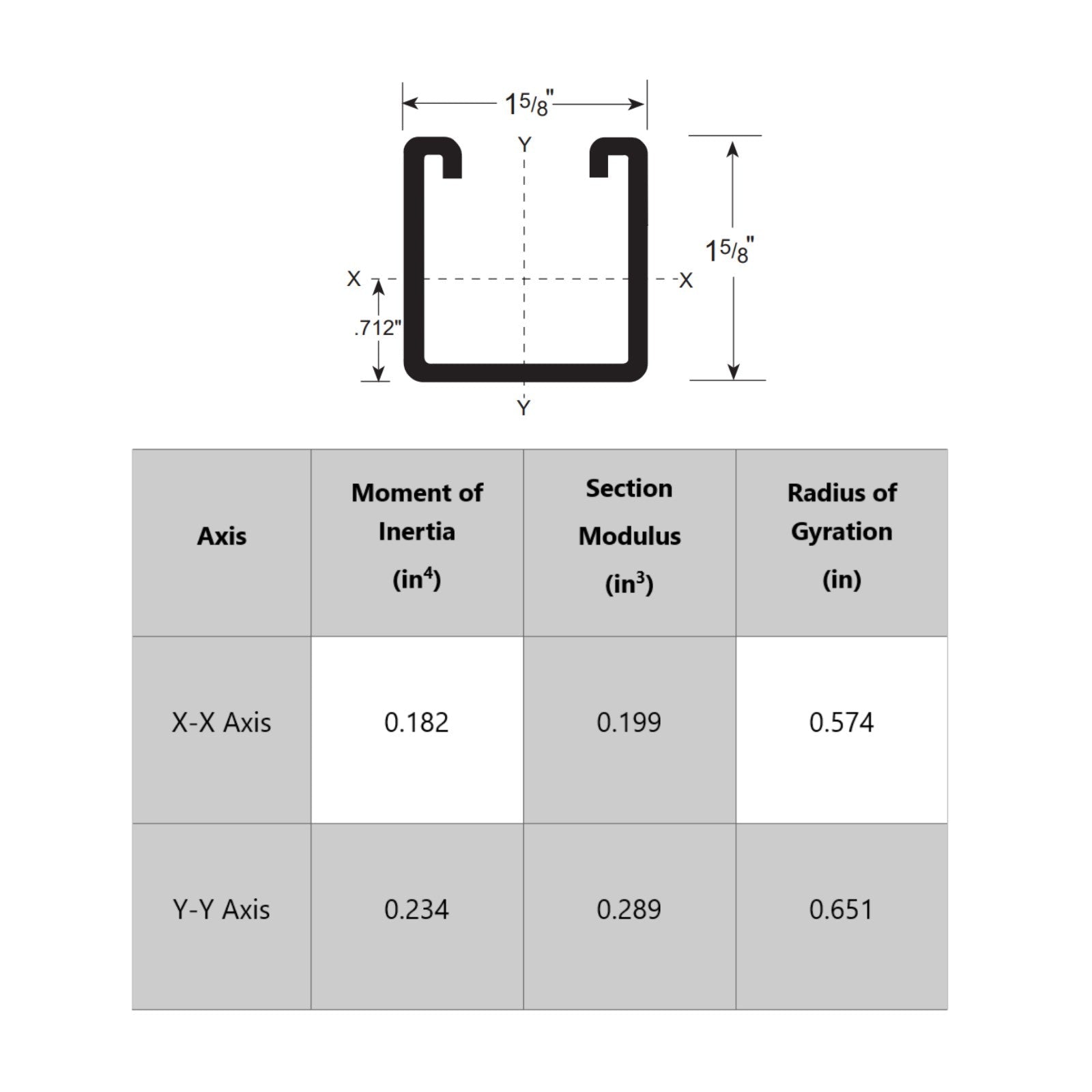

- Square 1-5/8" x 1-5/8" Profile: Provides uniform strength and stability across frameworks and mounting runs.
- 12 Gauge Thickness: 0.098" material thickness delivers added rigidity compared to lighter channel options.
- Short-Slotted Layout: Slots support controlled adjustability for bolt placement without excessive play.
Common Applications

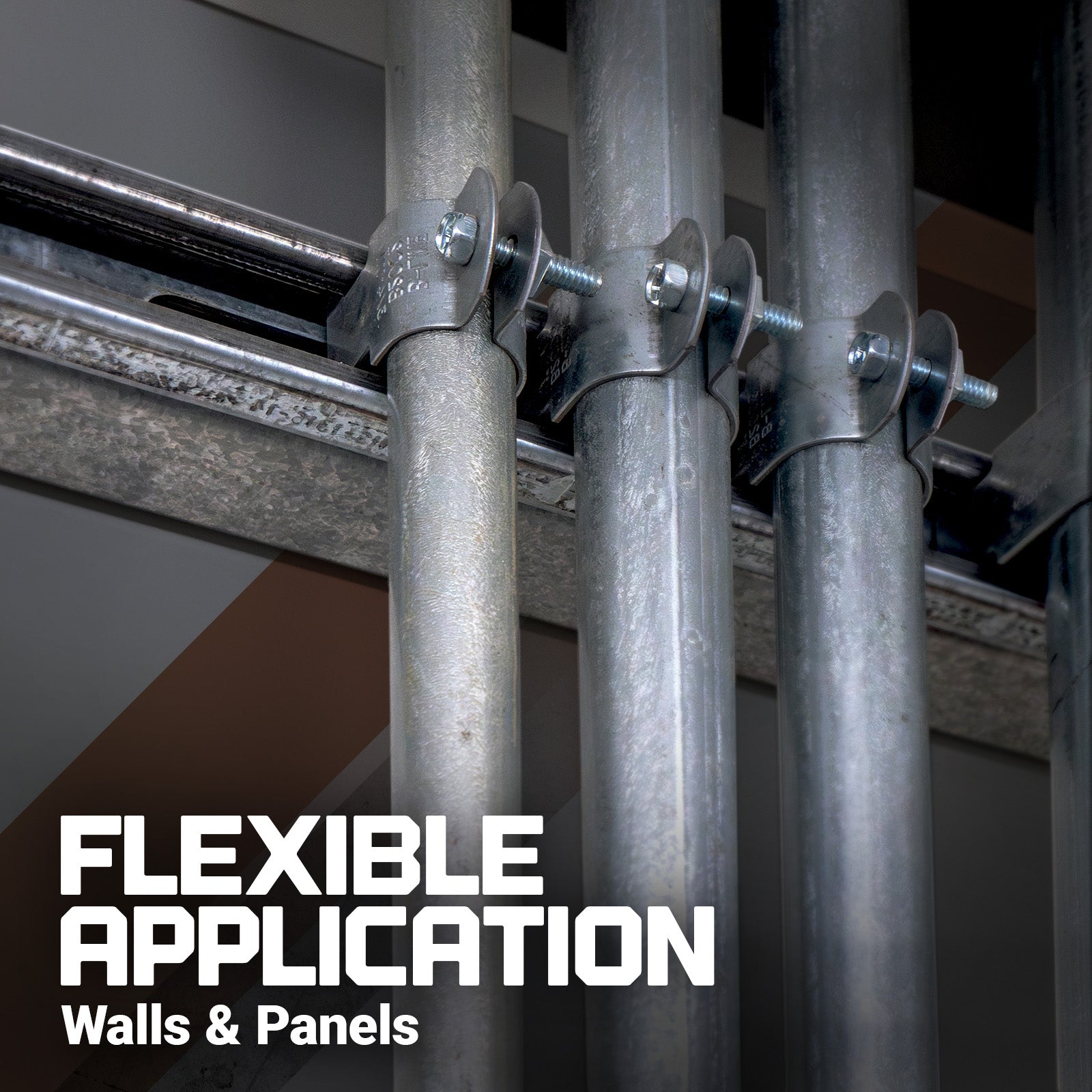

- Electrical Framing: Supports conduit runs, boxes, and mounting accessories along walls or ceilings.
- HVAC Supports: Used for hanger assemblies, bracing, and equipment mounts in mechanical spaces.
- Plumbing Mounting: Provides a sturdy base for clamps and short pipe support sections.
- Modular Frameworks: Builds structured frames and adjustable support systems without welding.
- Corrosion-Resistant Builds: Ideal for projects where steel may not be the best long-term fit.
Installation Tips

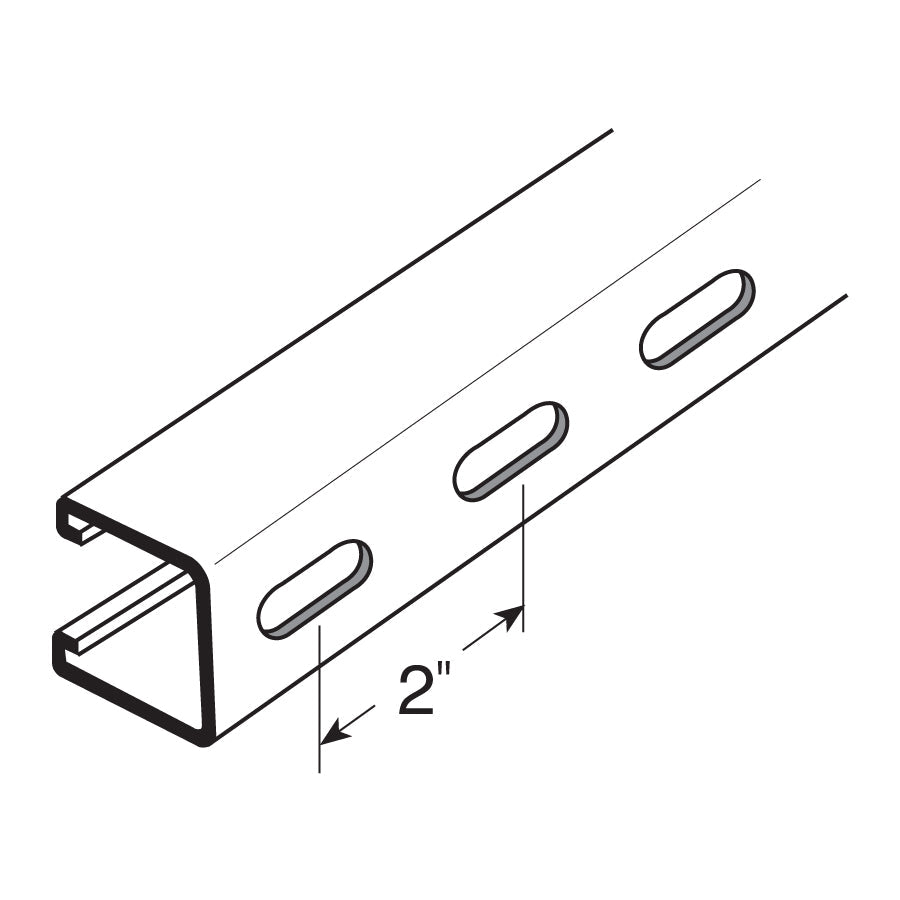

- Verify Slot Pattern: Slots measure 1-1/8" x 9/16" with 2" center-to-center spacing for predictable hardware placement.
- Match Channel Hardware: Use fittings and strut nuts designed for 1-5/8" strut to ensure proper engagement.
- Deburr Field Cuts: If you trim the channel, smooth cut edges to protect wiring, hands, and nearby components.
