SKU: DRUM12-D

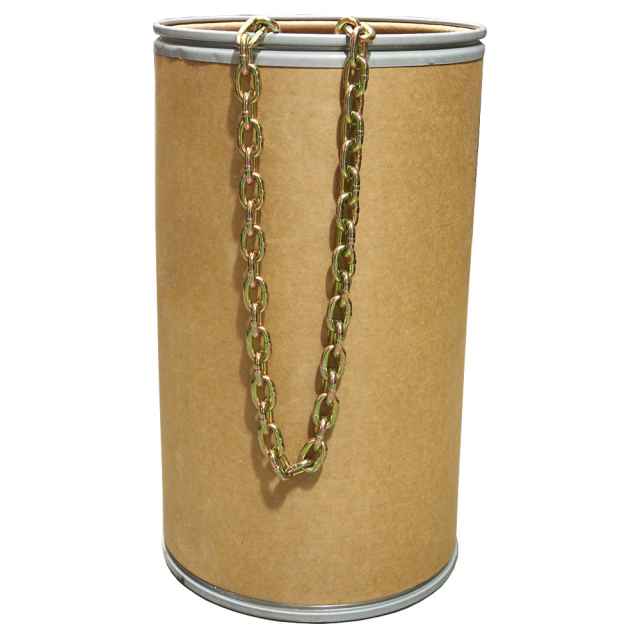

1/2" x 200' CM® Transport Chain Drum | Grade 70 | Made in USA
1/2" x 200' CM® Transport Chain Drum | Grade 70 | Made in USA!
$1,871.89
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 45,200 lbs.
Grade: 70
Length: 200'
Working load limit: 11,300 lbs.
Chain size: 1/2"
Finish: Yellow Zinc Chromate
Manufacturer name: Columbus McKinnon
Material: Carbon Steel
Product weight: 534 lbs.
Rated for Overhead Lifting: No
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: DOT-compliant; meets or exceeds FMCSA CFR49 Section 393.104, NACM, and ASTM B-633 requirements.
Additional Info: Link size: Standard
Description

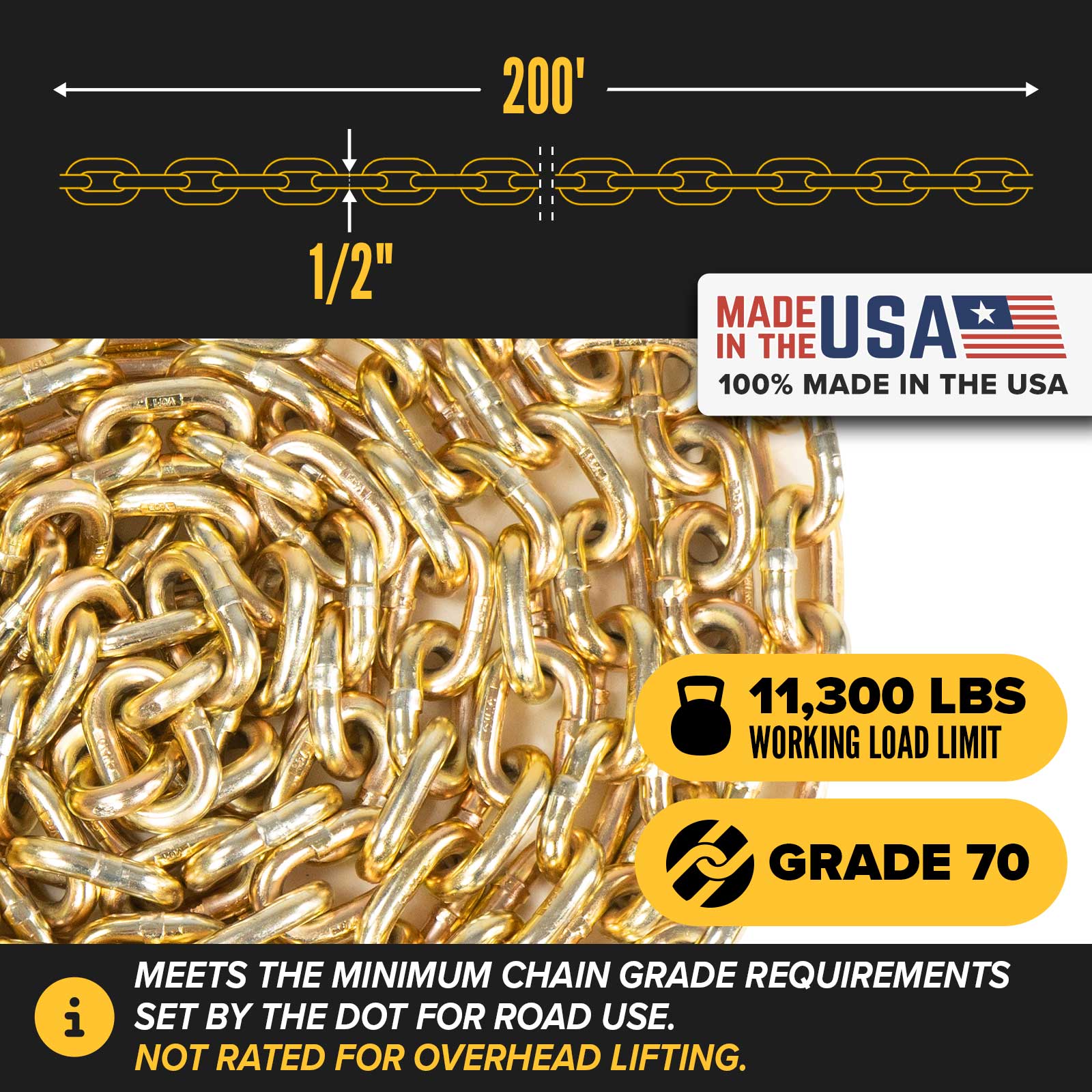

Domestic Bulk Grade 70 1/2" Tie Down Chain

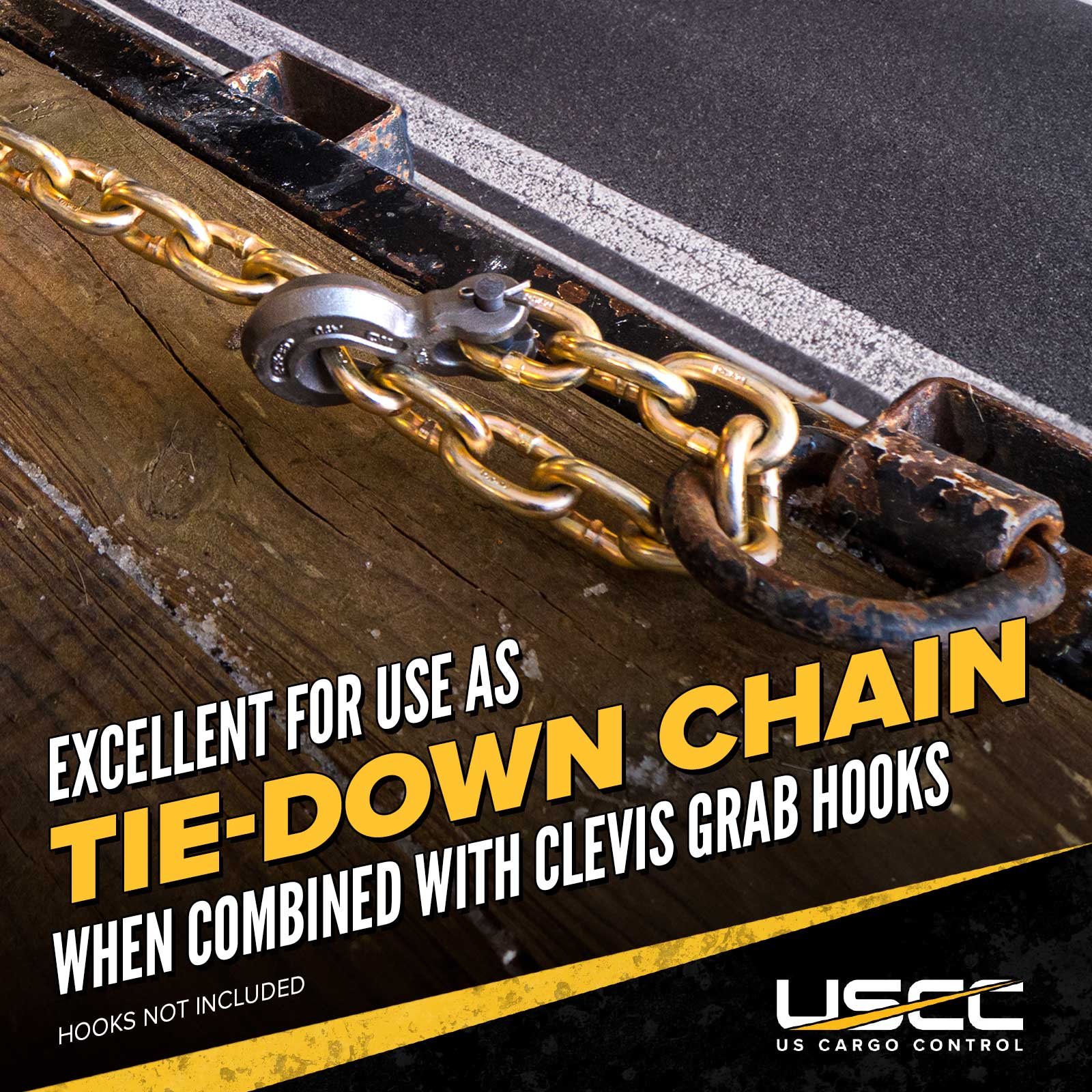

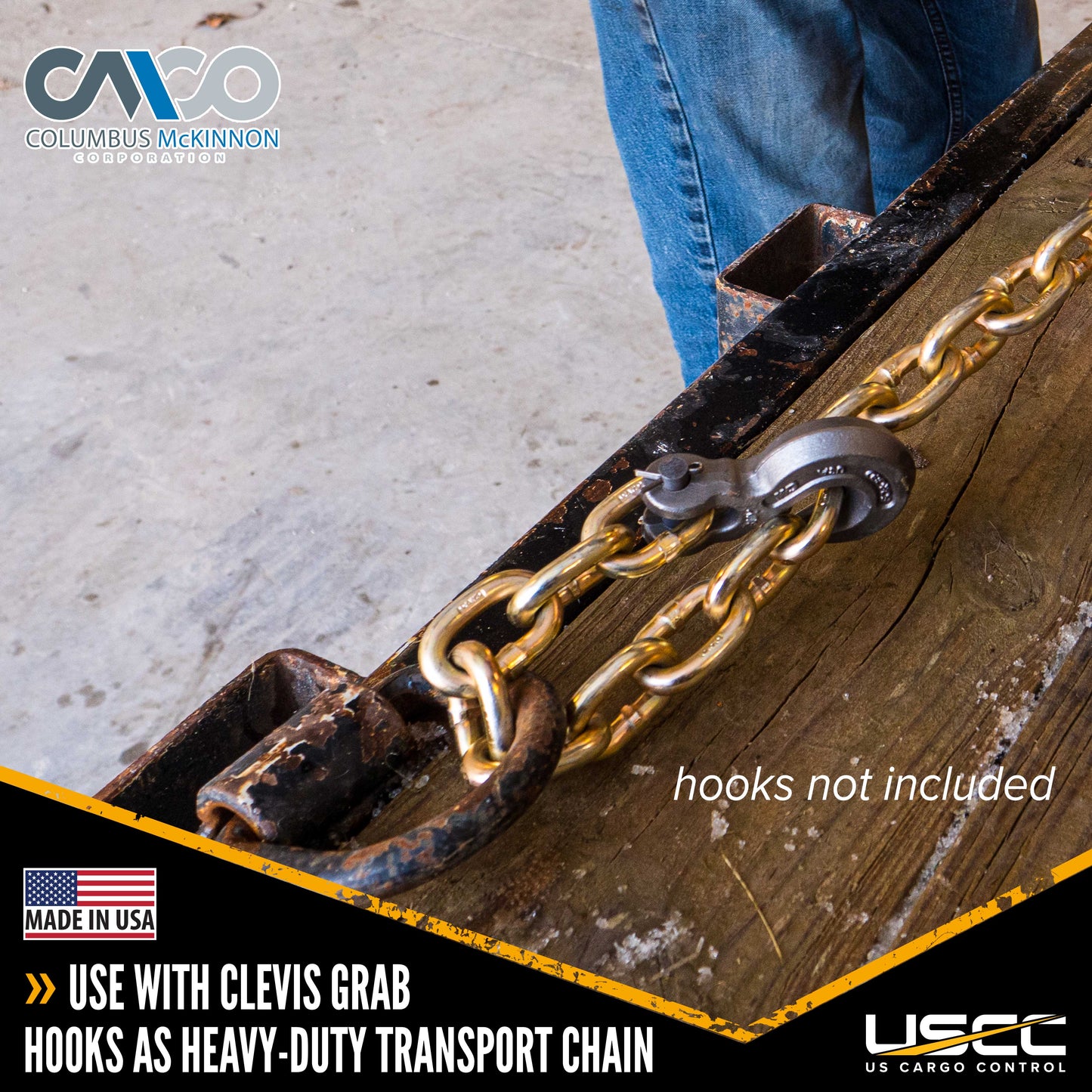

Standard link grade 70 transport chain is made in the USA by trusted manufacturer Columbus McKinnon using high-strength carbon steel for superior quality and strength. Heat-treated and strength-tested, it's excellent for use as tie down chain when combined with grade 70 hooks.

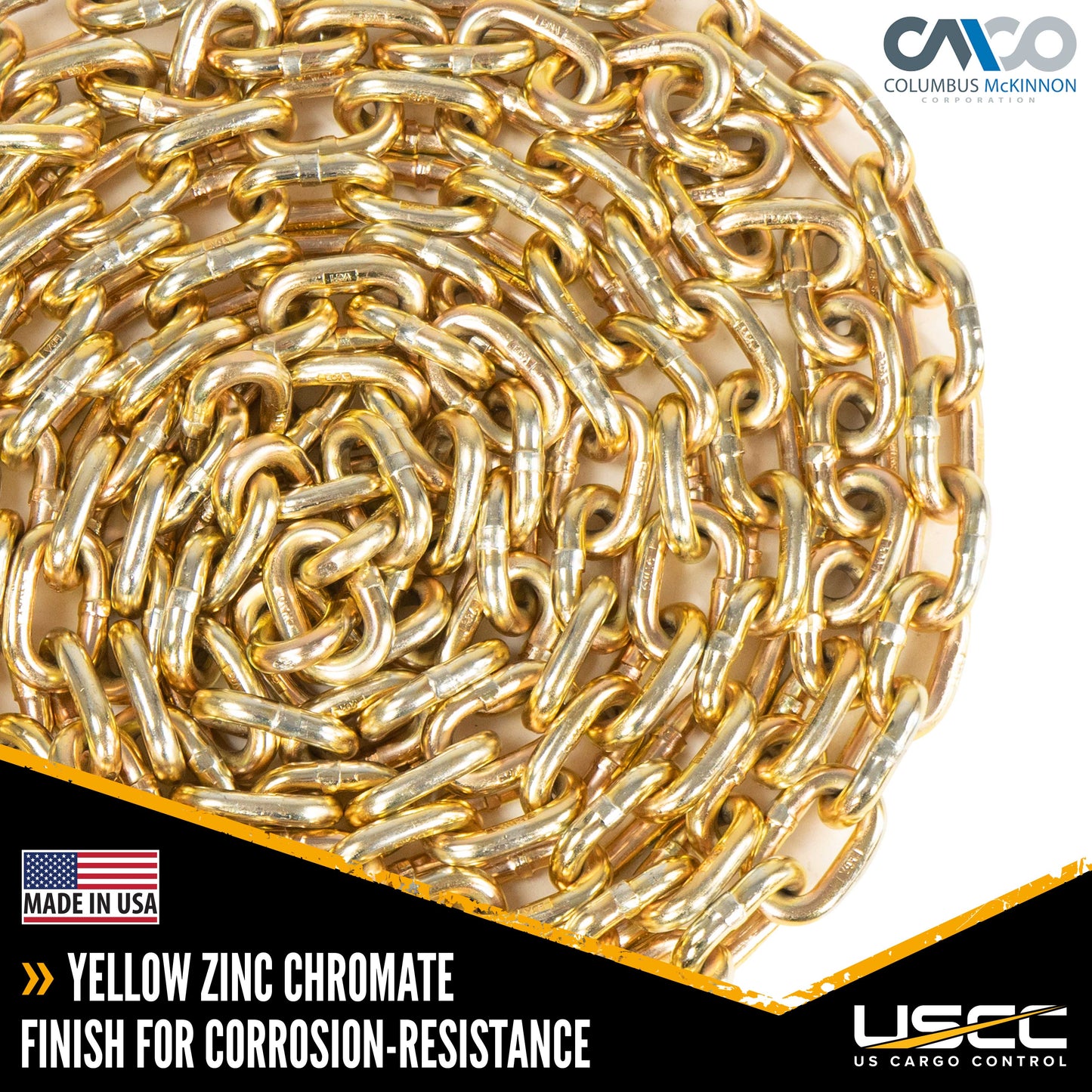

It has a yellow zinc chromate finish that conforms to ATSM B633 Type II for corrosion protection and quick identification as G70 chain.
An economically-priced imported version of this chain is also available.
Note: Grade 70 chain is not approved for overhead lifting.
Grade 70 Chain Industry Compliance

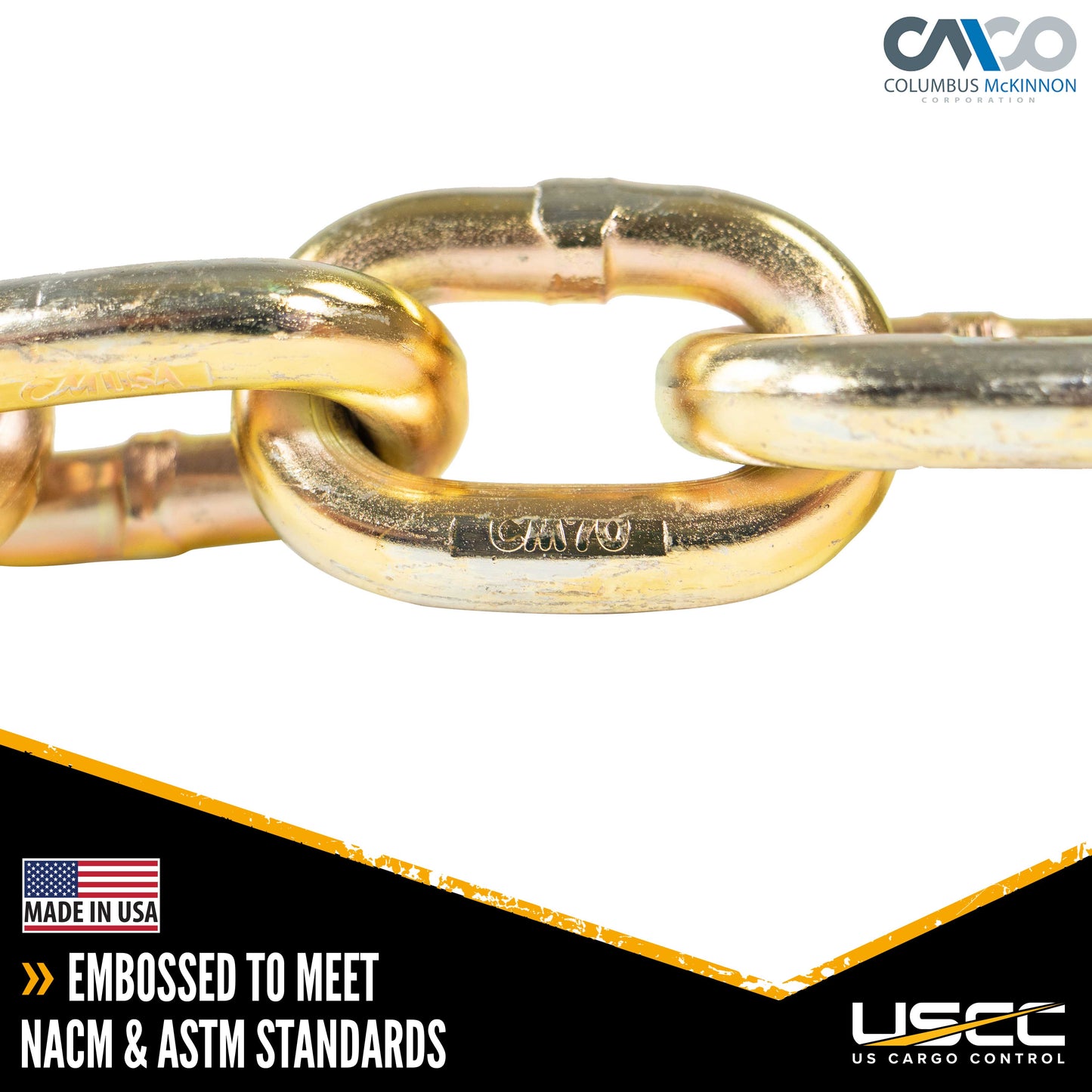

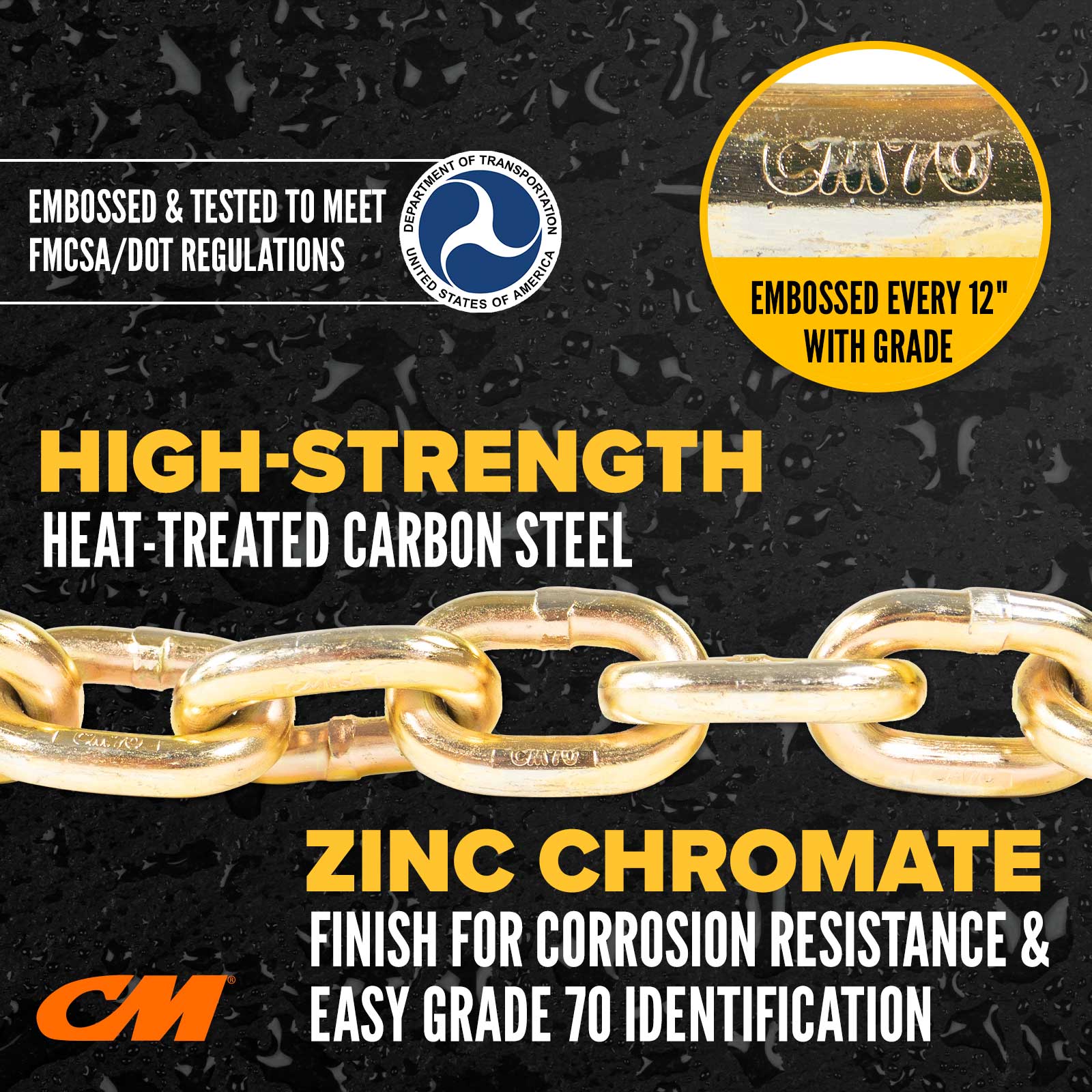

All of our transport chain is DOT compliant and meets or exceeds FMCSA CFR49 Section 393.104 and NACM Welded Steel Chain Specifications. The chain is embossed with proper grade 70 markings on the links for stress-free inspections.
Custom Tie Down Chain & More

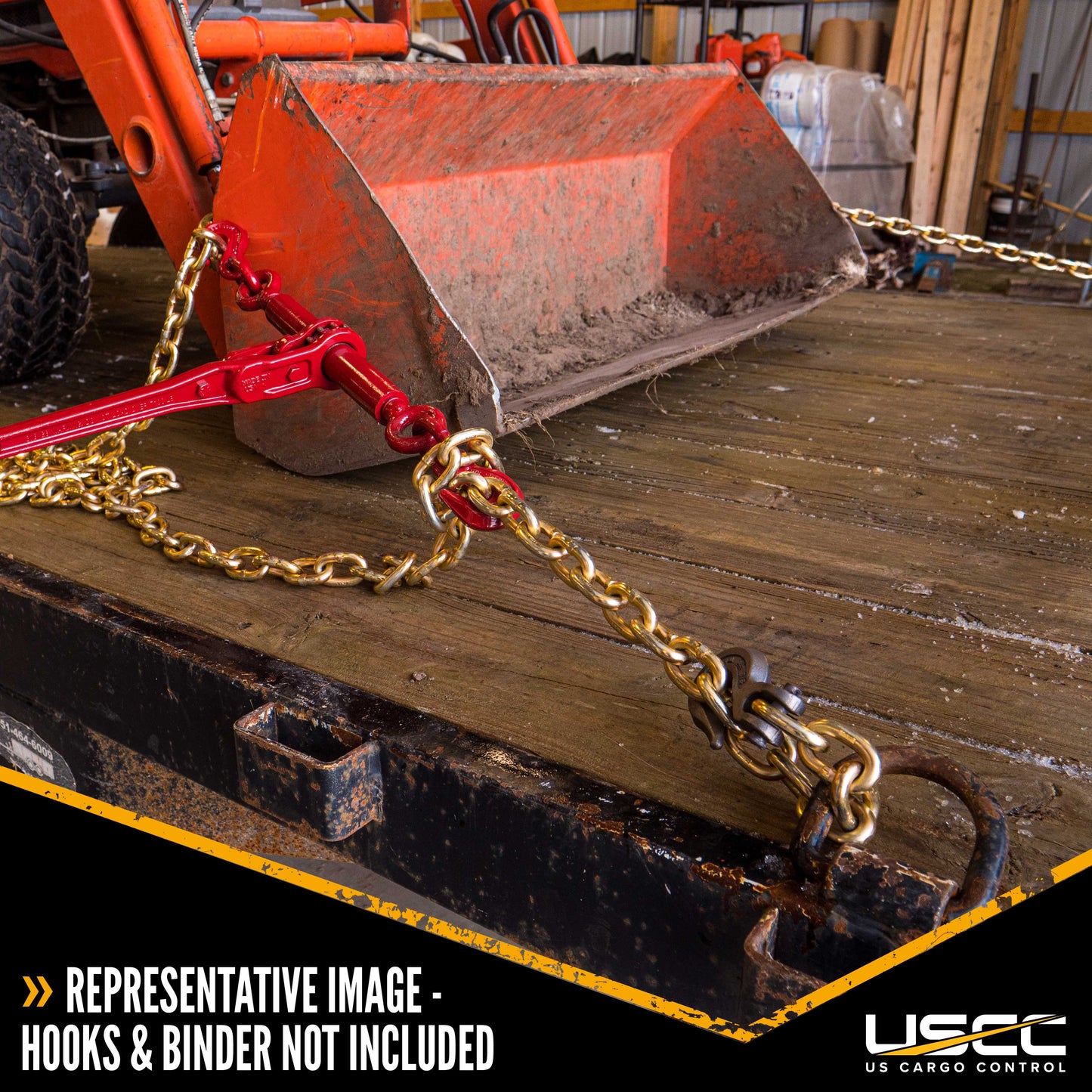

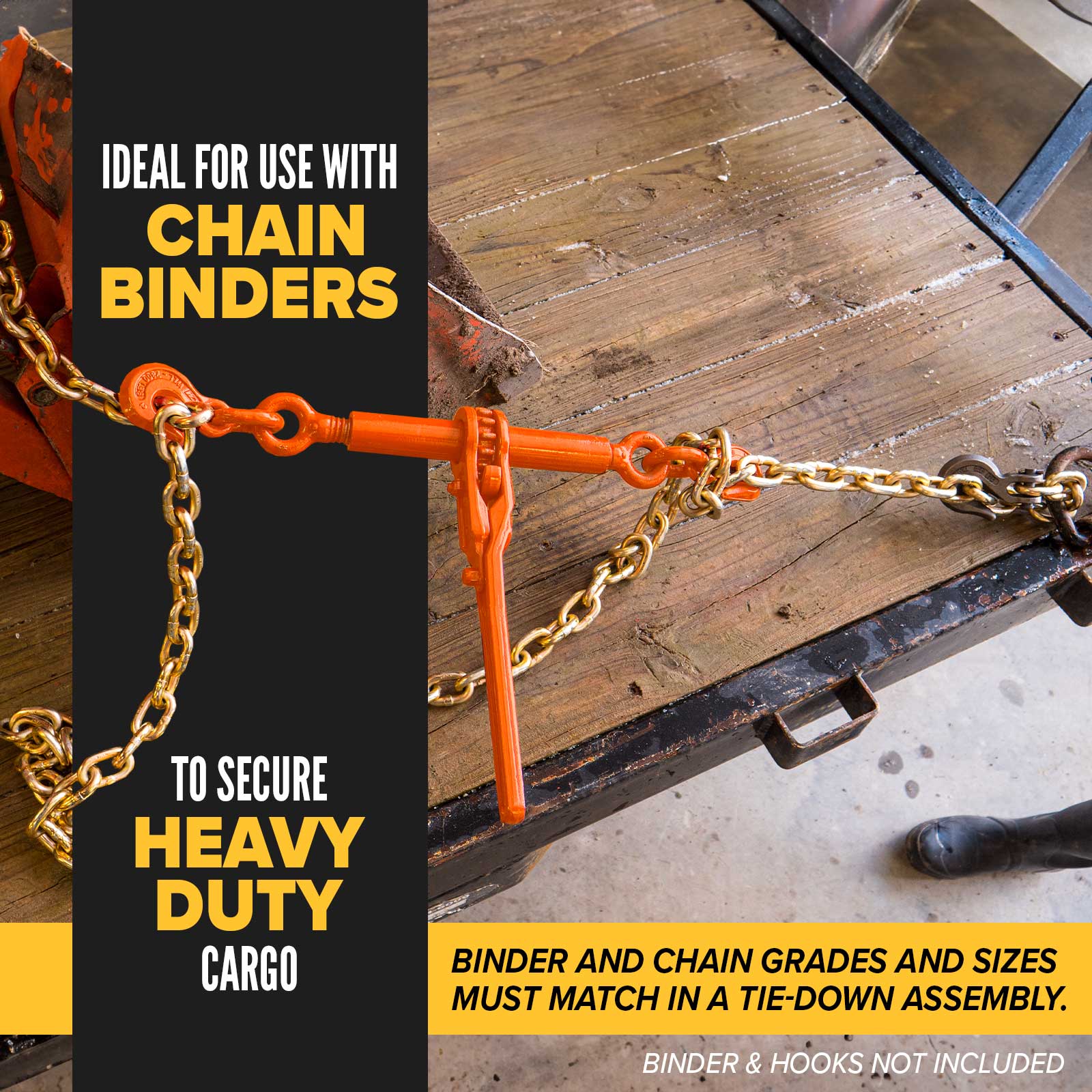

Make sure you have everything you need to get your cargo safely from point A to point B with compatible chain binders, steel corner protectors, safety flags / load banners, and more! We even offer custom tie down chain configurations, so you can create the perfect product for your application. We have both manufacturing and testing capabilities in-house, letting us build exactly what you need and confirm that it exceeds industry standards.
Chain Grade Breakdown
Not sure which chain grade you need? Call to speak to one of our product experts or refer to our helpful chart!
| Grade | Material | WLL (lbs) | ||||
| 9/32" (1/4") | 5/16" | 3/8" | 1/2" | 5/8" | ||
| 70 | Carbon Steel | 3,150 | 4,700 | 6,600 | 11,300 | 15,800 |
| 80 | Alloy Steel | 3,500 | 4,500 | 7,100 | 12,000 | 18,100 |
| 100 | Alloy Steel | 4,300 | 5,700 | 8,800 | 15,000 | 22,600 |
| 120 | High Strength Alloy Steel |
5,200 | 6,600 | 10,600 | 17,900 | 27,500 |
US Cargo Control - Chain Grades
×
-
US Cargo Control - Chain Grades -
