SKU: 7348
FallTech 4' Web Pass-Through Sling Anchor with Heavy-Duty Wear Pad | 7348
FallTech 4' Web Pass-Through Sling Anchor with Heavy-Duty Wear Pad | 7348!
Related Articles
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Length: 4'
Brand: FallTech
Brand part number: 7348
End fitting: D Ring
Manufacturer name: FallTech
Material: D-ring: plated alloy steel
Webbing: polyester
Webbing: polyester
Product weight: 1.52 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used items.
Standards: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
Type: Temporary and reusable
Additional Info: User Weight Capacity: 310 lbs. ANSI / 425 lbs. OSHA
Static Strength: 5,000 lb min.
Static Strength: 5,000 lb min.
Description

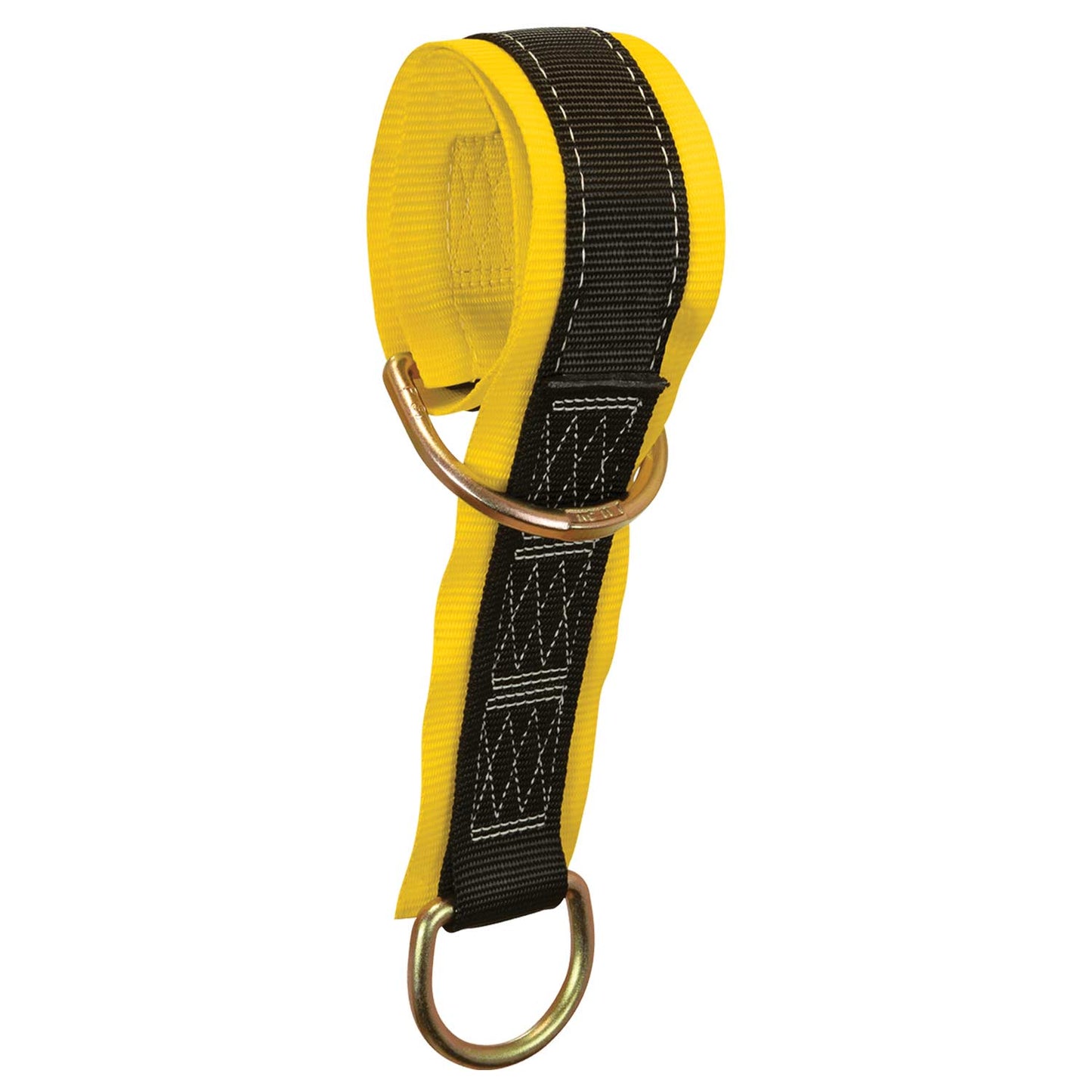

Web Tie-Off Adapter: 4' Pass-Through with Reinforced Steel D-Rings
Crafted for versatility and user-friendliness, this pass-through anchor features 1-3/4" load-bearing webbing, allowing you to pass it through multiple times to achieve the perfect length for your specific application. The heavy-duty wear pads, made from durable 3" polyester webbing, ensure excellent abrasion resistance.
Using this anchor is simple - just place it around the I-beam, scaffolding, piping, or any suitable anchor point, then pass the smaller D-ring through the larger one to create a secure choke-on installation point.
Key Features of the 4' Fall Protection Web Tie-Off Adapter:
- The smaller D-ring is compatible with a variety of fall protection gear, including lanyards and SRLs.
- Both D-rings are reinforced with three 2" box-stitches for enhanced performance
- User Capacity: ANSI 136 - 310 lbs. / OSHA 130 - 425 lbs.
