SKU: GVSEB516X2-14

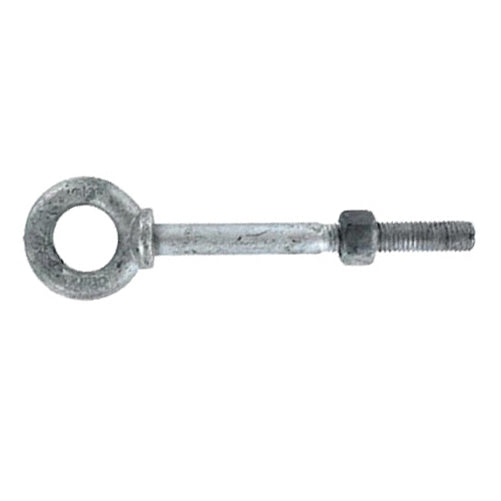

5/16" x 2-1/4" Galvanized Shoulder Eye Bolt - Import

5/16" x 2-1/4" Galvanized Shoulder Eye Bolt - Import!

Skip to product information
1 of 2

Shop more Galvanized Shoulder
SKU: GVSEB516X2-14

5/16" x 2-1/4" Galvanized Shoulder Eye Bolt - Import

5/16" x 2-1/4" Galvanized Shoulder Eye Bolt - Import!

Regular price $1.99
Sale price $1.99 Regular price
0% off
Ships Dec 8 when you order now
Buy More, Save More
Qty
Price
Save
1 - 49
$1.99
-
50 - 99
$1.94
3%
100 - 199
$1.88
6%
200 +
$1.80
10%
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Shank length: 2-1/4"
  • Width: 0.69"
  • Working load limit: 1,200 lbs.
  • Assembly break strength: 6,000 lbs.
  • Finish: Galvanized
  • Diameter: 5/16"
  • Material: Steel
  • Product weight: .1 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

Shoulder eye bolt is manufactured in heavy duty forged steel and galvanized for corrosion resistance. Eye bolts with shoulders can be used for either straight line or angular lifts, though using in an angular lift will significantly reduce the rated capacity.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.

View Product Safety Warnings

California Residents: WARNING

Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
