1/2" x 3-1/4" Galvanized Shoulder Eye Bolt - Import

SKU: GVSEB12X3-14
Quantity
Unit Price
Save
1 - 24
$3.19
-
25 - 49
$3.10
3%
50 - 99
$3.01
6%
100 +
$2.88
10%

$3.19
In stock

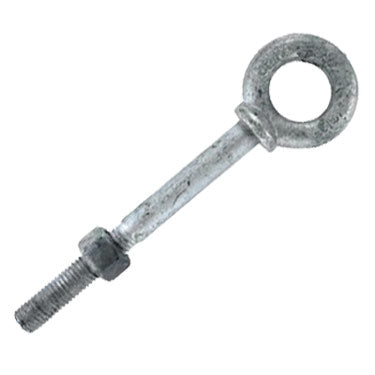

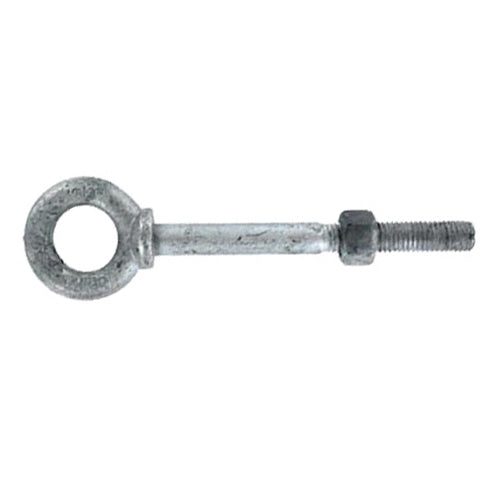

Shoulder eye bolt is manufactured in heavy duty forged steel and galvanized for corrosion resistance. Eye bolts with shoulders can be used for either straight line or angular lifts, though using in an angular lift will significantly reduce the rated capacity.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.



California Residents: WARNING

Shoulder eye bolt is manufactured in heavy duty forged steel and galvanized for corrosion resistance. Eye bolts with shoulders can be used for eith...

Read More

Shoulder eye bolt is manufactured in heavy duty forged steel and galvanized for corrosion resistance. Eye bolts with shoulders can be used for either straight line or angular lifts, though using in an angular lift will significantly reduce the rated capacity.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.



California Residents: WARNING

Show Less

Width:
1"

Working Load Limit:
2,600 lbs.

Assembly Break Strength:
13,000 lbs.

Product Weight:
.4

Finish:
Galvanized

Shank Length:
3-1/4"

Material:
Steel

Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.

With Covers:
false

Diameter:
1/2"

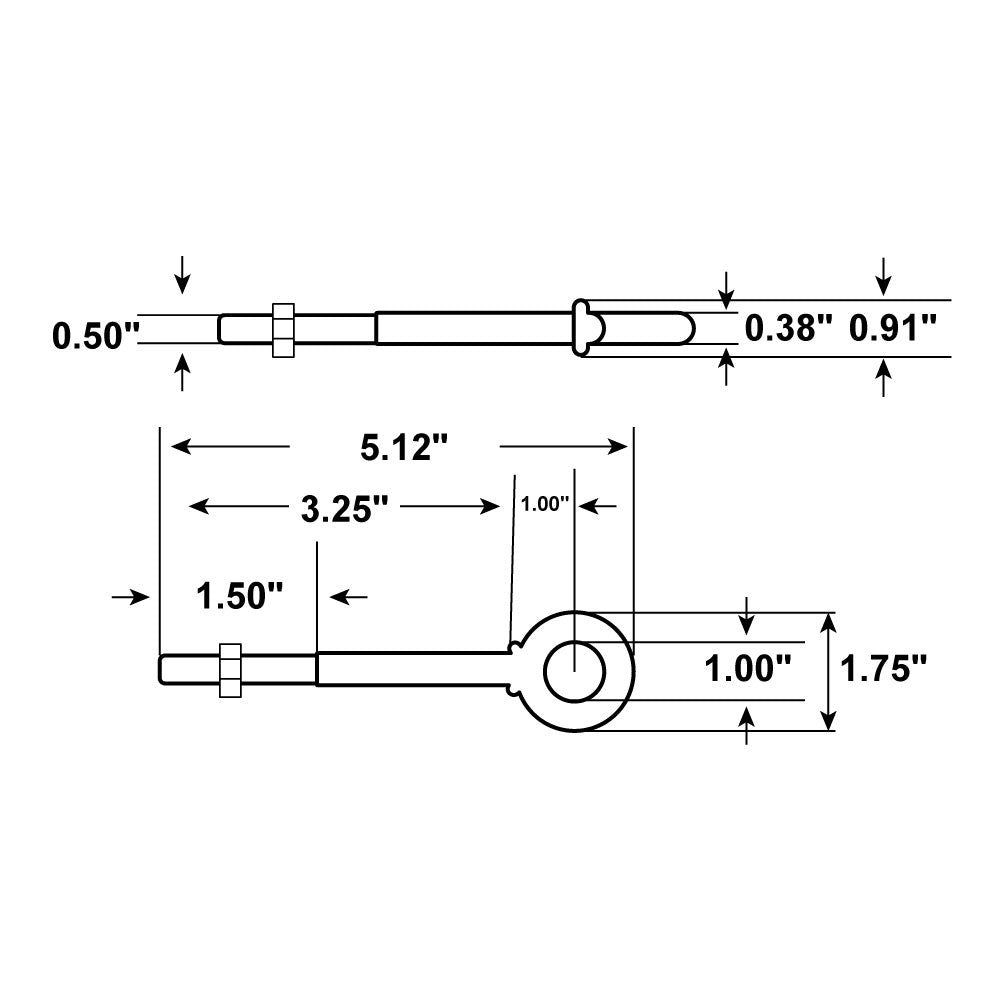

Eye Bolt Dimensions:
A:
.50"
B:
1.00"
C:
1.75"
D:
.38"
E:
1.50"
F:
3.25"
G:
5.12"
H:
1.00"
J:
.91"
