description

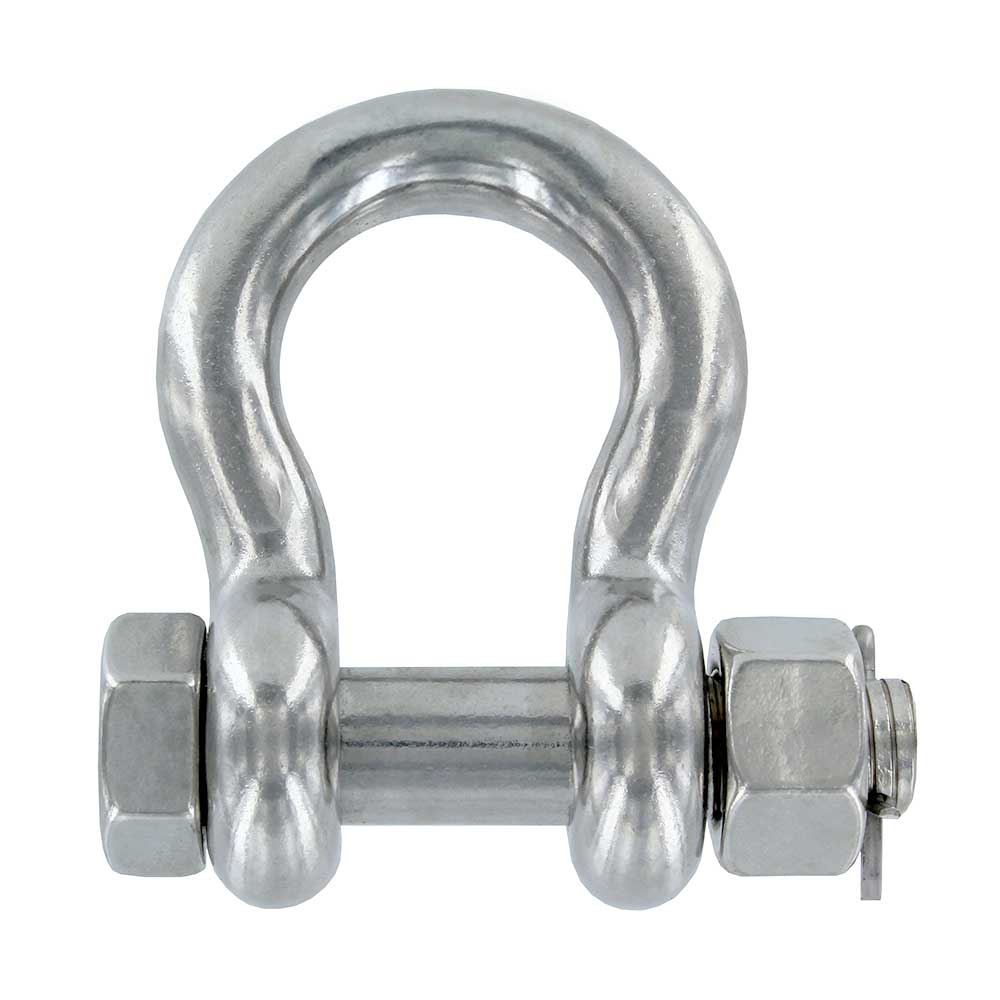

The Bolt Pin Anchor Shackle is precision cast load rated and made of Type 316 stainless steel which has an added element called molybdenum. The added element adds to the shackles corrosion resistant properties. This added corrosion resistance makes them ideal for marine applications and high chloride environments. The bolt pin in the anchor shackle allows the pin to be secured better due to the nut that is screwed on the other end. To keep the nut from coming loose, the pin also features a pre-drilled hole in which a cotter pin or other device can be inserted. This cotter pin keeps the bolt from loosening over time.
California Residents: WARNING
California Residents: WARNING
The Bolt Pin Anchor Shackle is precision cast load rated and made of Type 316 stainless steel which has an added element called molybdenum. Th...
The Bolt Pin Anchor Shackle is precision cast load rated and made of Type 316 stainless steel which has an added element called molybdenum. The added element adds to the shackles corrosion resistant properties. This added corrosion resistance makes them ideal for marine applications and high chloride environments. The bolt pin in the anchor shackle allows the pin to be secured better due to the nut that is screwed on the other end. To keep the nut from coming loose, the pin also features a pre-drilled hole in which a cotter pin or other device can be inserted. This cotter pin keeps the bolt from loosening over time.
California Residents: WARNING
California Residents: WARNING
specifications
Working Load Limit:
5 ton
Product Weight (lbs.):
4.8
Safety Factor:
4.1
Manufacturer Name:
Import
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
3.75"
Mouth Width:
1.69"
Pin Size:
1-1/8"
Shackle Size:
1"
Shackle Dimensions:
S:
1"
A:
1.13
B:
3.75
C:
1.69
