Specifications

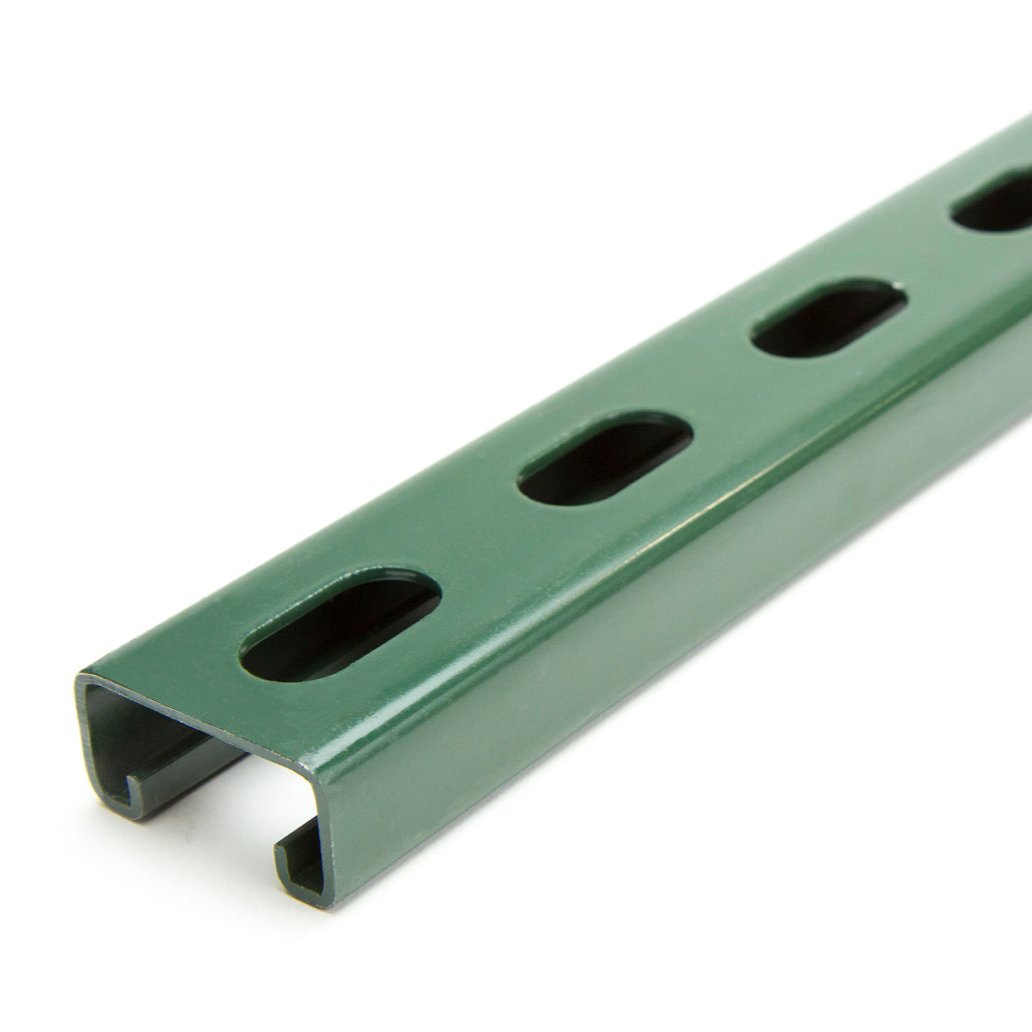

1-5/8" x 13/16" Strut Channel with Short Slots, 6 ft. - Green Powder Coat/Paint
This 6-foot green powder coated strut channel is built for longer support runs where durability and a finished look both matter. The carbon steel construction delivers reliable strength, while the short-slot pattern gives you practical adjustment during layout and fastening. It’s a solid pick for organized installs that need consistent alignment over distance.
Notice: Powder coat improves corrosion resistance, but deep scratches and field cuts can expose bare steel. Treat modified areas as needed for the environment.
Green Powder Coated Short-Slotted Steel Strut Channel for Long Support Runs
Use this channel for electrical, plumbing, and HVAC support systems where you want a clean appearance and dependable structure. The short slots help keep hardware placement controlled while still allowing minor alignment tweaks during installation.
Key Features
- Green Powder Coat Finish: Provides a polished appearance and added protection for moderate exposure applications.
- Short-Slot Channel Pattern: Offers moderate adjustability while maintaining strong, consistent alignment.
- ASTM A1011 Grade 33 Steel: Manufactured to meet the physical requirements of Grade 33 carbon steel.
- 6-Foot Length: Covers longer spans to reduce splices and keep support lines continuous.
Common Applications

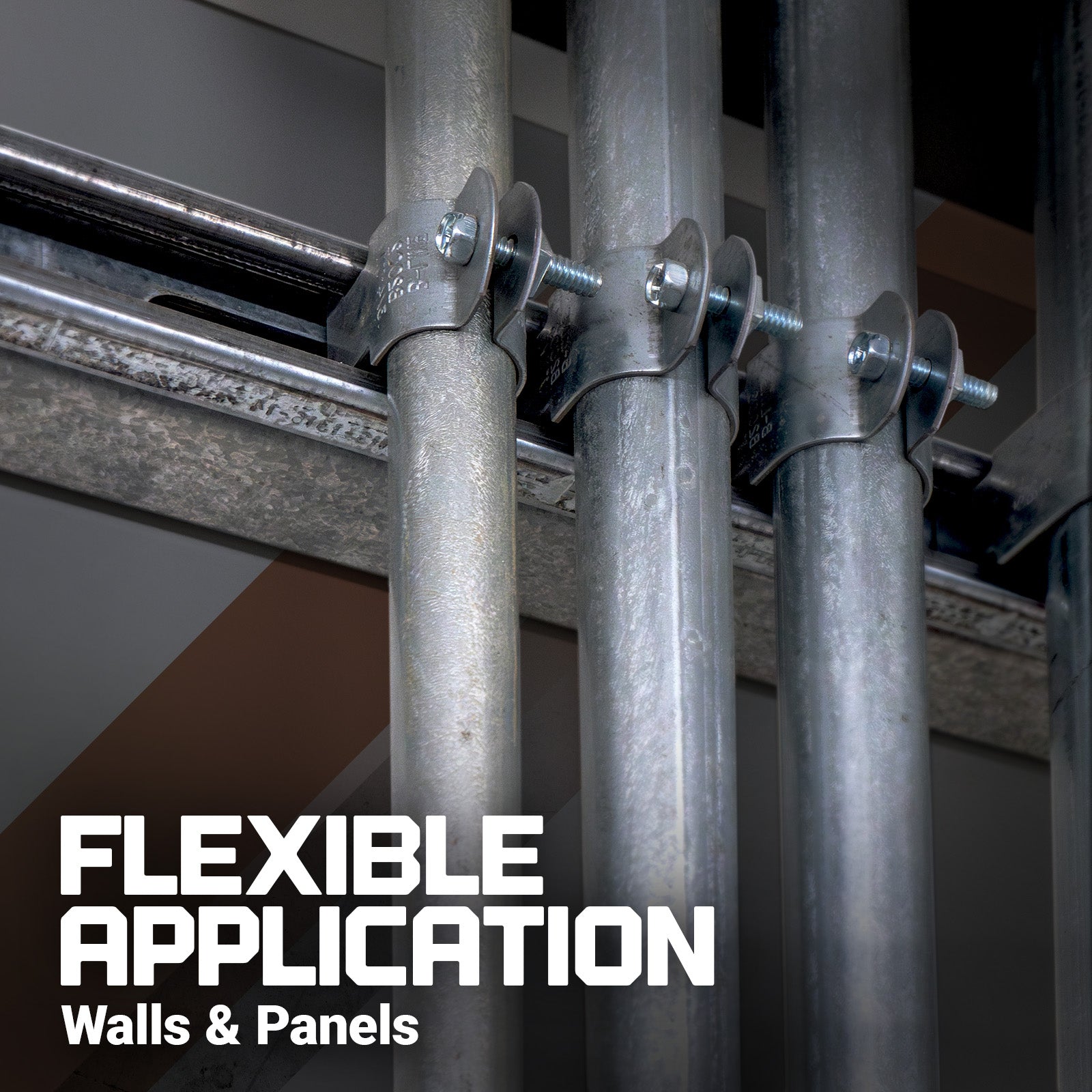

- Electrical Support Runs: Mount conduit, boxes, and cable management components along extended paths.
- HVAC Framing: Support ductwork, hangers, and accessory equipment in mechanical spaces.
- Plumbing Support: Build stable mounting runs for pipe clamps and suspended pipe sections.
- Industrial Frameworks: Assemble racks, braces, and modular support structures with consistent alignment.
- Commercial Installations: Useful where a finished, color-coated appearance is preferred in exposed areas.
Installation Tips

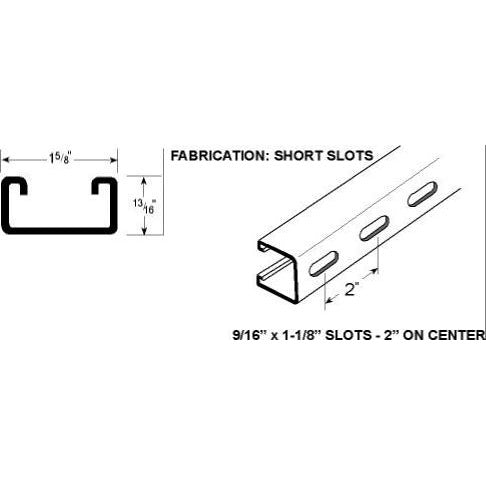

- Confirm Slot and Spacing: Slots measure 1-1/8" x 9/16" with 2" center-to-center spacing for predictable hardware placement.
- Support Long Spans Properly: Use appropriate anchor spacing to help prevent movement or deflection over the 6-foot run.
- Protect the Finish During Cuts: If field-cutting is required, smooth edges and touch up exposed steel to help preserve corrosion resistance.
