Double Stud Fitting w/ Bolt Thread

$4.49
SKU: 1519-EBF
2 Reviews
QuantityUnit PriceSave
More Buying Options
$4.49
Ships Today when you order in the next 4 hrs 50 mins
Specifications

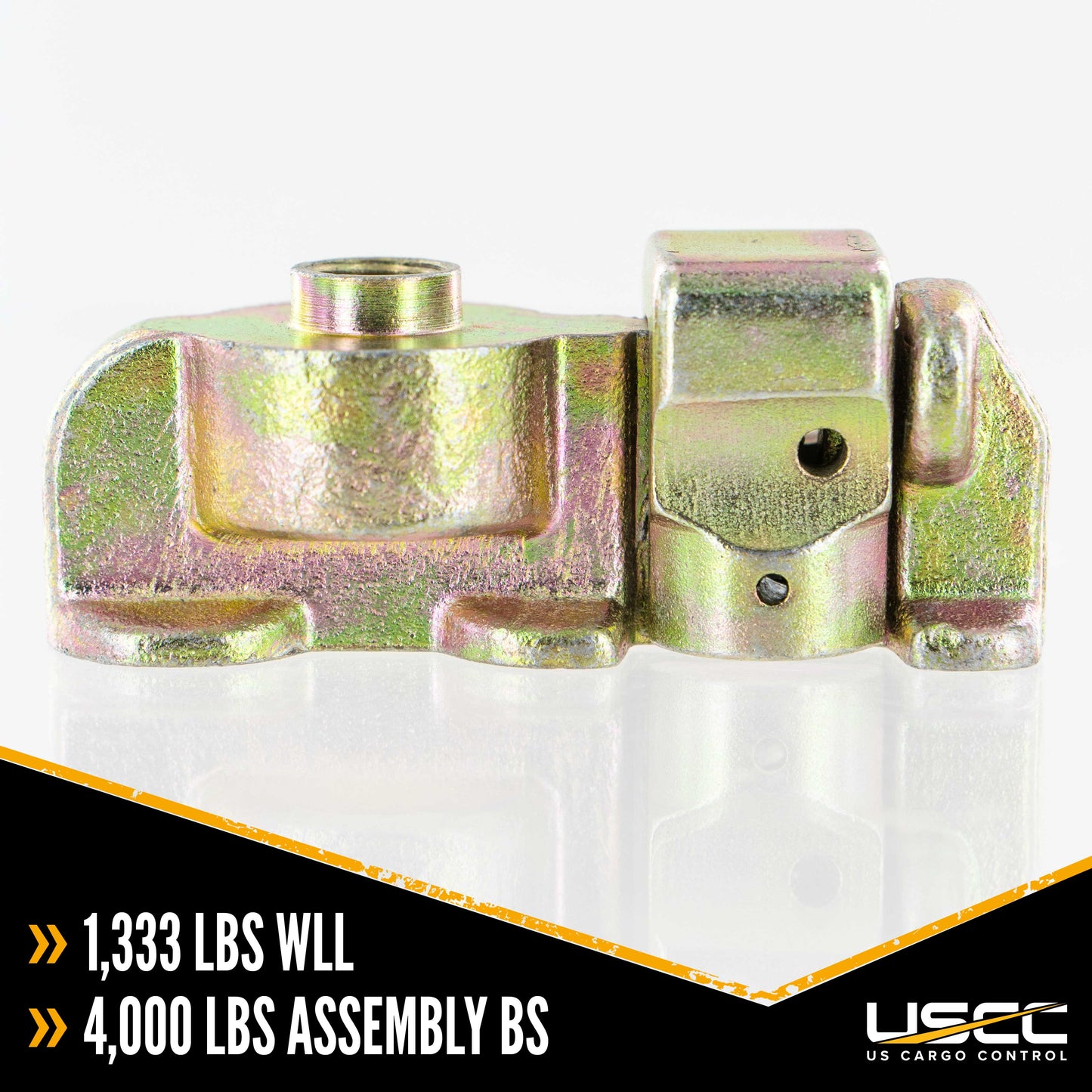

Assembly Break Strength:4,000 lbs.
Working Load Limit:1,333 lbs.
Product Weight:0.3

Description

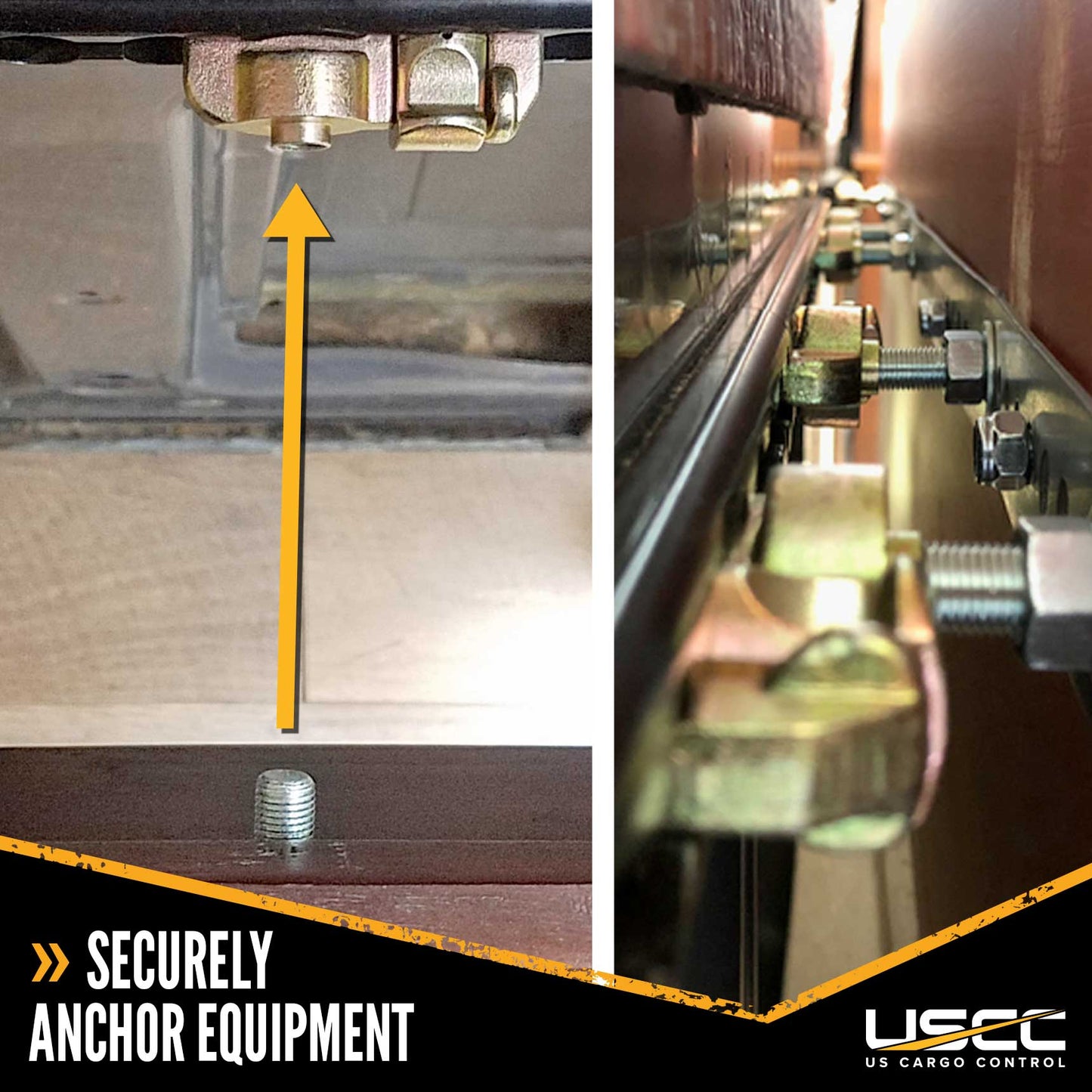

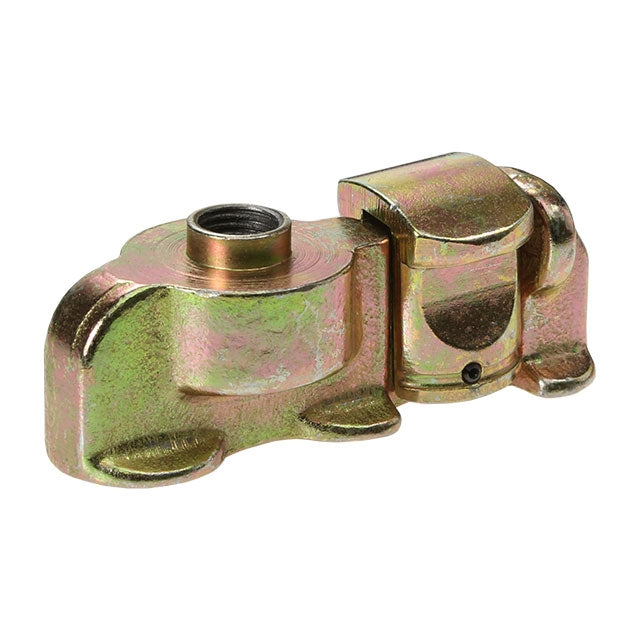

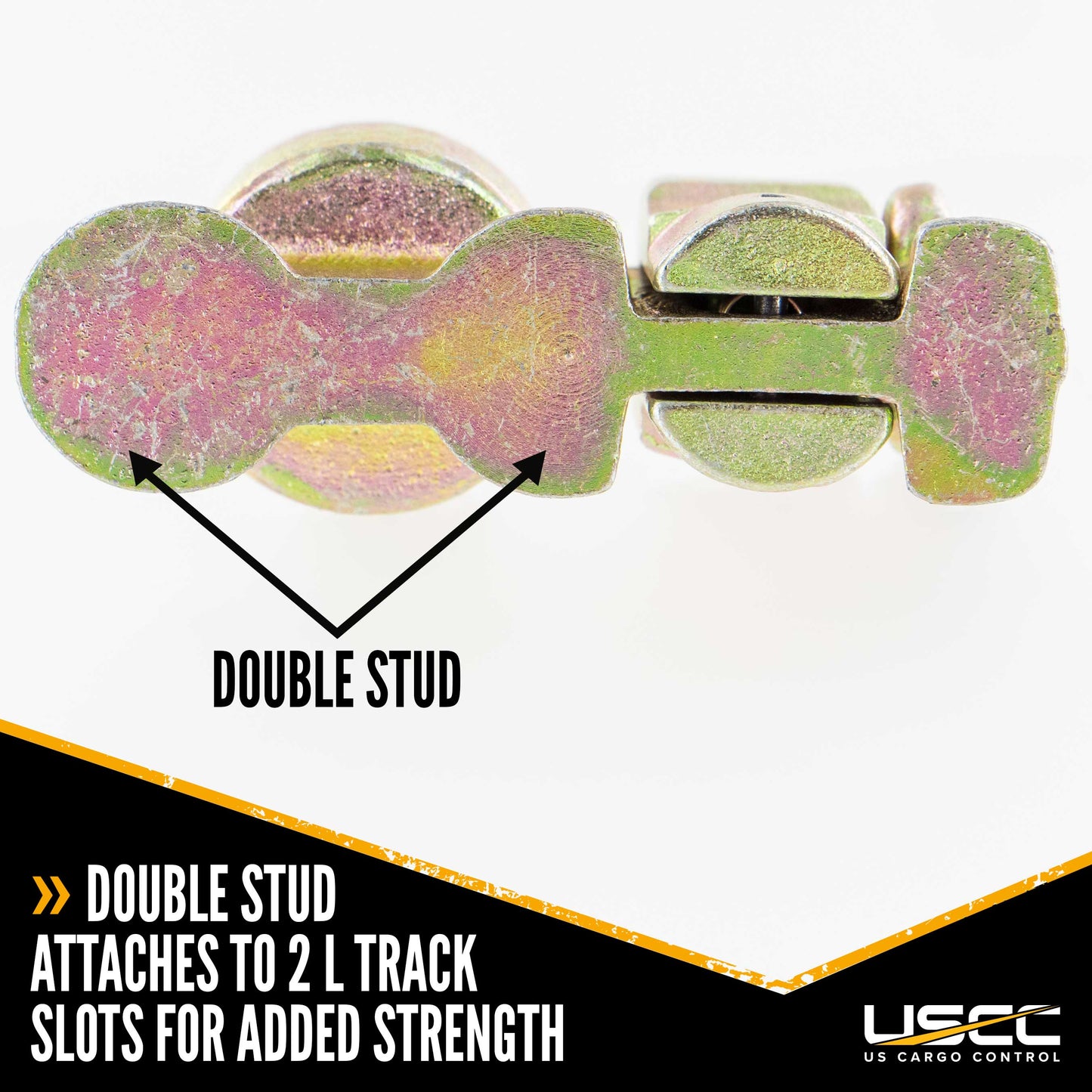

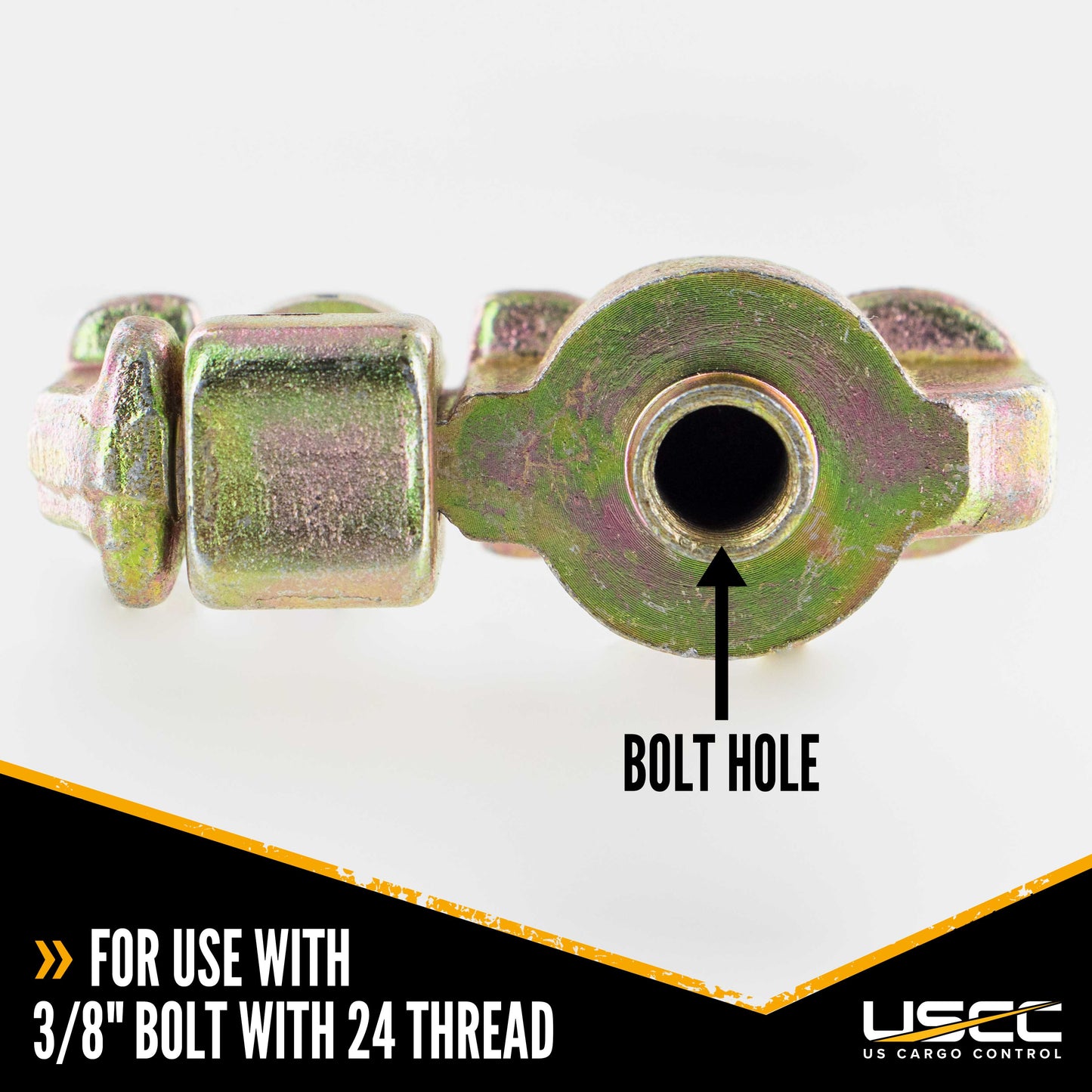

The low profile design of this L-Track double stud fitting makes it a versatile component for use in motorcycle tie-down systems, ATV tie-downs, and other recreational cargo control uses. The double stud configuration slides into two slots on an L-track tie-down rail to offer maximum securement and strength. A threaded housing on top can receive a 3/8" bolt with a 24 thread.

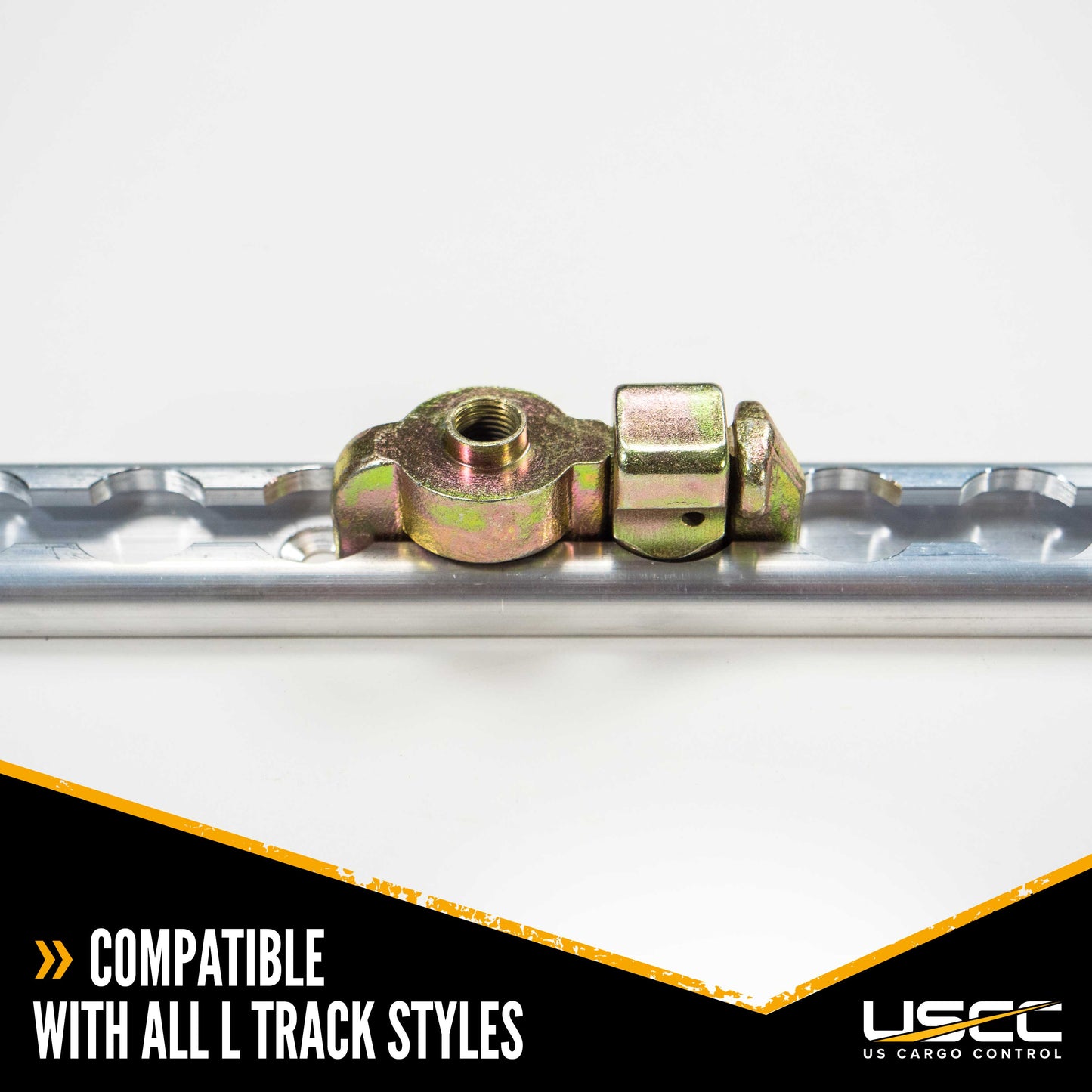

Installation is easy. To slide into place: lift the end clip and insert the two bottom discs into the track slots. Slide until it's halfway between two slots and release the clip to lock the fitting in place. Works with all of our L- track styles: Standard L-track tie-down rails, Aircraft Style Seat Track, Angled L-Track, and Recessed L-Track.


Please note: this fitting is not compatible with single 2" Round or Rectangle L-Track Anchor Point Tie Downs.

Looking for more L-Track Accessories? We carry a wide selection of L-Track fittings as well as L-Track straps so you can create a custom L-Track System to meet your cargo tie-down needs.





California Residents: WARNING

Video

Assembly Break Strength:4,000 lbs.
Working Load Limit:1,333 lbs.
Product Weight:0.3

The low profile design of this L-Track double stud fitting makes it a versatile component for use in motorcycle tie-down systems, ATV tie-downs, and other recreational cargo control uses. The double stud configuration slides into two slots on an L-track tie-down rail to offer maximum securement and strength. A threaded housing on top can receive a 3/8" bolt with a 24 thread.


Installation is easy. To slide into place: lift the end clip and insert the two bottom discs into the track slots. Slide until it's halfway between two slots and release the clip to lock the fitting in place. Works with all of our L- track styles: Standard L-track tie-down rails, Aircraft Style Seat Track, Angled L-Track, and Recessed L-Track.


Please note: this fitting is not compatible with single 2" Round or Rectangle L-Track Anchor Point Tie Downs.

Looking for more L-Track Accessories? We carry a wide selection of L-Track fittings as well as L-Track straps so you can create a custom L-Track System to meet your cargo tie-down needs.





California Residents: WARNING

Ratings & Reviews

2 reviews

4
  • 4 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Odd Thread Size

Great product. The problem is the 3/8-24 thread. Not common, had difficulty finding the right screws and hooks for my application.

by

Product is excellent,

Product is excellent, and very fast shipping, and well informed about shipping and tracking, will buy again, thank you
