SKU: SBA100K84
50 Tons x 5.5 - 7' Adjustable Spreader Beam
50 Tons x 5.5 - 7' Adjustable Spreader Beam!
Continue Browsing
Adjustable Spreader Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$15,430.69
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options
Specifications
Working load limit: 50 tons (US) / 100,000 lbs.
Brand part number: 20142
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Spread: 5.5' - 7'
Product weight: 575 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.

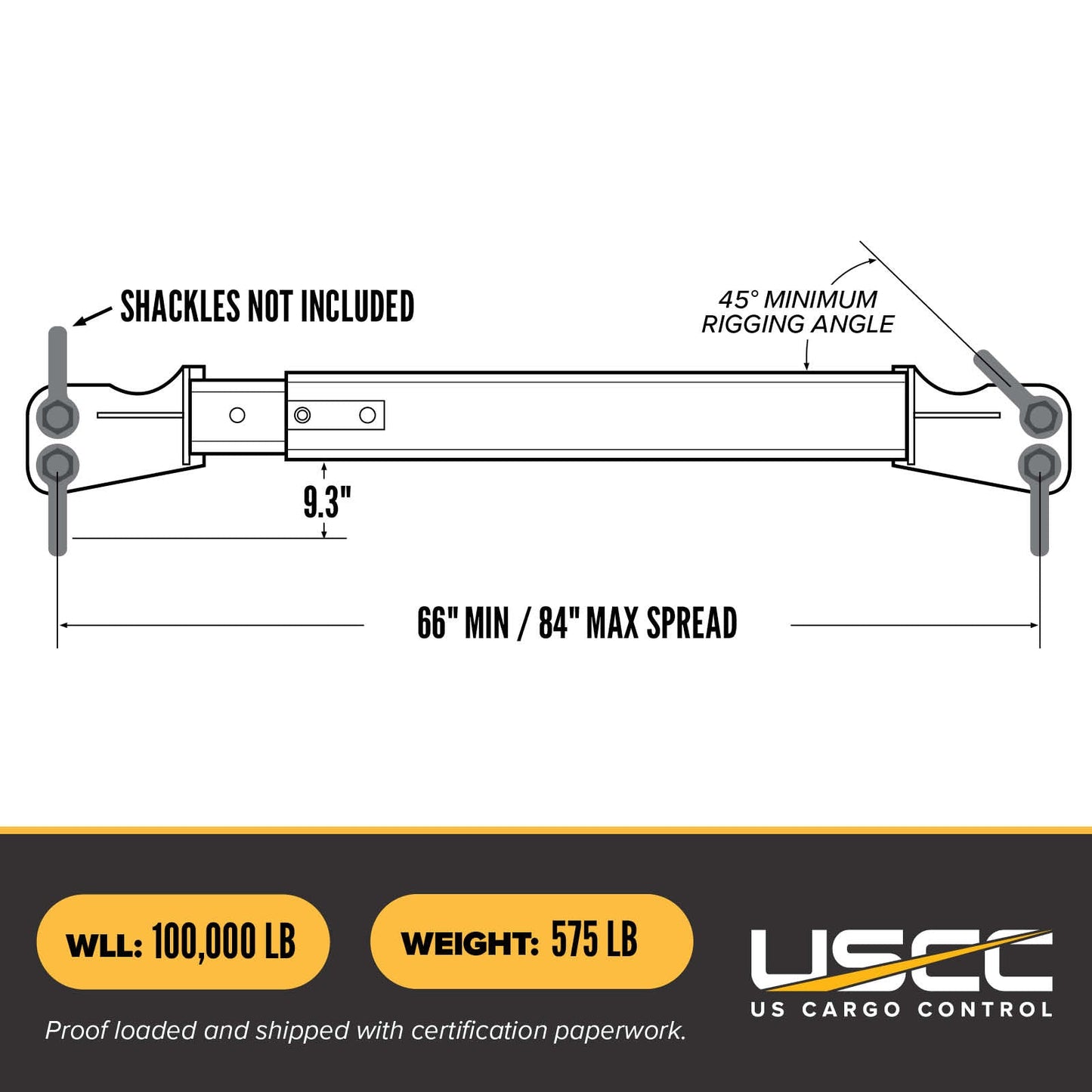

Additional Info: Headroom: 9.3"
Spread Adjustment Increments: 6"
Minimum horizontal top rigging angle of 45°; M&W recommends a min of 60°
Spread Adjustment Increments: 6"
Minimum horizontal top rigging angle of 45°; M&W recommends a min of 60°
Description

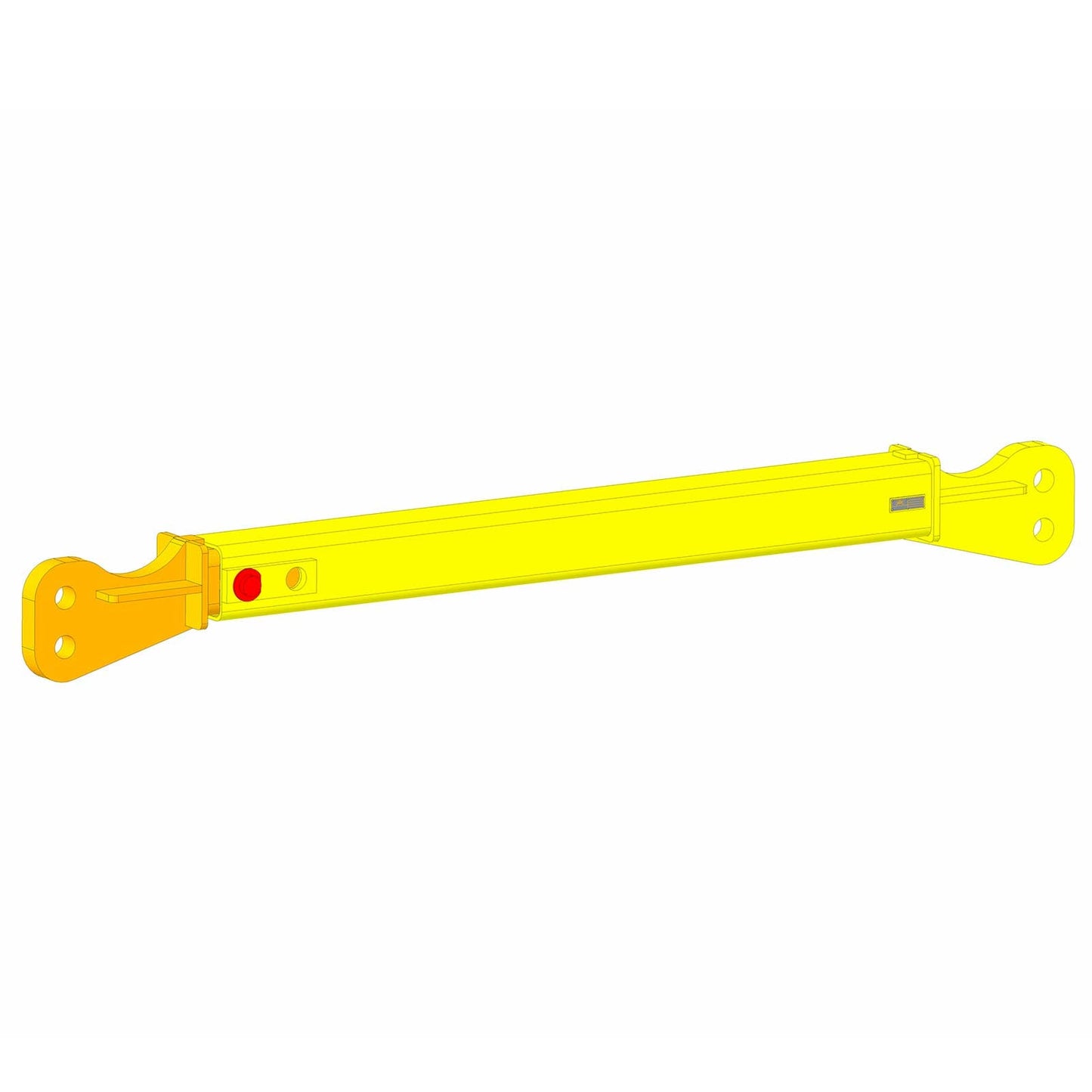

M&W 20142 Telescopic Spreader Bar

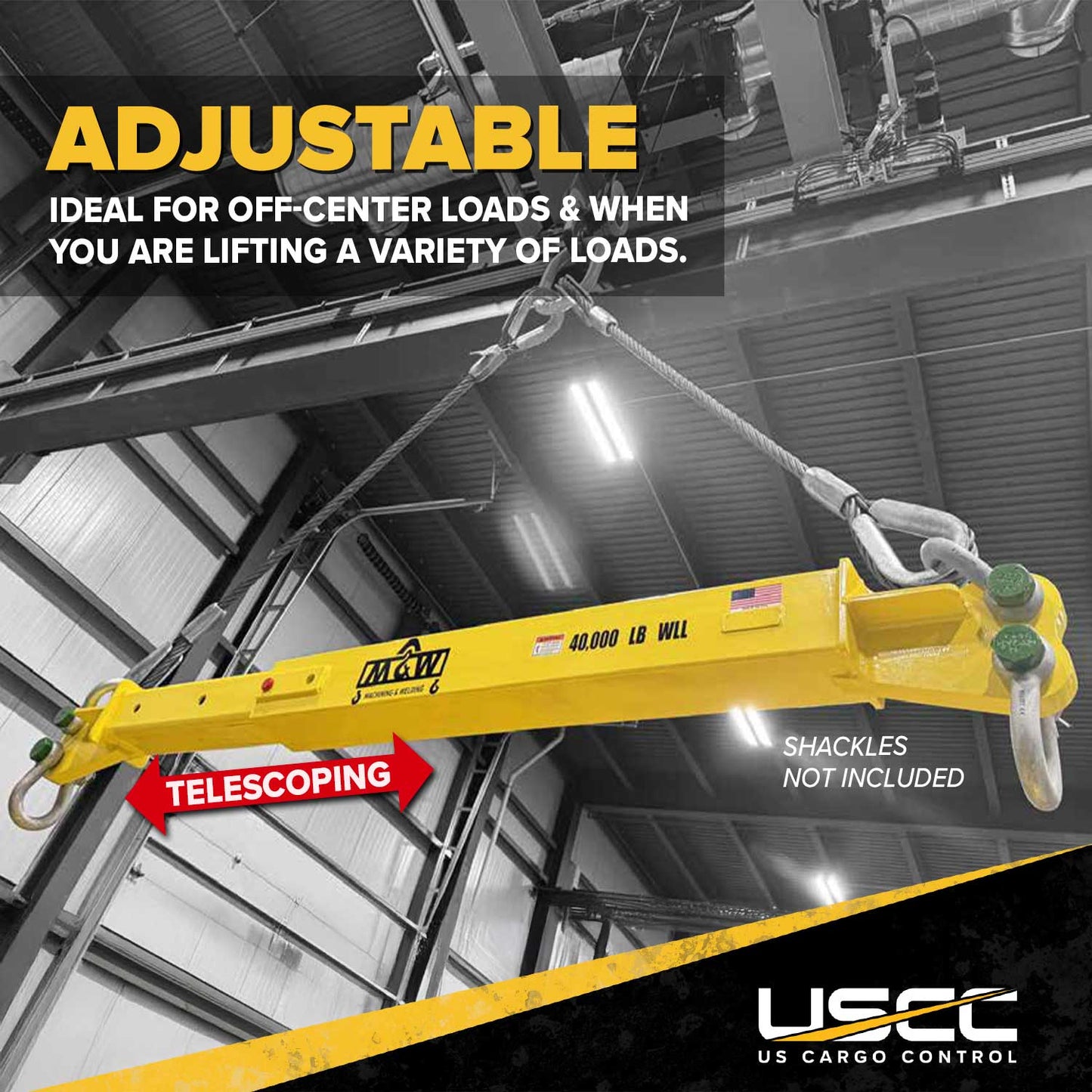

Durable M&W spreader beams are built to last, perfect for both indoor and outdoor use. The steel construction is more than capable of handling your heaviest loads, and the high visibility yellow paint improves jobsite safety. The adjustability makes it perfect for jobs where you're lifting a variety of loads, as well as off-center loads - you can adjust for any center-of-gravity issues.
Don't need a high capacity spreader beam? We also carry a lower capacity version for 2 -10 tons.
Lifting Beams vs. Spreader Bars
Compared to lifting beams, spreader beams are very effective at distributing a load's weight and are ideally suited for adding stability to critical lifts. However, they require top rigging to connect to the crane or other lifting machine, increasing the amount of headroom required.
5.5 - 7' Spreader Beam Features:
- Made in the USA: The beam is domestically-made for quality you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
We can also provide compatible top rigging, including wire rope slings or round sling bridles. Call now for pricing.
Complete Your Rigging Setup
Check out the rest of our rigging and lifting equipment, including lifting beams, shackles, and outrigger pads.
