SKU: HLN-2020
19.68' x 19.68' Cargo Lifting Net | 4,000 lbs.
19.68' x 19.68' Cargo Lifting Net | 4,000 lbs.!
Related Articles
SKU: HLN-2020
19.68' x 19.68' Cargo Lifting Net | 4,000 lbs.
$999.00
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Netting Solutions
Build Your Cargo NetPayment Options
Specifications
Working Load Limit (lbs.): 4000
Load Capacity: 4,000 lbs.
Rated for Overhead Lifting: Yes
Width: 19.68'
Length: 19.68'
Mesh Size: 3.90"
Material: High Tenacity Polypropylene (HTPP)
Color: White
Style: Raschel Knotless Netting
Product Weight: 44 lbs.
Brand: InCord
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Net tenacity: High
Max. Working Temp: °212
Max. Working Temp: °212
Description
19.68' x 19.68' Lifting Net | 4,000 lb.

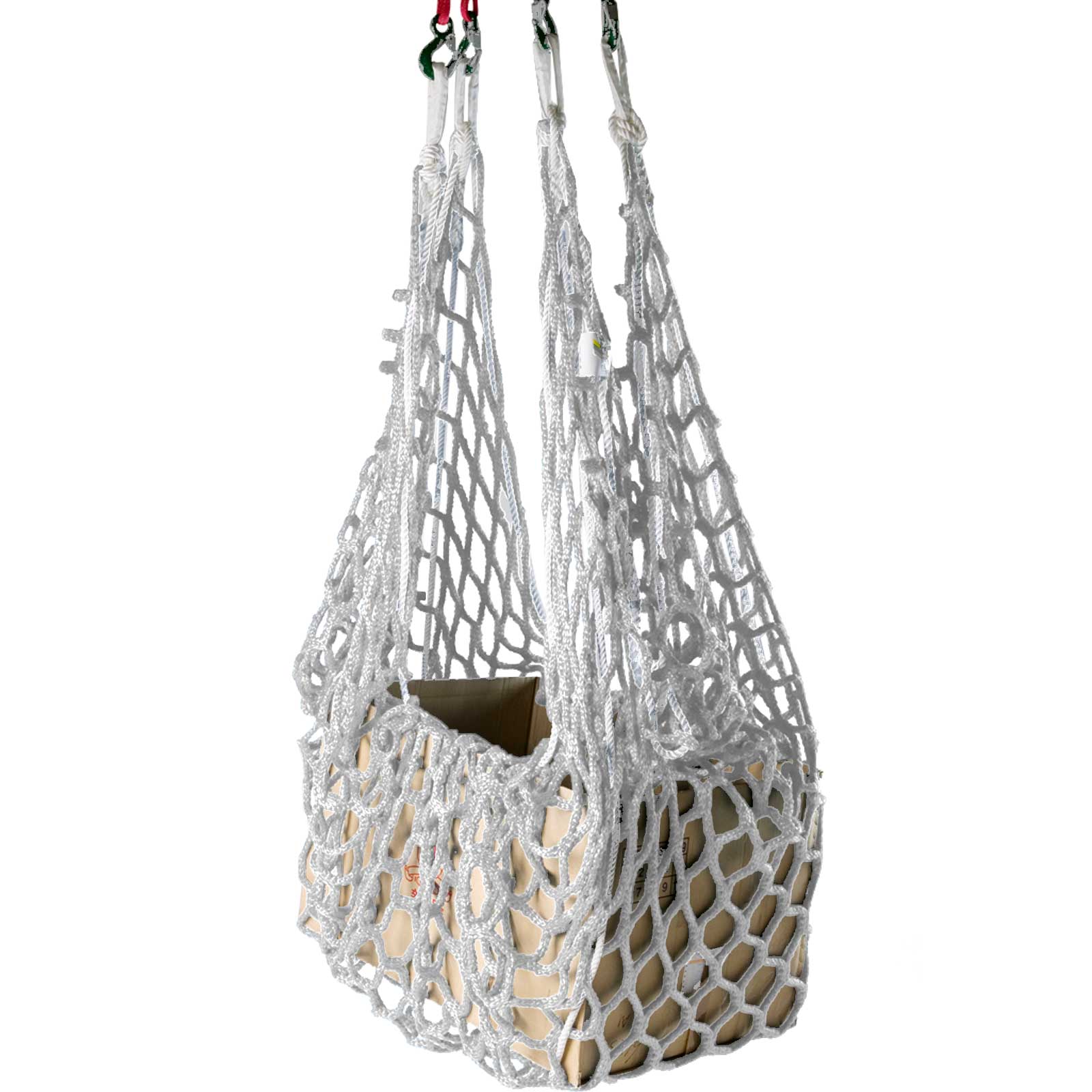

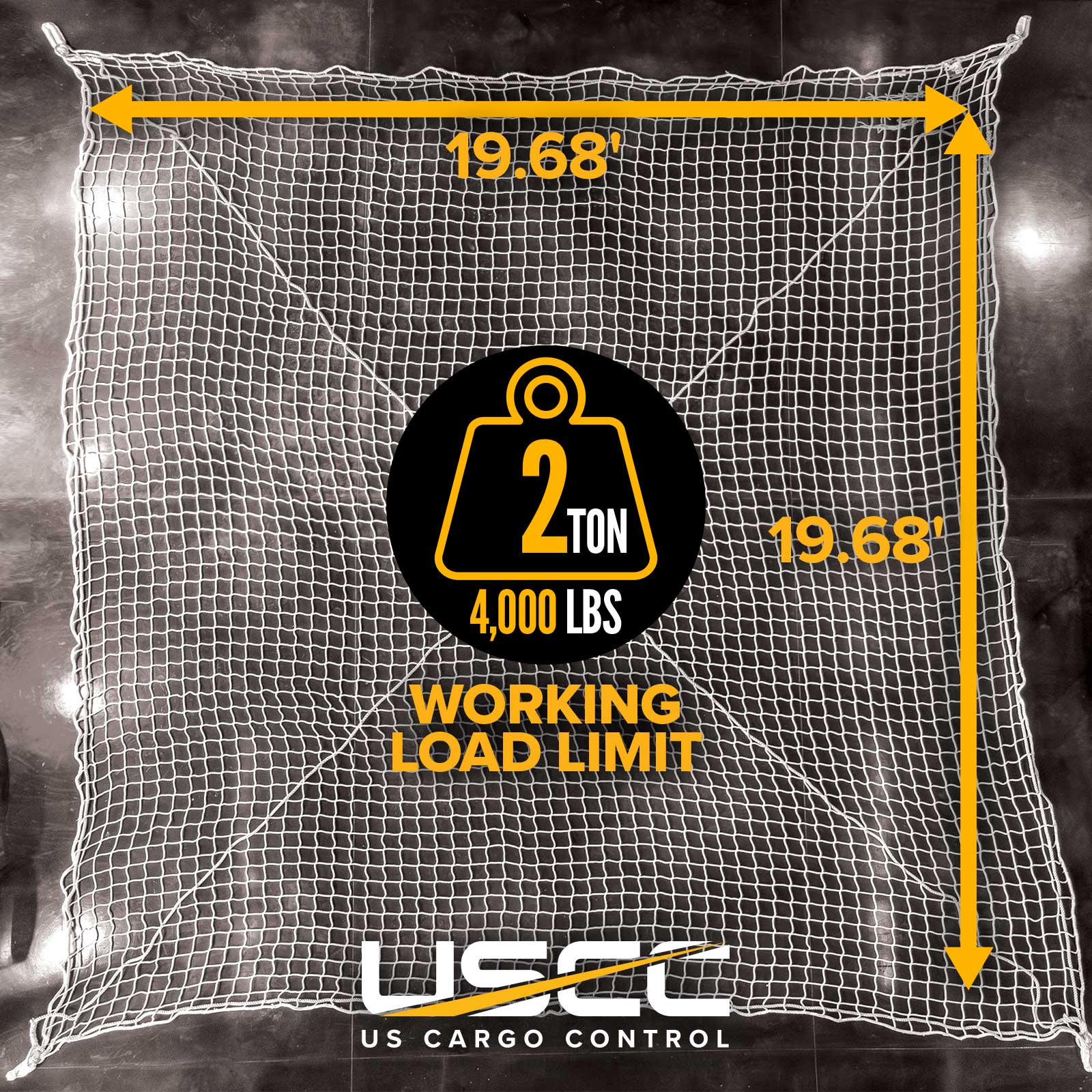

Sized for larger, bulkier loads, this 19.68' x 19.68' cargo lifting net wraps around oversized or irregular cargo for crane and hoist lifting, rated to a 4,000 lb. (2 ton US) working load limit in knotless high-tenacity polypropylene (HTPP) netting.
Engineered for Cargo Handling
- Knotless Raschel HTPP Netting: Continuous filaments knit throughout the net eliminate knots, adding strength while resisting moisture, chemicals, and abrasion.
- 3.90" Square Mesh: A 0.23" (6 mm) cord diameter forms a 3.90" (100 mm) square mesh opening, well suited to smaller cargo pieces.

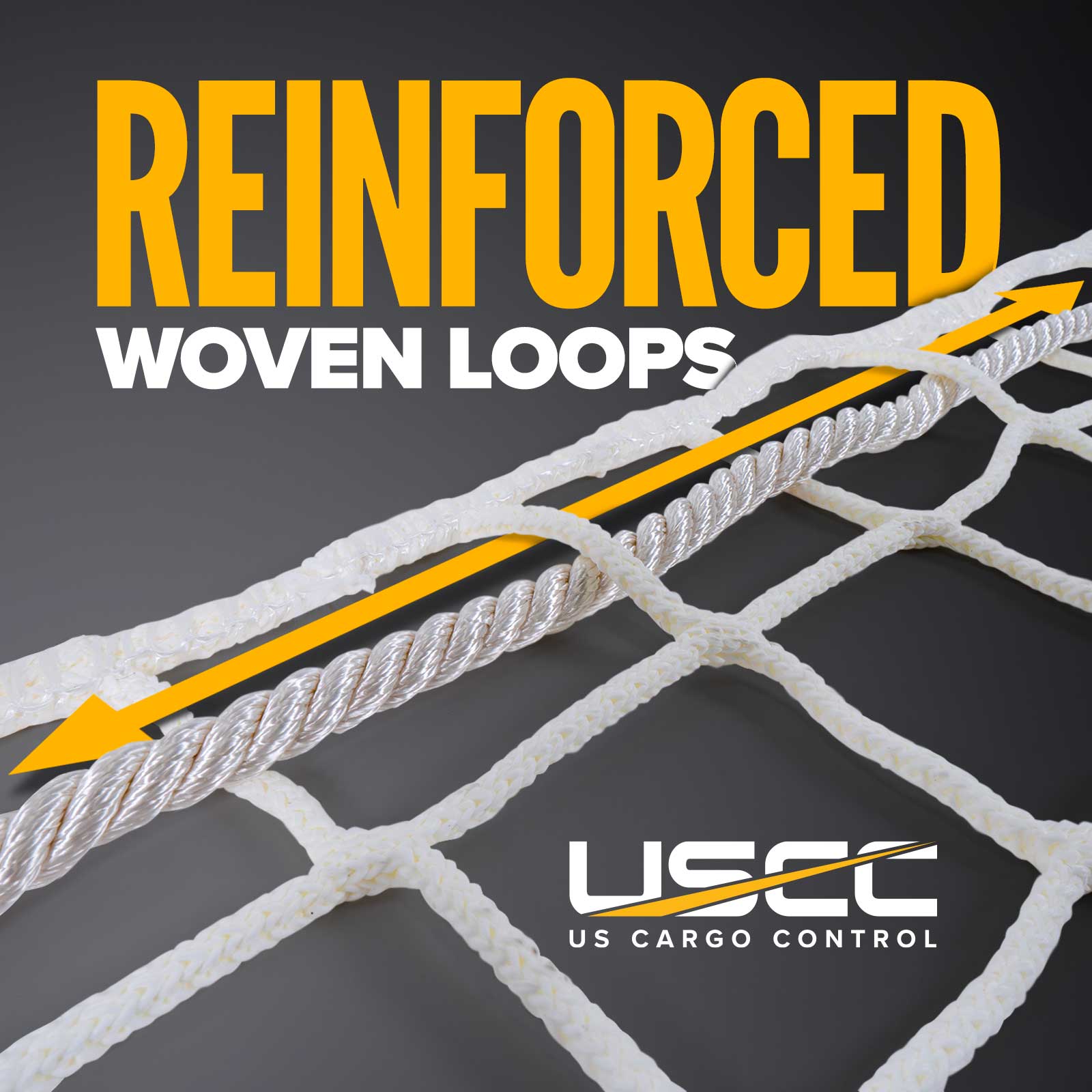

- Nylon Perimeter Rope: A 0.55" (14 mm) nylon rope draws the four reinforced corner loops together under load for balanced four-strand support.

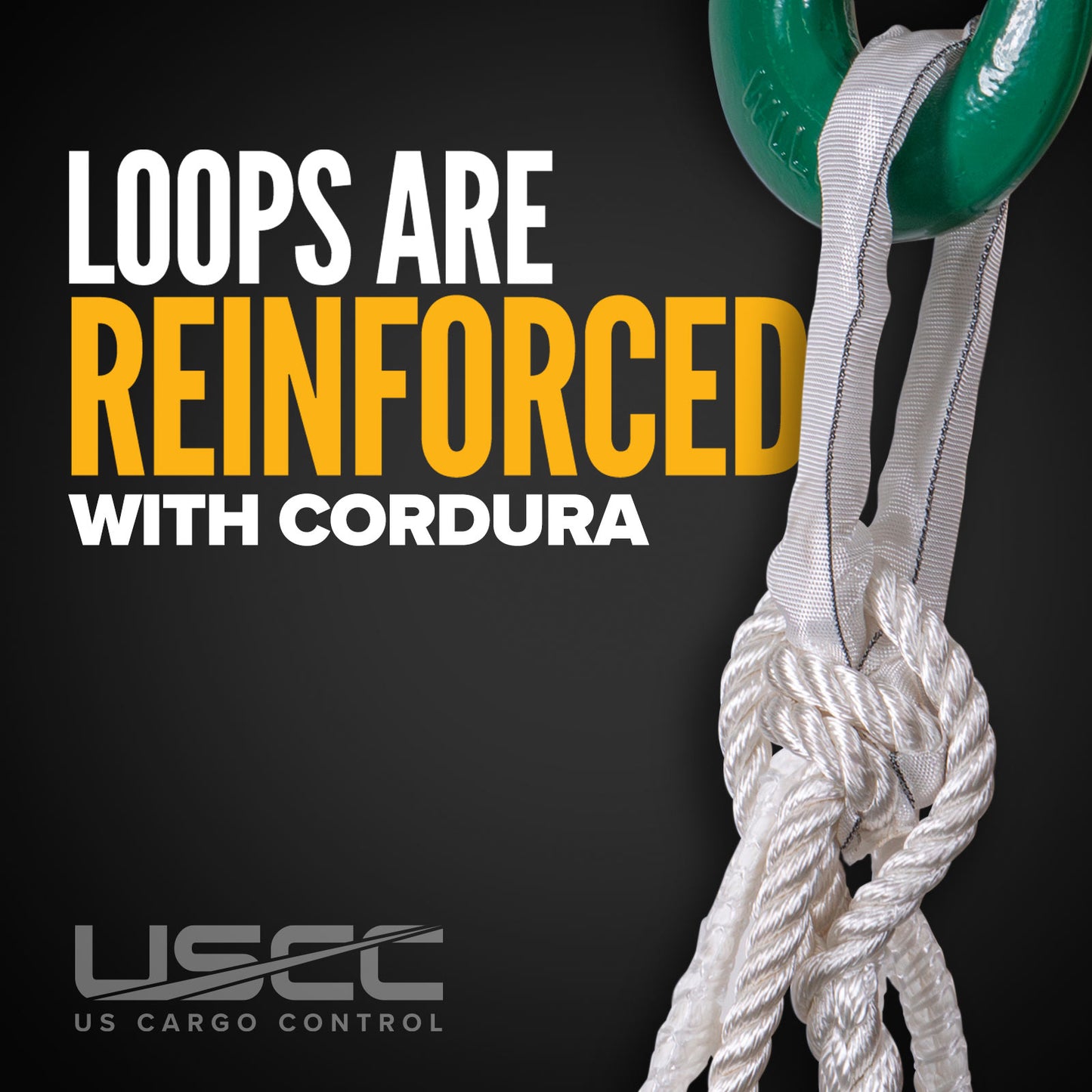

- Reinforced Loop Protectors: Fabric tube protectors at each approximately 6" loop reduce wear at the hook connection.
- Rated to 212°F: Maximum working temperature of 212°F (100°C) suits demanding environments.
Specifications
- Maximum Payload: 2 ton US (4,000 lb / 1,800 kg).
- Net Weight: 44 lb (20 kg).
- Color: White.
Mesh size and net dimensions should be matched to your typical load size, and the working load limit should always exceed the load weight. This net's square design helps distribute load weight evenly.
Complete Your Lifting Setup
Fits the optional four-point load sling (HLN2064) — polyester web straps with steel load rings and safety hooks — shown but not included; for a cost-efficient alternative, see our selection of 4-Leg Nylon Bridle Slings. Browse our full lifting and rigging equipment line, including lifting hooks and shackles, or see our lifting slings selection.
Questions?
Not sure this is the right size or capacity for your load? Our product experts can help you evaluate load requirements, working load limits, and lifting configurations.
