SKU: FPA-7531

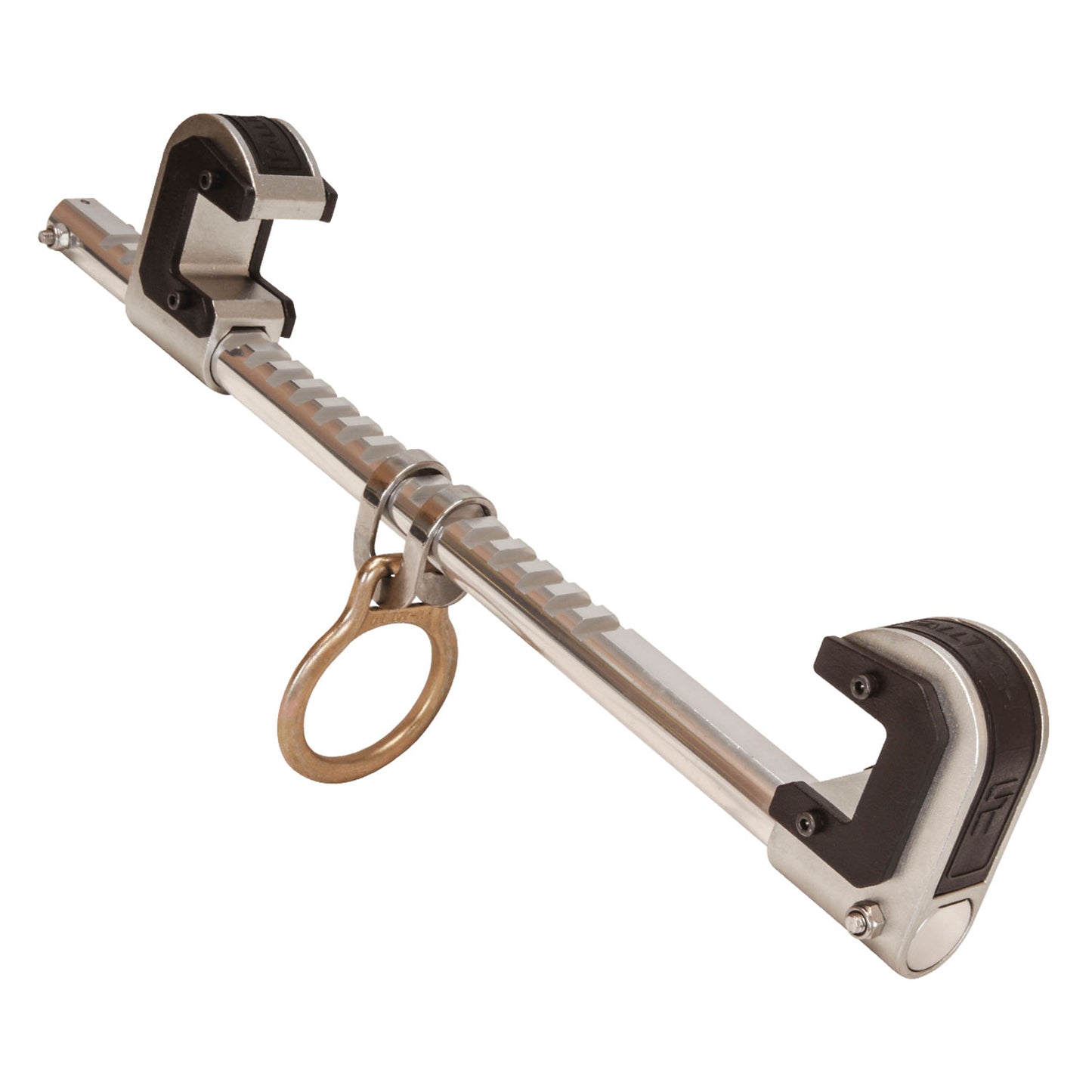

FallTech 14-1/2" Trailing Beam Clamp Anchor | Single Clamp Adjustment | 7531
FallTech 14-1/2" Trailing Beam Clamp Anchor | Single Clamp Adjustment | 7531!
Related Articles
SKU: FPA-7531
FallTech 14-1/2" Trailing Beam Clamp Anchor | Single Clamp Adjustment | 7531
$268.79
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Brand: FallTech
Brand part number: 7531
End fitting: D Ring
Manufacturer name: FallTech
Material: D-ring: plated alloy steel
Crossbar: aluminum alloy
Clamp jaws: plated alloy steel
Crossbar: aluminum alloy
Clamp jaws: plated alloy steel
Product weight: 4.5 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used items.
Standards: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
Type: Single-jaw adjustment
Width: 14.5"
Additional Info: Fits I-Beam flanges from 3" - 14-1/2" wide up to 1-1/4" thick
User Weight Capacity: 310 lbs. ANSI / 425 lbs. OSHA
Static Strength: 5,000 lb min.
User Weight Capacity: 310 lbs. ANSI / 425 lbs. OSHA
Static Strength: 5,000 lb min.
Description
Fall Protection Beam Clamp with Single Adjustment
Get the flexibility you need to move around while working at height with this trailing beam clamp anchor. Design includes an aluminum crossbar and clamping jaws with nylon slider pads.
The adjusting jaw has a concealed locking latch to prevent accidental depression.
Temporary I-Beam Clamp Features
- For use on horizontal I-beams
- D-ring slides along with the jaw adjustment for maximum versatility
- User Capacity: 136 - 310 lbs. ANSI / 130 - 425 lbs. OSHA
