SKU: 7502FECE
3" x 11" Fixed End with Ratchet / Chain Extension | Yellow
3" x 11" Fixed End with Ratchet / Chain Extension | Yellow!
SKU: 7502FECE
3" x 11" Fixed End with Ratchet / Chain Extension | Yellow
$63.79
Get 10+
$61.88/ea
Get 25+
$60.61/ea
Get 50+
$58.69/ea
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Strap Solutions
Build Your Tie DownPayment Options
Specifications
Assembly break strength: 16,200 lbs.
Color: Yellow
Length: 11"
Working load limit: 5,400 lbs.
End fitting: Chain Extension
Product weight: 10.45 lbs.
Ratchet handle: Standard
Standards: AWRF Accredited: learn more.
Width: 3"
Description

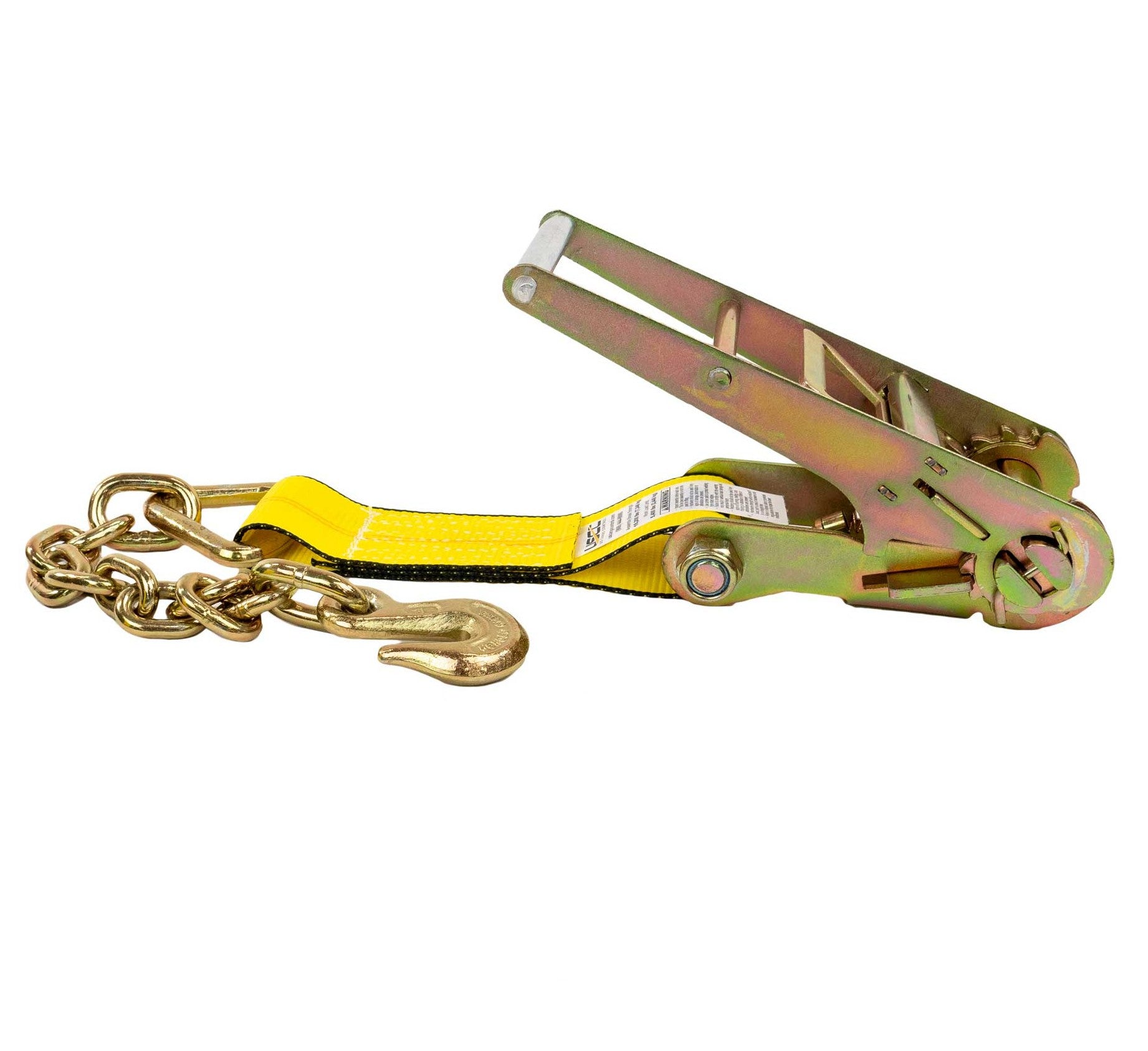

3" x 11" Yellow Tie Down Strap with Chain Extension
Replace your fixed end without needing to buy an entire ratchet tie down with this heavy-duty 3" replacement strap. Made from durable yellow polyester webbing, it has a chain extension on one end and a ratchet on the other. Both the chain end and the ratchet assembly have a yellow zinc coating that looks sharp and adds protection from the elements.
Three Inch Ratchet Strap Features
The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your ratchet straps will last longer.
3" Chain End Tie Down Strap Industry Compliance
All of our ratchet straps are tagged and stenciled with break strength and working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.
Learn more about proper load handling and securement in the WSTDA safety bulletins.

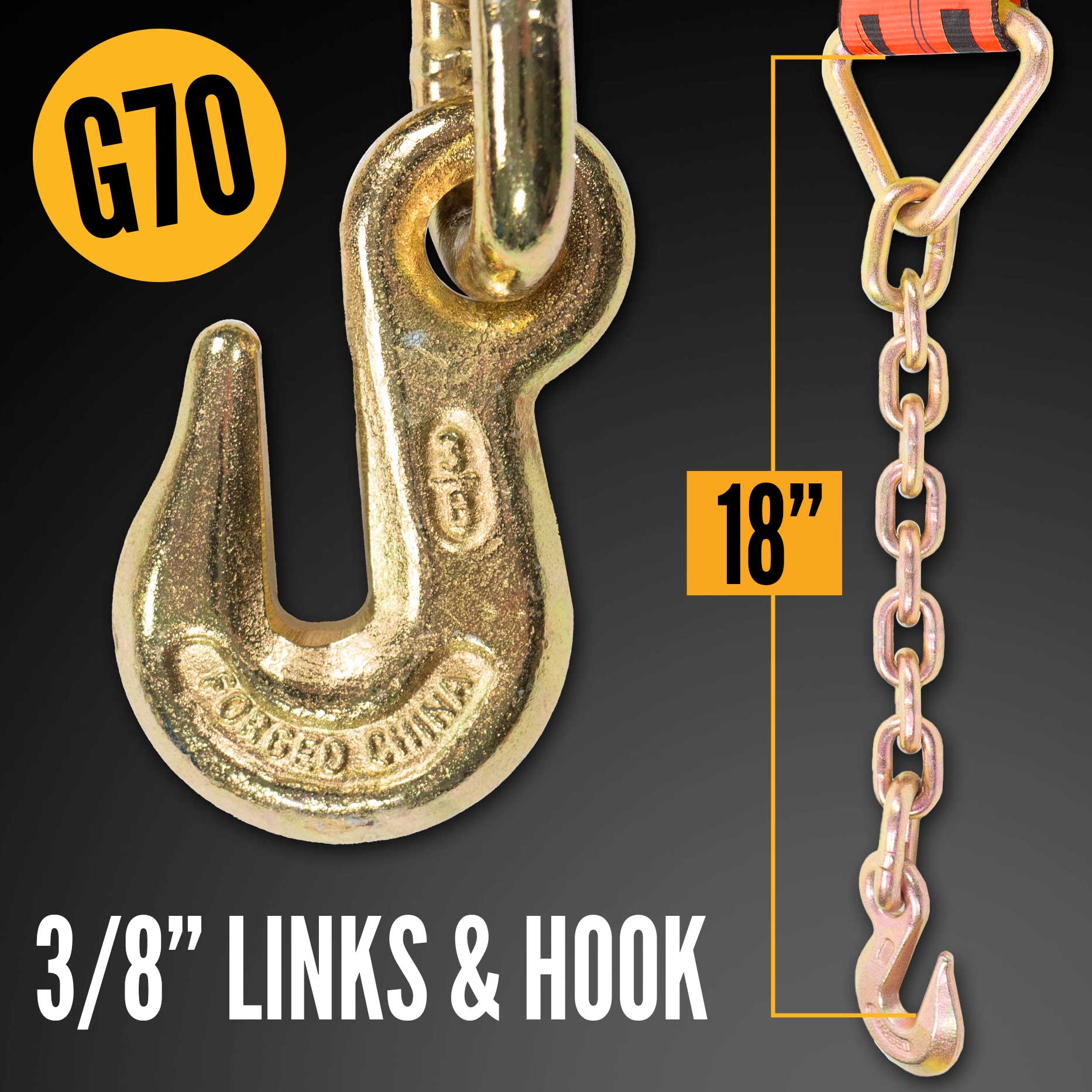

Why Choose 3/8" Chain Extension End Hardware?
Chain extensions allow you to combine the strength of grade 70 transport chain with the softness of polyester webbing. You can use the rub rails or stake pockets on your truck or trailer to tie down your cargo without risking damage to the webbing part of the strap. The extensions are 18" long with a 3" D-ring and clevis grab hook for quick and secure connections.
Custom Ratchet Straps Available
Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!
Ratchet Use Guidelines
According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."
What is Design Factor?
Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.
Complete Your Tie-Down System
US Cargo Control is your one-stop shop for all cargo securement products, including strap protection, transport chain and binders, corner protectors, and more.
