SKU: SPAS34-DFSS

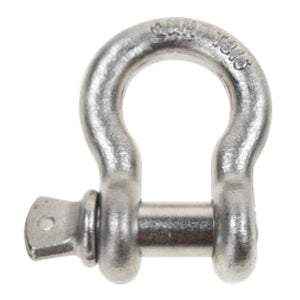

3/4" Stainless Steel Drop Forged Screw Pin Anchor Shackle - 3 Ton
3/4" Stainless Steel Drop Forged Screw Pin Anchor Shackle - 3 Ton!
Continue Browsing
Stainless Steel Shackles
Anchor, Bow, Chain, and D Shackles
Rigging Supplies & Rigging Hardware
Related Articles
SKU: SPAS34-DFSS
$96.99
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Grade: 316 Stainless Steel
Working load limit: 3 ton
Brand part number: 2711SF-20
Inside height: 2.88"
Material: Stainless Steel
Mouth width: 1.25"
Pin size: 7/8"
Product weight: 2.3 lbs.
Rated for Overhead Lifting: No - overhead lifting rated stainless steel options are available by request.
Safety factor: 5:1
Shackle size: 3/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description
Screw pin anchor shackles feature a large rounded shape that allows them to take loads from many directions without developing significant side load. The screw pin configuration is best for use in applications that are temporary or require repeated and/or quick connections and disconnections. These stainless steel bow shackles are made from Type 316 non-magnetic drop-forged stainless steel to deliver superior strength and corrosion resistance.
Type 316 Stainless steel shackles are great for high humidity or marine applications. Stainless steel has a sufficient amount of chromium present so that chromium oxide film forms. This film prevents further corrosion and prevents it from spreading to the internal part of the anchor shackle.
Size: Stainless Steel Drop Forged Screw Pin Anchor Shackle - 3/4" (additional sizes are available).
Check out our large selection of Rigging Supplies, including even more shackles, wire rope, lifting slings, chain, and much more.
Stainless steel shackles are not always rated for overhead lifting. If you need stainless shackles that are approved for overhead lifting, please contact our sales team.
Source: Import
