4 Leg Chain Slings - Grade 100
-
HooksLengths6400 lbs.30° Capacity
9100 lbs.45° Capacity
11200 lbs.60° Capacity
-
HooksLengths8500 lbs.30° Capacity
12100 lbs.45° Capacity
14800 lbs.60° Capacity
-
HooksLengths18700 lbs.30° Capacity
13200 lbs.45° Capacity
22900 lbs.60° Capacity
-
HooksLengths22500 lbs.30° Capacity
31800 lbs.45° Capacity
39000 lbs.60° Capacity
-
HooksLengths33900 lbs.30° Capacity
47900 lbs.45° Capacity
58700 lbs.60° Capacity
-
HooksLengths53000 lbs.30° Capacity
74900 lbs.45° Capacity
91700 lbs.60° Capacity
-
HooksLengths6400 lbs.30° Capacity
9100 lbs.45° Capacity
11200 lbs.60° Capacity
-
HooksLengths8500 lbs.30° Capacity
12100 lbs.45° Capacity
14800 lbs.60° Capacity
-
HooksLengths13200 lbs.30° Capacity
18700 lbs.45° Capacity
22900 lbs.60° Capacity
-
HooksLengths22500 lbs.30° Capacity
31800 lbs.45° Capacity
39000 lbs.60° Capacity
-
HooksLengths33900 lbs.30° Capacity
47900 lbs.45° Capacity
58700 lbs.60° Capacity

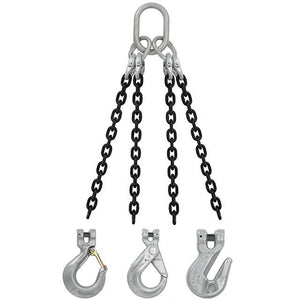

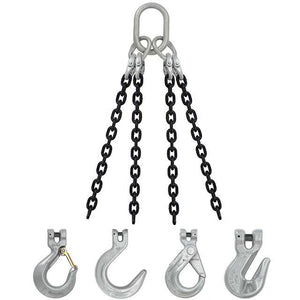

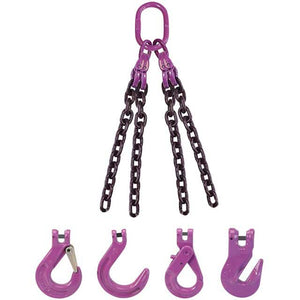

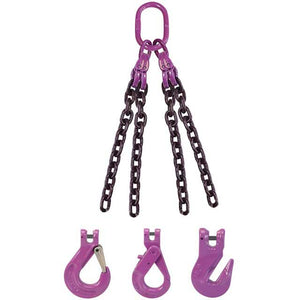

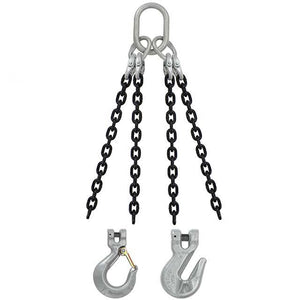

A 4 leg chain sling has four lengths of grade 100 chain connected to a top master oblong link. This type of sling is also known as a quad leg chain sling or a 4 leg bridle chain sling chain since this configuration is designed to be used with a bridle hitch with four pick points. Four legs is the maximum number of chain lengths available on one chain sling assembly.
Hook Options for 4 Leg Lifting Slings
A hook is fitted on each end, and can also be at the top rather than an oblong link. Available hook options include foundry hooks, grab hooks, latched sling hooks, or self-locking hooks. Oblong links instead of hooks are also a possible configuration, contact our product experts to order custom 4 leg chain slings.
- Sling hook: also known as slip sling hooks, these large throat hooks are commonly used at the ends of chain slings and wire rope. they're typically self-locking to avoid disconnect.
- Self-locking hook: these hooks are designed to pivot in the middle and lock when lifting pressure is applied. They cannot be opened while lifted with your overhead lifting chains.
- Foundry hooks: these are extra-large throat hooks that are used in unique situations that require a larger opening to manage loads.
- Grab hook: these chain sling hooks have a small throat that attaches to the chain by slinging over the chain in-between links.
- Oblong master link: An oblong shaped ring used at the top of chain slings.
4 Leg Chain Capacity
These quad slings can be used at a 60, 45, or 30-degree angle of lift. Chain capacity for each angle varies by angle of lift and by chain size. See each product above for the various lifting capacities.
Adjustable Lifting Slings
These quad leg slings are also available as an adjustable 4-leg chain sling, which features an adjustable mechanism that allow the user to quickly shorten a length of chain without a reduction in WLL.
Proof Testing
Proof testing has been done on every link of chain to ensure its working load limit. To get your custom chain sling tested at the time of manufacture, it must be requested when the order is placed with our sales specialists. For an additional fee, we will proof test your sling and issue a certificate when requested at the time the order is placed.
All of our chain meets or exceeds the latest guidelines of the National Association of Chain Manufacturers (NACM), ANSI B30.9 standards and OSHA specifications.
We also offer a range of bulk chain products. Click over to our grade 80 bulk chain, grade 100 bulk chain, and grade 120 bulk chain pages to see our full selection.
