Van Beest Green Pin Bolt Type Wide Body Sling Shackle | P-6033 - 75 Ton
Van Beest Green Pin Bolt Type Wide Body Sling Shackle | P-6033 - 75 Ton!
$3,086.29
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 75 tons (Metric) / 165,346 lbs.
Brand part number: SLGPF075
Finish: Painted
Inside height: 11.41"
Inside width: 7.28"
Manufacturer name: Van Beest
Material: Alloy Steel
Mouth width: 4.34"
Pin size: 2-3/4"
Product weight: 106 lbs.
Safety factor: 5:1
Shackle size: 2-11/16"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM A148M.
Type: Bolt Type Wide Body
Additional Info: Temperature Range: -4°F / -20°C to 392°F / 200°C
Description

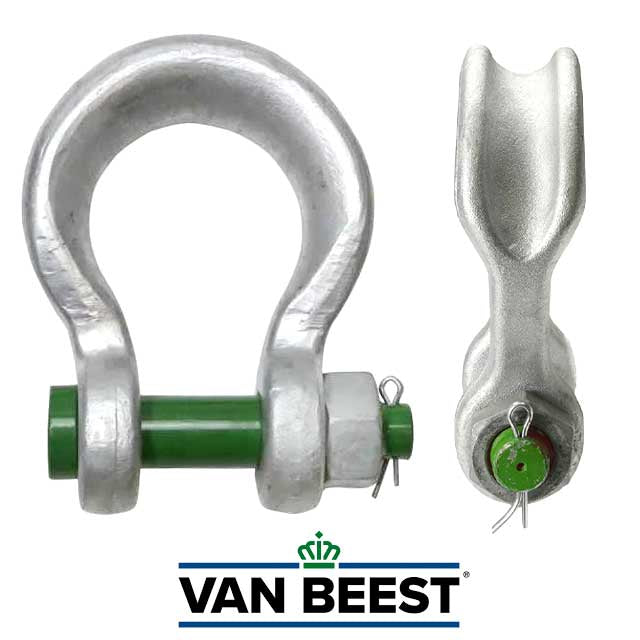

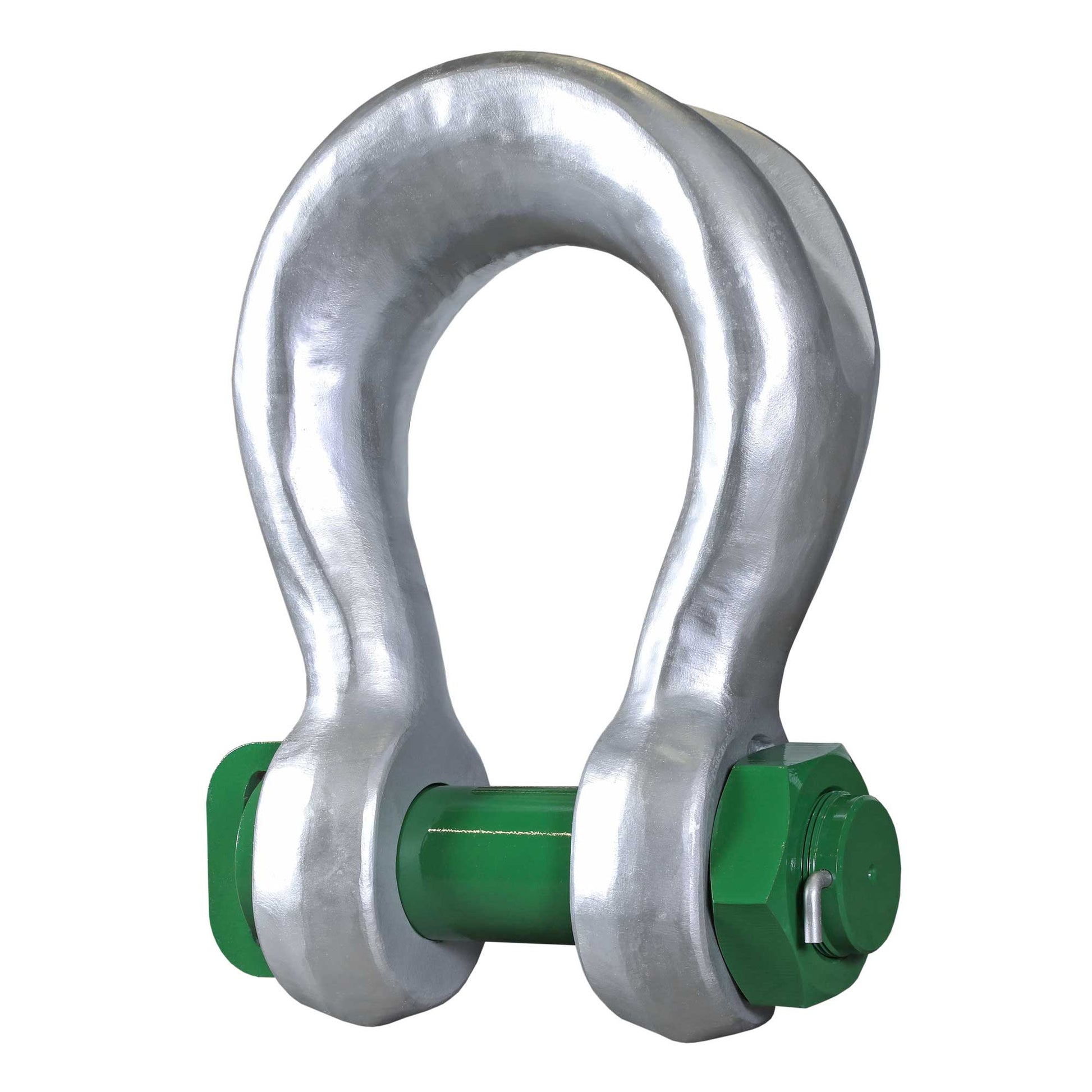

75 Ton Green Pin Wide Body Shackle

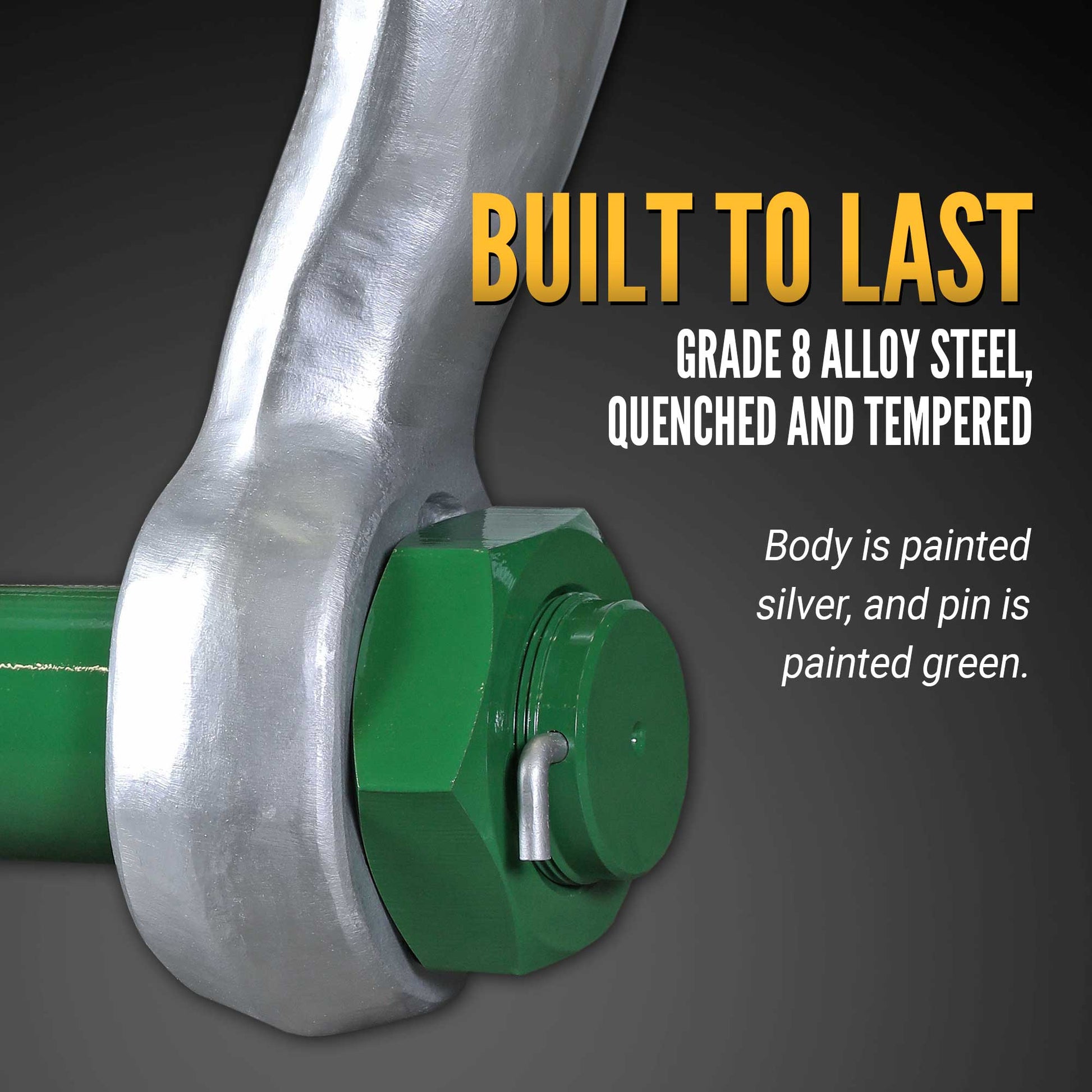

Van Beest Green Pin® wide body sling shackles are made from extremely high quality grade 8 quenched and tempered alloy steel. Easily identifiable in the field because of their trademarked green pin, they have a painted finish to protect the steel from corrosion.
These Green Pin® sling shackles are designed to provide a better radius to the sling it lifts, which improves the efficiency and lifespan of the sling.
Bolt type sling shackles are intended for long-term or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
California Residents: WARNING
-

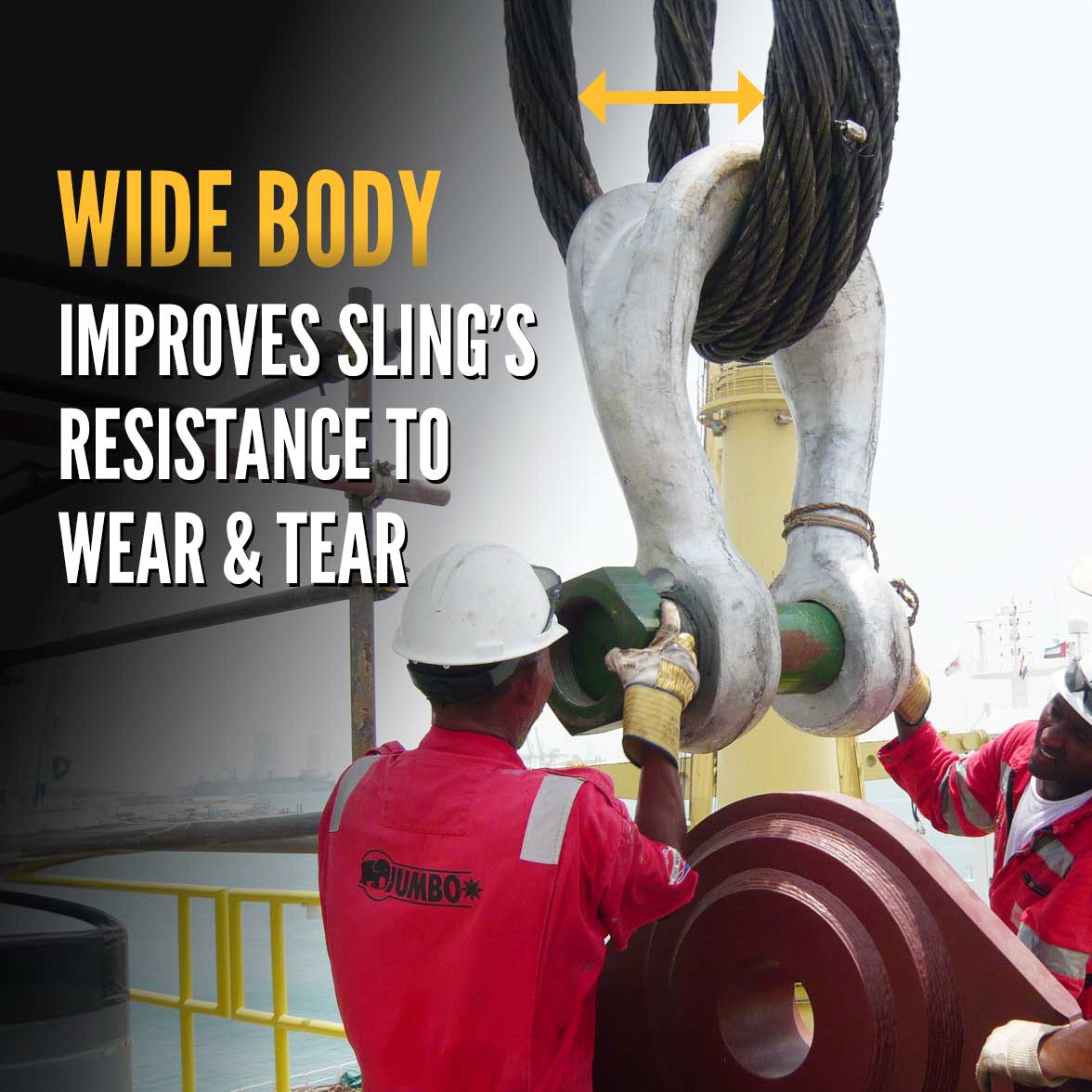

Improved Sling Life
The larger body width creates a larger radius for your attached slings, increasing both the efficiency and life ofthe life of your slings.
-
