description

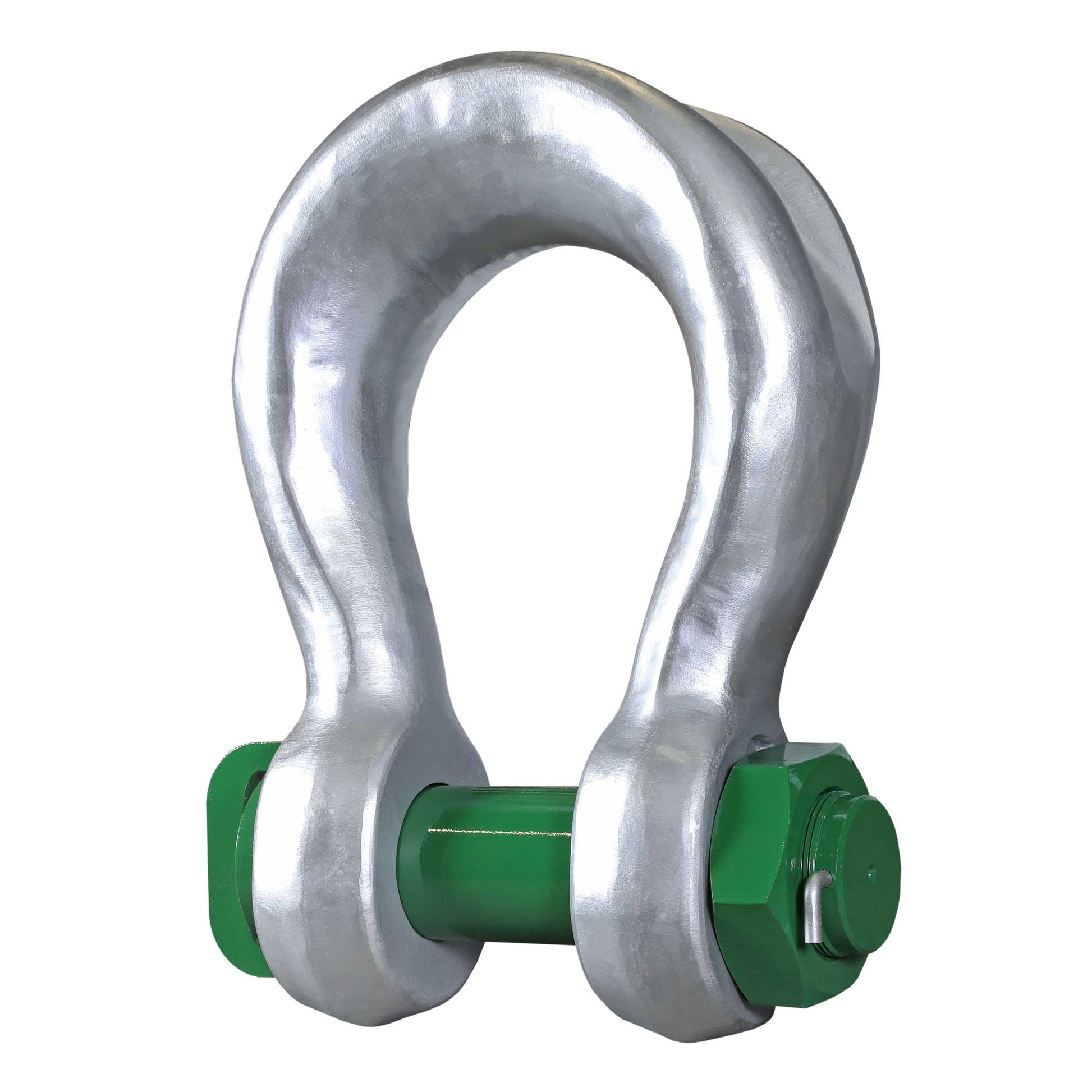

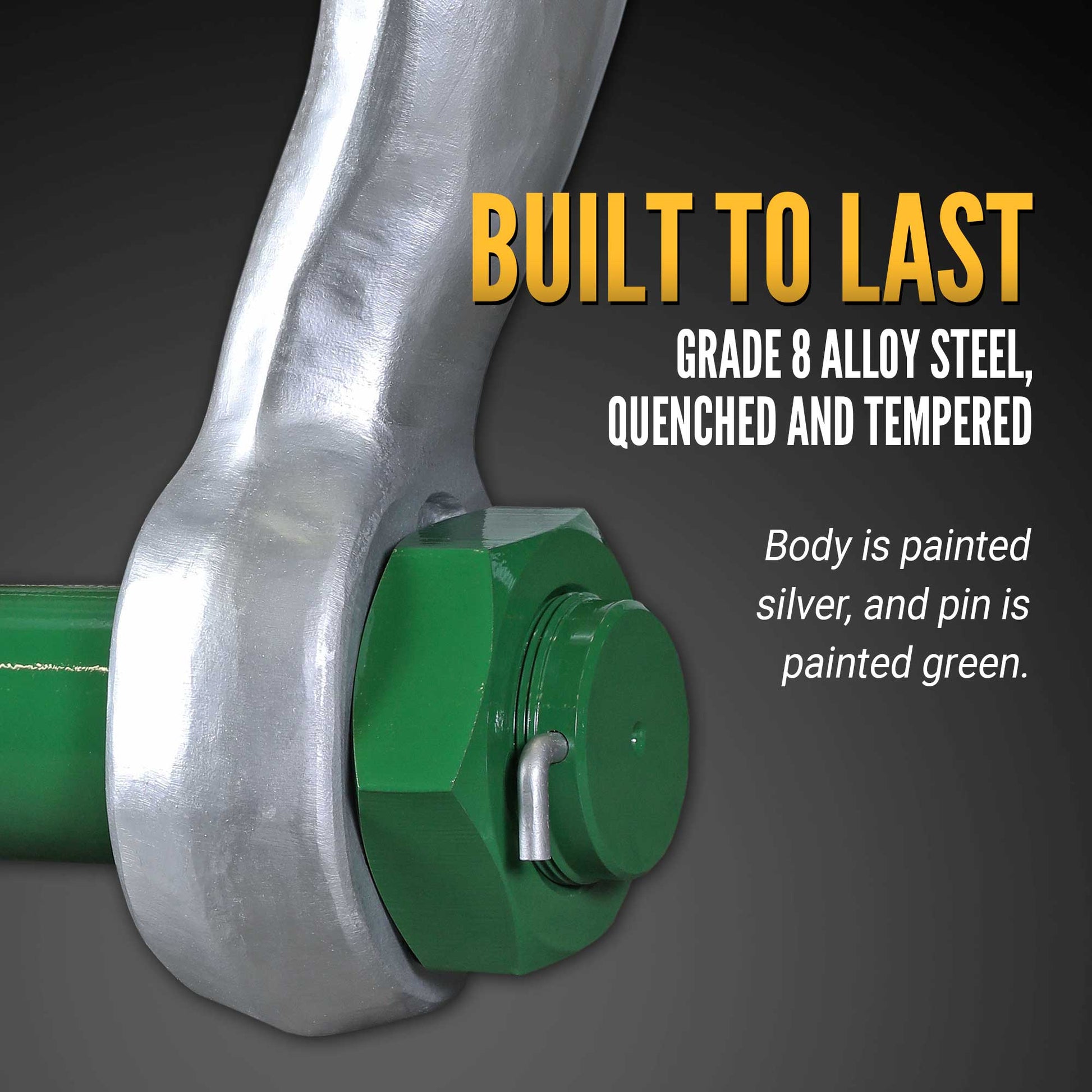

Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.

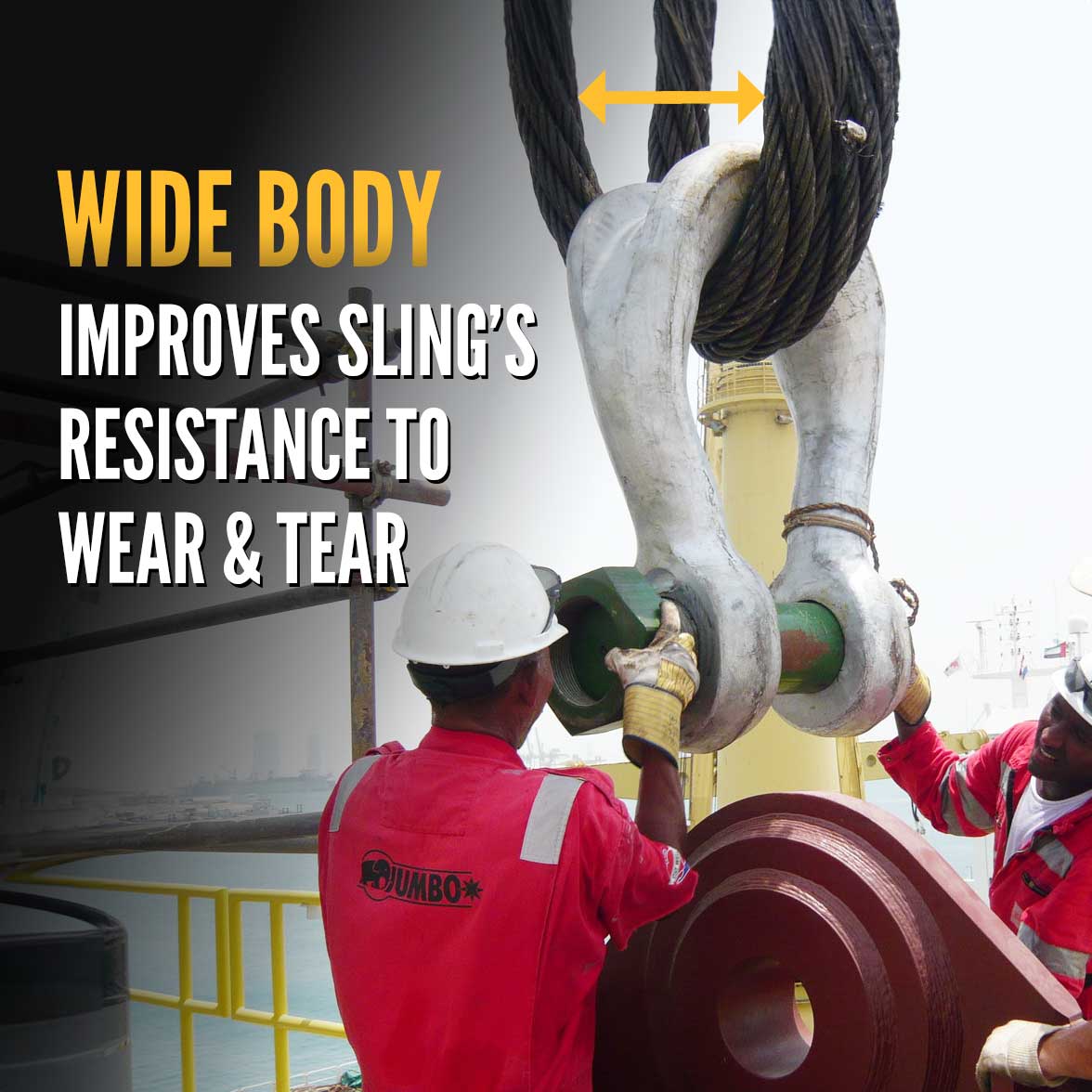

Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the f...
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
specifications
Working Load Limit:
600 ton
Product Weight:
2161
Manufacturer Name:
Van Beest
Brand:
US Cargo Control
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
29.19"
Inside Width:
19.28"
Mouth Width:
11.38"
Pin Size:
7-7/8"
Shackle Size:
7-5/32"
Product Guide:
Shackle Dimensions:
S:
7-5/32"
A:
7-7/8"
B:
29.19
C:
11.38
D:
19.28
