description

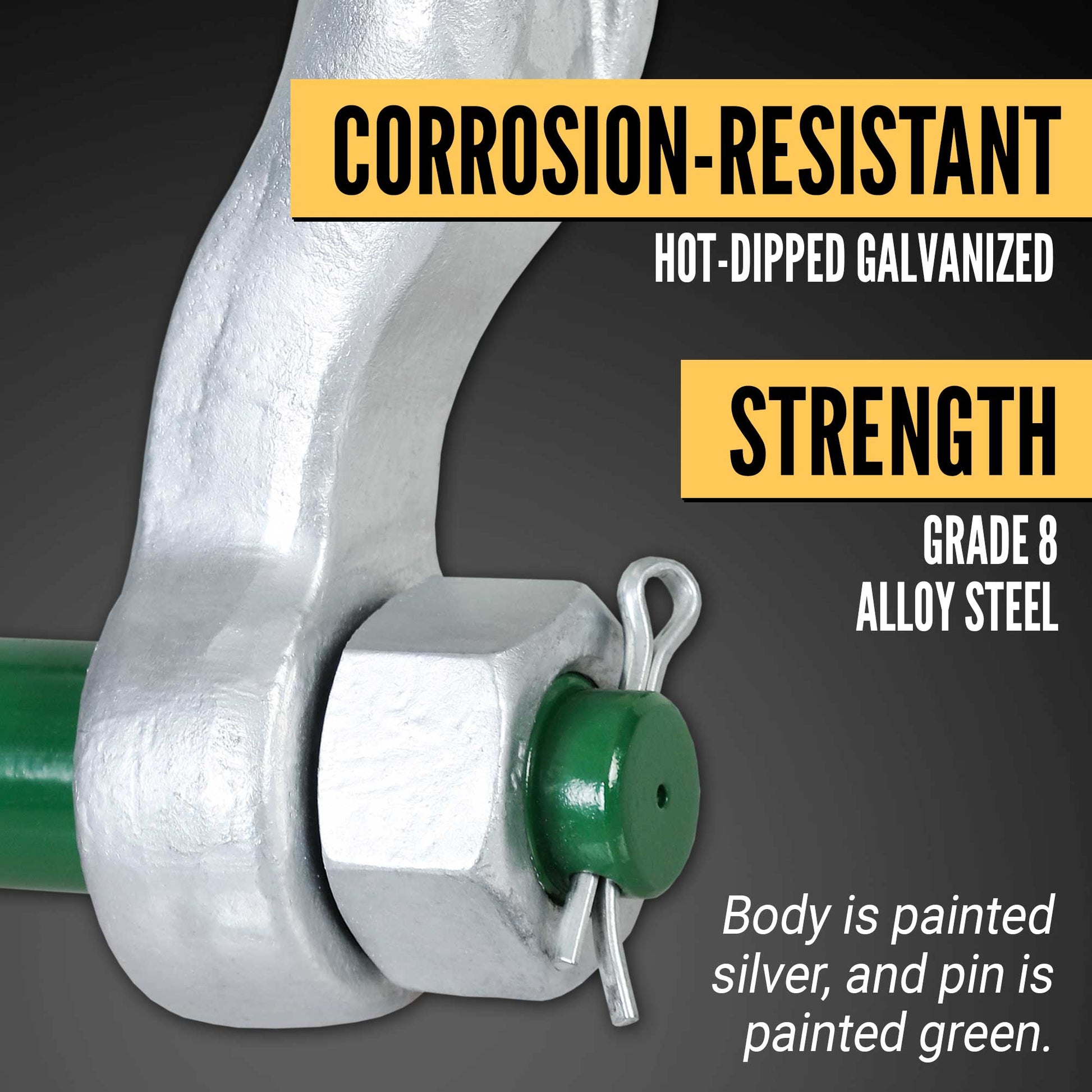

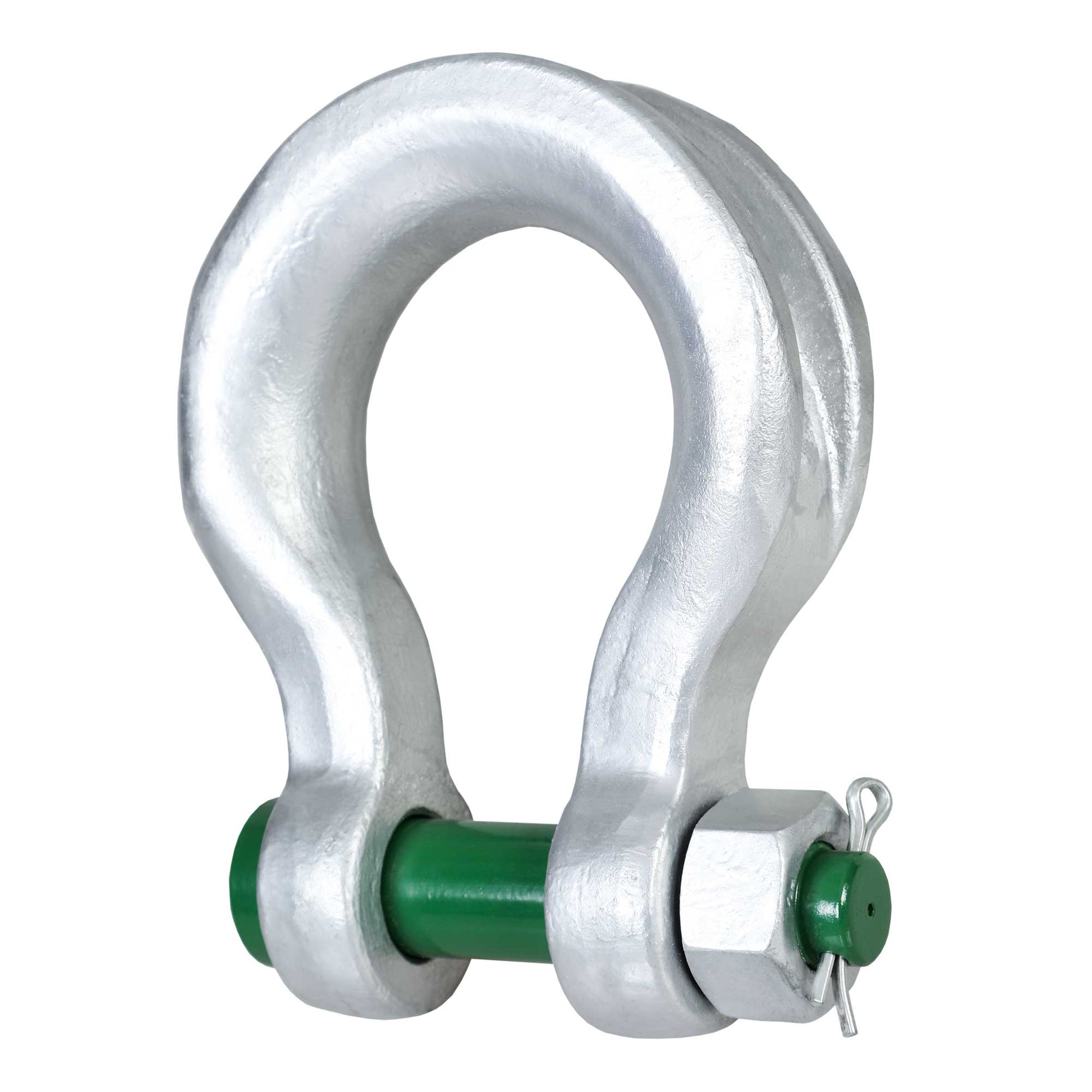

Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.

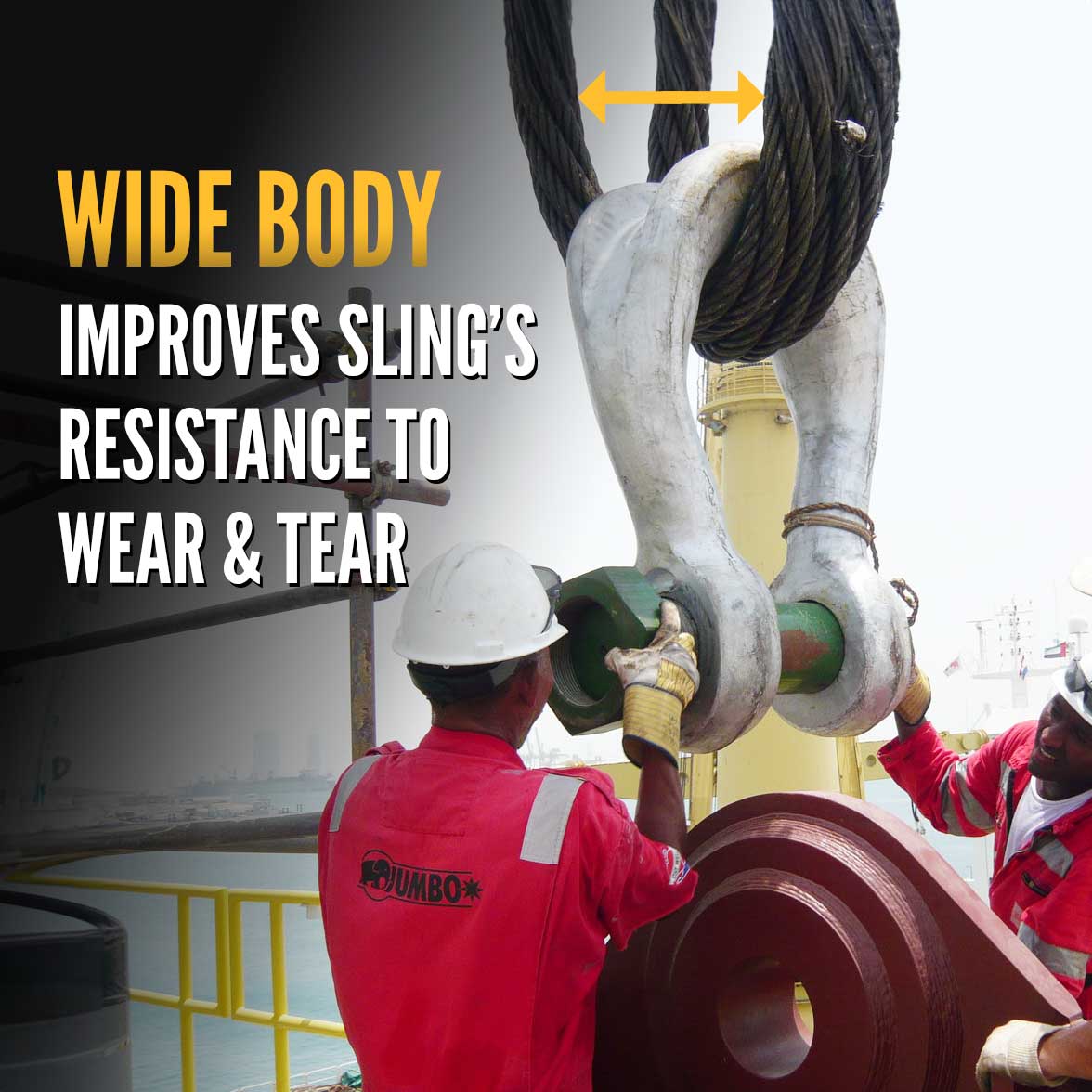

Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.

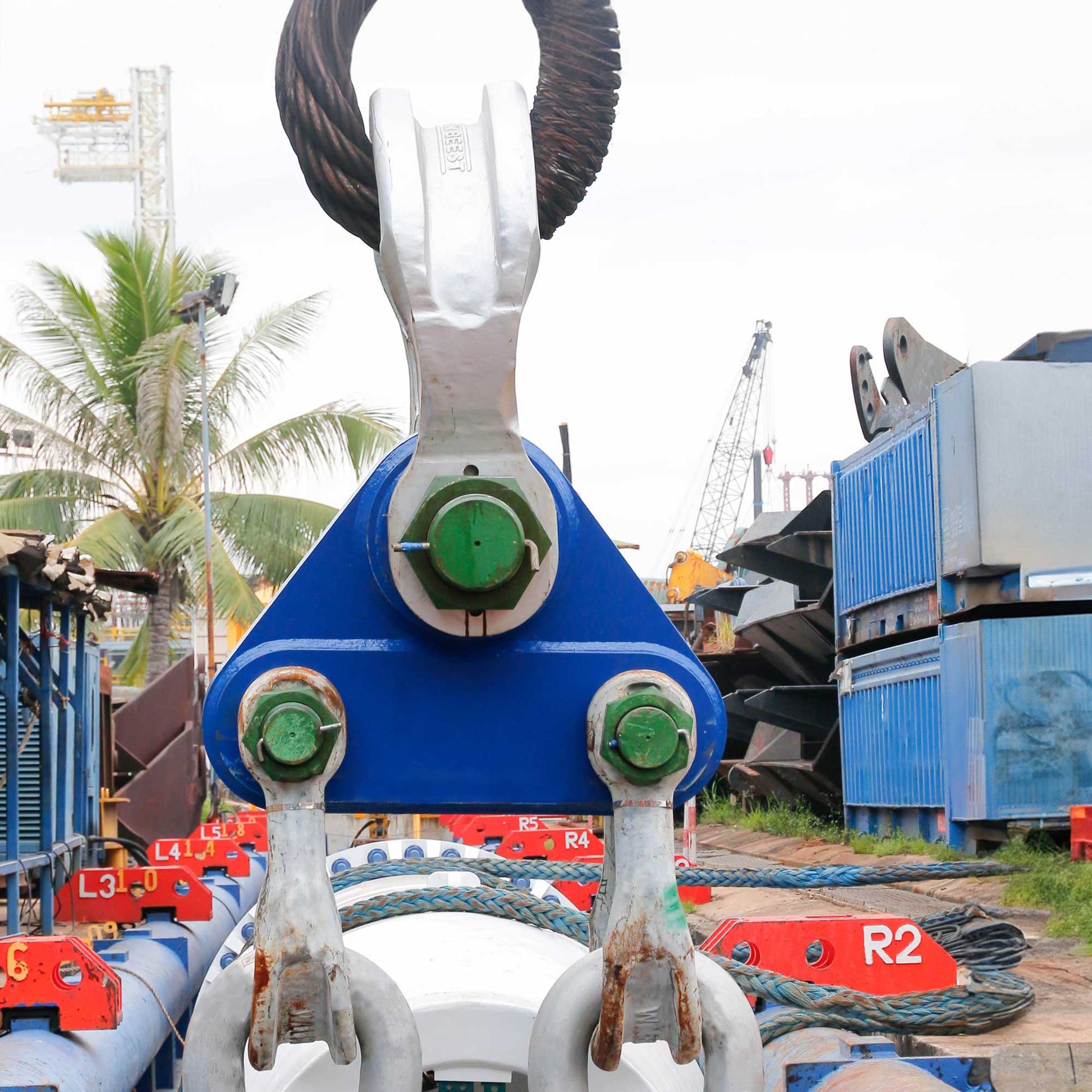

Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the f...
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
specifications
Working Load Limit:
30 ton
Product Weight:
29
Manufacturer Name:
Van Beest
Brand:
US Cargo Control
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
6.5"
Inside Width:
4.97"
Mouth Width:
2.72"
Pin Size:
1-21/32"
Shackle Size:
1-9/16"
Product Guide:
Shackle Dimensions:
S:
1-9/16"
A:
1-21/32"
B:
6.5
C:
2.72
D:
4.97
