description

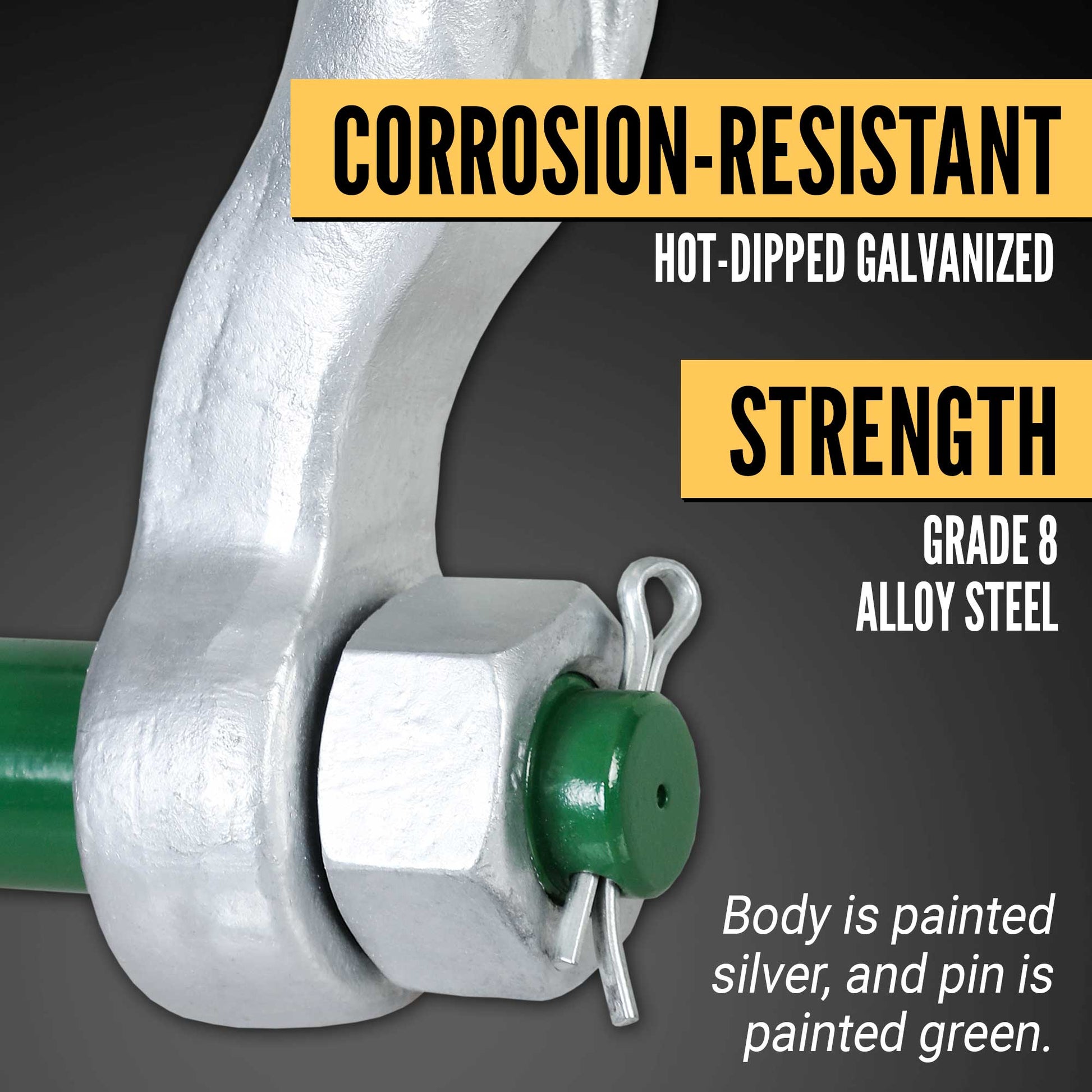

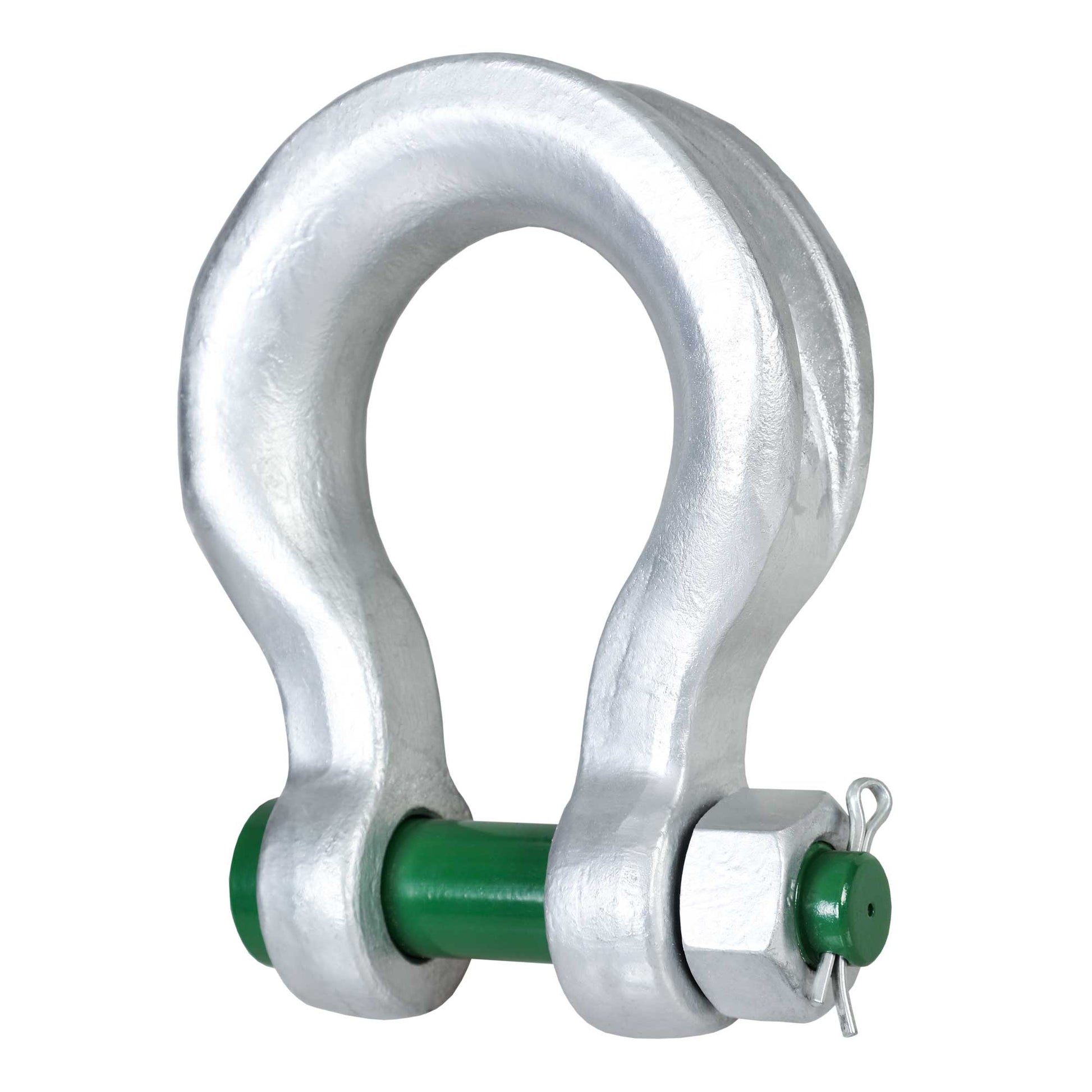

Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.

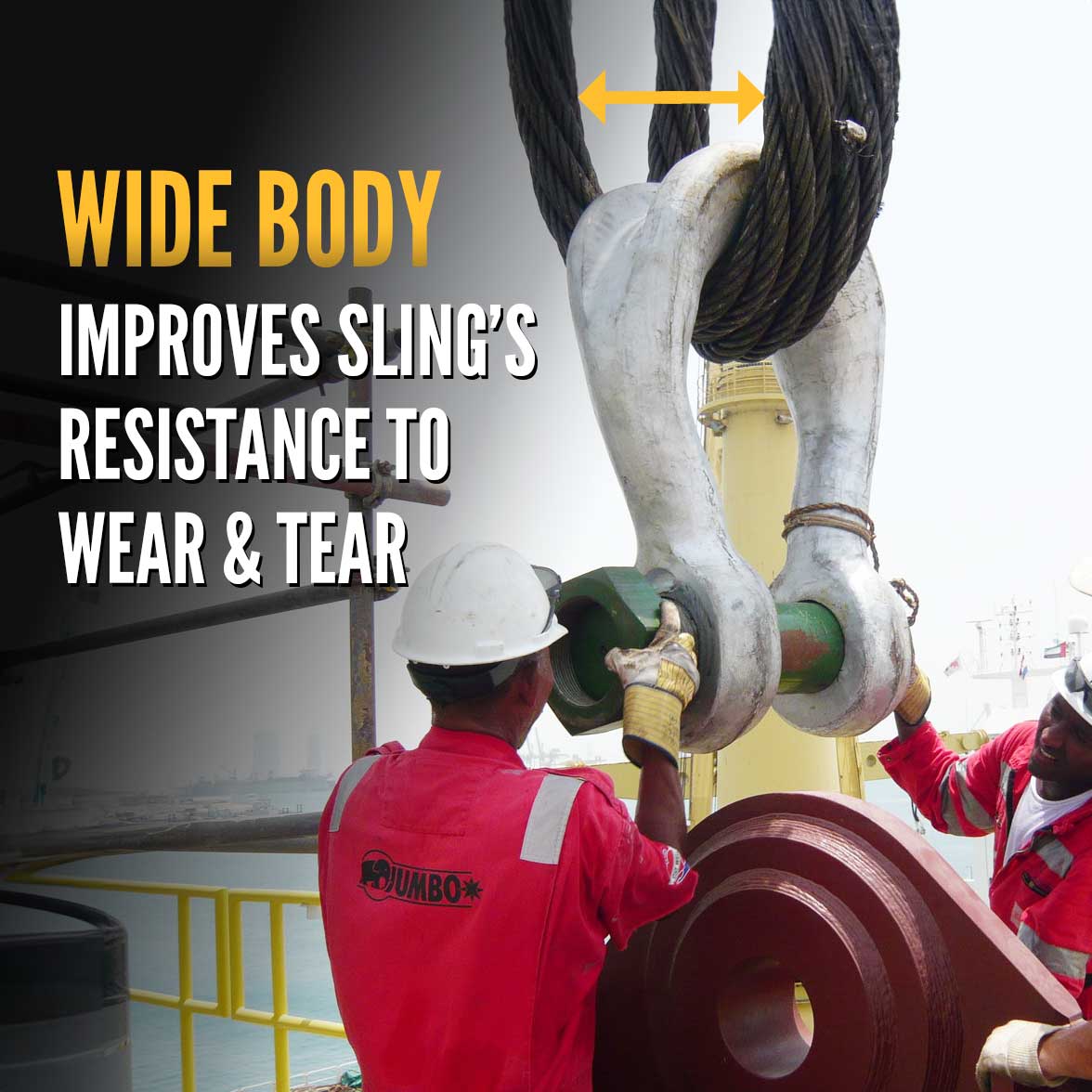

Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the f...
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
specifications
Working Load Limit:
40 ton
Product Weight (lbs.):
46
Manufacturer Name:
Van Beest
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
7.84"
Inside Width:
5.5"
Mouth Width:
3.31"
Pin Size:
2"
Shackle Size:
2-5/32"
Product Guide:

Shackle Dimensions:
S:
2-5/32"
A:
2"
B:
7.84
C:
3.31
D:
5.5
