description
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.

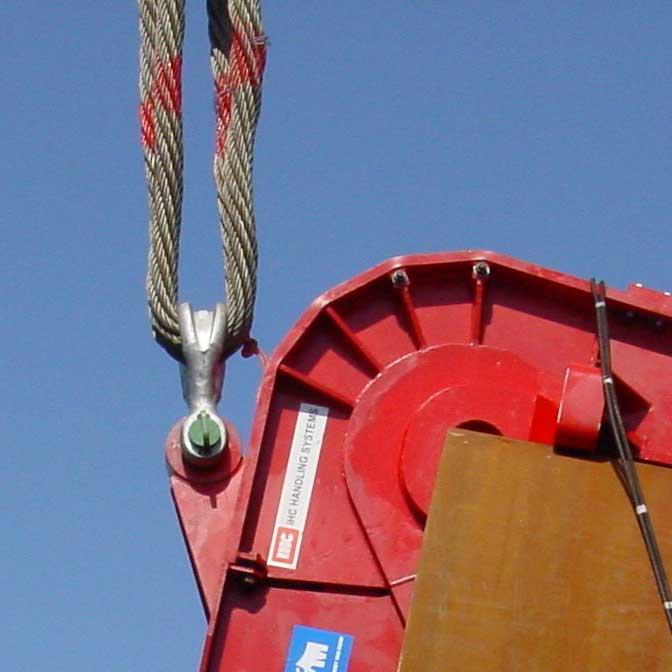

Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the f...
Van Beest Green Pin® Wide Body Sling Bow Shackles are extremely high quality shackles made in Holland. These shackles are easily identifiable in the field because of their trademarked green pin. A painted finish helps protect the Grade 8 alloy steel from corrosion.
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
Green Pin® Sling shackles are designed to provide a better radius to the sling it lifts. A bigger radius increases the life span of the sling significantly.
Bolt type sling shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle.
California Residents: WARNING
specifications
Working Load Limit:
250 ton
Product Weight:
582
Manufacturer Name:
Van Beest
Brand:
US Cargo Control
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
21.34"
Inside Width:
11.81"
Mouth Width:
7.06"
Pin Size:
4-23/32"
Shackle Size:
4-31/32"
Product Guide:
Shackle Dimensions:
S:
4-31/32"
A:
4-23/32"
B:
21.34
C:
7.06
D:
11.81
