SKU: SPAS38-D

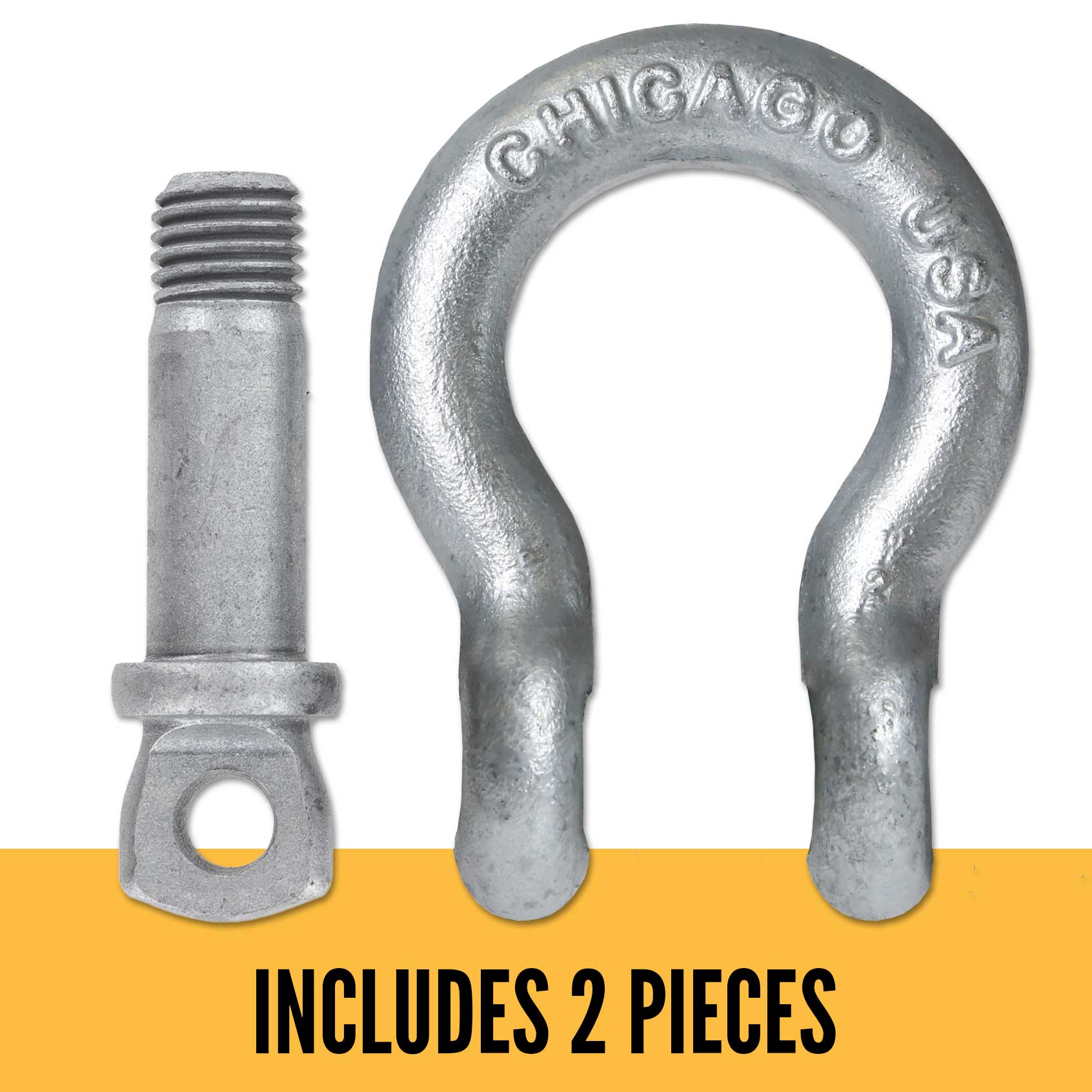

Screw Pin Anchor Shackle - Chicago Hardware - 3/8" Galvanized Steel - 1 Ton
Screw Pin Anchor Shackle - Chicago Hardware - 3/8" Galvanized Steel - 1 Ton!
$7.99
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 1 ton
Brand part number: 20120 9
Finish: Galvanized
Inside height: 1.44"
Inside width: 1.12"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 0.66"
Pin size: 7/16"
Product weight: .33 lbs.
Safety factor: 6:1
Shackle size: 3/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Screw Pin Anchor
Description
Offers the security of a strong screw pin connection with the ease of a quick release mechanism. The bow shape has the ability to handle a wider variety of connections and multi-dimensional pulling, as opposed to chain shackles which have a more narrow shape.
Excellent for temporary lifting jobs or those that require frequent connects and disconnects since the quick-release pin action is faster to operate than a shackle with a round pin.

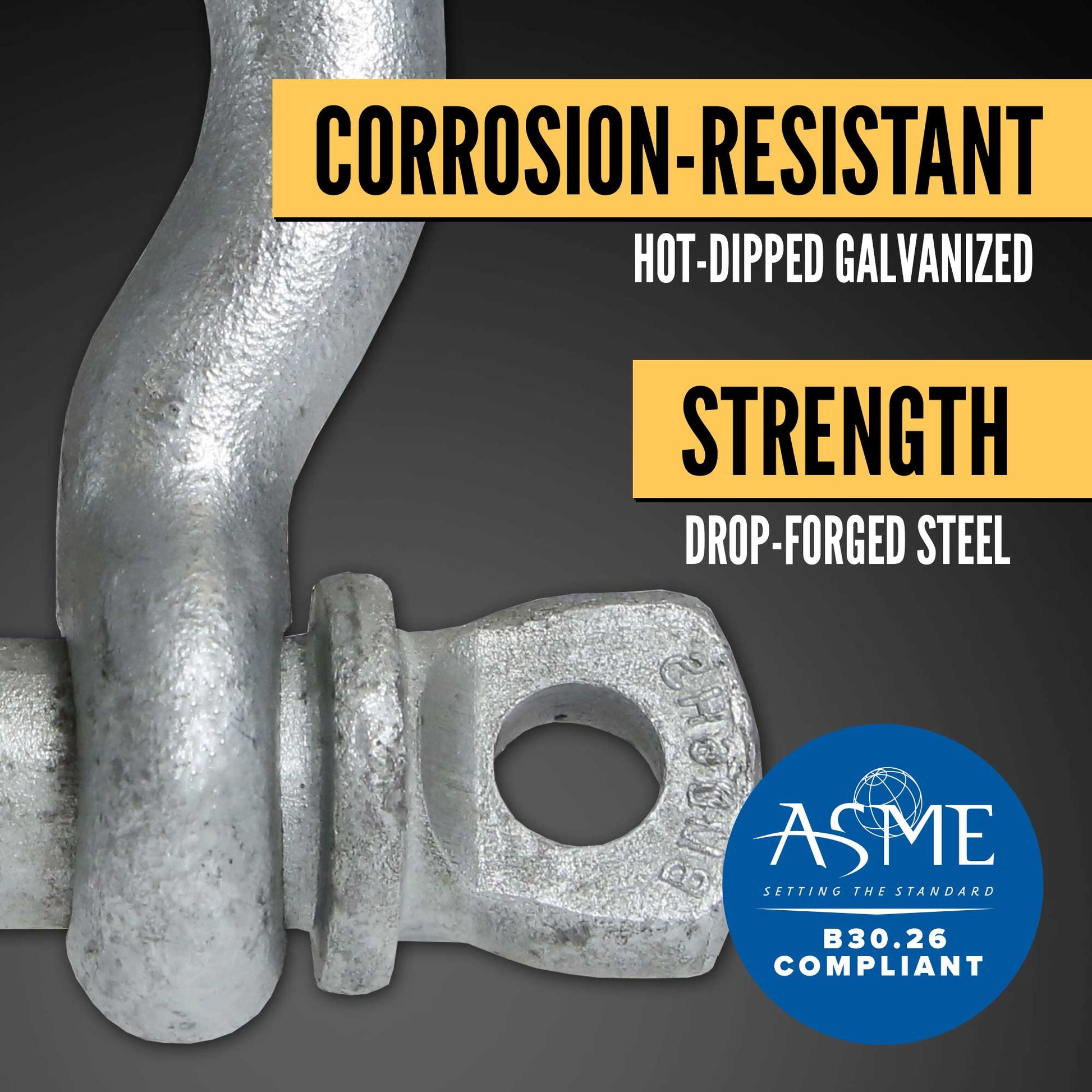

Made in the USA in forged galvanized steel, hot dipped to create protection from corrosive elements.
