SKU: SPAS1-12-D

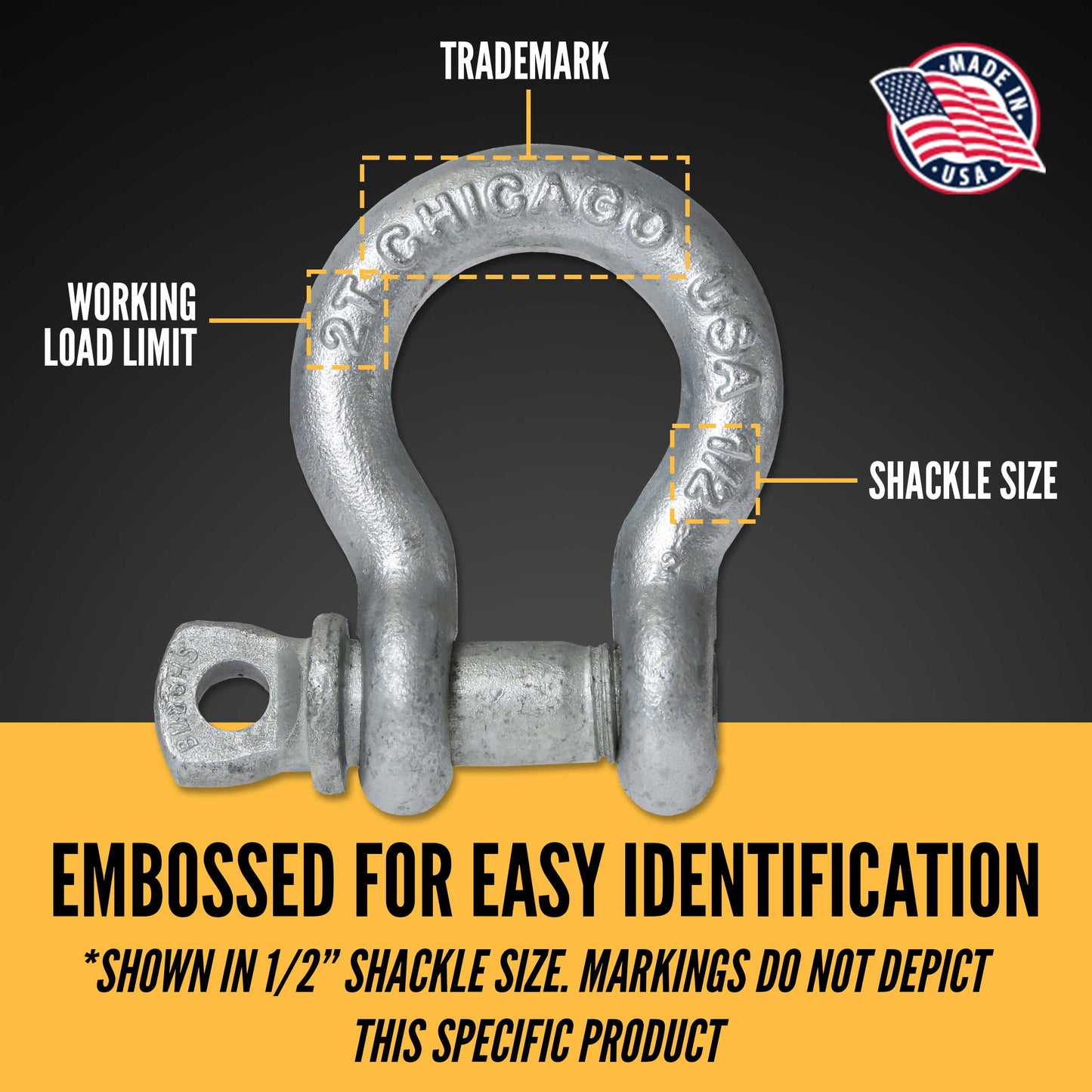

Screw Pin Anchor Shackle - Chicago Hardware - 1-1/2" Galvanized Steel - 17 Ton
Screw Pin Anchor Shackle - Chicago Hardware - 1-1/2" Galvanized Steel - 17 Ton!
$175.39
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 17 ton
Brand part number: 20170 4
Finish: Galvanized
Inside height: 5.75"
Inside width: 3.75"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 2.38"
Pin size: 1-5/8"
Product weight: 17.78 lbs.
Safety factor: 6:1
Shackle size: 1-1/2"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Screw Pin Anchor
Description
Screw pin anchor shackles provide the security of a strong connection with the ease of a quick release pin. A traditional bow shape is designed to handle multi-dimensional pulling, unlike chain shackles/D shackles, which have a narrow shape.
Excellent for temporary pulling or lifting jobs or those that require frequent connects and disconnects, as the screw pin is easy and fast to operate.
Made in the USA in forged galvanized steel, hot dipped to create protection from wear and corrosion.
