SKU: SPAS14-D
Screw Pin Anchor Shackle - Chicago Hardware - 1/4" Galvanized Steel - .5 Ton
Screw Pin Anchor Shackle - Chicago Hardware - 1/4" Galvanized Steel - .5 Ton!
$5.59
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 0.5 ton
Brand part number: 20110 0
Finish: Galvanized
Inside height: 1.13"
Inside width: 0.75"
Manufacturer name: Chicago Hardware
Material: Drop-Forged Steel
Mouth width: 0.47"
Pin size: 5/16"
Product weight: .13 lbs.
Safety factor: 6:1
Shackle size: 1/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Screw Pin Anchor
Description
Offers the security of a strong screw pin connection with the ease of a quick release mechanism. The bow shape has the ability to handle a wider variety of connections and multi-dimensional pulling, as opposed to chain shackles which have a more narrow shape.

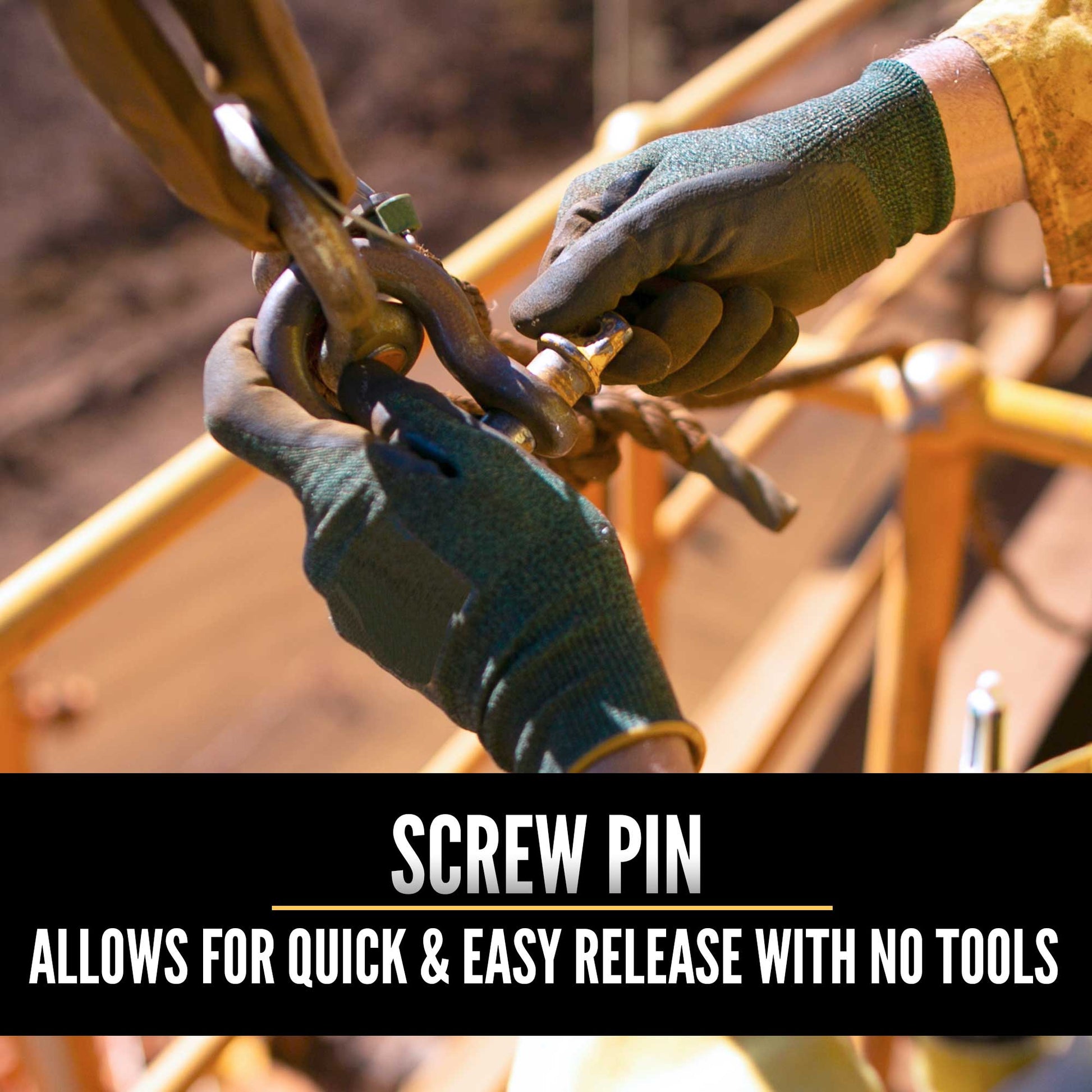

Excellent for temporary lifting jobs or those that require frequent connects and disconnects since the quick-release pin action is faster to operate than a shackle with a round pin.

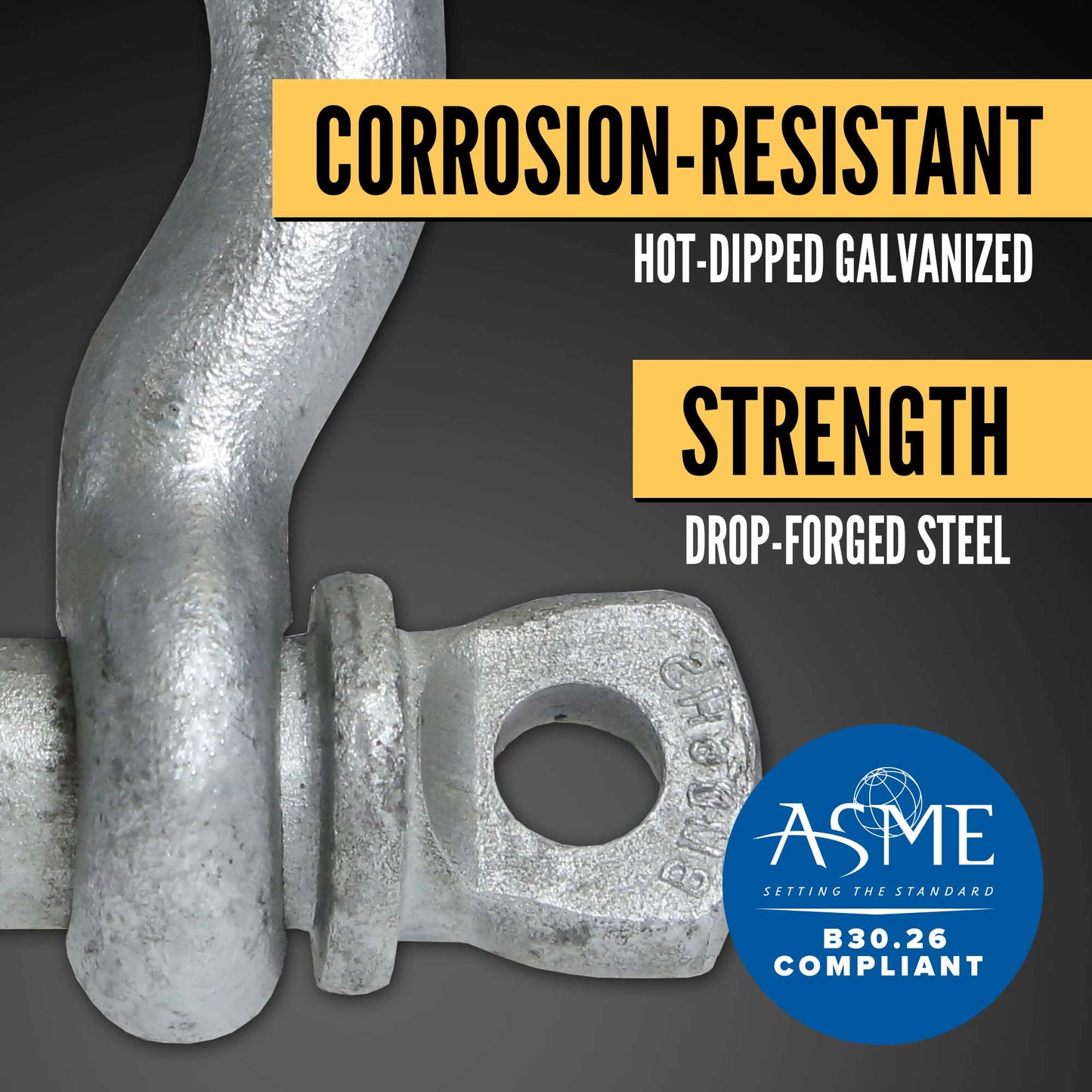

Made in the USA in forged galvanized steel, hot dipped to create protection from corrosive elements.
