SKU: JJTBGV12X6-CR

1/2" x 6" Crosby® Jaw & Jaw Galvanized Turnbuckle - HG-228 | 1032554

1/2" x 6" Crosby® Jaw & Jaw Galvanized Turnbuckle - HG-228 | 1032554!

Skip to product information
1 of 7
Authorized Distributor
SKU: JJTBGV12X6-CR
Authorized Distributor
$80.20

Request Bulk Pricing
Call/Chat for ship date
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Questions? Need it custom?

We Can Help!

Payment Options

Amazon
American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Working load limit: 2,200 lbs.
More Info: Made in America Jaw end fitted with bolts & nuts.
Body length: 6"
Brand part number: 1032554
Finish: Galvanized
Jaw opening: .64"

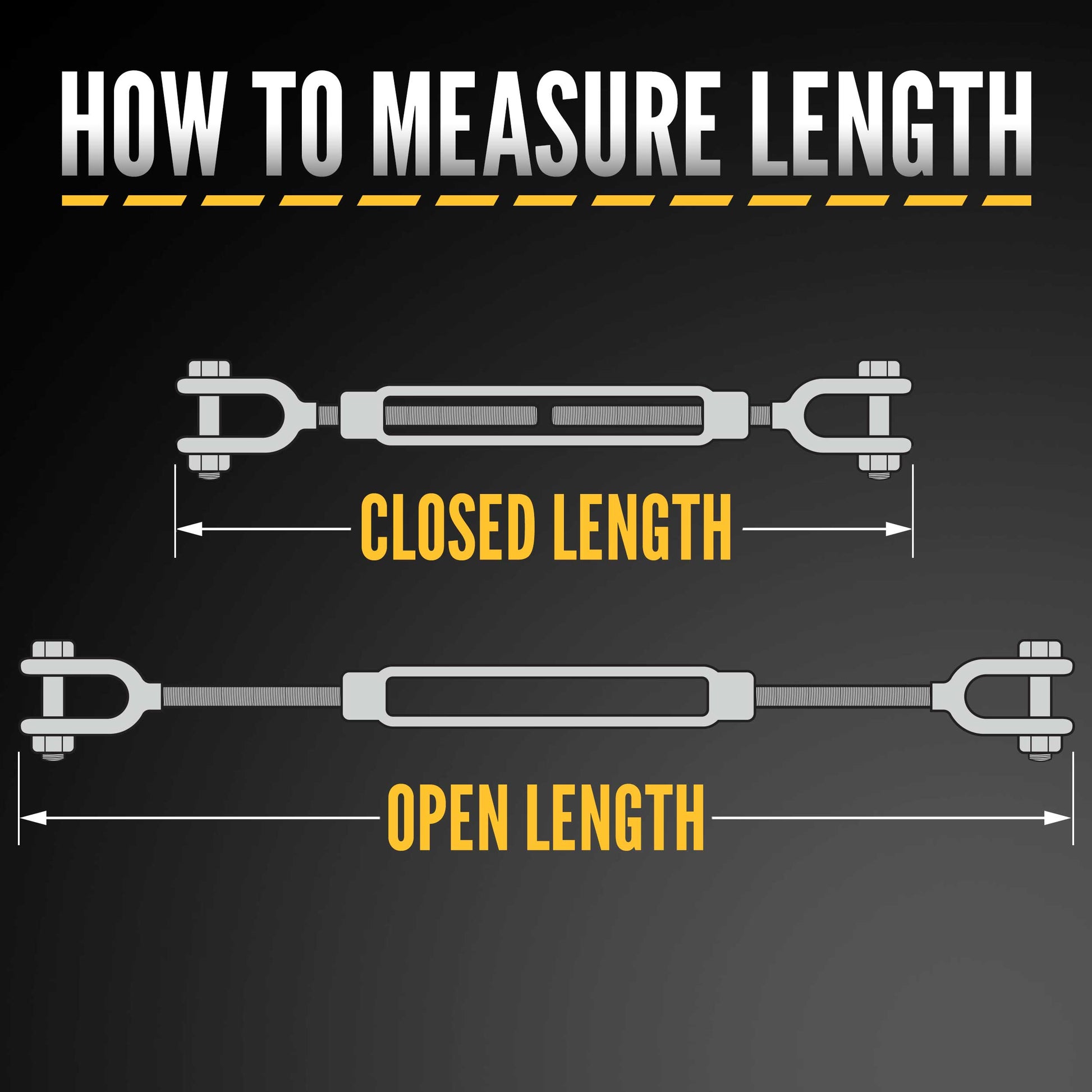

Length closed: 14.14"
Length open: 21.14"
Manufacturer name: Crosby®
Pin size: 0.37"
Product weight: 1.5 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM F-1145 & ASME B30.26.
Turnbuckle size: 1/2"
Description

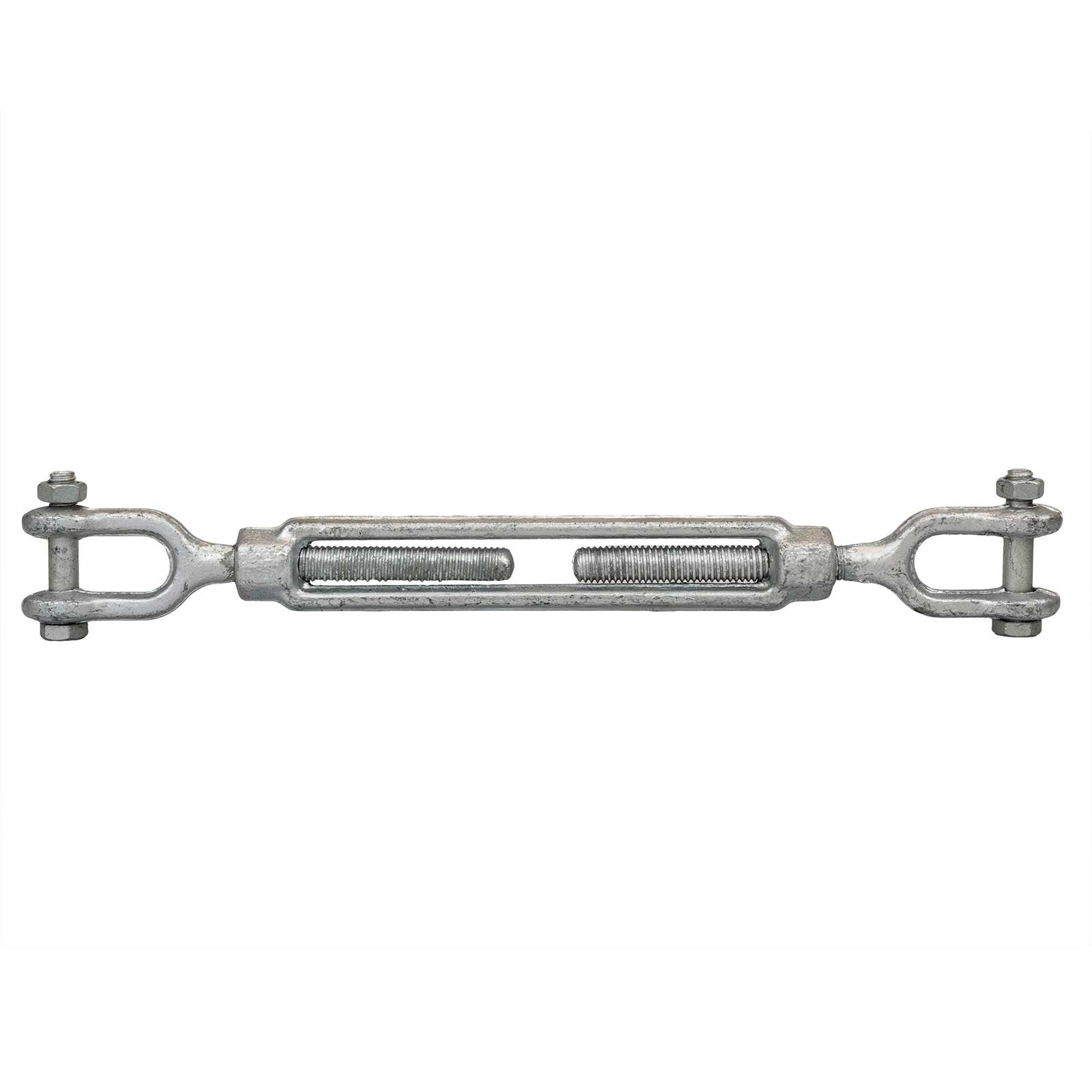

Crosby Jaw and Jaw Turnbuckle | 1/2" x 6"

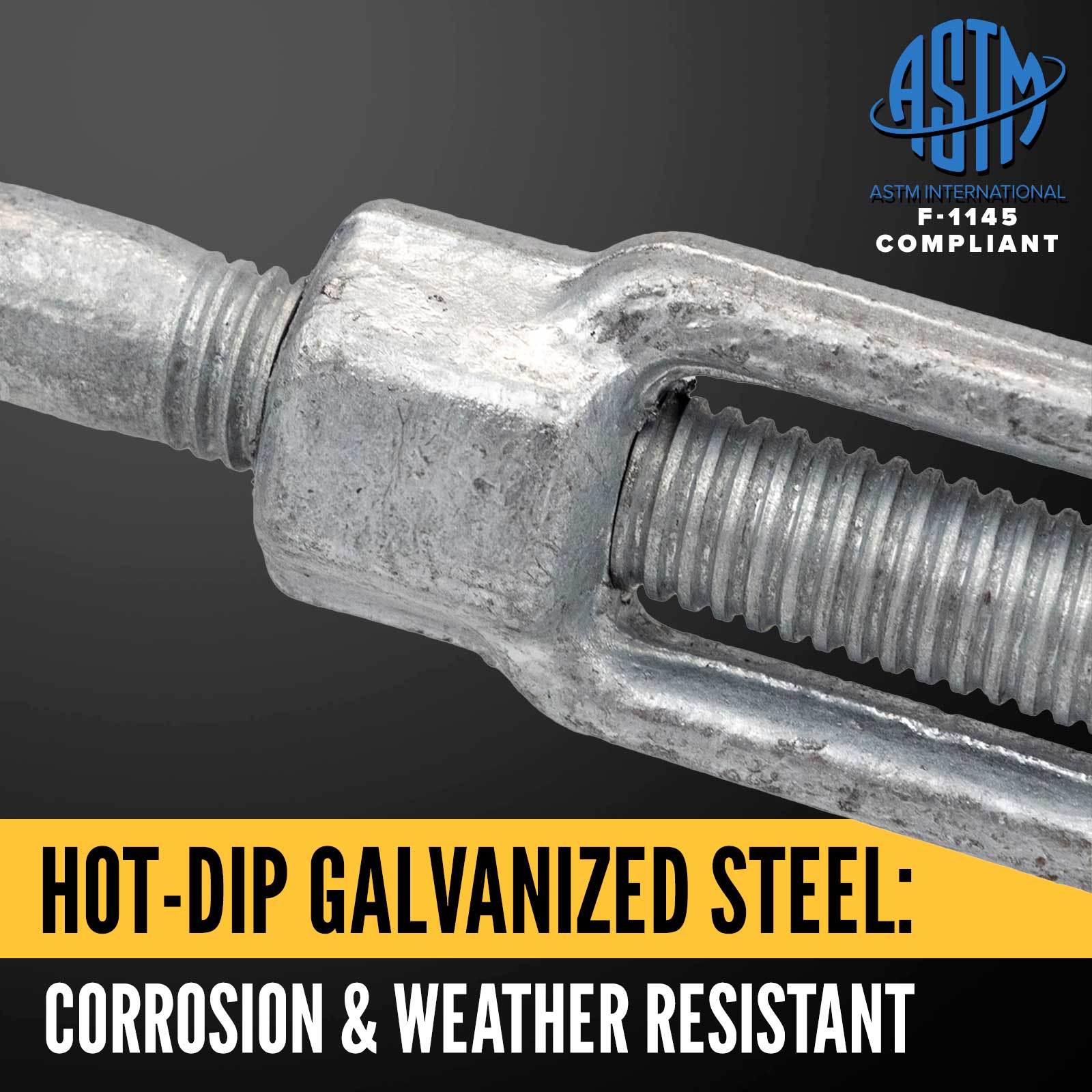

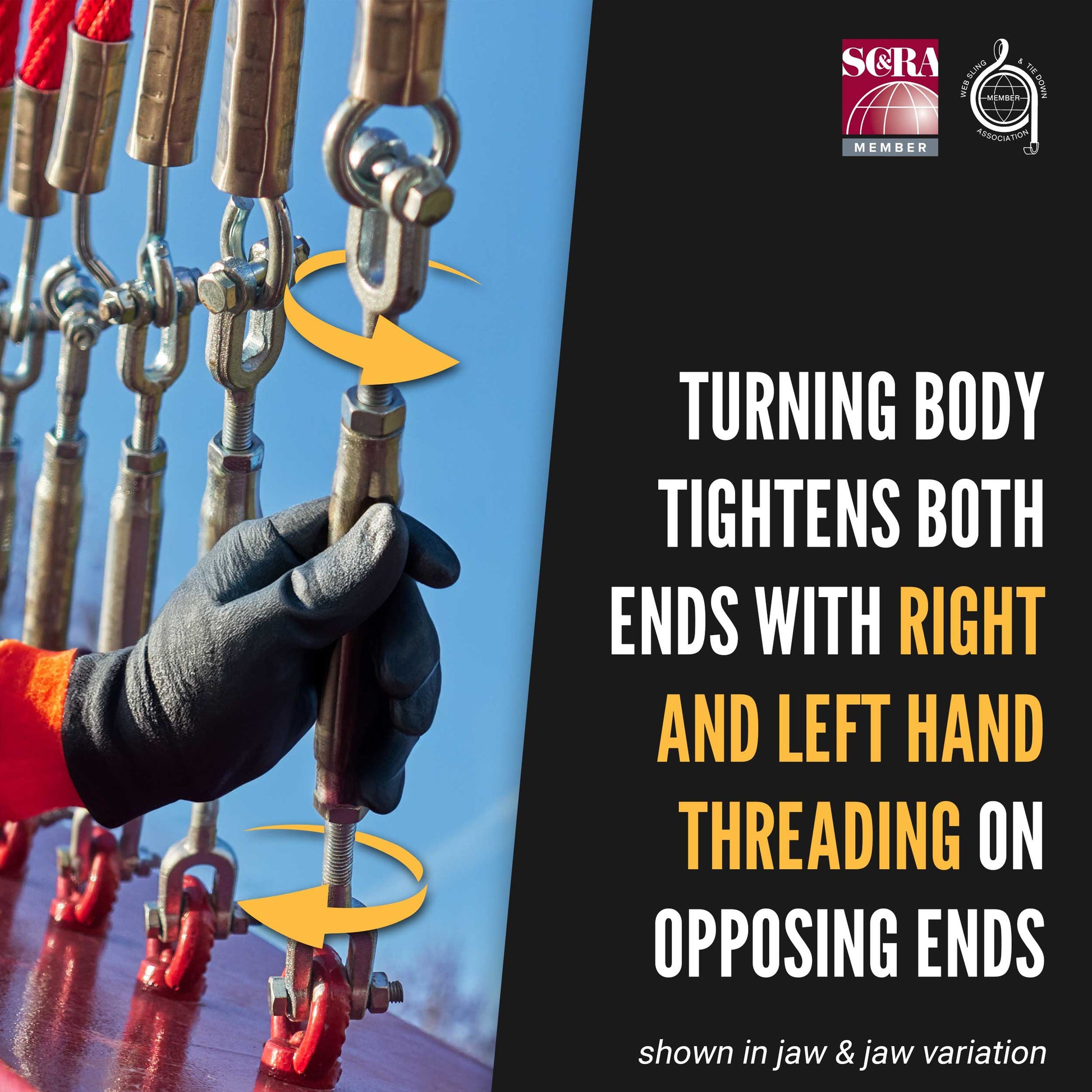

Turnbuckles are an essential rigging component. Used to adjust line tension, they are commonly used in tower, construction, and suspension applications, along with many others. When you choose trusted manufacturer Crosby for your turnbuckle needs, you can count on superior performance. Constructed from hot-dip galvanized steel for corrosion-resistance and durability, these heavy-duty turnbuckles can easily handle the demands of your jobsite.

Reinforced Crosby Turnbuckle End Fittings

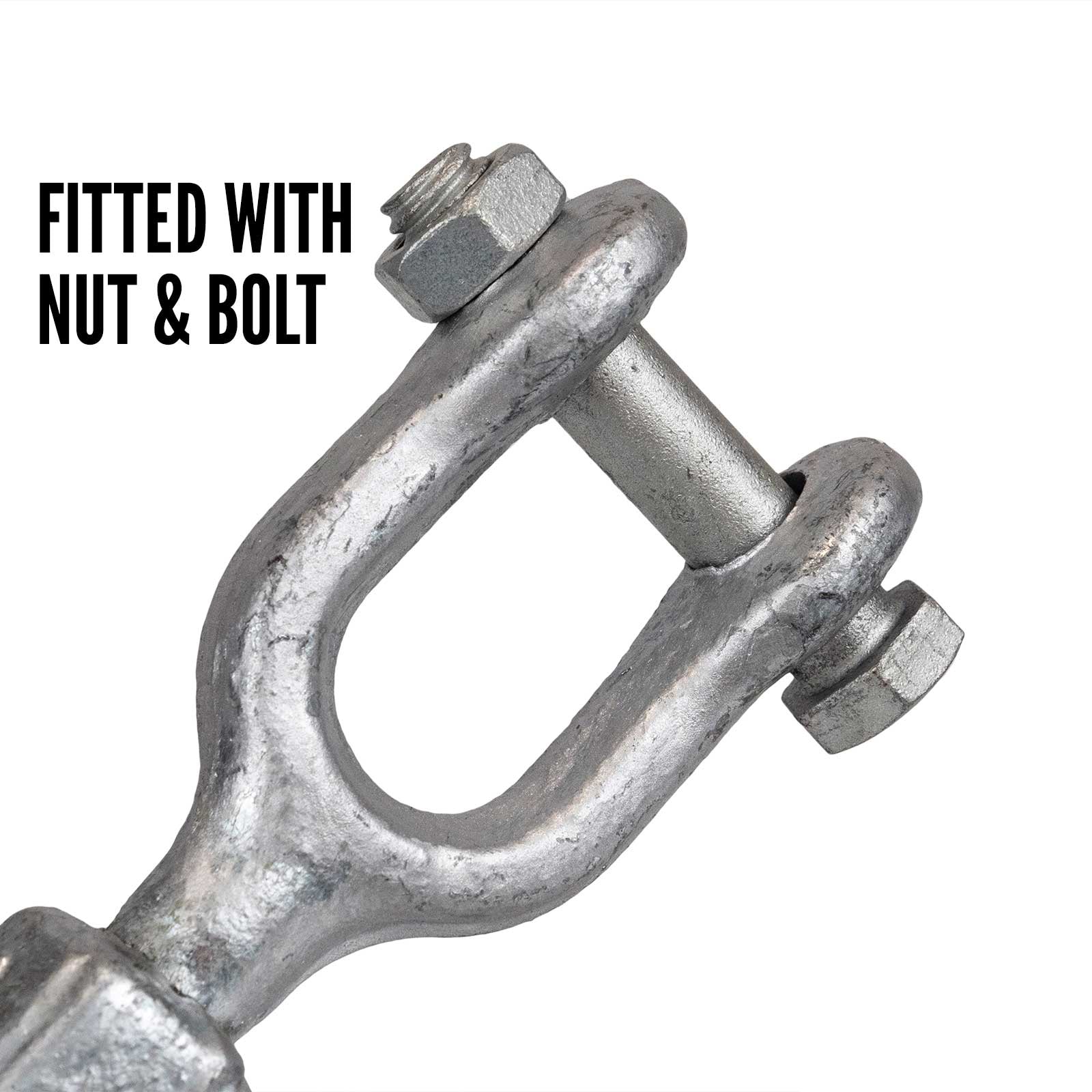

The quenched and tempered or normalized end fittings are built to last and come with a modified UNJ thread, improving the fatigue properties. The jaws are fitted with bolts and nuts.

Superior Testing & Design

Another way Crosby ensures the longevity of their turnbuckles is through comprehensive testing and disciplined design. They go above and beyond the standard ASME B30.26 requirements - they also meet additional critical performance requirements such as fatigue life, impact properties, and material traceability. These turnbuckles also meet the performance requirements of Federal Specifications FF-T-791B, Type 1 Form 1 - CLASS 4 and ASTM F-1145 (excepting the provisions required of the contractor).

Jaw & Jaw Turnbuckle Features:

  • Fatigue-rated to 20,000 cycles at 1-1/2 times the working load limit
  • UNC-threaded body
  • Lock nuts are not included with purchase - please call to order.
  • Note: Turnbuckles are only recommended for straight or in-line pulls.

Looking for additional rigging supplies? Check out our full selection of Crosby rigging products, as well as our wire rope and rigging hooks!
