SKU: JJTBGV516X4-12-CR
5/16" x 4 1/2" Crosby® Jaw & Jaw Galvanized Turnbuckle - HG-228 | 1032518
5/16" x 4 1/2" Crosby® Jaw & Jaw Galvanized Turnbuckle - HG-228 | 1032518!
Authorized Distributor
SKU: JJTBGV516X4-12-CR
Authorized Distributor
$73.09
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 800 lbs.
Body length: 4-1/2"
Brand part number: 1032518
Finish: Galvanized
Jaw opening: .50"

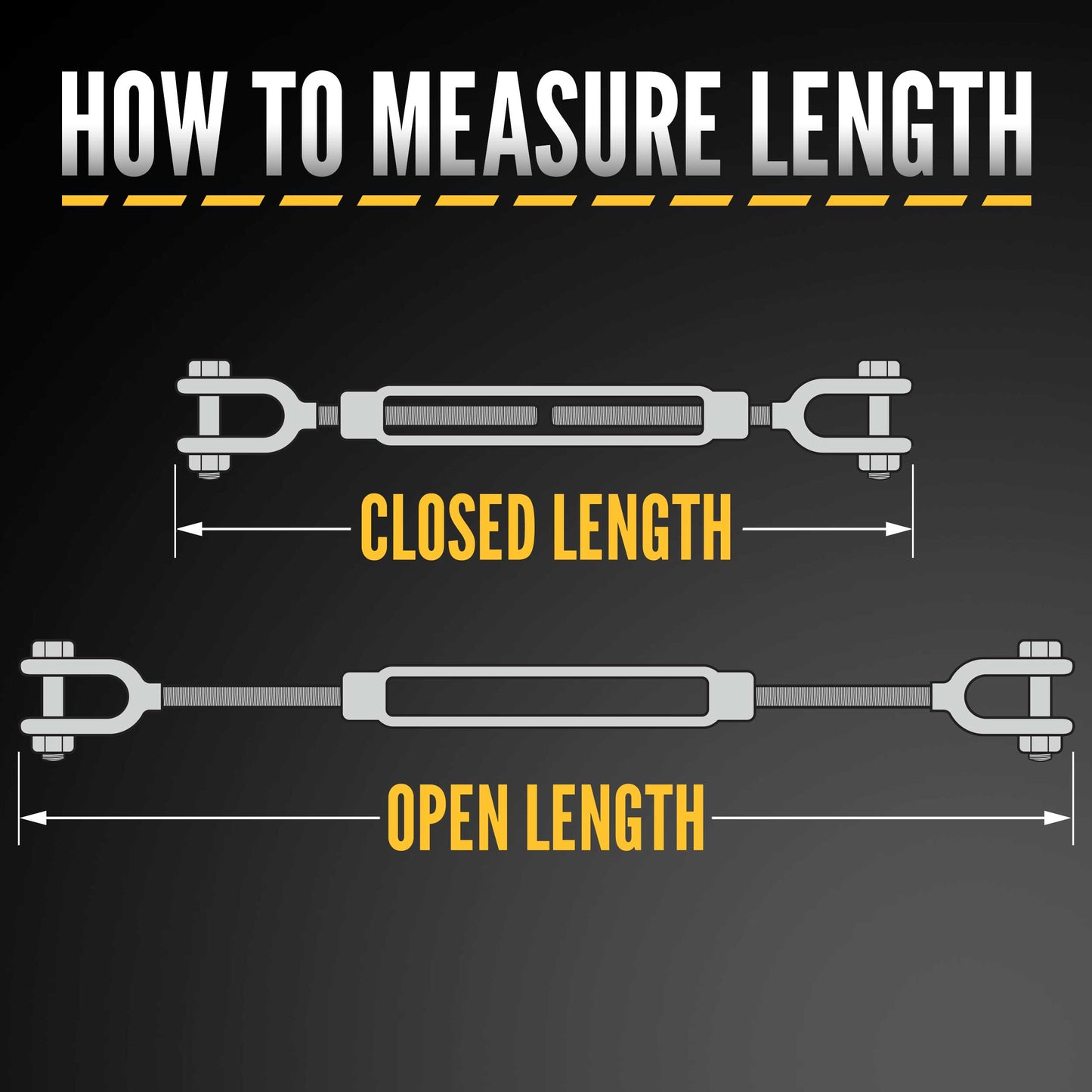

Length closed: 9.62"
Length open: 14.12"
Manufacturer name: Crosby®
Pin size: 0.25"
Product weight: .52 lbs.
Rated for Overhead Lifting: No
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM F-1145 & ASME B30.26.
Turnbuckle size: 5/16"
Additional Info: Made in America

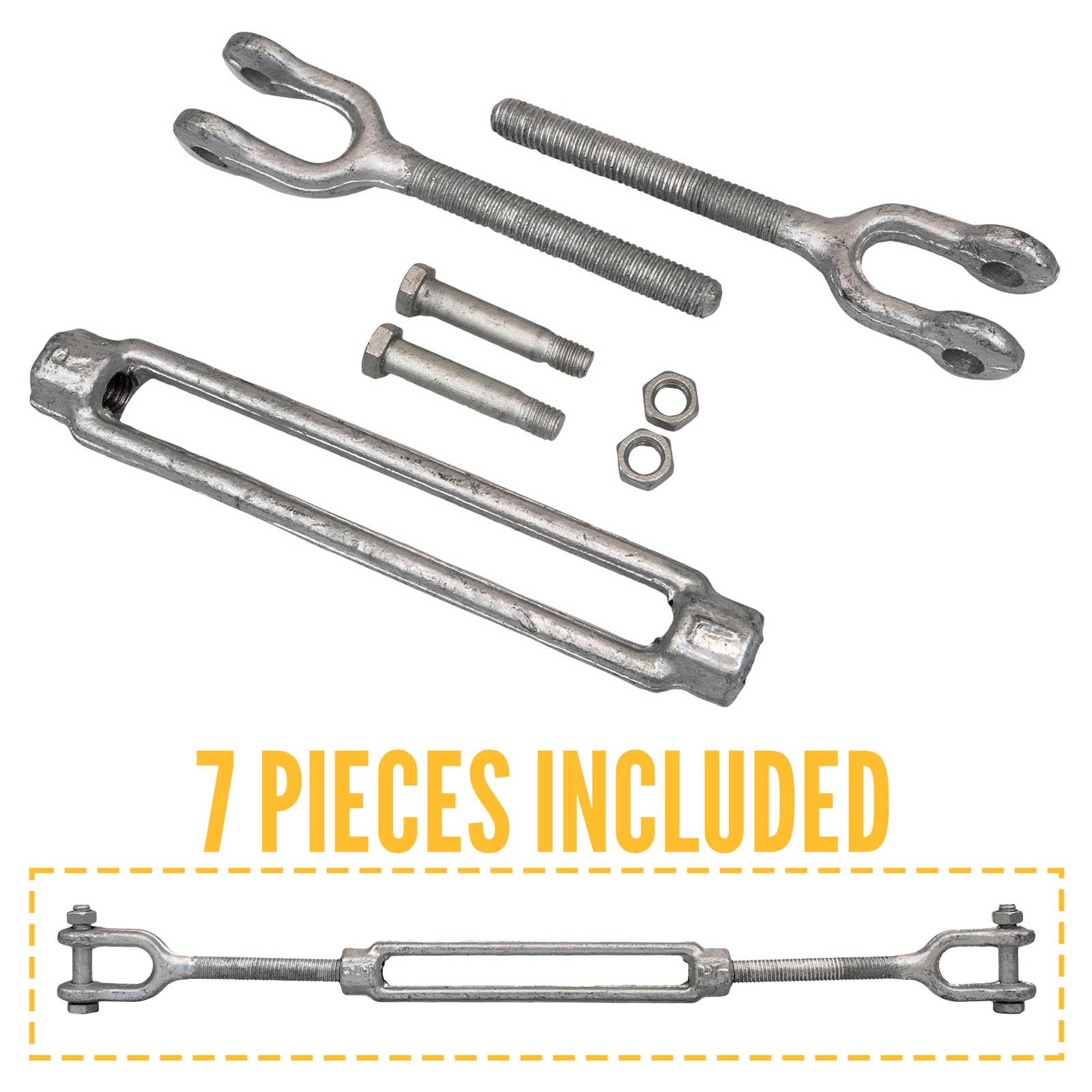

Jaw end fitted with bolts & nuts.
Jaw end fitted with bolts & nuts.
Description
Crosby Jaw and Jaw Turnbuckle | 5/16" x 4-1/2"
Turnbuckles are an essential rigging component. Used to adjust line tension, they are commonly used in tower, construction, and suspension applications, along with many others. When you choose trusted manufacturer Crosby for your turnbuckle needs, you can count on superior performance. Constructed from hot-dip galvanized steel for corrosion-resistance and durability, these heavy-duty turnbuckles can easily handle the demands of your jobsite.
Reinforced Crosby Turnbuckle End Fittings
The quenched and tempered or normalized end fittings are built to last and come with a modified UNJ thread, improving the fatigue properties. The jaws are fitted with bolts and nuts.
Superior Testing & Design
Another way Crosby ensures the longevity of their turnbuckles is through comprehensive testing and disciplined design. They go above and beyond the standard ASME B30.26 requirements - they also meet additional critical performance requirements such as fatigue life, impact properties, and material traceability. These turnbuckles also meet the performance requirements of Federal Specifications FF-T-791B, Type 1 Form 1 - CLASS 4 and ASTM F-1145 (excepting the provisions required of the contractor).
Jaw & Jaw Turnbuckle Features:
- Fatigue-rated to 20,000 cycles at 1-1/2 times the working load limit
- UNC-threaded body
- Lock nuts are not included with purchase - please call to order.
- Note: Turnbuckles are only recommended for straight or in-line pulls.
Looking for additional rigging supplies? Check out our full selection of Crosby rigging products, as well as our wire rope and rigging hooks!
